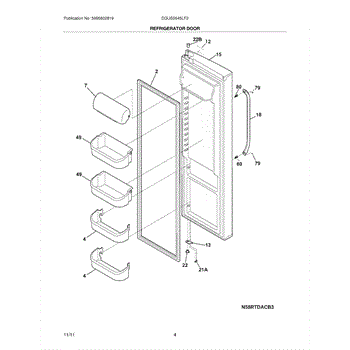

Parts for Frigidaire DGUS2645LF2: 05 - Refrigerator Door Parts

This single-pack Frigidaire PureSource 3 WF3CB Water Filter is an OEM replacement part for Frigidaire refrigerators. It improves the quality and taste of your drinking water. It removes impurities such as lead, cysts, and mercury, as well as reduces chlorine taste and odor. The filter is NSF and WQA certified and is designed to fit specific side-by-side models after 2009 where the filter is located in the back, right top.

Specs:

• Pressure range: 30 - 100 PSIG
• Color: White
• Dimensions: Approximately 2-1/2 inches in diameter by 9-1/2 inches deep.

To ensure optimal performance, filters should be changed every 6 months or 200 gallons, depending on usage.

The Refrigerator Door Gasket is an OEM replacement part for Frigidaire refrigerators. This gasket forms a tight seal around the refrigerator door, keeping cold air inside and preventing warm air from entering. By maintaining an airtight seal, it helps ensure consistent cooling and energy efficiency, preserving food quality.

Over time, gaskets can wear out due to frequent use, temperature changes, or exposure to cleaning chemicals. A damaged or degraded gasket can lose its flexibility or develop cracks, leading to an improper seal that affects the refrigerator's performance.

Symptoms of a bad refrigerator door gasket include:

• Warm spots or uneven cooling inside the refrigerator
• Excess condensation or moisture around the door
• Difficulty in securely closing the refrigerator door
• Increased energy consumption as the appliance works harder to maintain temperatures

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

NOTE: GRAY DOOR GASKET

The Bottom Door Bin is an OEM replacement part for Frigidaire refrigerators. Measuring approximately 16 inches in length, 4 inches in height, and 5 inches in depth. This bottom door bin offers ample storage space for all your refrigerated items.

Symptoms of a bad bottom door bin can include:

• Scratches, cracks or deformities to the plastic material
• Difficulty sliding the bin in and out smoothly
• Failing retention clips or loose mounting hardware

Causes are usually normal wear from regular use over time. Improper handling may also cause damage.

This OEM replacement part is also compatible with models by Electrolux, Gibson, Kelvinator, and Kenmore.

The Dairy Door is an OEM part for Frigidaire side-by-side refrigerators. It provides a convenient sealed storage compartment at the refrigerator door to keep dairy and other perishables fresher longer. The dairy door protects items from temperature fluctuations due to frequent door openings. It measures about 14 inches wide by 6 inches high.

Causes of a bad dairy door can include cracks, punctures or other damage reducing insulation effectiveness. Warping or improper sealing due to age can also affect performance.

Symptoms of a bad dairy door include:

• Condensation or frost buildup inside the door
• Items inside spoiling more quickly than in the main refrigerator
• Difficulty closing or sealing the dairy door properly

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This replacement nameplate label restores the appliance's identification and rating information so you can read model, serial, and electrical data clearly. Helps when the original label is faded, damaged, or missing. What it does

• Displays model and serial numbers, electrical ratings and safety markings for identification and service
• Replaces faded, torn, or illegible factory labels so appliance data is readable
• Helps technicians and owners confirm correct specifications during repairs or replacement parts ordering
• Does not affect appliance operation; used for identification and information only

• One replacement nameplate label

• Clean and dry the surface before applying so the label adheres and lays flat
• Align carefully; many labels are adhesive-backed and are intended for single use
• Avoid placing over gaskets, vents, or moving parts; install where original label was located

This replacement door stop limits a refrigerator door's travel to prevent over-rotation, protect hinges and cabinet edges, and help keep the door aligned for a proper seal. Durable plastic replacement for a worn or broken stop. What it does:

• Stops the door at the correct travel point to prevent hitting adjacent cabinetry or walls.
• Reduces stress on hinge components to prevent premature wear.
• Helps the door sit square for a tighter seal and more consistent cooling.
• Common symptom: door swings past the normal stop, won't stay open, or the plastic stop is cracked/broken.

• Support the door while removing/installing the stop — fridge doors can be heavy and may shift.
• Use basic hand tools; do not overtighten fasteners to avoid cracking the new stop.

This replacement door handle restores a sturdy, comfortable grip on your refrigerator door. It replaces cracked or loose handles so you can open and close the door safely while keeping the appliance's appearance clean and finished.

• Provides the leverage and grip needed to open and close the door
• Restores appearance when the original handle is worn, discolored, or broken
• Helps prevent stress on the door gasket by giving a proper grab point
• Common signs of failure: handle is cracked, loose, wobbly, or missing

• Disconnect power before servicing; turn off water supply if working near a dispenser line
• Open the door and remove any decorative end caps to access the mounting screws
• Support the handle, remove screws, position the new handle, and reinstall using existing hardware; do not overtighten
• The handle is secure and the door opens and closes smoothly

This #10-32 x 3/4-inch machine screw secures appliance components such as panels, brackets, and handles. Using the correct length and thread helps restore a snug, rattle-free hold wherever this screw is specified by the manufacturer.

• Fastens components with a #10-32 machine thread and 3/4-inch length
• Helps keep panels, trim, brackets, or handles secured and aligned
• Replaces missing, stripped, or corroded hardware
• Common signs include loose or wobbly parts, rattling, missing screws, or damaged screw heads/threads

• Disconnect power before servicing; if working near a water connection, shut off the water supply
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping plastic or threads
• Reuse any model-specific washers or spacers if present

This refrigerator dispenser bearing supports the auger shaft so it spins smoothly during ice dispensing. Replacing a worn bearing restores quieter, more reliable ice delivery and helps prevent binding or uneven crushing of cubes. What it does

• Supports and centers the ice auger/crusher shaft inside the ice bucket
• Reduces friction to allow smooth, consistent rotation
• Wear can cause grinding or squealing during dispensing
• Symptoms include slow/no ice dispensing, jamming, or intermittent operation

• 1 bearing

• Disconnect power and turn off the water supply before service
• Remove the ice bucket and disassemble the crusher housing to access the bearing
• Note the bearing's orientation; transfer any spacers or clips as found
• Reassemble carefully and ensure the auger turns freely by hand before restoring power

The Lower Door Closer is an OEM replacement part for Frigidaire refrigerators. It is a vital part that assists in securely shutting the refrigerator door. The door closer contains a calibrated spring mechanism designed to gently guide the door into the closed position without using forceful movements.

Symptoms of a bad door closer include:

• The door not latching fully or popping back open easily
• Difficulty closing the door all the way
• Excessive noise and banging when closing
• Gaps appearing around the door seal

Causes can be regular wear and tear on the spring after prolonged use. Not allowing the door to fully close before reopening may also damage the door closer mechanism over time.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Frigidaire Door Shelf Bin is an OEM replacement part for Frigidaire refrigerator. This bin provides storage space for drinks and snacks, keeping them organized and easy to access.

Causes of a bad door shelf bin can include frequent use, overloading with heavy items, or accidental impacts that can lead to cracks, breaks, or warping. A damaged shelf bin can result in items not being securely held in place and can decrease the overall storage efficiency of the refrigerator.

Symptoms of a bad part may include-

• Items falling out of the bin
• Difficulty closing the door
• Bin not staying on the door

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Door Handle Screw is an OEM part for Frigidaire refrigerators. This screw secures the door handle to the refrigerator door, ensuring a firm and stable grip for opening and closing the door.

Causes of a bad door handle screw can include regular wear and tear from frequent use, corrosion due to exposure to moisture, or damage from over-tightening or stripping. A faulty screw can lead to a loose or wobbly door handle, making it difficult to operate the refrigerator.

Symptoms of a bad door handle screw include:

• The door handle feeling loose or coming off
• Difficulty in securely tightening the handle
• Visible rust or corrosion on the screw
• Stripped threads on the screw or handle

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This 3/32" screwdriver is the service tool used to access and adjust small screws on appliances, making routine panel and control adjustments easier and more precise. Handy for basic repairs and maintenance. What it does:

• Fits 3/32" slotted screws commonly found on control panels, trim, and small fasteners
• Allows removal and installation of small service screws for access to internal components
• Helps correct loose screws that can cause rattling or misaligned panels
• Provides better fit than oversized drivers to reduce screw head damage

• Always disconnect power to the appliance before performing service or repairs
• Use the correct 3/32" blade size to avoid stripping screw heads
• Apply steady pressure and avoid excessive torque; use hand force only unless otherwise specified

This is a service wrench used to loosen and tighten appliance fasteners for maintenance and repairs, making access and part replacement easier for technicians and DIYers. Durable tool designed for specific appliance fastener sizes. What it does:

• Provides the correct fit and leverage for removing or installing designated appliance nuts, bolts, and fittings
• Helps safely access internal components during service and part replacement
• Reduces risk of rounding fasteners compared with improvised tools
• Useful for routine maintenance tasks and repair procedures that require a dedicated wrench

• One wrench

• Use the wrench only for its intended appliance fasteners; avoid excessive force
• Disconnect power and water to the appliance before beginning service
• Wear safety gloves and eye protection when working on appliances
