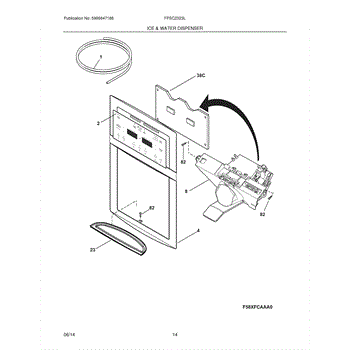

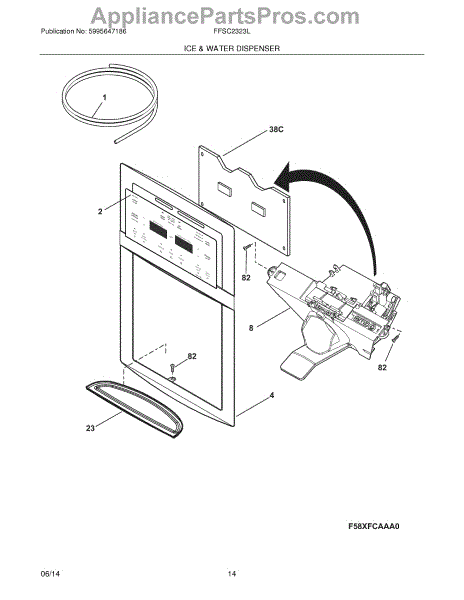

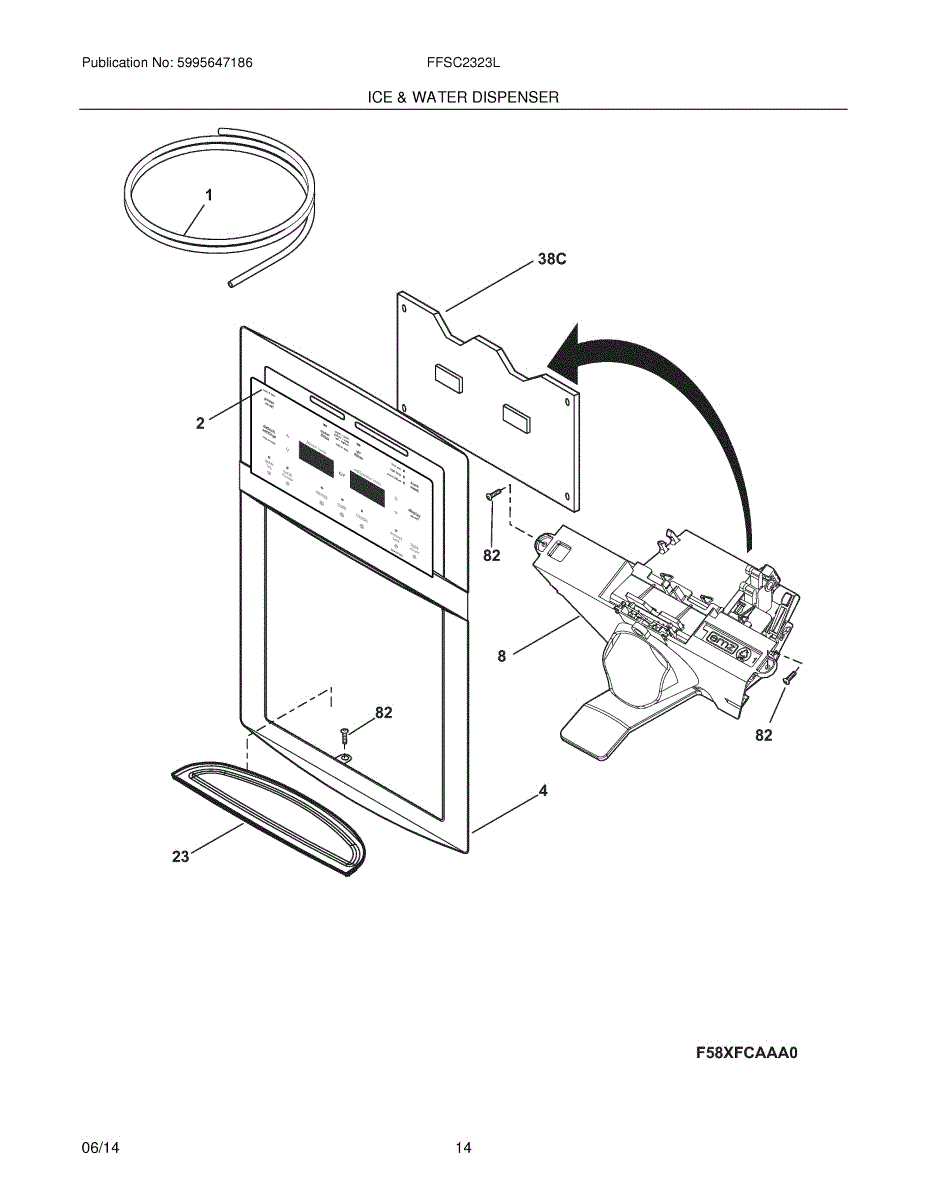

Parts for Frigidaire FFSC2323LSB: 15 - Ice & Water Dispenser Parts

This refrigerator water tube carries water between internal components such as the inlet valve, filter/reservoir, dispenser, or ice maker. Replacing a brittle, kinked, or leaking tube helps restore proper water flow and prevents messy leaks. What it does:

• Routes water within the refrigerator's water and ice system
• Helps deliver water to the dispenser and/or ice maker
• Common symptoms of a bad tube: leaks, poor dispenser flow, no ice production, visible cracks/kinks, or dripping at connections
• Restores dependable water delivery when tubing is damaged

• 1 water tube

• Unplug the refrigerator and shut off the water supply before servicing
• Note the tube's routing and connection points; take photos for reference
• Cut tubing ends squarely if trimming and fully seat into existing fittings
• Turn water back on and check all connections for leaks; flush the system to clear air

This dispenser module controls the refrigerator's ice and water dispensing functions and user interface. Replace a failed module to restore responsive dispensing, indicator lights, and consistent operation at the dispenser.

• Interprets button/paddle inputs and manages dispenser functions
• Coordinates ice and water dispensing operations
• Controls dispenser indicator lights/display for user feedback
• Failure can cause no dispense, unresponsive controls, or erratic/loss of lights

• Disconnect power and shut off water supply before service
• Remove the dispenser trim/panel carefully to access the module; protect against static discharge
• Note wire positions; transfer connectors and any reusable covers/overlays from the original part if applicable
• Restore power and test ice and water dispensing after installation

This dispenser drip tray sits beneath the refrigerator's ice/water dispenser to catch drips and small spills, helping keep the area cleaner and reducing moisture on the door and surrounding surfaces.

• Collects water and ice drips under the dispenser
• Helps contain minor spills during dispensing
• Protects the door surface from moisture and staining
• Common signs of wear: cracked or missing tray, water pooling in the dispenser area, tray not sitting flush

• Disconnect power before working around the dispenser area
• Lift the old tray straight up and out of the recess
• Clean and dry the dispenser pocket to remove residue
• Align and press the new tray down until it sits flat and secure

The Dispenser Control Board is an OEM part for Frigidaire refrigerators. It is located behind the control panel of the refrigerator and communicates with other components to activate the dispenser mechanisms. It enables the user to select and dispense ice or water as desired.

Causes of a faulty dispenser control board can include electrical malfunctions, component failure, or improper handling. These factors can result in issues such as the dispenser not responding to user input, incorrect dispensing amounts, or complete failure of the dispenser functions.

Symptoms of a bad dispenser control board may include:

• Inability to dispense ice or water
• Incorrect dispensing amounts or inconsistent operation
• Error codes or flashing lights on the dispenser panel

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head

This dispenser heater kit warms the dispenser area to help prevent ice build-up and keep the water/ice dispenser operating reliably. Replaces a failed heater assembly to restore proper dispenser function. What it does:

• Heats the dispenser chute/valve area to reduce frost and ice clogging
• Helps restore reliable water or ice dispensing when the dispenser intermittently freezes
• Prevents repeated thaw cycles that can cause leaks or inconsistent dispense flow
• Works as the direct replacement heater component used in the dispenser assembly

• Disconnect power to the appliance before beginning any work
• Access may require removing the dispenser housing or control panel
• Handle electrical connections carefully and secure wiring per OEM routing

This water inlet tube routes incoming water from the supply to the refrigerator's internal water system, restoring proper flow for the dispenser and icemaker. Replace a damaged tube to stop leaks and regain reliable water delivery. What it does

• Channels water from the household supply to the fridge's water valve, dispenser, and icemaker
• Helps prevent leaks caused by cracked, pinched, or deteriorated tubing
• Can restore water flow when internal tubing is blocked or split
• Works with the appliance's existing fittings and seals when installed correctly

• One water inlet tube

• Disconnect power and shut off the water supply before beginning work
• Inspect and reuse only original fittings and seals if undamaged; replace seals if leaking
• Avoid sharp bends or kinks when routing the tube; secure with existing clips or brackets

This refrigerator water inlet tube channels water from the valve into the internal dispensing/ice system. Replace a cracked, kinked, or clogged tube to restore proper flow and help stop leaks at the rear or inside the cabinet.

• Routes water from the inlet valve to the refrigerator's water system
• Helps resolve leaks, weak/no dispenser flow, or no ice production due to damaged or restricted tubing
• Replaces brittle, cracked, or kinked tubing that can cause drips or water damage
• Maintains a sealed path when properly seated in the existing fittings

• Disconnect power and shut off the water supply before servicing
• Dispense water to relieve line pressure; place a towel/pan to catch residual water
• Note the original routing; transfer any reusable clips/fittings from the old tube
• Cut ends square if required, push fully into couplers, restore water, and check carefully for leaks before reconnecting power

This refrigerator seal restores a tight barrier between internal components. Replacing a worn or damaged seal helps prevent air leaks and moisture intrusion, supporting proper airflow, stable temperatures, and reduced frost or condensation around the joint.

• Creates an air-tight barrier between mating surfaces
• Helps maintain correct airflow and temperature balance between compartments
• Reduces frost, condensation, and warm/cold spots near the sealed area
• Common signs of failure: visible gaps, loose/crumbled seal, rattling panel, moisture or frost at the joint

• Disconnect power before servicing
• Remove the related cover or housing to access the old seal
• Clean contact surfaces; install the new seal in the same orientation without stretching or pinching
• Reassemble and verify an even seal and normal airflow before returning to service

The Ice Maker Fill Tube Assembly is an OEM replacement part for Frigidaire refrigerators. As a component of the automatic icemaker, this fill tube assembly transports water from the water supply line into the ice molding chamber.

Causes of a bad fill tube assembly can include cracks, leaks, or blockages developing over time due to mineral buildup or mold growth inside the plastic tubing. Constant bending during ice production also leads to tubing fatigue.

Symptoms of a bad fill tube assembly include:

• Icemaker not filling with water or producing ice
• Water leaks in the freezer compartment
• Mineral residue or mold observed inside the tubing

This OEM Frigidaire part is compatible with models including Electrolux, Gibson, Kelvinator, and some Kenmore units.
