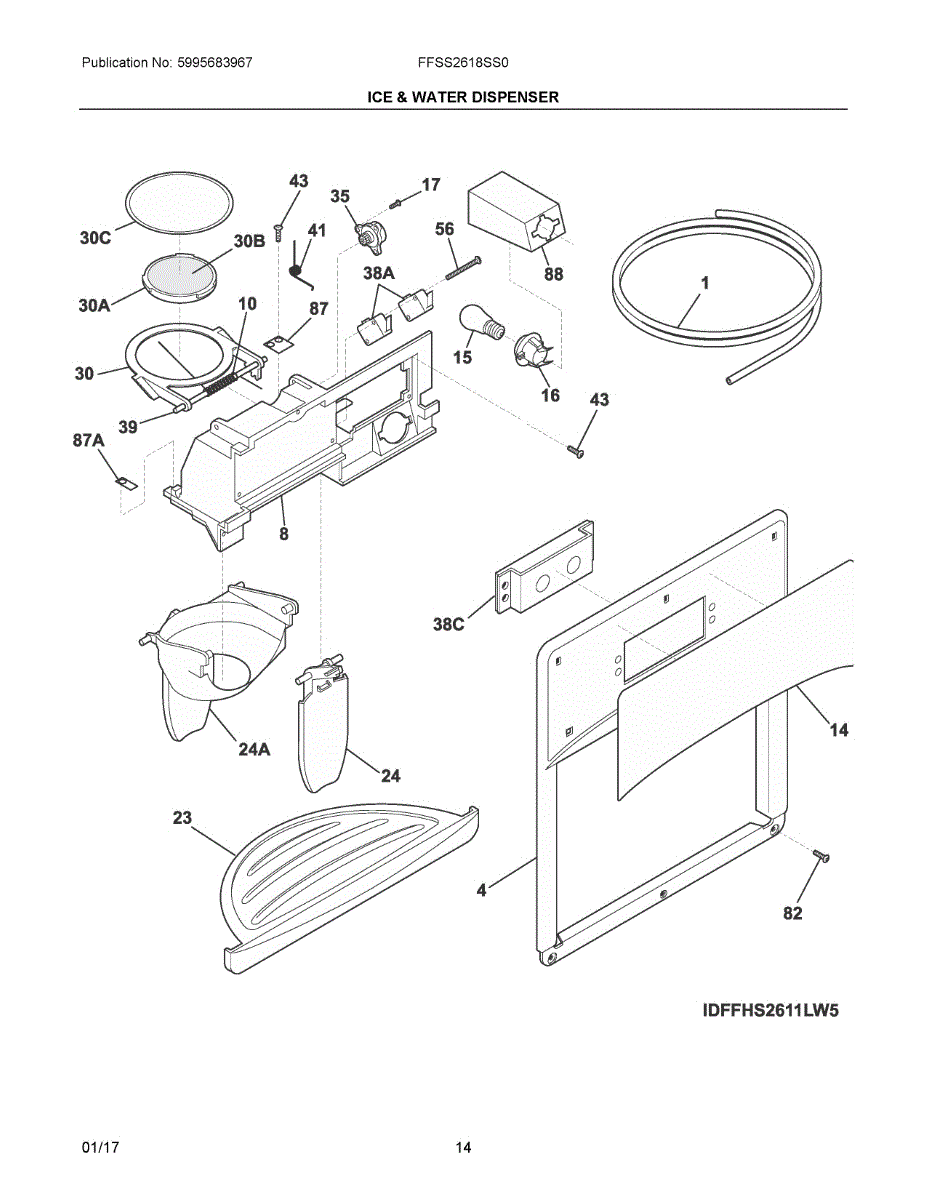

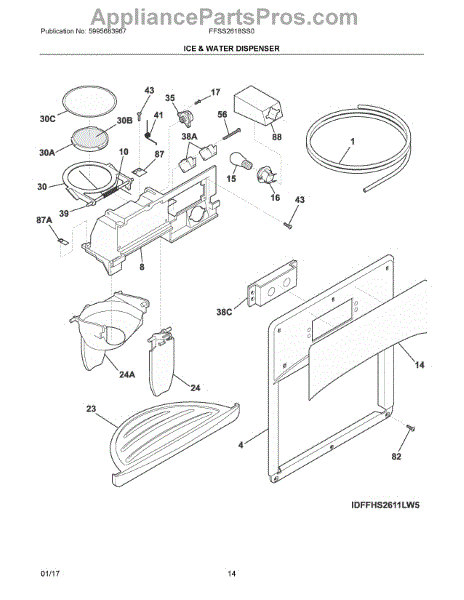

Parts for Frigidaire FFSS2618SS0: 08 - Ice & Water Dispenser Parts

This refrigerator water tube carries water between internal components such as the inlet valve, filter/reservoir, dispenser, or ice maker. Replacing a brittle, kinked, or leaking tube helps restore proper water flow and prevents messy leaks. What it does:

• Routes water within the refrigerator's water and ice system
• Helps deliver water to the dispenser and/or ice maker
• Common symptoms of a bad tube: leaks, poor dispenser flow, no ice production, visible cracks/kinks, or dripping at connections
• Restores dependable water delivery when tubing is damaged

• 1 water tube

• Unplug the refrigerator and shut off the water supply before servicing
• Note the tube's routing and connection points; take photos for reference
• Cut tubing ends squarely if trimming and fully seat into existing fittings
• Turn water back on and check all connections for leaks; flush the system to clear air

This torsion spring mounts in the dispenser to return the ice chute door/flapper to the closed position after dispensing. Replacing a weak or broken spring helps stop warm air leaks, frost, and ice clumping in the chute.

• Provides the closing force for the dispenser ice door
• Helps seal the ice chute to reduce frost and moisture intrusion
• Typical symptoms: ice door won't close fully, frost/ice buildup around the chute, cubes dropping after dispensing, or air leakage at the dispenser
• Replace if the spring is broken, deformed, or has lost tension

• Disconnect power before servicing; shut off water if working near the dispenser area
• Remove dispenser trim/bezel and control panel to access the ice door assembly; support wiring harnesses
• Note spring orientation and preload before removal; install the new spring on the same hinge posts in the same direction
• Manually cycle the flapper to ensure smooth return and a full seal before reassembly

The refrigerator dispenser module overlay is an OEM part for Frigidaire refrigerators. This overlay sits atop the dispenser module providing additional protection and aesthetic appeal.

Symptoms of a bad dispenser overlay include:

• Cracks or breaks exposing underlying parts
• Misalignment or looseness within the refrigerator
• Discoloration or wear affecting appearance
• Inability to fully or securely cover the dispenser module

Causes of a bad overlay can include damage from impact, repeated opening and closing of the refrigerator door, or general wear over time.

This Frigidaire OEM part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This replacement light bulb restores clear illumination inside your appliance, making it easy to check progress and find items. It matches the original fit and connection for dependable lighting exactly where the manufacturer intended.

• Provides appliance illumination per the original design
• Replaces bulbs that are burned out, dim, flickering, or intermittent
• Helps you monitor progress and see the compartment clearly
• Fits the original socket for straightforward replacement

What's included: 1 light bulb Install notes:

• Disconnect power to the appliance before replacing the bulb
• Allow the bulb and surrounding area to cool completely
• Handle the bulb by the base; avoid touching the glass
• Replace with the same type and wattage specified on the appliance or in the manual

A replacement refrigerator light socket that holds and connects the interior bulb so the light turns on when the door opens. Restores reliable interior lighting for easier food visibility and maintenance. What it does:

• Holds the interior refrigerator bulb and provides the electrical connection to power the lamp
• Replaces a cracked, burned, loose or intermittently working socket
• Helps stop flickering, arcing, or loss of interior light due to a damaged holder
• Works with the refrigerator's existing wiring and bulb type

• Disconnect power to the appliance before starting any repair
• Handle the bulb carefully; remove it before replacing the socket
• Verify proper wire connections and secure mounting; restore power and test the light after installation

A single replacement mounting screw used to secure appliance panels and components. Restores proper fit and prevents rattling or loose parts so trims and panels stay aligned during normal use. What it does:

• Fastens panels, brackets or trim pieces to the appliance frame
• Replaces worn, stripped or missing screws that cause loose or rattling parts
• Helps restore secure alignment for doors and access panels
• Works where the OEM lists a basic machine/fastener screw

• Disconnect power and water before beginning any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread by hand to start, then tighten until snug—do not overtighten
• Keep small parts away from children and pets during installation

The Drip Tray is an OEM replacement part that fits Frigidaire refrigerators. It is responsible for catching water drips and spills under the water dispenser. Over time, the tray can crack or warp leading to leaks. Causes of failure include loss of the part, accidental damage, and wear over time.

Symptoms of a failing drip tray include:

• water on the floor
• improper fit allowing leaks
• cracks or breaks in the tray

The drip tray is compatible with Frigidaire, Gibson, White Westinghouse, Kelvinator, Crosley, and Kenmore refrigerator models

The Ice Chute Door Insulation is an OEM replacement part for Frigidaire refrigerators. It is installed on the ice chute door to prevent warm air infiltration and moisture buildup around the ice dispenser.

Causes may include compression or cracking of insulating foam/material from normal use stress. Spills exposing it to liquid are also damaging.

Symptoms of defective insulation consist of:

• Ice accumulating within the chute cover area
• Condensation visible on exterior chute surfaces
• Inefficient icemaker performance due to altered temperatures

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Ice Door Center is an OEM part for Frigidaire refrigerators. This component is part of the ice dispenser system, managing the release of ice through the dispenser chute. It helps prevent cold air from escaping the freezer, maintaining energy efficiency and preserving the ice supply.

You should replace the ice door center if it becomes damaged or fails to seal properly. Causes of a bad ice door center can include regular wear and tear, damage from repeated use, or build-up of ice and debris obstructing its movement.

Symptoms of a bad ice door center include:

• Ice dispenser not working correctly
• Ice build-up around the dispenser area
• Warm air entering the freezer, causing ice to melt or clump
• Increased energy consumption due to poor sealing

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Ice Door Seal is an OEM part for Frigidaire refrigerators. This seal is designed to create an airtight barrier around the ice dispenser door, preventing warm air from entering the freezer and maintaining optimal temperature inside the ice compartment. Please note, this listing is for the seal only, other components are sold separately.

Over time, the ice door seal can become worn out or damaged due to frequent use, exposure to varying temperatures, and regular opening and closing. Causes of a bad ice door seal include cracking, tearing, or loss of elasticity, which can lead to air leaks.

Symptoms of a bad ice door seal include:

• Frost or ice buildup around the ice dispenser
• Warm air entering the freezer compartment
• Increased energy consumption
• Water or condensation around the ice dispenser area
• The ice door not closing properly or sealing tightly

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Ice Door Bracket is an OEM part for Frigidaire refrigerators. It is a critical component of the ice dispenser mechanism, designed to support and align the ice door properly. This bracket ensures the ice door opens and closes smoothly, maintaining an airtight seal to prevent warm air from entering the freezer compartment and causing frost buildup.

Symptoms of a bad Ice Door Bracket include:

• The ice dispenser door failing to close completely, which can lead to ice melting and freezer burn.
• Excessive frost or ice accumulation near the dispenser area.
• Unusual noise when the dispenser is activated, indicating misalignment or instability.

Causes of a bad ice door bracket can include mechanical stress from repeated use, accidental damage from impact, or wear and tear that weakens the structural integrity of the bracket.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Switch-4 Button Assembly is an OEM part for Frigidaire refrigerators. This switch assembly operates important refrigerator functions like the light controls, temperature selection, and ice/water dispenser functions. It contains four precise switches designed to last through years of use while maintaining accurate input control.

Causes of a bad switch assembly can include continuous actuations over time leading to switch wear, accidental damage or spills compromising switch integrity, or failures in electronic components.

Symptoms of a bad switch assembly include:

• Lights or temperature settings not functioning properly
• Ice/water dispenser buttons not working as expected
• Failed or improperly actuating switches
• Water leaks or electrical issues at the switch location

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This door hinge pin forms the pivot for the refrigerator door hinge, keeping the door supported and aligned. Replacing a worn or missing pin restores smooth door movement and consistent sealing.

• Acts as the hinge's pivot shaft to support the door
• Helps maintain door alignment so the gasket can seal properly
• Reduces wobble and scraping at the hinge point
• Typical failure symptoms: door sagging, misalignment, poor closing, or a loose/wobbly hinge

• Unplug the refrigerator and remove items from the door to reduce weight.
• Support the door; remove hinge cover and screws, then lift the door off the hinge.
• Replace the hinge pin in the hinge bracket; transfer any existing spacers/bushings as designed.
• Reinstall and align the door; tighten hardware and verify smooth operation and seal contact.

This small but critical actuator spring restores return tension in a refrigerator's actuator mechanism, helping the lever reset to neutral after use so controls feel responsive and operation stops cleanly. What it does:

• Provides the return force for an actuator or lever so it moves back to its neutral position
• Helps the mechanism engage/disengage a switch cleanly
• Common symptoms of a weak or broken spring: lever sticks, feels loose, or doesn't spring back
• Contribute to intermittent activation or failure to stop when released

• 1 actuator spring

• Disconnect power; if working near the dispenser/water system, shut off the water supply
• Access the actuator mechanism and note the spring's exact orientation (take a photo before removal)
• Use needle-nose pliers to transfer the spring; do not over-stretch or deform it
• Wear cut-resistant gloves and eye protection; test lever return action before reassembly

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head

This wiring harness routes power and signal connections between components to restore proper electrical communication and operation. It replaces a damaged or worn harness to fix intermittent or failed electrical functions. What it does:

• Reconnects power and control circuits between components so systems can receive proper voltage and signals
• Commonly used when wiring is frayed, burned, pinched, or connectors are loose or corroded
• Can resolve symptoms like no power to a component, intermittent operation, or control not responding
• Restores secure plug-and-play connections when the original harness is damaged

• Wiring harness assembly

• Always disconnect power before replacing any wiring or electrical parts
• Inspect connector fit, wire routing, and strain reliefs; route harness the same way as the original to avoid pinching
• Make sure connectors are fully seated and any locking tabs engage
• If you see damaged connectors on the appliance side, repair those before connecting the new harness

This water inlet tube routes potable water from the refrigerator's inlet/valve to the dispenser and ice-making components, helping restore normal water delivery and prevent leaks when damaged. What it does

• Channels water from the inlet valve to the dispenser/ice maker assembly.
• Replaces cracked, kinked, or clogged tubing that can cause leaks or reduced flow.
• Helps stop visible dripping, puddling, or intermittent water flow at the dispenser.
• Works as a direct-fit plumbing replacement when the original tube is damaged.

• One water inlet tube

• Turn off refrigerator power and shut off the water supply before starting.
• Inspect fittings and seals; replace any damaged ferrules or gaskets for a watertight connection.
• Use basic hand tools; avoid sharp bends or kinks when routing the tube.
• After installation, restore water and power, then check all connections for leaks.

This refrigerator water inlet tube channels water from the valve into the internal dispensing/ice system. Replace a cracked, kinked, or clogged tube to restore proper flow and help stop leaks at the rear or inside the cabinet.

• Routes water from the inlet valve to the refrigerator's water system
• Helps resolve leaks, weak/no dispenser flow, or no ice production due to damaged or restricted tubing
• Replaces brittle, cracked, or kinked tubing that can cause drips or water damage
• Maintains a sealed path when properly seated in the existing fittings

• Disconnect power and shut off the water supply before servicing
• Dispense water to relieve line pressure; place a towel/pan to catch residual water
• Note the original routing; transfer any reusable clips/fittings from the old tube
• Cut ends square if required, push fully into couplers, restore water, and check carefully for leaks before reconnecting power

The Ice Maker Fill Tube Assembly is an OEM replacement part for Frigidaire refrigerators. As a component of the automatic icemaker, this fill tube assembly transports water from the water supply line into the ice molding chamber.

Causes of a bad fill tube assembly can include cracks, leaks, or blockages developing over time due to mineral buildup or mold growth inside the plastic tubing. Constant bending during ice production also leads to tubing fatigue.

Symptoms of a bad fill tube assembly include:

• Icemaker not filling with water or producing ice
• Water leaks in the freezer compartment
• Mineral residue or mold observed inside the tubing

This OEM Frigidaire part is compatible with models including Electrolux, Gibson, Kelvinator, and some Kenmore units.
