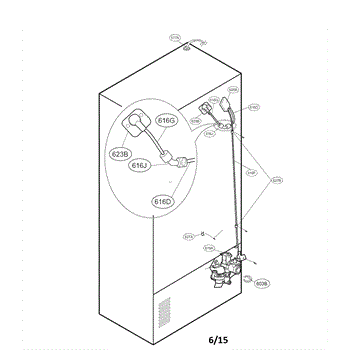

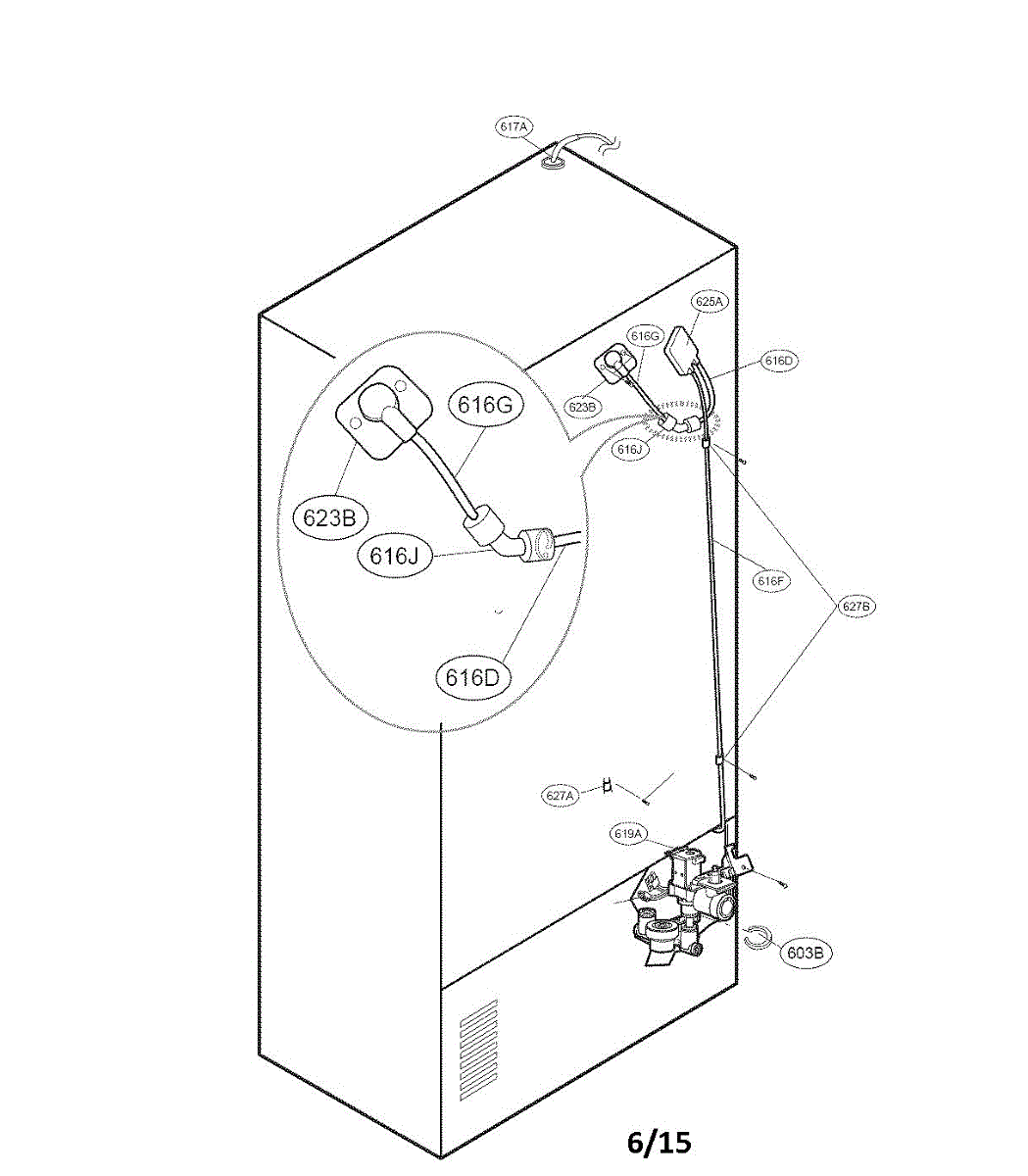

Parts for Kenmore 795.70323311 (79570323311, 795 70323311): Ice And Water Parts

The Water Filter is an OEM replacement part for LG refrigerators. It is designed to remove impurities, contaminants, and unwanted particles from the water supply, ensuring that the water dispensed and used for ice making is clean and fresh.

Symptoms of a need to replace the water filter:

• Unpleasant taste or odor in the water or ice
• Decreased water flow from the dispenser
• Discoloration or sediment visible in the dispensed water

Causes of a faulty water filter can include general usage over time, exposure to high levels of contaminants in the water supply, or physical damage or clogging of the filter media.

This OEM LG part is also compatible with some Kenmore refrigerator models.

The Water Line Connector is an OEM replacement part for LG refrigerators. It is responsible for connecting the water supply line from the home plumbing to the refrigerator's internal water distribution system, allowing for ice and water dispenser functionality.

Causes of a bad water line connector can include cracking, leaks, or deterioration of the connector material over time due to regular water pressure and temperature fluctuations. Connectors may also become damaged if exposed to impact.

Symptoms of a bad water line connector include:

• Leaks at the connection point between the line and refrigerator
• Loose, slipping, or disconnected water line fitting
• Reduced water pressure or no water flow to the dispenser
• Error codes related to water flow from the refrigerator diagnostics

 This OEM LG part is also compatible with Sears/Kenmore refrigerators.

This tube assembly directs water through the appliance, restoring a secure, leak-resistant path when the original line is brittle, kinked, or damaged. Replacing it helps stop leaks and restores normal water flow.

• Routes water from the inlet valve to internal components
• Maintains sealed connections to reduce drips and seepage
• Replaces tubing that is cracked, kinked, or clogged with mineral deposits
• Common symptoms: visible leaks, puddling, low flow, or intermittent water delivery

• Disconnect power and shut off the water supply before servicing
• Place a towel to catch residual water and relieve line pressure
• Note the routing and connection points; transfer any retainers from the old part if needed
• Insert tubing fully into fittings and tug gently to confirm engagement; restore water and check for leaks

Note: 90 degree elbow coupler (Fits 1/4" diameter tubing on each end) For 5/16" elbow connector, order part# 4932JA3009B.

The Water Line Union is an OEM part for LG refrigerators. This component connects sections of the water line, ensuring a secure and leak-free passage of water to the refrigerator's icemaker and water dispenser. It is an elbow tube union connector, which connects two tubes at a 90-degree angle.

Causes of a bad water line union can include wear and tear from frequent use, damage from high water pressure, or deterioration due to mineral buildup and age. A compromised union can lead to water leaks and disruption in the water supply.

Symptoms of a bad Water Line Union include:

• Water leaks around the connection points
• Reduced water flow to the icemaker or water dispenser
• Puddles or moisture near the refrigerator
• Unusual noises from the water line

This OEM LG part is also compatible with Sears/Kenmore.

The Water Valve Assembly is an OEM part for LG refrigerators. It is essential for controlling the flow of water to the ice maker and the water dispenser. This solenoid-operated valve responds to signals from the refrigerator’s electronic control system to accurately manage the release of water, ensuring efficient operation and reliability.

Symptoms of a bad Water Valve Assembly include:

• The ice maker not producing ice or producing very small cubes
• The water dispenser not functioning or dispensing a trickle instead of a steady flow
• Water leaking from the refrigerator

Causes of a bad water valve assembly can stem from mineral deposits that clog the valve, electrical failures that impair the valve’s operation, or wear and tear from normal usage leading to leaks or malfunctions.

This OEM LG part is also compatible with Sears/Kenmore.

Note: Flow meter is not needed on all models, remove if necessary. Redesigned single valve replaces older dual solenoid valves. Wiring harness is included. Located behind the refrigerator.

This replacement pipe holder secures a small appliance pipe or tube in place, reducing movement and vibration to help prevent noise, wear, or accidental disconnection. It restores proper routing and support for the pipe. What it does:

• Secures a pipe or tubing to the appliance frame or chassis to keep it from shifting
• Reduces rattling or vibration caused by loose plumbing or tubing
• Helps maintain proper alignment to avoid chafing or contact with other components
• Useful when a cracked, broken, or missing clip allows pipe movement

• Turn off and unplug the appliance before accessing internal components
• Remove any panels or covers to reach the pipe clip location
• Snap the clip over the pipe into the existing mounting tab; replace any damaged mounting hardware
