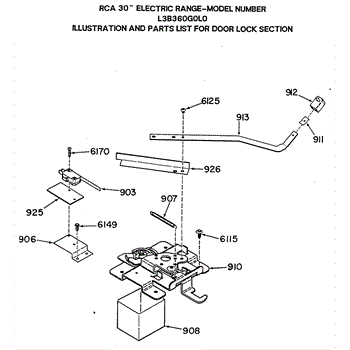

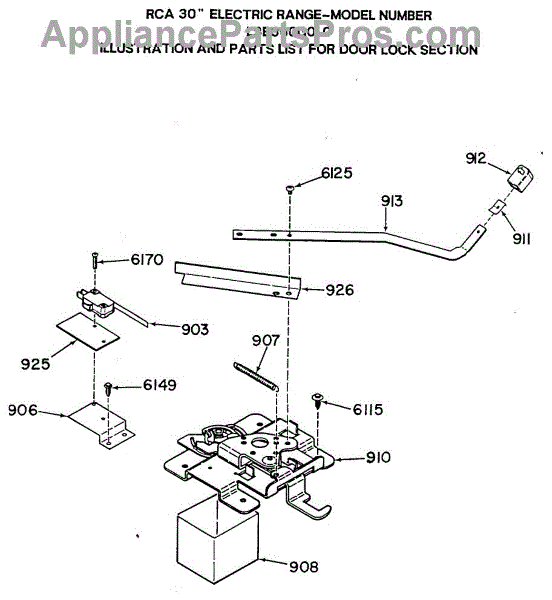

Parts for Ge L3B360GL0BG: 05 - Illustration And Parts List For Door Lock Section Parts

This insulation retainer secures oven cavity or range insulation panels to internal sheet metal, helping keep insulation in place for efficient heat management and safe operation. Fits behind panels where insulation requires fastening. What it does:

• Holds heating appliance insulation against the cabinet or inner liner to prevent shifting
• Helps maintain proper heat containment and reduce hot spots
• Can prevent insulation from contacting electrical components or heating elements
• Common symptom: insulation coming loose or visible gaps behind the inner panel

• Basic hand tools may be required; disconnect power before servicing the appliance
• Work with cool, empty appliance cavities to avoid burns or injury
• Inspect surrounding insulation and fasteners; replace any damaged insulation or clips as needed

ST10-16 X 7/16"

A replacement 10-24 x 1/4 machine screw that secures panels and components in place, restoring proper fit and reducing rattles or loose parts. Small but essential for assembly and trim fastening on compatible appliances. What it does:

• Fastens appliance panels, brackets, and small components using a 10-24 threaded connection
• Stops loose or rattling trim, control panels, and internal brackets when the original screw is missing or damaged
• Matches OEM thread and length for correct fit where specified
• Used wherever a short 10-24 machine screw is required to secure parts

• Use the correct screwdriver or nut driver to avoid stripping the head
• Tighten until snug; avoid overtightening which can strip threads or crack plastic
• Replace with the same part number to ensure proper thread engagement and fit
• Disconnect power and follow appliance safety procedures before accessing internal areas
