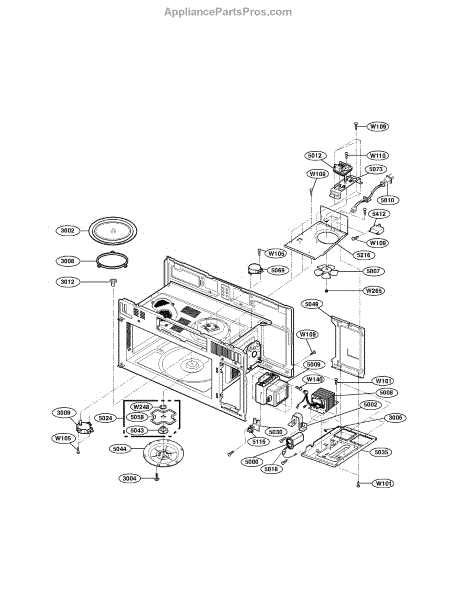

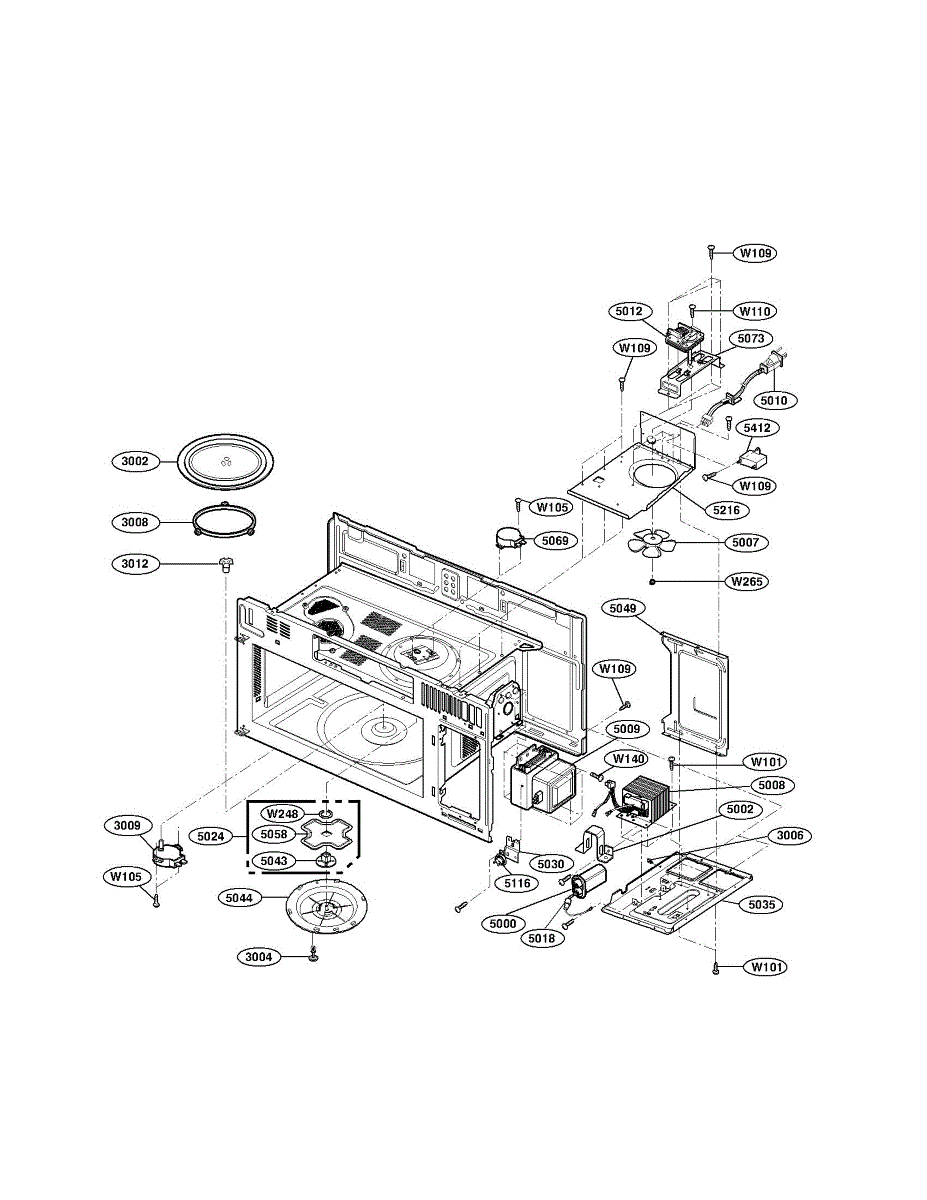

Parts for Lg LMH2016SW: Interior Parts (I) Parts

A Tap-Tite binding-head screw used to fasten appliance panels and components where a self-tapping metal thread is required. Replaces missing or damaged fasteners to restore secure assembly and reduce vibration or rattling. What it does:

• Creates its own mating thread in thin sheet metal for a secure hold without a nut.
• Holds panels, brackets, and trim in place to prevent looseness or movement.
• Commonly used where stripped, missing, or broken screws cause rattling, misalignment, or parts that won't stay attached.
• Compatible with standard screwdrivers or nut drivers sized to the binding-head.

• Disconnect power and unplug the appliance before working on it.
• Use the correct driver bit to avoid cam-out or head damage.
• Start straight and apply steady pressure; avoid overtightening to prevent stripping the formed threads.
• If the original hole is badly damaged, assess for repair or use of a larger fastener as needed.

This replacement mounting screw secures panels and small appliance components to restore proper fit and prevent vibration or loose parts. A simple, direct replacement when the original fastener is missing or damaged. What it does:

• Secures panels, brackets, or small assemblies to keep parts aligned
• Stops rattling or vibration caused by loose or missing screws
• Restores normal fit where a stripped or corroded screw failed
• Matches the OEM fastener form for a correct, long-lasting fit

• Unplug the appliance or disconnect power before servicing
• Use the correct driver to avoid stripping the head
• Thread carefully and do not overtighten to prevent damage to threads or housing

This customized nut is a small fastener used to secure components inside an appliance. Replacing a stripped, rusted, or missing nut restores a tight hold, reduces vibration, and helps keep panels and brackets properly aligned.

• Threads onto a matching screw or bolt to clamp parts together
• Maintains alignment of panels, brackets, and internal assemblies
• Helps prevent vibration, looseness, and rattling during operation
• Common failure signs: missing hardware, stripped threads, or components that won't stay tight

• Disconnect power; turn off water or gas before servicing
• Match the thread size/pitch to the original fastener before installation
• Hand-start threads to avoid cross-threading; tighten until snug—do not overtighten
• Replace any worn companion hardware (screw/bolt/washer) as needed

This is the glass turntable tray for the microwave cavity. It provides a stable, heat-resistant surface that rotates food for more even heating and reheating.

• Sits on the turntable support/roller and engages the center drive
• Helps promote even cooking by rotating food through the microwave energy
• Common failure signs: cracked or missing tray, wobbling during rotation, scraping noises, or uneven heating
• Replaces a damaged tray to restore safe, stable operation

• Unplug the appliance before servicing; allow interior to cool
• Remove the old tray, clean the support/roller, and seat the new tray on the center hub
• Ensure the tray sits flat and rotates freely before use
• Handle glass carefully to avoid chips or cracks

This rivet assembly fastens panels, brackets, or covers inside the microwave cabinet. Replacing a damaged or missing fastener restores a tight fit, reduces vibration noise, and keeps mounted components properly aligned.

• Secures panels, brackets, or covers to the cabinet for a stable fit
• Use when a rivet is cracked, missing, or no longer holds
• Can help resolve rattling, buzzing, or loose panel movement
• Maintains proper alignment and support of mounted parts

• Disconnect power before servicing; support and remove over-the-range/built-in units for safe access.
• Microwaves contain a high-voltage capacitor that can retain a dangerous charge—service should be performed by qualified personnel.
• Reinstall using existing mounting holes; ensure the rivet is fully seated and secure.
• Wear cut-resistant gloves and eye protection to avoid injury from sharp metal edges.

This is the turntable assembly for the microwave's rotating tray system. It provides a stable, smooth-rotating surface so dishes stay level and heat evenly, replacing a damaged, wobbly, or missing turntable to restore consistent cooking performance. What it does:

• Forms the rotating surface that supports dishes for uniform heating
• Keeps the tray centered and aligned with the drive hub/guide for smooth motion
• Replace if the tray is cracked, chipped, or missing
• Replace if the tray rocks, binds, or skips while turning
• Helps address uneven heating caused by poor or inconsistent rotation

• 1 turntable assembly

• Unplug the microwave or switch off power at the breaker before servicing
• Remove the existing turntable parts and clean the track/hub area
• Set the new assembly so it sits flat and engages the drive hub; verify smooth, unobstructed rotation
• Do not operate the microwave without the turntable properly installed

The Turntable Motor is an OEM replacement part for LG microwaves. Located under the microwave cavity, it rotates the special turntable platter during cooking operations.

Symptoms of a faulty turntable motor include:

• Turntable failing to spin or rotating unevenly during cooking
• Abnormal noises or vibrations coming from the bottom of the unit
• Uneven cooking results along microwave perimeter

Causes related to normal wear of internal motor workings through extended use. Damage from power surges is also possible over time.

This LG replacement part is compatible with some Kenmore models as well.

This turntable coupler connects the microwave's turntable motor to the glass tray, rotating it for even, consistent heating. Replace a worn or cracked hub to restore smooth tray motion and reduce noise during cooking.

• Couples the turntable motor to the glass tray for even heating
• Replaces a worn, cracked, or stripped hub that prevents rotation
• Helps reduce tray wobble and scraping sounds from the center
• Common symptoms: tray not turning, intermittent rotation, clicking/grinding at the hub

• Disconnect power before servicing; microwaves contain high-voltage components
• Remove the glass tray and roller ring; lift the old coupler straight up from the motor shaft (some models may require access from below per instructions)
• Align the new coupler with the keyed motor shaft and press it fully into place
• Reinstall the roller ring and tray; verify smooth, centered rotation

The drawing capacitor is an OEM component for LG countertop microwaves. It is an integrated electric part that stores and releases power allowing the main control board to communicate smoothly with high-load cooking components like the magnetron tube and turntable motor.

Symptoms of a bad drawing capacitor include:

• Microwave failing to power on or start cooking presets
• Components like the turntable or magnetron not engaging
• Unusual crackling or burning smells from internal circuits
• Control panel displaying error codes for capacitive malfunctions

Causes can be normal component fatigue or manufacturing defects after extended use.

This OEM LG part can also be used on Kenmore/Sears appliances.

The Cooling Fan Blade is an OEM part for LG microwaves. It circulates airflow around internal components to reduce temperatures during cooking.

As it operates continuously, the tightly wound coils of the fan motor are prone to degradation and wear over several years of use. Damage to the fan housing can also inhibit proper functioning.

Causes of a bad cooling fan blade include:

• Broken or cracked plastic that unbalances the unit
• Worn down edges that decrease efficiency
• Accumulated dirt that impedes ventilation

Symptoms of a bad cooling fan blade include:

• Overheating trips from the thermal cut-off
• Cook times lengthening due to inefficient cooling
• Rattling or vibration noises emanating during operation

This OEM LG replacement ensures balanced airflow and consistent cooling for years of use. It is also compatible with some Kenmore and Sears/Kenmore microwaves.

The Magnetron is an OEM part for LG microwaves. It is responsible for generating the microwaves that cook or heat the food inside the appliance. The magnetron converts electrical energy into microwave radiation, ensuring efficient and even heating.

Causes of a bad magnetron can include prolonged use, electrical surges, or overheating. Over time, these factors can lead to the magnetron wearing out or failing completely.

Symptoms of a bad Magnetron include:

• The microwave not heating food
• Strange noises during operation
• Burning smell or smoke
• The microwave shutting off unexpectedly

This OEM LG part is also compatible with Sears/Kenmore models.

This cooling fan motor spins the internal fan that moves air through the appliance to dissipate heat and protect sensitive components. Replacing a noisy, weak, or seized motor restores proper airflow and dependable operation.

• Drives the cooling fan to circulate cooling air within the cabinet
• Helps prevent overheating and thermal shutdowns of internal parts
• Restores airflow when the original motor is worn, noisy, or not turning
• Typical signs include no fan movement, unusual humming/squealing, reduced airflow, or the unit shutting off from heat

• Disconnect power (and gas, if applicable) before servicing; allow the appliance to cool completely
• Access the motor by removing the appropriate rear/top or control-panel cover for your model
• Note wire orientation; transfer the fan blade and any mounting parts from the original motor if required
• After installation, ensure the fan spins freely and verify proper airflow and quiet operation

This fan assembly replaces the oven/range cooling blower to restore proper airflow and help prevent overheating of control electronics. It's a direct-fit assembly designed to replace a failed or noisy blower unit. What it does:

• Circulates air to cool control components and maintain safe operating temperatures
• Replaces worn or failed blower motor that won't start or runs intermittently
• Restores airflow when the appliance is running hot or control board overheats
• Reduces rattling or grinding noise caused by a damaged fan or housing

• Turn off power to the appliance at the breaker before starting any repairs
• Inspect mounting points and wiring harness for damage; replace connectors if frayed
• Follow OEM service manual for removal and reinstallation torque and routing

This bottom plate is the interior panel that covers and protects the oven or microwave floor, giving a clean cooking surface and shielding internal components from spills and debris. It helps maintain safe, reliable operation. What it does:

• Covers the appliance interior floor to catch drips and crumbs and keep them away from heating and mechanical parts
• Protects underlying components from corrosion and food damage
• Helps maintain even heat distribution by providing a stable cooking surface
• Worn, bent or missing plates can cause excessive debris buildup, odors, or contact with moving parts

• Disconnect power (unplug or switch off breaker) and allow the appliance to cool before starting
• Handle carefully—edges may be sharp; wear gloves if needed
• Install with existing factory screws or clips; do not force or bend the plate
• If other parts are damaged or missing, replace them per the manufacturer's instructions

This fan assembly replaces the oven/range cooling blower to restore proper airflow and help prevent overheating of control electronics. It's a direct-fit assembly designed to replace a failed or noisy blower unit. What it does:

• Circulates air to cool control components and maintain safe operating temperatures
• Replaces worn or failed blower motor that won't start or runs intermittently
• Restores airflow when the appliance is running hot or control board overheats
• Reduces rattling or grinding noise caused by a damaged fan or housing

• Turn off power to the appliance at the breaker before starting any repairs
• Inspect mounting points and wiring harness for damage; replace connectors if frayed
• Follow OEM service manual for removal and reinstallation torque and routing

Stirrer fan cover that protects and secures the microwave's stirrer fan assembly, helping keep food debris out and the rotating stirrer operating smoothly to reduce noise and maintain consistent performance. What it does:

• Encloses and shields the stirrer fan assembly from food particles and foreign objects.
• Keeps the stirrer properly positioned so the fan and stirring mechanism can rotate without interference.
• Helps limit vibration and rattling caused by a loose or damaged cover.
• Visible cracks or breaks in the cover can lead to noisy operation, poor stirring action, or intermittent fan contact.

• Disconnect power before servicing the appliance to avoid shock or injury.
• Replacement requires removal of the microwave outer cabinet and access to the stirrer/fan area; retain all mounting screws and hardware.
• Inspect surrounding parts when replacing the cover; do not operate the appliance with a cracked or missing cover.
• Use the correct part number to ensure fit and function.

This synchronous circulation motor powers the appliance's circulation function to move air or liquids reliably, restoring proper flow and operation. Designed to match OEM fit and performance for compatible LG units. What it does:

• Drives the appliance's circulation system to maintain proper airflow or fluid movement
• Helps resolve symptoms like weak or no circulation, reduced performance, or unusual motor noise
• Operates at consistent speed for steady system performance common to synchronous motors

• For safety, disconnect power before accessing the appliance and working near electrical components
• Install using OEM mounting points and connectors; verify alignment before securing
• Handle the motor carefully to avoid damage to the shaft and wiring

The Magnetron Thermostat is an OEM part for LG microwaves and built-in ranges. Its primary function is to monitor the temperature and ensure that it remains within a safe operating range. If the temperature exceeds the preset limit, the thermostat will interrupt the power supply to the magnetron, preventing overheating and potential damage.

Causes of a faulty magnetron thermostat can include electrical malfunctions, component failures, or physical damage. These factors can result in issues such as erratic heating, microwave not heating properly, or the appliance shutting off unexpectedly.

Symptoms of a bad magnetron thermostat may include:

• Microwave not heating food evenly or at all
• Inconsistent or weak heating performance
• Microwave shutting off or displaying error codes related to temperature issues

This OEM LG part can also be used on Kenmore/Sears appliances.

This is a motor start/run capacitor that helps the appliance's motor start and run smoothly by supplying a brief boost of electrical energy. Replacing a failing capacitor restores reliable motor startup and operation. What it does:

• Provides the brief electrical surge needed to start and keep the motor running
• Commonly linked to motors that hum, fail to start, or run intermittently
• Helps prevent overheating from repeated start attempts when functioning properly
• Works with the appliance's start circuitry to ensure consistent performance

• Disconnect power to the appliance before accessing electrical components
• Discharge the capacitor and use insulated tools
• Observe polarity/terminal layout and secure connections to factory specifications
• Dispose of the old capacitor according to local electronic-waste regulations
