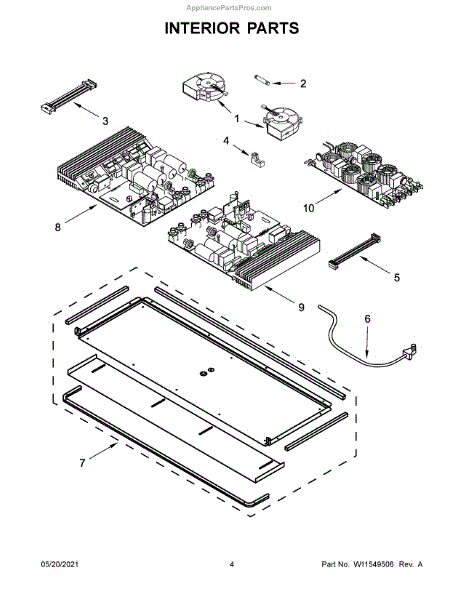

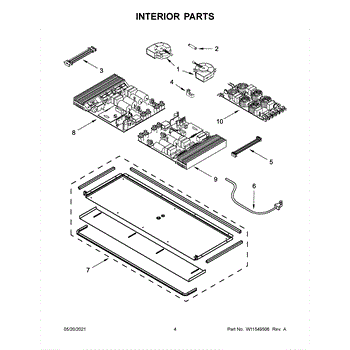

Parts for Kitchenaid KICU509XBL01: Interior Parts

This thermal fuse is a one-time safety cutoff that stops heat when temperatures rise above safe limits, protecting the appliance from overheating. Replace a blown fuse to restore proper thermal protection and heating control. What it does:

• Opens the circuit to the heating element when overheating is detected to prevent unsafe temperatures.
• Common symptom: dryer runs but produces little or no heat.
• Can cause dryers to stop heating even though the motor and controls seem to work.
• Helps prevent thermal damage or fire by cutting power to the heater when needed.

• Disconnect power to the appliance before accessing the heating assembly.
• Replace with the exact OEM part; match terminals and mounting location.

This wire harness assembly routes power and signals between major components to restore electrical connection and reliable operation. It replaces a damaged or frayed harness to help eliminate intermittent power, no-starts, or lost control functions. What it does:

• Connects power and control circuits between the main control and other components
• Restores reliable electrical continuity when wiring is damaged, burned, or corroded
• Helps resolve symptoms such as intermittent operation, appliances that won't start, or components that receive no power
• Prevents shorting or arcing caused by exposed or broken wires when properly installed

• Disconnect the appliance from power (unplug or turn off the circuit breaker) before beginning work
• Handle connectors gently; match keyed connectors when reassembling to avoid miswiring
• Inspect mating terminals and housings for damage; replace if terminals are burned or corroded

This multi-wire electrical harness routes power and signals between appliance components to restore reliable connectivity and control. Replacing a damaged harness helps stop intermittent operation and prevents wiring shorts or lost function. What it does:

• Carries power and control signals between components such as controls, motors, sensors, or switches
• Restores electrical continuity when original wiring is frayed, cut, or burned
• Helps stop intermittent operation, no-start conditions, or component failures caused by damaged wiring
• Prevents potential short circuits from exposed or chafed wires

• Disconnect power before starting — always follow lockout/tagout procedures
• Replace harness using routing and connector orientation
• Inspect mating connectors and terminals; do not use if corrosion or damage is present
• Securely fasten harness with existing clips/ties to avoid rubbing or heat exposure
