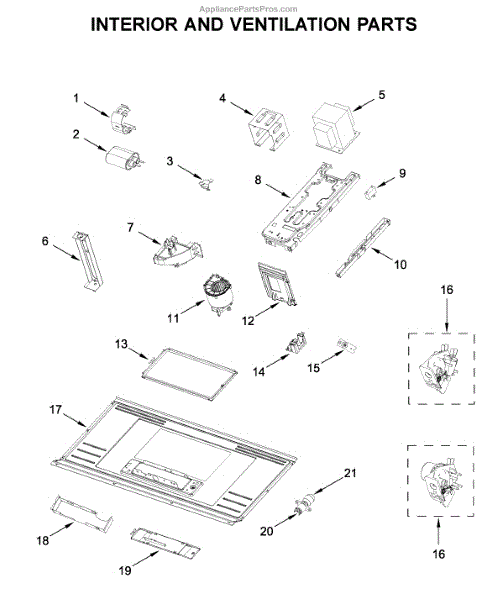

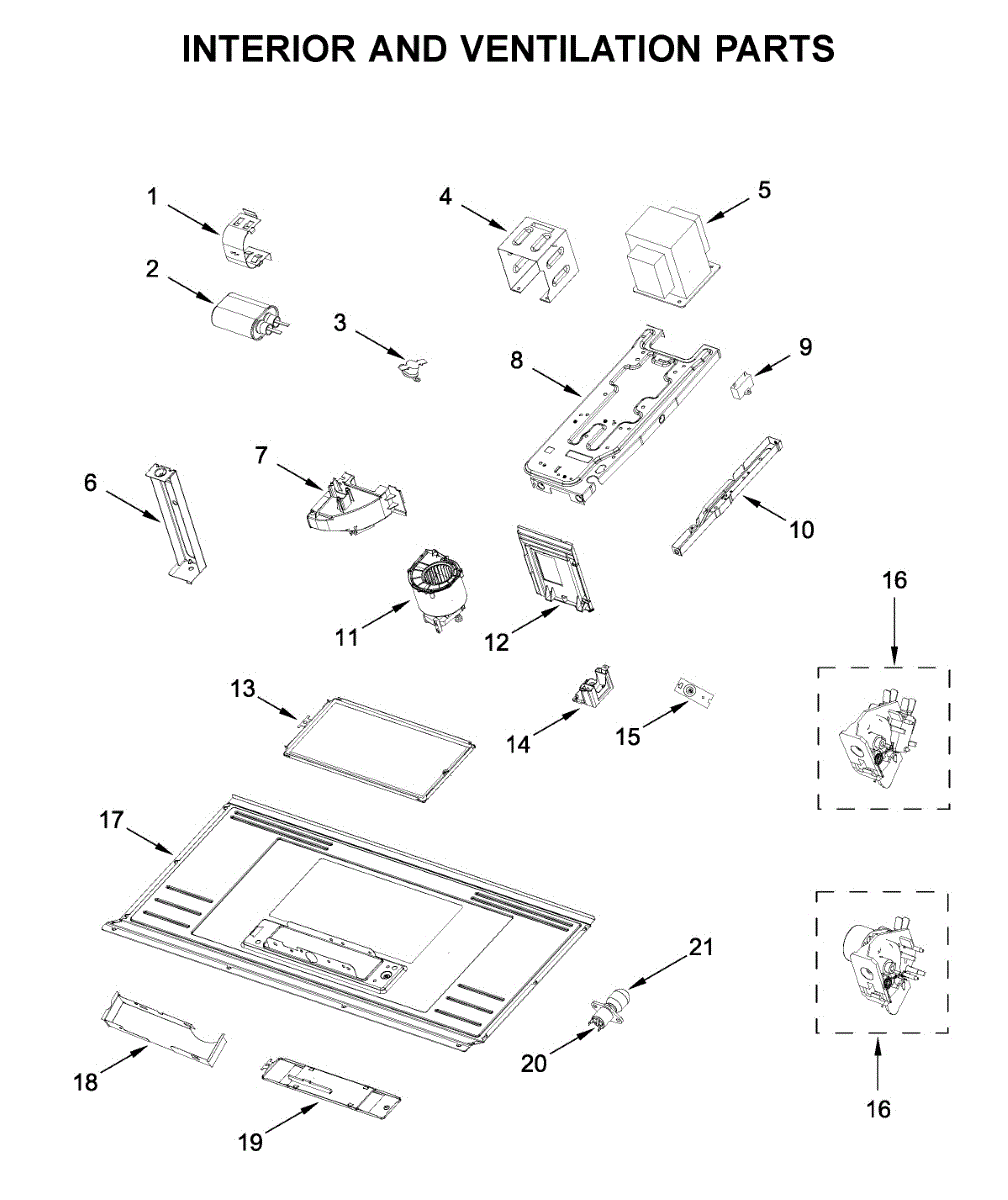

Parts for Whirlpool WMH54521JZ0: Interior And Ventilation Parts

This magnetron capacitor is the microwave high-voltage capacitor that helps supply the magnetron with the pulse of energy needed to produce heat. Replacing a failing capacitor restores normal heating performance and reduces arcing or loud humming. What it does

• Stores and releases the high-voltage pulse required by the magnetron so the microwave can generate heat.
• Prevents unstable magnetron operation that can cause weak or no heating.
• Common symptoms of a failing capacitor: oven runs but doesn't heat, intermittent heating, loud buzzing/humming, or visible arcing inside the cavity.
• A failed capacitor can also cause blown internal fuses or tripped circuits.

• One capacitor.

• Disconnect power and verify the appliance is completely de-energized before servicing.
• Capacitors can hold dangerous charge; discharge the capacitor safely with an insulated tool.
• Use the exact replacement part and follow the appliance service manual for routing and connections.

This fixed thermostat senses temperature and opens or closes the electrical circuit to control heating. It replaces a failed temperature-sensing switch to restore proper heating control and safety. What it does:

• Monitors appliance temperature and interrupts power when the set limit is reached
• Prevents overheating by opening the circuit at high temperatures
• Restores normal heating control when a failed thermostat causes no heat or continuous heating
• Works as a safety/limit device in the appliance's heating system

• Disconnect power to the appliance before starting any repair
• Handle the thermostat and sensing element gently; avoid bending or stressing terminals
• Refer to the appliance service manual or OEM instructions for proper placement and mounting

This capacitor stores and releases electrical energy to help an AC motor start and run smoothly. Replacing a weak or failed capacitor can restore reliable motor operation and reduce humming, no-start, or stall conditions.

• Provides the phase shift and starting torque an induction motor needs to start
• Helps the motor reach and maintain proper speed under load
• Common symptoms of a failing capacitor: motor hums but won't start, intermittent starts, slow or stalled rotation, or frequent thermal trips
• Visible clues may include a swollen case or leaking residue

• Disconnect power to the appliance before servicing; verify no voltage is present
• Capacitors can retain a charge—discharge safely before handling
• Note wire positions; move leads to the new capacitor one at a time and ensure snug terminal fit
• Reuse the original bracket/clip if applicable and secure the capacitor to prevent vibration

This fan motor circulates air through the refrigerator's cooling system to help maintain even temperatures and proper condenser/evaporator airflow. Replacing a failing motor restores airflow and helps the appliance cool efficiently. What it does:

• Spins the evaporator or condenser fan to move air across coils for heat exchange
• Restores airflow when the fridge runs warm or cooling is inconsistent
• Stops abnormal noises caused by a worn or failing fan motor
• Helps prevent frost buildup when the evaporator fan is operating correctly

• One fan motor

• Disconnect power at the breaker or unplug the appliance before starting
• Handle sharp metal edges around the coils and fan housing; use gloves
• Verify electrical connections match the original and secure all mounting fasteners

This thermistor is a fridge temperature sensor that monitors internal air temperature so the control board can regulate cooling. Replacing a faulty thermistor restores accurate temperature readings and more consistent refrigerator performance. What it does:

• Detects interior temperature and sends readings to the control board
• Helps the compressor and fans cycle correctly to maintain set temperatures
• Common symptom: erratic or incorrect temperature inside the refrigerator
• Common symptom: refrigerator runs constantly or cooling is inconsistent
• Common symptom: temperature-related error codes or temperature alarm messages

• Disconnect power to the appliance before starting any repair
• Handle the sensor and wiring harness carefully to avoid damage
• Route and secure the wiring as original; ensure connectors are fully seated

The Interlock is an OEM part for Whirlpool microwaves. It is an important safety mechanism that monitors the door latch and prevents microwave operation when the door is open.

Symptoms of a faulty interlock include:

• The microwave fails to start or run when the door is open
• Buzzer sounding indicating a blocked safety device
• Door unable to latch or stay closed securely

Causes can be due to worn contacts within the interlock from repetitive door opening cycles. Over time, this safety component becomes fatigued.

Replacing with this new OEM interlock protects against unintentional microwave exposure by ensuring the door remains closed during operation. Peace of mind is restored with a working safety mechanism.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Light Socket is an OEM replacement part for Whirlpool microwaves. This socket holds and supplies power to the light bulb inside the microwave, illuminating the interior when the door is opened or when the microwave is in use. It ensures that users can easily monitor the cooking process and check the condition of the food.

Over time, the light socket can become worn out or damaged due to regular use, electrical surges, or the heat generated within the microwave. Corrosion or buildup on the contacts can also impair the socket’s ability to provide a stable connection to the light bulb, leading to intermittent or complete failure of the light.

Symptoms of a bad light socket include:

• The interior light not turning on when the door is opened or during operation
• Flickering or dimming of the light
• The light bulb frequently burning out
• Electrical arcing or sparking from the socket area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The 40W Light Bulb is an OEM replacement part for Whirlpool microwave ovens. It is a standard-size bulb designed to provide illumination inside the microwave cavity, allowing you to easily view and monitor the cooking or reheating process.

Symptoms of a faulty microwave light bulb include:

• Dimming or flickering light during operation
• Complete bulb failure or no illumination within the cavity
• Discoloration or physical damage to the bulb itself

Causes of a bad microwave light bulb can include normal wear and tear over time, electrical surges or voltage fluctuations, or physical impact or vibration during use.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore microwave oven models.
