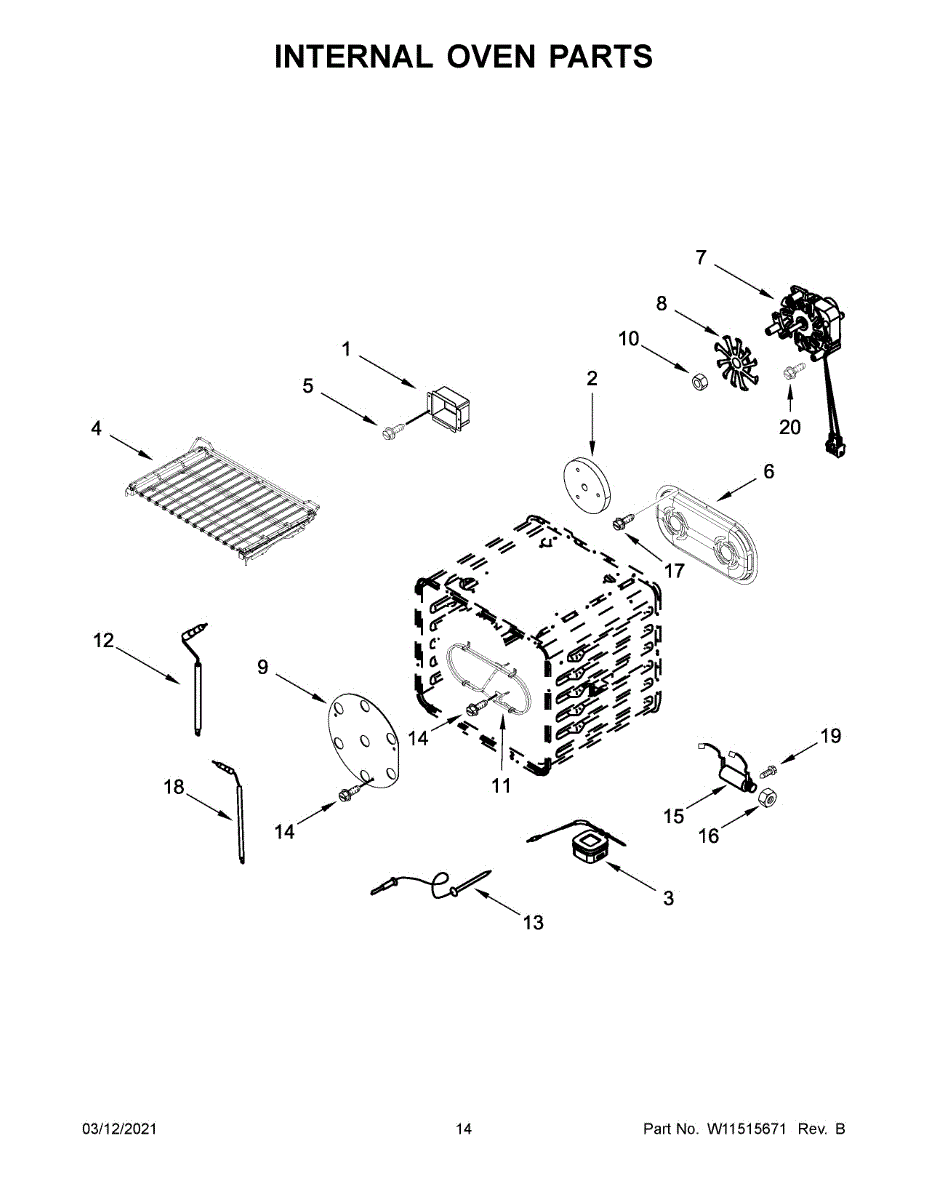

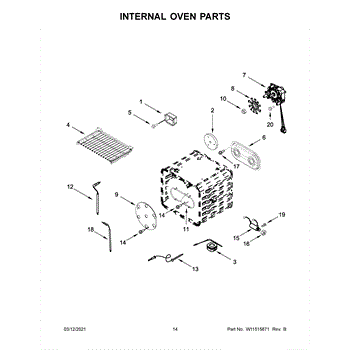

Parts for Jenn-Air JGRP430HM01: Internal Oven Parts

A durable oven rack that supports cookware and bakeware inside the oven cavity, letting you position pans at the correct height for even cooking and roasting. Replaces worn, bent, or missing oven shelves. What it does:

• Provides a stable surface for baking sheets, pans, and roasting dishes
• Slides into oven rack supports to allow adjustable cooking heights
• Restores proper airflow and even cooking when a damaged or warped rack is replaced
• Commonly replaced when rack rails are bent, sagging, or finish is flaking

• One oven rack

• Slide the rack into the oven's existing rack guides until fully seated
• No special tools required for typical replacement; handle carefully to avoid scratching the oven interior
• Do not use damaged or severely rusted racks; inspect finishes before self-cleaning cycles
• Allow oven to fully cool before removing or installing the rack to avoid burns

This is a replacement 8-18 screw used to secure components in compatible Whirlpool appliances. It provides a reliable, corrosion-resistant fastener to restore proper fit and function for panels and internal parts. What it does:

• Secures panels, brackets, or small internal components where an 8-18 thread is specified
• Restores loose or missing fasteners that cause rattling, misalignment, or improper sealing
• Matches OEM thread size and head profile for a correct fit when listed for your model
• Prevents further wear or damage caused by using the wrong screw size

• One screw as shown

• Turn off and unplug the appliance before starting any repair
• Use the proper screwdriver or driver bit to avoid stripping the head
• Do not overtighten—tighten until snug and components seat without play
• Replace only where the OEM specifies an 8-18 screw to ensure proper fit

This replacement fan motor restores proper airflow for your appliance's ventilation/cooling system so the unit can run efficiently and avoid overheating. Designed as a direct-fit replacement for the OEM fan motor part number shown. What it does

• Spins the blower/fan to circulate air across coils or through the appliance cabinet
• Helps maintain proper cooling and prevents overheating of components
• Can reduce or eliminate loud whine, grinding, or reduced airflow when failing
• Supports stable operation of compressors, condensers or exhaust systems

• Disconnect power to the appliance before starting any repair.
• Follow service manual instructions for access; remove panels/guards as needed.
• Handle the motor and connectors carefully; support any attached fan or housing during removal.
• After installation, verify proper fan rotation and unobstructed airflow before reassembling covers.

This retaining nut secures components on compatible Whirlpool appliances to restore proper fastening and reduce looseness. A simple replacement for stripped or missing nuts that helps stop rattling and keeps parts held in place. What it does:

• Threads onto matching bolts or studs to fasten panels, brackets, or assemblies
• Restores tight connections that can cause vibration, noise, or looseness when worn or missing
• Commonly used where a small, serviceable nut is required for secure assembly
• Helps prevent components from coming detached during normal use

• Disconnect power and follow appliance-specific safety procedures before servicing
• Use the correct size wrench or socket; start threads by hand to avoid cross-threading
• Tighten securely but avoid overtightening to prevent damage to studs or mating parts
• If threads are damaged, replace the mating stud or fastener as needed

Color: brown. Its total length is about 25 inches.

The Whirlpool element mounting screw is an OEM replacement part responsible for securely fastening the heating element to the designated location inside the oven. This part ensures that the heating element remains firmly attached to the appliance's structure. The element mounting screw is crafted from durable materials to withstand high temperatures to provide a reliable and stable connection between the heating element and the oven.

This part fixes the following symptoms:

• Loose or wobbly heating element
• Uneven heating inside the oven
• Excessive vibrations or rattling noises during operation

The Whirlpool element mounting screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement jack mounts inside the oven cavity and provides the receptacle for the food temperature probe. It restores a dependable connection so the control can monitor internal food temperature and operate probe-cook features as intended.

• Provides the in-oven receptacle for the food/meat temperature probe
• Carries the probe's signal to the control during probe-cook cycles
• Helps resolve issues where the control does not recognize a probe or the probe feature won't run
• Replaces a jack that is damaged, corroded, or loose

• Disconnect power at the breaker and allow the oven to cool completely
• Access from inside the oven; remove the mounting screw(s) and carefully pull the jack to reach the wire harness
• Transfer/connect the harness and seat any gasket or insulation to maintain the oven cavity seal
• Do not overtighten fasteners; avoid pinching or damaging wires and insulation

This replacement screw fastens appliance panels and small internal components to restore secure mounting and reduce rattling or movement. It's a direct-replacement style fastener used where factory screws have become missing, worn, or damaged. What it does:

• Secures panels, brackets and accessory parts in their original mounting locations.
• Restores proper fit to reduce vibration, rattling or loose covers.
• Replaces stripped, rusted, or missing screws that prevent proper alignment.
• Small, low-profile fastener intended for factory thread and hole sizes.

• Disconnect power and water before starting repairs.
• Use the correct screwdriver or bit to avoid stripping the head.
• Tighten until snug; avoid over-tightening to prevent thread damage.
• Keep small parts away from children and pets during installation.
