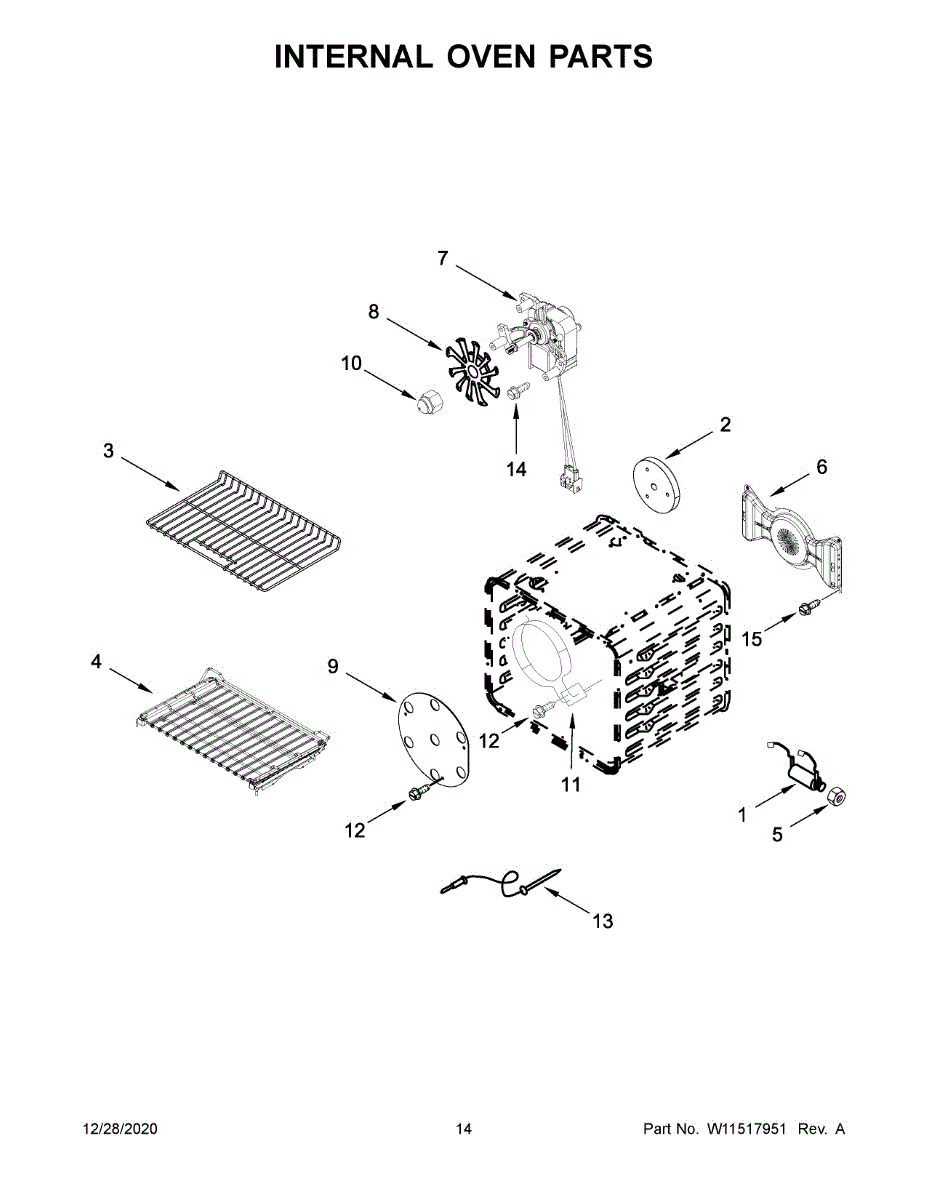

Parts for Kitchenaid KFGC506JBK01: Internal Oven Parts

This replacement jack mounts inside the oven cavity and provides the receptacle for the food temperature probe. It restores a dependable connection so the control can monitor internal food temperature and operate probe-cook features as intended.

• Provides the in-oven receptacle for the food/meat temperature probe
• Carries the probe's signal to the control during probe-cook cycles
• Helps resolve issues where the control does not recognize a probe or the probe feature won't run
• Replaces a jack that is damaged, corroded, or loose

• Disconnect power at the breaker and allow the oven to cool completely
• Access from inside the oven; remove the mounting screw(s) and carefully pull the jack to reach the wire harness
• Transfer/connect the harness and seat any gasket or insulation to maintain the oven cavity seal
• Do not overtighten fasteners; avoid pinching or damaging wires and insulation

The Rack is an OEM part for Whirlpool ranges. Manufactured from heavy-duty steel, it provides a sturdy sliding shelf to support bakeware of all sizes during cooking cycles. With its precise leveling and sliding abilities, the rack allows for flexible use of the oven's full interior space.

Symptoms of a bad rack may include warping or sagging from prolonged heat exposure, dents or cracks along the surfaces from mishandling, or difficulties leveling or smoothly sliding in and out.

Symptoms of a bad rack include:

• Foods not baking evenly due to rack warping
• Rough sliding or rack getting stuck when lifting in/out
• Cracks or sharp edges presenting a safety risk
• Inability to bear the weight of standard baking items

This OEM Whirlpool replacement part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, and select Kenmore models.

This replacement fan motor restores proper airflow for your appliance's ventilation/cooling system so the unit can run efficiently and avoid overheating. Designed as a direct-fit replacement for the OEM fan motor part number shown. What it does

• Spins the blower/fan to circulate air across coils or through the appliance cabinet
• Helps maintain proper cooling and prevents overheating of components
• Can reduce or eliminate loud whine, grinding, or reduced airflow when failing
• Supports stable operation of compressors, condensers or exhaust systems

• Disconnect power to the appliance before starting any repair.
• Follow service manual instructions for access; remove panels/guards as needed.
• Handle the motor and connectors carefully; support any attached fan or housing during removal.
• After installation, verify proper fan rotation and unobstructed airflow before reassembling covers.

This retaining nut secures components on compatible Whirlpool appliances to restore proper fastening and reduce looseness. A simple replacement for stripped or missing nuts that helps stop rattling and keeps parts held in place. What it does:

• Threads onto matching bolts or studs to fasten panels, brackets, or assemblies
• Restores tight connections that can cause vibration, noise, or looseness when worn or missing
• Commonly used where a small, serviceable nut is required for secure assembly
• Helps prevent components from coming detached during normal use

• Disconnect power and follow appliance-specific safety procedures before servicing
• Use the correct size wrench or socket; start threads by hand to avoid cross-threading
• Tighten securely but avoid overtightening to prevent damage to studs or mating parts
• If threads are damaged, replace the mating stud or fastener as needed

This bake element heats the oven cavity so food cooks and browns properly. It replaces a failed or damaged oven heating element to restore consistent baking performance and oven temperature response. What it does:

• Heats the lower oven for baking and roasting
• Replaces a cracked, burnt, or non-heating element
• Helps correct symptoms like oven not reaching set temperature or uneven baking
• Works with the oven's controls to provide consistent heat during bake cycles

• One bake element

• Disconnect power at the breaker before servicing the range or oven
• Handle the element carefully; damaged insulation or terminals require replacement
• Typical access requires removing the oven floor or rear access panel.

The Whirlpool element mounting screw is an OEM replacement part responsible for securely fastening the heating element to the designated location inside the oven. This part ensures that the heating element remains firmly attached to the appliance's structure. The element mounting screw is crafted from durable materials to withstand high temperatures to provide a reliable and stable connection between the heating element and the oven.

This part fixes the following symptoms:

• Loose or wobbly heating element
• Uneven heating inside the oven
• Excessive vibrations or rattling noises during operation

The Whirlpool element mounting screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Color: brown. Its total length is about 25 inches.

This replacement screw fastens appliance panels and small internal components to restore secure mounting and reduce rattling or movement. It's a direct-replacement style fastener used where factory screws have become missing, worn, or damaged. What it does:

• Secures panels, brackets and accessory parts in their original mounting locations.
• Restores proper fit to reduce vibration, rattling or loose covers.
• Replaces stripped, rusted, or missing screws that prevent proper alignment.
• Small, low-profile fastener intended for factory thread and hole sizes.

• Disconnect power and water before starting repairs.
• Use the correct screwdriver or bit to avoid stripping the head.
• Tighten until snug; avoid over-tightening to prevent thread damage.
• Keep small parts away from children and pets during installation.
