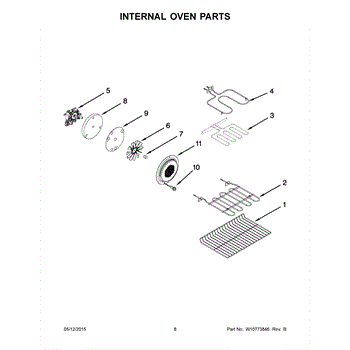

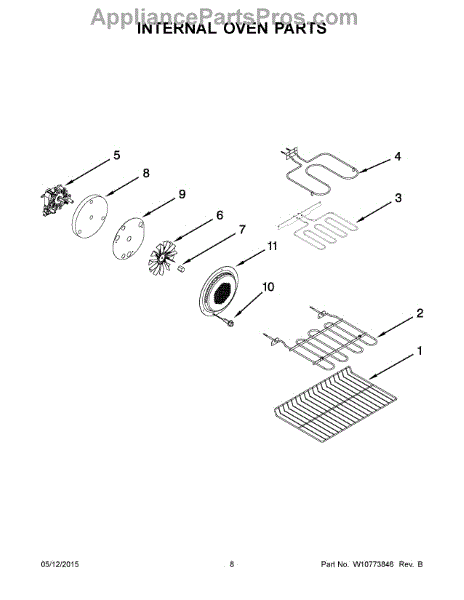

Parts for Whirlpool WGI925C0BS01: 05 - Internal Oven Parts

The Oven Rack is an OEM part for Whirlpool ovens. This durable rack provides a stable surface for your cookware, allowing for optimal air circulation and even heat distribution. The rack measures about 24 inches wide by 16 inches deep.

Causes of a bad Oven Rack can include warping due to excessive heat, accumulation of rust or food debris, and physical damage which can affect its stability and performance.

Symptoms of a bad Oven Rack include:

• Difficulty sliding the rack in and out, indicating warping or damage.
• Uneven cooking or baking results due to poor placement or heat circulation.
• The rack failing to hold weight securely, posing a risk of dropping cookware.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This is the upper oven broil element that supplies direct high heat for broiling. It restores the oven's top-down heat for browning, searing, and finishing foods when the original element fails. What it does:

• Heats during the broil cycle to brown and sear food surfaces
• Replaces a cracked, burned, or non-heating broil element
• Visible signs of failure include discoloration, breaks, or no glow when in use

• Disconnect power at the breaker before accessing the oven; verify power is off
• Remove oven racks and access the element mounting screws inside the oven cavity
• Handle terminals carefully; avoid touching live contacts when reconnecting

This bake element replaces the oven's lower heating element to restore reliable baking and roasting performance. It provides the heating surface that warms the oven cavity for even cooking. What it does:

• Heats the oven cavity from the bottom for baking and roasting
• Restores proper oven temperature when the original element is burnt out or visibly damaged
• Helps eliminate cold spots and uneven baking caused by a failed element
• Works with the oven's control system to reach and maintain set temperatures

• One bake (lower) oven heating element

• Disconnect power to the appliance at the breaker or unplug before starting work
• Handle the element and terminal connections carefully to avoid bending or breaking
• Verify correct fit and secure electrical connections; restore power and test the element before reassembling panels

This upper broil element sits at the top of the oven cavity to provide intense radiant heat for broiling and finishing. Replacing a burned-out element can restore top-heat performance and consistent, even results.

• Provides direct, high heat from the top during Broil to sear and brown food
• Common symptoms include: no broil heat, uneven top browning, only the bake element heats, visible cracks/blisters, or tripping a breaker from a shorted element
• Works with the oven control to cycle heat and maintain broil temperature
• A failed element typically shows no continuity when tested with a multimeter

• Disconnect power at the circuit breaker and allow the oven to cool completely
• Remove racks; support the element, remove mounting screws, and carefully pull it forward
• Transfer wires one at a time with insulated pliers; prevent leads from slipping back into the insulation
• Avoid bending the element or over-tightening screws; ensure terminals are fully seated, restore power, and test Broil

The Range Fan Motor is an OEM component specifically designed for Whirlpool electric ranges. It powers the convection ventilation system that removes smoke, steam, and odors from the cooktop and oven. The motor circulates air evenly to enhance cooking performance.

Causes of a bad fan motor can include heat damage accumulated over time. General wear from powering the ventilation system daily also contributes to internal degradation. Improper cleaning allowing moisture poses another failure risk.

Symptoms of a bad fan motor include:

• Vibration or grinding noises from within the fan housing
• Reduced or erratic air movement across the range
• Failure to engage or turn on as intended
• Thermal overload or burnt smells from motor overheating

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This retaining nut secures components on compatible Whirlpool appliances to restore proper fastening and reduce looseness. A simple replacement for stripped or missing nuts that helps stop rattling and keeps parts held in place. What it does:

• Threads onto matching bolts or studs to fasten panels, brackets, or assemblies
• Restores tight connections that can cause vibration, noise, or looseness when worn or missing
• Commonly used where a small, serviceable nut is required for secure assembly
• Helps prevent components from coming detached during normal use

• Disconnect power and follow appliance-specific safety procedures before servicing
• Use the correct size wrench or socket; start threads by hand to avoid cross-threading
• Tighten securely but avoid overtightening to prevent damage to studs or mating parts
• If threads are damaged, replace the mating stud or fastener as needed

The Whirlpool element mounting screw is an OEM replacement part responsible for securely fastening the heating element to the designated location inside the oven. This part ensures that the heating element remains firmly attached to the appliance's structure. The element mounting screw is crafted from durable materials to withstand high temperatures to provide a reliable and stable connection between the heating element and the oven.

This part fixes the following symptoms:

• Loose or wobbly heating element
• Uneven heating inside the oven
• Excessive vibrations or rattling noises during operation

The Whirlpool element mounting screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
