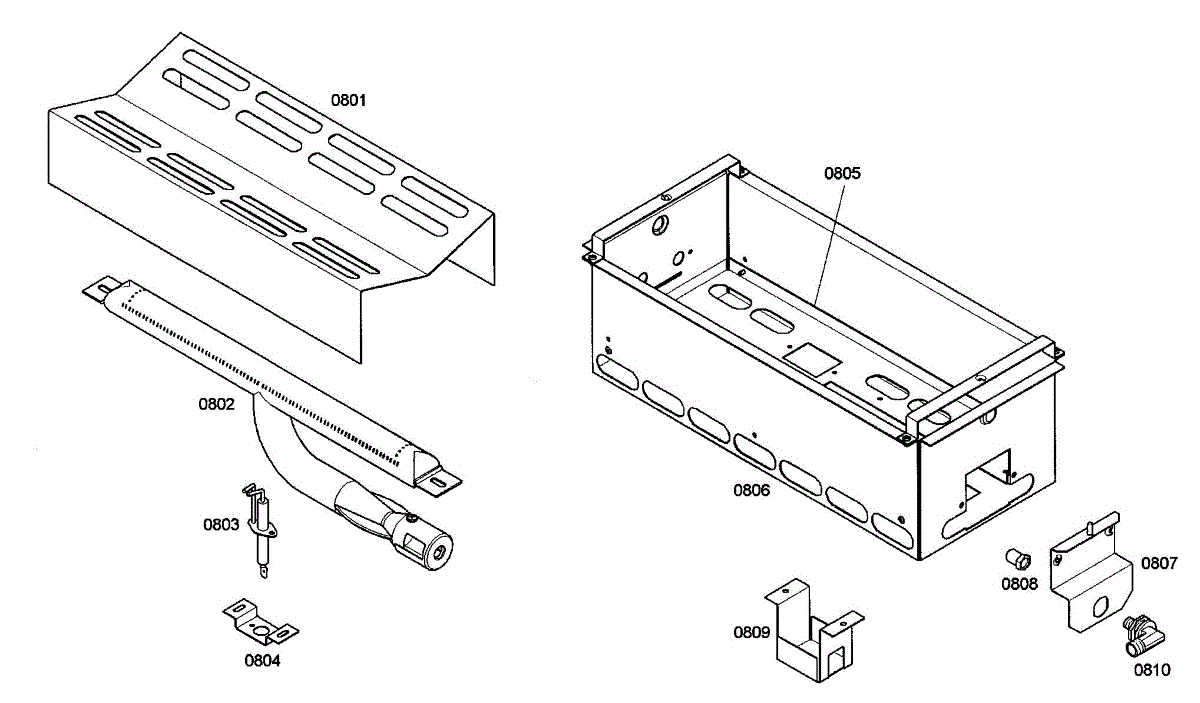

Parts for Thermador PRL486ELG02: Left Oven 2 Parts

This spark igniter is the burner electrode that creates the high-voltage spark to light the gas. Replacing a worn igniter restores quick, reliable ignition and helps eliminate repeated clicking or having to light the burner manually.

• Generates a spark at the burner to ignite gas during lighting
• Typical symptoms: burner won't light, no visible spark at that burner, intermittent or delayed ignition, or needing a match to light
• Replaces a cracked, fouled, or heat-damaged electrode that no longer sparks reliably
• Provides the ignition spark only; gas flow is managed by the valve

• Disconnect power and shut off gas before servicing
• Remove grates/caps and access the burner; note wire routing and mounting
• Transfer mounting hardware from the old igniter; handle the ceramic insulator gently and keep the tip clean
• Reassemble, restore power/gas, and verify proper spark and burner ignition

This LP burner orifice (#59 drill) meters propane to the burner so your appliance produces a clean, properly sized flame. Use it for LP conversion or to replace a worn or clogged jet that affects burner performance.

• Regulates LP gas flow to the burner for correct flame size and combustion
• Used during LP conversion or when a jet is stripped, damaged, or obstructed
• Incorrect orifice size can cause small or lazy flames, yellow tips, or hard-to-light burners
• Replace if cleaning doesn't restore proper flame or the jet is damaged

• Shut off gas supply and power; allow the appliance to cool before service
• Remove burner parts to access the manifold; match the orifice to the correct burner position
• Start threads by hand and snug gently—do not overtighten soft brass orifices
• After reassembly, leak-test with soapy water and verify flame; final adjustments should follow the unit's service instructions.
