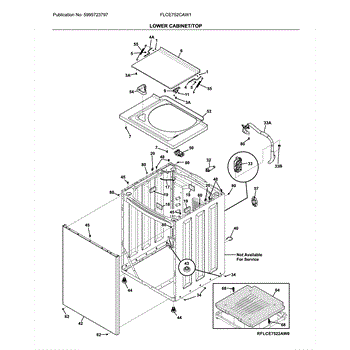

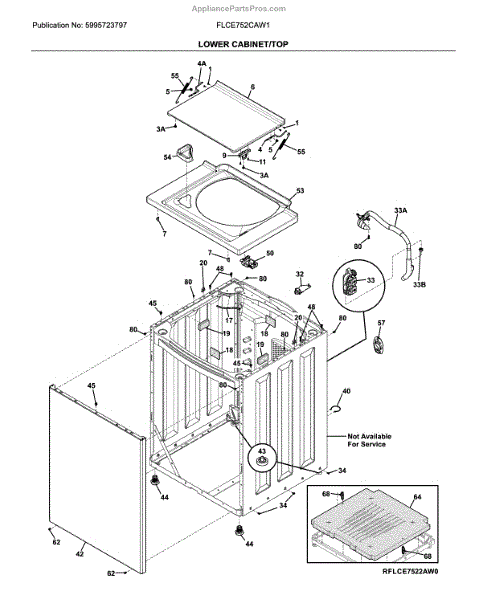

Parts for Frigidaire FLCE752CAW1: Lower Cabinet / Top Parts

Pan hd phillips ,6-32 x 0.337 ,dog point

This rubber lid bumper cushions the washer lid to prevent hard contact and reduce noise and wear. It replaces a worn or missing bumper to help the lid close more softly and sit level. What it does:

• Acts as a soft contact point between the lid and cabinet to absorb impact
• Reduces lid slamming, rattling, and vibration during operation
• Helps keep the lid aligned and prevents cosmetic damage to the rim
• Commonly replaced when the bumper is cracked, flattened, or missing

• One rubber lid bumper

• Install by removing the old bumper and pushing the new bumper into the mounting hole or recess; hand tools may be helpful
• Ensure the appliance is powered off and disconnected before servicing
• Inspect surrounding mounting area for damage and replace any broken retainers as needed
• If the bumper is hard to seat, warm it briefly with a hair dryer to improve flexibility

This genuine OEM part is a washer lid. The washer lid is the main piece that covers the washer. Over time, a washer lid can become damaged to the point where it no longer closes securely. If the washer lid is no longer closing all the way or is severely cracked or damaged, it will need to be replaced.To replace this part, start by making sure the washer is unplugged. After it has been powered off, proceed to take a putty knife to lift to release the two retaining clips that secure the washer's main top. Once released, proceed to remove the lid lock assembly wire connector. Fully remove the main top and set it upside down. Release the tension on the lid springs and detach the springs from the main top and hinge bars. Using a Phillips head screwdriver, remove the screws that secure the hinge bars to the lid. Push the hinge bars through the bearings then twist the bars to remove them. This will separate the lid from the main top. Take the new lid and align it with the main top. Insert the hinge bar between the main top and bearing while threading the screws to secure the new top. Reinstall the top panel and connect the wire harness. This replacement part is sourced directly from the manufacturer and is compatible with Frigidaire, Electrolux, Gibson, Kelvinator, and Westinghouse brand washers.

This clip is a small plastic retainer designed to secure trim and lightweight panels so they stay in place and reduce rattling or gaps. It restores proper fit and helps keep parts aligned for a finished look. What it does:

• Secures trim pieces, panels, or grill components to the appliance frame
• Prevents loose or rattling parts that can cause noise or misalignment
• Holds components in correct position so doors and panels close properly
• Replaces worn or broken clips that no longer grip reliably

• Remove power or disconnect the appliance before servicing when applicable
• Clip installs by snapping into pre-existing mounting hole or slot; no special tools usually required
• Inspect mating surfaces and replace any additional damaged fasteners for best fit

The Striker is an OEM component specifically designed for Frigidaire laundry centers. It connects the door to the stainless steel panel, providing secure closure of the unit.

Symptoms of a bad striker include:

• Loose or misaligned door that does not fit properly
• Latching issue causing the door to open unintentionally
• Failure points developing around striker mounting location
• Over time increased stresses on other door closure parts

Causes of a bad striker can be normal wear from repeated door openings, damage during moves impacting door alignment, or loose fasteners compromising connections.

This OEM Frigidaire replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore laundry center models. Replace promptly before needing other repairs.


This strike screw secures the door strike/catch to the appliance, keeping the latch aligned so the door closes firmly and any safety interlock engages. Replacing a missing, stripped, or corroded screw helps restore reliable, consistent door latching. What it does:

• Fastens the strike/catch to the door or cabinet
• Maintains proper alignment for positive latch engagement
• Helps address issues like door not latching, loose/rattling door, or intermittent door switch activation
• Replace if threads are stripped, the head is damaged, or the screw is missing

• 1 strike screw

• Disconnect power before servicing; allow hot surfaces to cool. For gas appliances, also shut off the gas supply.
• Support the door or strike and remove the damaged/missing fastener.
• Start the new screw by hand to avoid cross-threading; tighten snugly without overtightening.
• Verify door alignment and latch/lock operation after installation.

This ratchet-style fastener secures replaceable panels or components, keeping parts locked in place to prevent loosening and maintain proper alignment. Use it to restore secure fastening and reduce vibration or rattling. What it does:

• Holds panels or components with a one-way ratcheting grip to prevent back-out
• Restores secure attachment when original fastener is worn or stripped
• Helps stop panel rattling, vibration noise, or intermittent gaps
• Works where a small, durable locking fastener is required

• Disconnect power and unplug the appliance before starting any repair
• Use appropriate hand tools; avoid overtightening which can strip threads
• Inspect mating holes and surrounding fasteners; replace any damaged parts
• Test fit and operation after installation to ensure secure engagement

The Water Valve is an OEM part for Frigidaire washing machines. It is responsible for regulating the flow of water into the washer tub and hoses during all cycles. The water valve allows cold, warm, or hot water to pass through depending on the settings and ensures the proper amount is distributed for optimal cleaning performance.

Causes of a bad water valve can include mineral buildup over time, worn or damaged internal components that interfere with water flow regulation, or issues with the electronic control board that operates the valve.

Symptoms of a bad water valve include:

• Inability to select warm or hot water temperatures
• Poor or inconsistent water temperature
• No water filling or slow water filling during the wash cycle
• Water leaks from the valve area

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This factory clamp secures a hose or tubing connection so it stays tight during normal operation. Replace a worn or rusted clamp to restore a firm hold and help prevent leaks, drips, or accidental disconnections.

• Holds a hose, tube, or duct firmly to its fitting
• Helps maintain a sealed connection under vibration
• Helps resolve loose connections, drips/moisture at a joint, or rattling noises
• Common wear includes loss of tension, corrosion, or visible damage

• Disconnect power; if servicing a water line, shut off the water supply
• Note the original clamp position and orientation before removal
• Use appropriate hand tools (pliers, screwdriver, or nut driver as applicable)
• After installation, test for leaks or movement

The Fill Hose Assembly is an OEM part for Frigidaire laundry centers. This assembly is responsible for supplying water to the washing machine during the fill cycles. It ensures that water flows smoothly and efficiently from the household water supply to the washing machine, allowing for proper washing and rinsing of clothes.

Causes of a bad fill hose assembly can include wear and tear from regular use, damage from kinks or twists, or deterioration due to mineral buildup. If the fill hose assembly is compromised, it can lead to leaks, insufficient water flow, and potential water damage.

Symptoms of a bad fill hose assembly include:

• Water leaks around the hose connection points
• The washing machine not filling with water properly
• Slow or uneven water flow during the fill cycle
• Visible cracks or damage on the hose

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This backsheel clip secures the appliance backsheet to the cabinet, keeping panels aligned and preventing gaps. It's a simple replacement that restores proper panel fit and reduces rattling or movement. What it does:

• Holds the backsheet or rear panel in place for a flush fit
• Stabilizes the cabinet to reduce vibration and noise
• Helps maintain proper airflow paths by keeping panels sealed
• Replaces damaged, broken, or missing mounting clips

• High-level, screwless snap-in or push-fit — remove power and access the rear panel before replacing
• Use a flashlight and small flat tool to pry the old clip free if brittle or stuck
• Wear gloves to protect hands from sharp sheet-metal edges
• If multiple clips are damaged, replace all affected clips for even panel alignment

This replacement control panel restores the user interface and appearance of your appliance's console, providing a clean mounting surface for buttons, knobs, and the display so controls operate reliably and look like new. What it does:

• Houses the control buttons, selector switches, and display area used to operate the appliance
• Replaces cracked, faded, or cosmetically damaged panels to improve appearance
• Helps remedy problems where buttons stick, feel loose, or no longer register presses
• Provides the proper mounting and alignment for switches and electronic components

• Disconnect power to the appliance before beginning any repair.
• Remove surrounding trim or console screws to access and replace the panel; some models require transferring switches or displays from the old panel.
• Handle edges carefully and avoid touching exposed circuitry or contacts.

Self leveling leg pad

The Leveling Leg is an OEM component specifically designed for Frigidaire washers. These adjustable legs properly mount and balance the washer on varied floor surfaces within specifications.

Symptoms of a damaged leveling leg include:

• Excessive vibration during wash and spin cycles
• Abnormally loud operation noises
• Difficulty opening and closing the washer door

Causes can include deterioration of internally threaded plastic rods over repeated adjustments. Frigidaire engineers leveling legs as a wear item to preserve smoother cycles.

This OEM Frigidaire part is also compatible with Kenmore, crossed references to Electrolux brands may not apply. Leveling aids proper support under heavy drum motions and balanced spin extraction for vibration reduction. Replacing compromised legs restores stable platform balance as designed.


A small locating pin used to align and secure parts during assembly, helping panels and components sit correctly for reliable operation. Ideal when a worn or missing pin causes fit or alignment issues. What it does:

• Positions and holds panels, trim, or assemblies in the correct location during reassembly
• Prevents shifting or misalignment of covers and access panels
• Restores proper fit where a bent, broken or missing pin causes loose trim or gaps
• Small, simple replacement that addresses common fit/fitment symptoms

• Disconnect power and unplug the appliance before beginning any work
• Use basic hand tools; avoid forcing parts into place to prevent damage
• Inspect surrounding components for damage and replace if worn

A small OEM fastener used to secure appliance panels and components. Replaces worn or missing screws to restore proper fit and reduce rattling or loose parts for safer, quieter operation. What it does:

• Secures panels, trim, brackets or internal components in place.
• Prevents vibration and noise caused by loose hardware.
• Helps maintain proper alignment of removable parts.
• Restores a secure connection when original screw is stripped, lost, or damaged.

• Disconnect power and water before servicing the appliance.
• Use the correct screwdriver or bit to avoid stripping the head.
• Tighten until snug; avoid over-tightening to prevent damage to threads or parts.
• Replace with the exact screw type and length for proper fit and function.

This washer door lock secures the door closed and communicates locked status to the control so cycles can run safely. Replacing a failed lock restores proper latching and may resolve no-start, spin, or door/lock error issues.

• Locks the door at the start of the cycle to prevent opening during wash and spin
• Signals the control when the door is closed and locked
• Releases the door at the end of the cycle
• Common symptoms: won't start, door won't lock/unlock, intermittent pauses, door/lock error message

• Unplug the washer before servicing
• Access the lock from the front; remove the door gasket clamp and mounting screws (procedure varies by model)
• Transfer wires to the new lock one connector at a time; do not force terminals
• Verify the door striker engages smoothly and test an empty cycle before full use

The Dispenser is an OEM replacement part for Frigidaire washing machines. Located on the interior door, the dispenser accurately releases detergent, softener, and other treatments through a series of internal chambers and slots directly into the wash drum.

Causes of failure include clogging of internal dispenser parts from built-up detergent, damaged outlets preventing proper release into the drum, worn gears interfering with controlled dispensing timing, or electronic control issues disrupting the sequenced release.

Symptoms of a bad dispenser include:

• Products not fully dispensing or spraying inside the wash drum as intended
• Residue buildup inside dispenser compartments
• Loose, sagging, or missing internal dispenser components
• Premature dispensing during water fill instead of correct cycle times

This OEM Frigidaire component is compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This is a suspension spring for select washers. It supports and stabilizes the wash tub during spin and agitation to reduce vibration and noise, helping the machine run smoothly.

• Supports the tub within the cabinet to control movement
• Helps reduce excessive vibration, banging, or walking during spin
• Addresses symptoms like out-of-balance loads, noise, or shaking
• Loss of tension, stretching, or breakage can require replacement

• Unplug the washer and shut off water supply before repair
• Access typically requires removing the top or front panel; support the tub to relieve spring tension
• Wear gloves and eye protection; springs are under tension
• Replace any damaged or missing suspension components in pairs or as required.

This is a replacement mounting bracket that secures appliance panels and components, restoring proper alignment and stability. A direct-fit part that helps stop loose panels, rattling, or misalignment for safe, reliable operation. What it does:

• Provides a secure attachment point for panels, trim, or internal components
• Restores correct alignment to reduce rattling and vibration
• Prevents parts from shifting or coming loose during operation
• Re-establishes proper fit where a worn or broken bracket allows gaps

• One mounting bracket

• Install with appliance powered off and disconnected from power source
• Use appropriate fasteners and torque to avoid stripping or damage
• Inspect surrounding clips and hardware; replace any damaged fasteners

This vane screw secures the internal drum baffle (vane) to the drum, keeping loads turning properly and preventing rattles or snags. Replace a missing or stripped screw to restore a tight, stable baffle during cycles.

• Fastens the drum baffle/lifter (vane) to the rotating drum
• Helps maintain proper tumble and load turnover
• Common symptoms: loose or wobbly baffle, rattling or clunking noises, items catching on a raised baffle edge, or a baffle that detaches
• Visual cues: missing screw or stripped/damaged threads at the baffle mounting holes

• Disconnect power before servicing; shut off gas
• Access the baffle from inside the drum; align holes and start the screw by hand to avoid cross-threading
• Tighten firmly but do not overtighten to prevent stripping the drum or cracking the baffle
• Start all screws before final tightening to seat the baffle evenly

This factory 8-18 screw secures appliance panels, brackets, and components. Replace missing or stripped hardware to restore a tight, rattle-free assembly and dependable operation.

• Fastens components to frames, brackets, and covers
• Replaces missing, damaged, or rusted screws
• Helps reduce looseness, vibration, and rattling noises
• Restores proper alignment of panels and assemblies

• Disconnect power before servicing; shut off gas/water if applicable
• Start the screw by hand to avoid cross-threading; use the proper driver
• Tighten snugly—do not overtighten to prevent stripping metal or plastic

Hex washer head ,10-32 x 0.375. Ground

This wiring harness connects the oven's control board to its components, restoring reliable electrical connections and helping the range operate correctly. Use it to replace damaged, burnt, or loose harnesses that cause intermittent or no power to controls. What it does

• Transfers power and signals between the control board and oven components (controls, sensors, igniter).
• Replaces harnesses with damaged insulation, broken wires, or corroded terminals.
• Can stop intermittent control failures, erratic operation, or loss of specific functions tied to a disconnected circuit.
• Maintains factory routing and connector fit for secure, reliable connections.

• Always disconnect power (unplug or shut off breaker) before servicing electrical components.
• Route harness along original clips and channels to avoid heat or pinch points.
• If terminals are corroded or other components are damaged, inspect and replace them as needed.

No.8 pan head `10 - 10b x 0.50 `cr/sq drive
