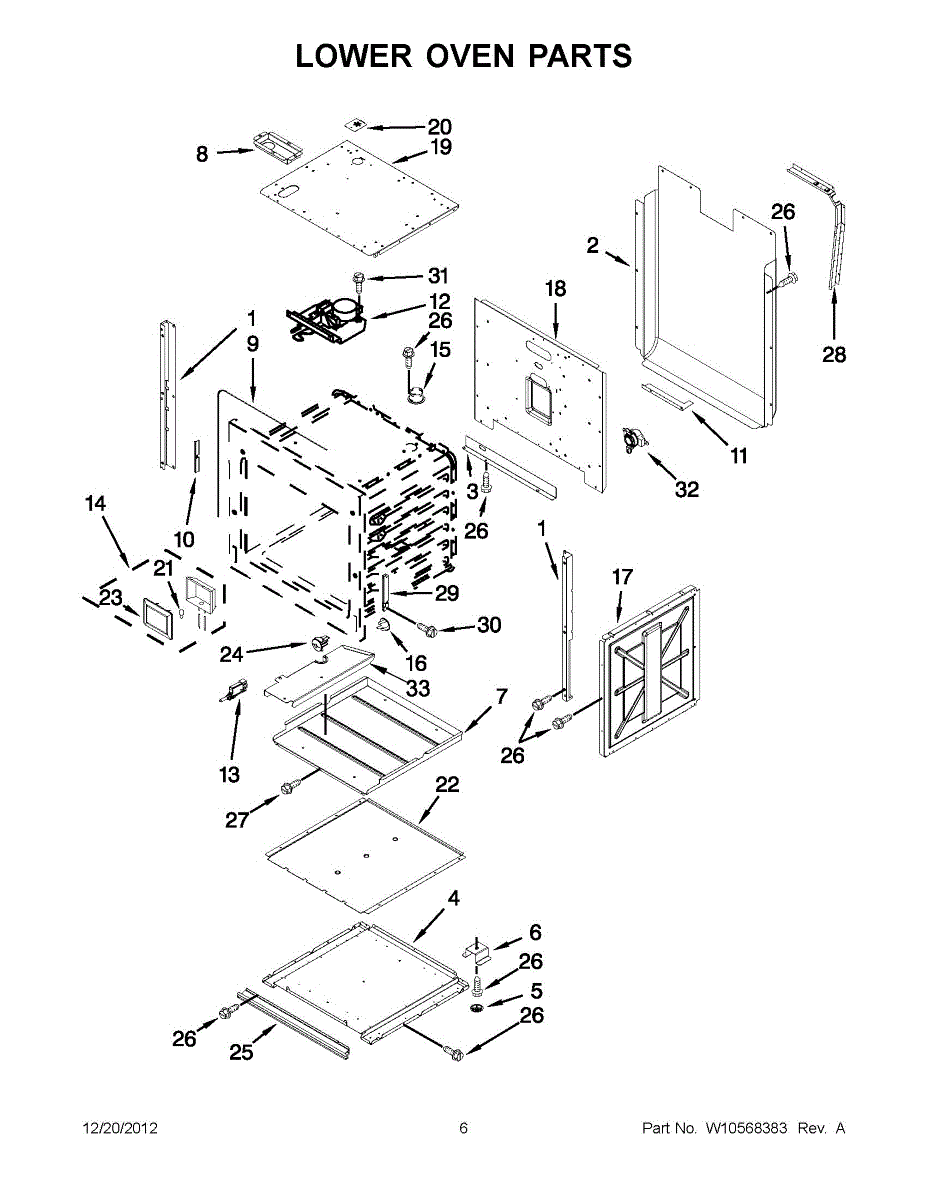

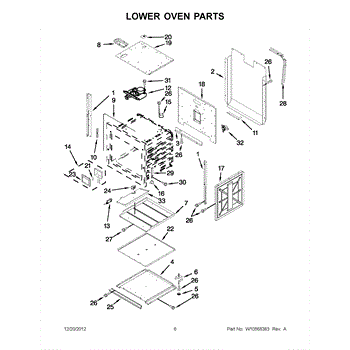

Parts for Jenn-Air JJW2830WS02: 03 - Lower Oven Parts

The Light Bulb is an OEM part for Whirlpool ranges and ovens. It provides illumination inside the oven cavity, allowing users to monitor the cooking process without opening the oven door.

Causes of a bad light bulb can include burnout from regular use, electrical issues, or damage due to high temperatures and vibrations within the oven.

Symptoms of a bad light bulb include:

• The light not turning on when the oven door is opened or the light switch is activated
• Flickering or dim light
• The bulb appears visibly damaged or burned out

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This lens cover protects and diffuses the appliance light, keeping grease and heat away from the bulb and socket for clear, even illumination. Replace a cracked, missing, or cloudy lens to restore visibility and safe operation.

• Shields the light bulb and socket from splatter, moisture, and debris
• Diffuses light for clearer visibility of the work/cooking area
• Helps maintain a heat barrier around the lamp
• Common symptoms: lens is cracked/broken, discolored/cloudy, missing, or won't stay secured

• Disconnect power and allow the appliance to cool completely before servicing
• Wear gloves; remove the old lens by unthreading, releasing the retainer, or unclipping (varies by model)
• Clean the seating area; align tabs or threads and seat the new lens securely
• Do not overtighten; verify the light operates and the lens is fully secured

This trim vent is the exterior plastic trim piece that surrounds the dryer's front vent opening, restoring a finished appearance and protecting the vent area from damage. It's a direct-replacement exterior trim for dryers with a front vent opening. What it does

• Covers and protects the front vent opening while keeping the dryer's appearance finished
• Helps direct airflow from the dryer's vent outlet toward the exhaust connection
• Replaces cracked, warped, or broken vent trim that allows debris or drafts
• Reduces gaps that can allow lint buildup around the dryer's vent opening

• One trim vent

• Install with the dryer disconnected from power; follow the dryer's service manual for access steps
• Usually secures with snap clips or a few screws—keep original fasteners if reusing
• Check alignment with the dryer's vent opening before tightening fasteners
• If you encounter additional damage to surrounding panels or mounting points, inspect those areas for repair

This bottom vent trim restores the finished look and proper airflow at the appliance's lower front. It covers and protects the vent opening while keeping the lower access area neat and finished. What it does:

• Covers the lower front vent opening and provides a finished appearance
• Directs airflow from the lower vent area to help proper ventilation
• Replaces cracked, bent, or missing trim that can expose internal components
• Helps keep debris and large particles from entering the vent opening

• Disconnect power to the appliance before starting any work
• Handle edges carefully; trim pieces and openings can be sharp

This factory fastener secures components inside your appliance, keeping panels, brackets, and assemblies properly attached. Replacing a worn, stripped, or missing screw restores a tight fit and helps prevent vibration, rattling, and misalignment.

• Fastens parts to frames, panels, or brackets as specified in your model's parts diagram
• Helps maintain alignment and reduce vibration/rattling during operation
• Replace when the original screw is missing, corroded, stripped, or no longer holds
• Direct OEM hardware for the designated locations on applicable models

• Disconnect power; shut off gas/water if applicable. Allow hot surfaces to cool.
• Use the correct driver size; start threads by hand to avoid cross-threading.
• Tighten until snug—do not overtighten, especially into plastic or thin sheet metal.
• If a mating clip, insert, or nut is damaged, replace that hardware per your model diagram.

This high-limit thermal fuse cuts power when temperatures exceed safe levels to protect heating circuits and prevent fires. Replace a failed fuse to restore proper thermal protection and help your appliance heat and run correctly. What it does:

• Opens the circuit if the heater area overheats to protect the appliance from thermal damage
• May resolve no-heat or intermittent-heat symptoms in dryers and other heated appliances
• Can stop an appliance from running if the thermal cutoff is blown
• Acts as a one-time safety device that must be replaced if it has opened

• Disconnect all power before accessing or replacing the part
• Verify the failed fuse with a continuity test; a blown fuse will show no continuity
• Replace with the exact part number to ensure correct temperature rating and fit
• If the thermal fuse has blown, inspect and repair the underlying cause (venting, air flow, or heating element) before return to service
