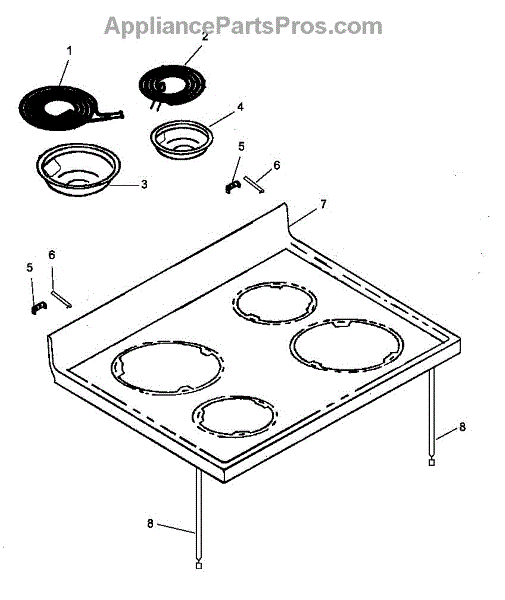

Parts for Amana ARC700E-P1142628NE: Main Top Assembly (Arc700e / P1142652ne) (Arc700e / P1142698ne) (Arc700ll / P1142652nll) (Arc700ll / P1142698nll) (Arc700ww / P1142652nww) (Arc700ww / P1142698nww) Parts

The 8 Inch Large Surface Element is an OEM part for Whirlpool cooktops and ranges, designed to provide reliable and consistent heat for cooking. This large surface element is crucial for performing a wide range of cooking tasks, from boiling water to frying and sautéing.  For matching 6 inch element order WP660532.

The primary reasons for replacing the 8 Inch Large Surface Element often involve wear and tear from regular use, physical damage, or electrical issues within the element itself.

Symptoms indicating the need for a replacement 8 Inch Large Surface Element include:

• The element not heating up, indicating a failure to provide the necessary cooking temperature
• Uneven heating, resulting in inconsistent cooking results
• Visible damage to the element, such as blistering, peeling, or cracking
• The element heating slowly or not maintaining the desired temperature during use

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This 6-inch radiant surface element is the heating source for a small burner beneath a glass-ceramic cooktop. Replacing a failed element restores reliable, controllable heat to that cooking zone. What it does:

• Heats the 6-inch cooking zone under the glass top when the control is turned on
• Cycles to help maintain the selected temperature during cooking
• Common symptoms of failure: small burner won't heat, heats unevenly or intermittently, or shows visible burn spots/damage

• 1 six-inch radiant surface element

• Disconnect power at the breaker and allow the cooktop to cool completely
• Lift the glass top or remove the cooktop to access the elements; support the glass to avoid stress or cracks
• Note wire positions and transfer connections to the new element one at a time
• Ensure the element sits flat in its mounting brackets before reassembly and testing

This is a genuine replacement mounting screw used to secure appliance panels and components. It restores proper fastening to reduce vibration and prevent parts from loosening during normal operation. What it does:

• Secures panels, brackets, or trim to the appliance frame
• Prevents rattling or vibration caused by loose fasteners
• Keeps wiring and small components held in place
• Helps maintain proper alignment of removable parts

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand, then tighten until snug; do not overtighten
• Keep removed fasteners organized to ensure correct reassembly

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

• Burnt or scorched connections
• Intermittent power loss to the range
• Difficulty in the range heating up properly
• Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
