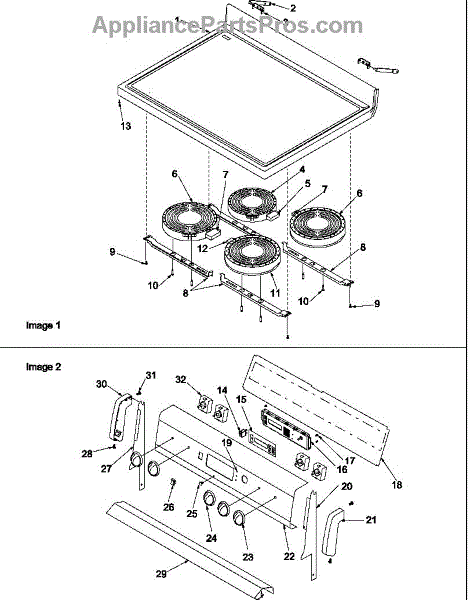

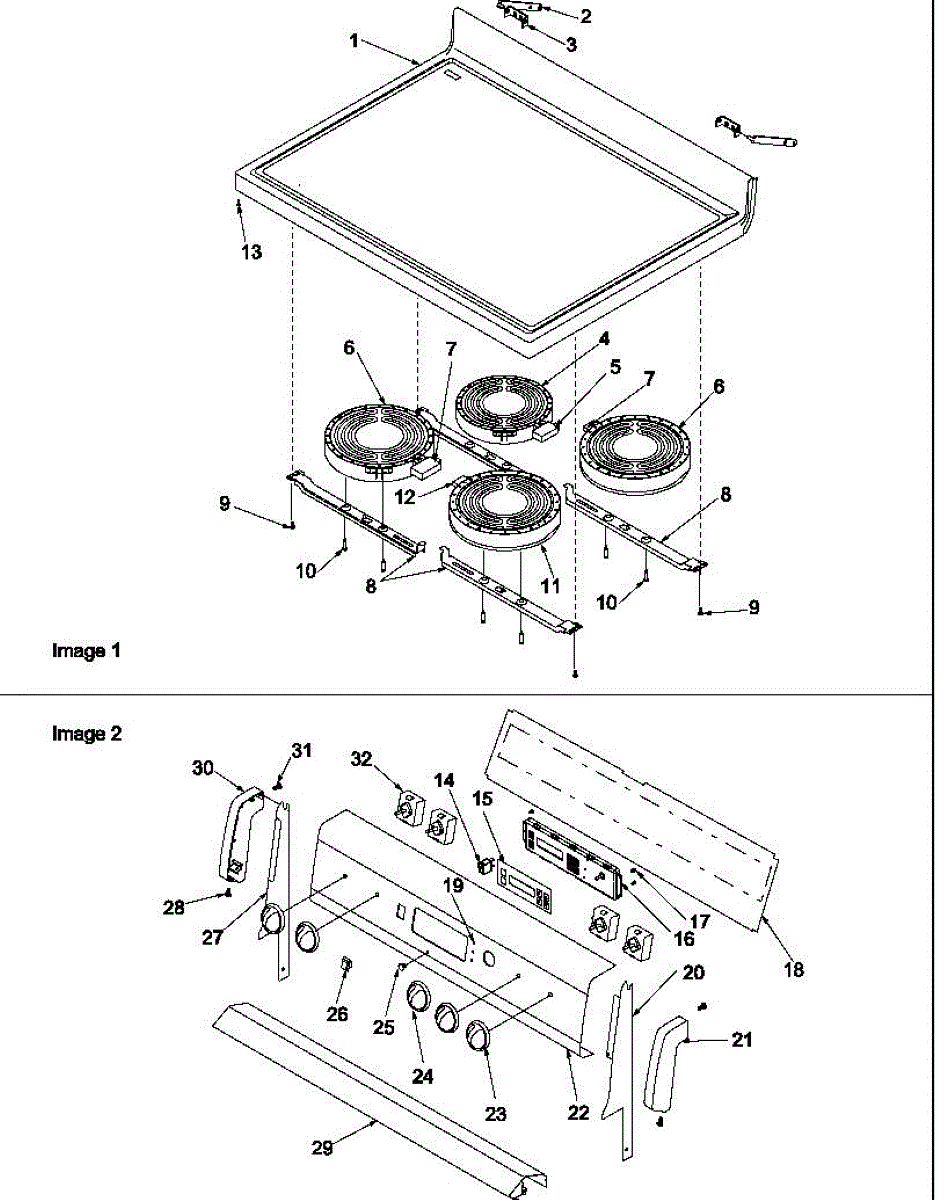

Parts for Amana ART6002L-P1143620NL: Main Top And Backguard Parts

The Small Surface Element is an OEM part for Whirlpool electric ranges and cooktops. This heating element is responsible for providing heat to a specific area on the cooktop, typically used for smaller pots and pans. It ensures even and efficient heating, allowing for precise cooking control.

Causes of a bad surface element can include regular wear and tear, overheating, or electrical malfunctions. A malfunctioning surface element can result in uneven heating, longer cooking times, or no heat at all.

Symptoms of a bad small surface element include:

• The element not heating up
• Uneven or inconsistent heating
• Sparks or electrical arcing when the element is turned on
• Visible damage or discoloration on the element

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This surface heating element replaces a damaged or worn top burner coil to restore cooking heat on electric ranges. It installs into the stove's cooktop receptacle and provides a reliable heating surface for pots and pans. What it does:

• Heats cookware on the cooktop for boiling, frying and simmering
• Restores power to a burner that no longer heats or only heats intermittently
• Replaces elements with visible breaks, burn spots, or inconsistent temperature
• Works with the range's burner receptacle to complete the heating circuit

• Disconnect power to the range at the breaker or unplug before servicing.
• Replace by lifting the cooktop or removing the element from its receptacle per your model's service instructions.
• Ensure terminals are fully seated and secured; inspect wiring and receptacle for damage and replace if necessary.

The infinite switch regulates power to your range or cooktop's surface element, letting you set heat from low to high. Replace a failed switch to restore dependable burner control and consistent cooking performance.

• Regulates on/off power cycling to the surface element based on the knob setting
• Helps resolve no-heat, stuck-on-high, won't-turn-off, or erratic/uneven heat issues
• Often controls the surface "on" indicator light circuit; failure may affect the light
• Installs behind the control knob and connects to the existing wire harness

• Disconnect power at the breaker; allow the appliance to cool completely
• Remove the knob and access panel to reach the switch
• Photograph wiring and transfer wires to the same labeled terminals (commonly L1, L2, H1, H2, P)
• Reassemble, restore power, and test multiple heat settings; check the element and wiring
