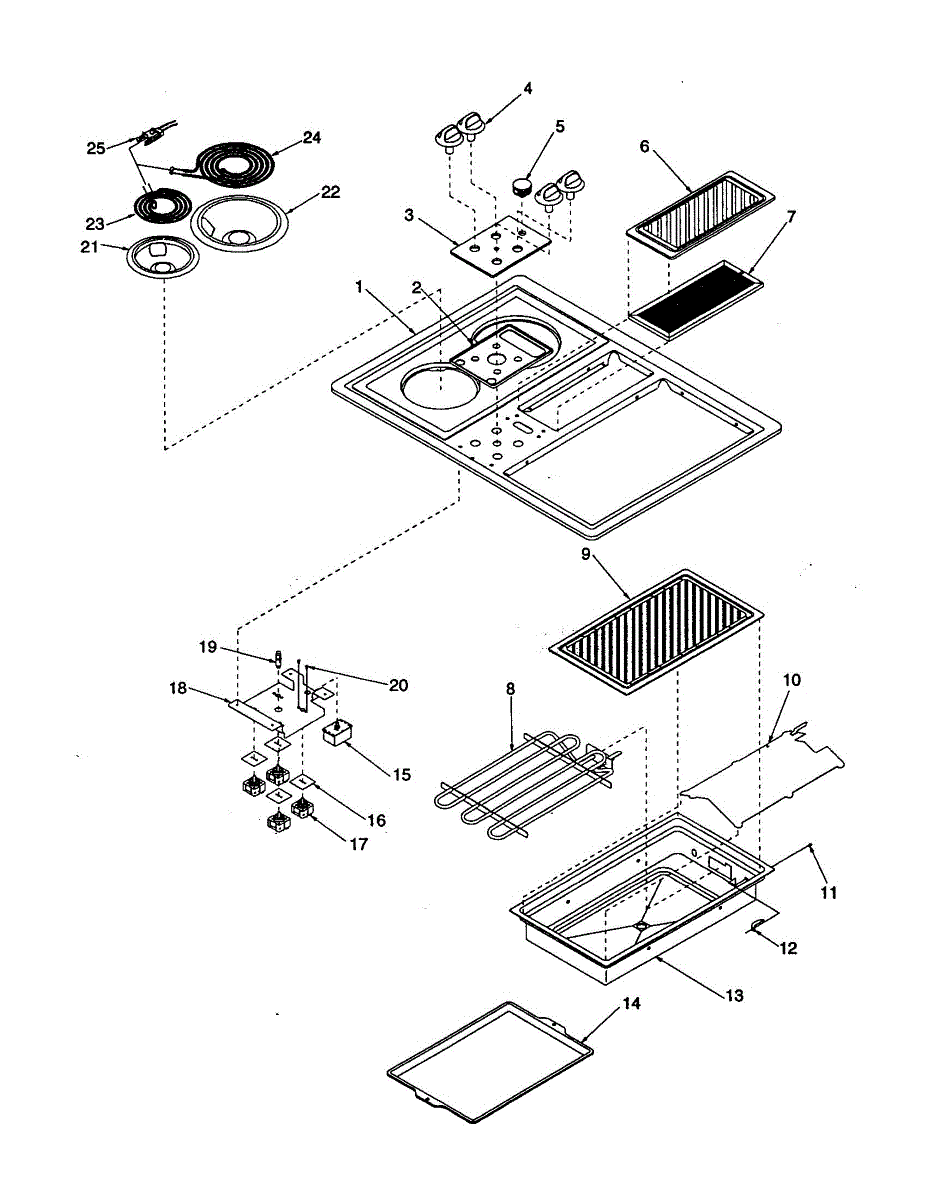

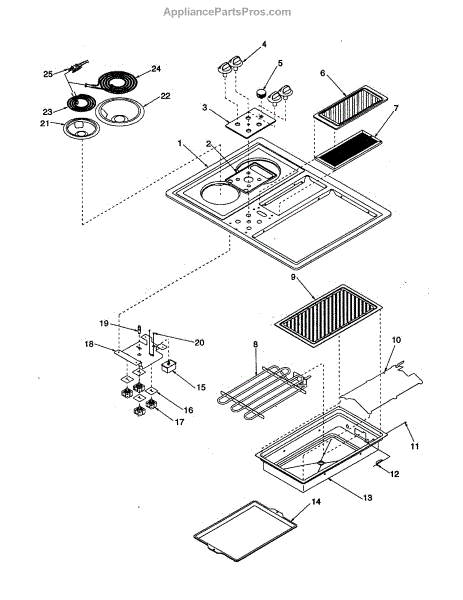

Parts for Amana AKES3060E-P1131752NE: Main Top Parts

The infinite switch regulates power to your range or cooktop's surface element, letting you set heat from low to high. Replace a failed switch to restore dependable burner control and consistent cooking performance.

• Regulates on/off power cycling to the surface element based on the knob setting
• Helps resolve no-heat, stuck-on-high, won't-turn-off, or erratic/uneven heat issues
• Often controls the surface "on" indicator light circuit; failure may affect the light
• Installs behind the control knob and connects to the existing wire harness

• Disconnect power at the breaker; allow the appliance to cool completely
• Remove the knob and access panel to reach the switch
• Photograph wiring and transfer wires to the same labeled terminals (commonly L1, L2, H1, H2, P)
• Reassemble, restore power, and test multiple heat settings; check the element and wiring

This 6-inch radiant surface element is the heating source for a small burner beneath a glass-ceramic cooktop. Replacing a failed element restores reliable, controllable heat to that cooking zone. What it does:

• Heats the 6-inch cooking zone under the glass top when the control is turned on
• Cycles to help maintain the selected temperature during cooking
• Common symptoms of failure: small burner won't heat, heats unevenly or intermittently, or shows visible burn spots/damage

• 1 six-inch radiant surface element

• Disconnect power at the breaker and allow the cooktop to cool completely
• Lift the glass top or remove the cooktop to access the elements; support the glass to avoid stress or cracks
• Note wire positions and transfer connections to the new element one at a time
• Ensure the element sits flat in its mounting brackets before reassembly and testing

2100W. Size: 8 inch. Location: Right front.

This replacement mounting screw secures appliance panels and components to restore proper fit and reduce rattling. Use when a damaged or missing screw causes loose trim, gaps, or vibrating noises; order by part number to ensure a match. What it does:

• Fastens panels, brackets, or trim to keep parts aligned and secure.
• Stops vibration and rattling caused by loose or missing screws.
• Common symptoms: visible gaps, loose panels, hardware falling out, or excess noise.
• Use the part number and/or existing screw to ensure correct size and thread before ordering.

• Disconnect power and water before accessing internal components.
• Use the correct screwdriver or bit to avoid stripping the head.
• Turn until snug; avoid over-tightening which can strip threads or crack trim.
• Keep small parts away from children and pets during repair.
