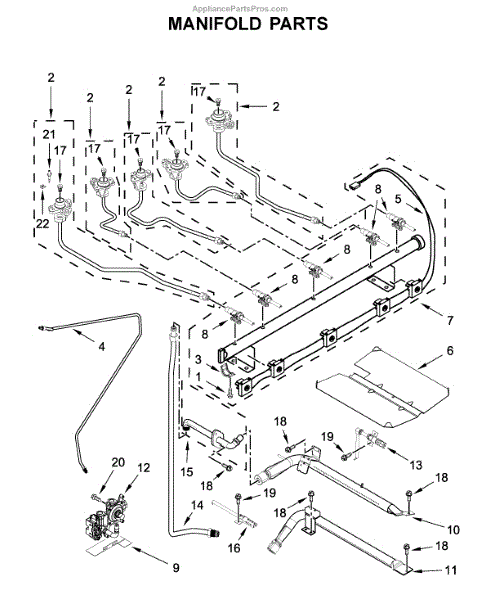

Parts for Kitchenaid KFGG500EBS3: Manifold Parts

This is a direct-replacement screw used to secure appliance panels, brackets and other small components. It restores proper fastening where the original screw is missing, stripped, or corroded to help reduce rattles and looseness. What it does

• Fastens panels, trim, brackets and similar small appliance parts
• Restores a secure connection when the original fastener is missing or damaged
• Helps stop vibration-related rattling and movement of mounted components
• Matches the original mounting point to maintain proper alignment

• Disconnect power and water before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Thread carefully and do not overtighten to prevent damage to the mating part
• Replace only with the same part number or equivalent for proper fit

The Burner Valve is an OEM part for Whirlpool ranges. It is responsible for controlling the flow of gas to the surface burners for precise heat regulation during cooking.

A bad surface burner valve can occur due to wear and tear, clogs, or damage to the valve mechanism. If you notice symptoms such as difficulty in igniting the burner, uneven flames, or gas leaks, it may be time to replace the surface burner valve.

Symptoms of a bad surface burner valve include:

• Difficulty in igniting the burner
• Uneven flames or inconsistent heat
• Gas leaks around the valve area

Repair your range by replacing the faulty or worn-out surface burner valve with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The Burner Valve is an OEM component specifically designed for Whirlpool gas ranges. Located underneath each cooktop burner, the brass valve controls the flow of gas to its associated burner.

Causes of a bad burner valve include corrosion buildup within the valve restricting gas flow over time. Wear and tear to the shaft valve or spring components could render a burner inoperable.

Symptoms of a bad burner valve include:

• Inconsistent or unreliable burner ignition
• Reduced burner flame height and intensity
• Complete failure to ignite a single burner

Compatible with additional brands including Kenmore, Jenn-Air, and most KitchenAid models.

This broil burner assembly supplies the focused heat for the oven's broiling function so you can brown and crisp foods quickly. It replaces a worn or damaged broil burner to restore proper broil performance. What it does:

• Directs and emits the high, concentrated flame used during oven broiling.
• Restores even browning and searing when the broil function produces weak or spotty heat.
• Addresses issues such as little/no broil flame or uneven broiling when burner damage or clogging is present.
• Works with the oven's gas supply and ignition system to produce consistent broil heat.

• One broil burner assembly

• Turn off and disconnect gas supply and electrical power before attempting service.
• Follow OEM service manual or parts diagram for correct alignment and secure mounting.
• Use proper tools; verify gas connections are leak-free and ignition lights properly before use.

This oven bake burner feeds gas evenly along the flame ports to deliver a consistent bake flame. Replacing a warped, corroded, or clogged burner helps restore reliable preheat and even baking.

• Distributes gas along the burner rail during the bake cycle to produce an even flame
• Helps maintain stable oven temperatures and consistent cooking results
• Common symptoms: no heat in bake, very long preheat, or uneven baking
• Visible damage, rust, or blocked ports on the burner indicate replacement

• Disconnect power and shut off gas before servicing; allow the oven to cool
• Remove the oven bottom panel and flame spreader/shield to access the burner
• Note orientation; transfer any mounting hardware from the original and seat the burner over the orifice before securing
• Restore gas, check all connections for leaks with an approved solution, and verify proper ignition and flame

The Regulator is an OEM replacement part for Whirlpool ranges. It is responsible for controlling the flow of gas to the burners and ensuring the proper gas pressure for efficient and safe cooking.

A bad pressure regulator can occur due to wear and tear, clogs, or damage to the internal components. If you notice symptoms such as weak or inconsistent flame, gas leaks, or difficulty in igniting the burners, it may indicate a faulty valve and pressure regulator.

Symptoms of a bad regulator include:

• Weak or inconsistent flame
• Gas leaks
• Difficulty in igniting the burners

Restore your range by replacing the faulty or damaged valve and pressure regulator with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The Oven Igniter is an OEM part for Whirlpool ovens. It is responsible for igniting the gas in the oven burner to produce the heat needed for cooking and baking. The igniter ensures a consistent and reliable flame each time the oven is used.

Causes of a bad igniter can include normal wear and tear, electrical faults, or exposure to high temperatures over extended periods. A worn or damaged igniter may fail to produce the necessary spark or heat to ignite the gas.

Symptoms of a bad igniter include:

• The oven not heating up
• Uneven cooking or baking
• A delay in the oven igniting
• The smell of gas without ignition

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This gas tubing is the replacement flexible line that routes fuel from the gas valve to the burner assembly, restoring a secure gas connection for safe ignition and operation. Designed to match OEM fit and function. What it does

• Carries natural or LP gas from the control valve to the burner or main manifold.
• Restores a sealed gas path when original tubing is cracked, pinched, or disconnected.
• Helps eliminate symptoms such as gas smell near the appliance, burner failing to light, or intermittent pilot/burner operation.
• Works with appliance gas systems that use a flexible tubing connection.

• One gas tubing as shown.

• Turn off the gas supply and unplug the appliance before starting any work.
• Use correct fittings and thread sealant approved for gas.
• After installation, test all connections for leaks using a soapy water solution or a gas leak detector; never use an open flame.

This replacement fitting secures and directs the appliance water line to the internal plumbing, restoring a proper water connection and preventing leaks. Use it when the original connector is cracked, loose, or leaking. What it does:

• Connects the external water supply tubing to the appliance's internal water system
• Provides a sealed transition point to prevent drips or steady leaks
• Replaces damaged, corroded, or worn fittings that cause low/no water flow or leaks
• Helps restore reliable water delivery for ice makers, dispensers, or inlet assemblies

• Turn off the water supply and unplug the appliance before starting work
• Depressurize the line by running the dispenser briefly after shutting off water
• Use proper tubing size and seat fittings fully; inspect O-rings or ferrules and replace if needed

This broil burner spark electrode generates the ignition spark at the oven's broil burner so the flame lights reliably when you select Broil. Replacing a worn or cracked electrode restores consistent broil ignition and reduces repeated clicking.

• Provides a high-voltage spark at the broil burner to ignite gas
• Works with the range's spark/ignition module to light the broiler
• Common symptoms: broiler won't light, intermittent or delayed ignition, continuous clicking with no flame, cracked ceramic insulator
• Spark-style component (not a glow-bar igniter)

• Disconnect electrical power and shut off gas; allow the oven to cool completely.
• Remove oven racks and any flame spreader/guard to access the broil burner area.
• Note electrode position and gap to the burner port; transfer mounting hardware and avoid stressing the ceramic insulator.
• Route and reconnect the ignition wire/harness away from heat and sharp edges; restore gas and power and test ignition.

This gas burner orifice regulates the flow of fuel to a stove/oven burner to restore correct flame size and heating. Replaces a worn or clogged orifice to help burners light and burn evenly for reliable cooking. What it does

• Metering component that controls gas flow from the valve to the burner port
• Helps maintain consistent flame height and heat output when functioning properly
• Commonly replaced for small or uneven flames, burners that won't light reliably, or reduced heating performance
• Works as a direct-fit replacement when matched to the appliance's exact part number

• One orifice

• Shut off gas supply and power to the appliance before beginning service
• Use correct orifice for your appliance; do not modify the part orifice opening
• Tighten to manufacturer torque specs and check for leaks with a soap solution or approved leak detector

This genuine OEM-style gas burner orifice controls the flow of gas to a stove or range burner for a steady, correct flame. Replacing a worn or damaged orifice restores proper burner performance and helps ensure safe, efficient operation. What it does:

• Meter gas to the burner jet so the flame burns correctly and evenly
• Helps correct weak or uneven flames and poor burner ignition
• Prevents over- or under-firing that can affect cooking performance
• Works with the burner assembly to maintain stable combustion

• One gas burner orifice

• Turn off the appliance power and shut off the gas supply before starting work
• Replace only with the exact orifice specified for your appliance; check fit before final assembly
• Use proper gas-rated thread sealant or tape if the application requires it; follow local codes

This orifice controls gas flow to a cooktop burner, restoring proper flame size and consistent cooking heat. It replaces a worn or clogged nozzle to help re-establish reliable ignition and even burn across the burner. What it does:

• Meters gas to the burner so the flame burns evenly and at the correct size
• Helps correct weak or uneven flames that cause slow cooking or hot spots
• Can resolve ignition issues when a blocked orifice prevents consistent lighting
• Restores proper combustion after corrosion, debris, or wear reduces gas flow

• Turn off the gas supply and power before removing or installing this part
• Use proper tools to avoid damaging threads; confirm fit before final tightening
• Inspect surrounding gaskets/seals and clean burner ports before reassembly

This orifice controls the gas flow to a single burner, helping the appliance produce a stable, correct flame for cooking. Replace a worn or clogged orifice to restore consistent burner performance and safer operation. What it does:

• Regulates gas flow to the burner for proper flame size and heat output
• Helps maintain an even, steady flame for reliable cooking
• A clogged or damaged orifice can cause a weak, uneven, or yellow flame
• Resolve issues where a burner is slow to light or does not reach normal heat

• Turn off the gas supply and unplug the appliance before starting work
• Remove burner parts and orifice holder to access the orifice; use appropriate hand tools
• Replace with the identical orifice and proper seating and orientation
• After installation, check for gas leaks and proper burner flame

This orifice spud is the small metal fitting that meters gas to a cooktop or range burner, restoring proper flame size and heat control. It fits into the burner manifold to direct fuel flow for safe operation. What it does:

• Regulates gas flow to a specific burner for correct flame height and heat output
• Helps restore even or full-strength flames when a burner is weak or uneven
• Can resolve ignition difficulty or burners that won't stay lit when caused by a worn or damaged spud
• Works as a direct replacement for the corresponding burner orifice in the manifold assembly

• One orifice spud

• Turn off the appliance's gas supply and electrical power before servicing
• Use appropriate wrenches and avoid overtightening to prevent damage to threads
• After installation, check all connections for gas leaks with a soap solution; do not use an open flame

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This is a genuine replacement screw used to secure appliance components. It provides a simple, reliable fastener for reattaching panels, brackets, or assemblies so parts stay properly mounted and stable during operation. What it does

• Secures panels, trim, brackets or small assemblies in place
• Restores proper fastening where a missing or damaged screw causes loose parts or rattling
• Prevents movement that can lead to noise or misalignment of adjacent components
• Used wherever the original screw was removed or lost during repairs

• One replacement screw

• Use the matching screw head and thread engagement; do not force if it does not seat smoothly
• Tighten until snug—avoid overtightening to prevent stripping or cracking plastic parts
• Disconnect power before working on electrical appliances and follow basic safety precautions
• If original screw was rusted, check mating threads for damage before installing new fastener

A self-tapping screw used to secure appliance panels and components, providing reliable fastening to sheet metal and plastic parts. Replaces worn or missing fasteners to restore proper fit and reduce rattling. What it does:

• Fastens panels, brackets, or trim to appliance frames and housings
• Creates its own threads in sheet metal or plastic for a secure hold
• Helps stop loose panels, vibration noise, and misaligned parts
• Commonly used where a short, durable fastener is needed

• Disconnect power and water before starting any repair
• Use the correct screwdriver or driver bit to avoid stripped heads
• Start threads carefully and avoid over-torquing to prevent damage
• Wear eye protection and gloves when working with sheet metal

This ignitor retaining clip secures the oven or range ignitor to the burner assembly so the ignitor stays properly positioned for reliable ignition. It's a small replacement part that restores proper ignitor mounting and alignment. What it does:

• Holds the oven/range ignitor in place on the burner assembly to maintain correct positioning
• Helps ensure consistent ignition by preventing the ignitor from shifting or coming loose
• Commonly replaced when the original clip is broken, bent, or missing
• Fits directly where the factory clip secures the ignitor to the burner housing

• Turn off power and gas supply to the appliance before starting any repair
• Access typically requires removing the oven burner or inner panel; follow the manufacturer service instructions
• Use appropriate tools to remove the old clip and secure the new clip without over-bending

The LP Bake and Broil Orifice Kit is an OEM replacement part for Whirlpool gas ranges and ovens. It is a kit containing specially-sized orifices that control gas flow to the bake and broil burners. This allows for optimal gas-air mixture and fuel efficiency specific to liquefied petroleum (LP) gas systems.

Causes of needing a replacement kit include worn or damaged orifices that alter proper gas flow and burner performance over time.

Symptoms include:

• Slow or uneven heating from one or multiple burners
• Burners that create hot or cool spots on cookware
• Ineffective or soft flames that impact cooking results
• Higher appliance operation costs due to inefficient fuel usage

This OEM kit is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: Oven orifice kit with Bake orifice and "Male" Broil orifice. For an oven orifice kit with a "Female" Broil orifice, order part# W10859321. The Bake orifice is #56, Broil orifice is #100.
