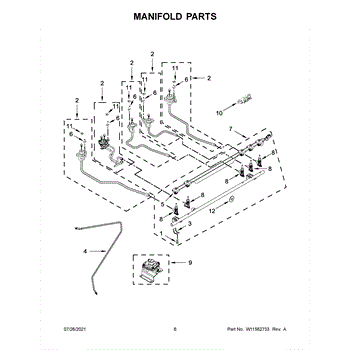

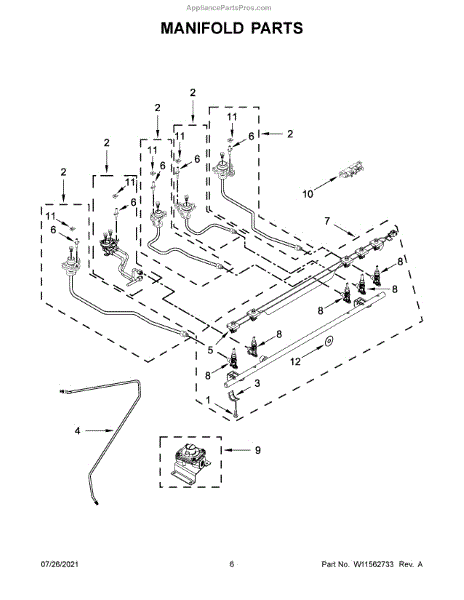

Parts for Kitchenaid KSDB900ESS5: Manifold Parts

This is a direct-replacement screw used to secure appliance panels, brackets and other small components. It restores proper fastening where the original screw is missing, stripped, or corroded to help reduce rattles and looseness. What it does

• Fastens panels, trim, brackets and similar small appliance parts
• Restores a secure connection when the original fastener is missing or damaged
• Helps stop vibration-related rattling and movement of mounted components
• Matches the original mounting point to maintain proper alignment

• Disconnect power and water before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Thread carefully and do not overtighten to prevent damage to the mating part
• Replace only with the same part number or equivalent for proper fit

This spark switch harness connects the oven/range ignition switch to the spark module so burners or the oven igniter can receive the ignition signal. It restores proper spark delivery for safe, reliable ignition. What it does:

• Transfers the ignition switch signal to the spark/ignition circuit so burners or the oven igniter can spark
• Helps resolve symptoms like clicking at the control, intermittent or no spark at the burner/oven, or failure to light
• Maintains correct connector alignment and wiring routing for the ignition system
• Designed to work with the range/oven ignition components it connects to

• One spark switch harness

• Disconnect electrical power to the appliance before inspecting or replacing the harness
• Shut off gas supply when working on gas ignition components
• Handle connectors and wiring gently; ensure all connections are fully seated and routed clear of heat or moving parts
• After installation, restore power and test ignition from each burner/oven function to proper operation

This surface ignitor lights the burner on compatible gas cooktops and ranges, restoring reliable spark ignition for normal burner operation. Replace a broken or weak ignitor to help restore consistent ignition and safer cooking. What it does:

• Generates the spark that lights the burner when the control is turned on
• Helps ensure quick, consistent ignition and reduces repeated clicking or delayed lighting
• Commonly replaces cracked, burned, or non-sparking ignitors
• Works with the cooktop's existing valve and electronic control to initiate flame

• Always disconnect power and shut off the gas supply before removing or installing the ignitor
• Handle the ceramic and electrode tip carefully—these components are fragile and can crack if dropped
• Reuse existing mounting hardware unless replacement is specified

A surface ignitor that produces the spark needed to light gas burners on compatible ranges and cooktops. Replaces a worn or failed ignitor to restore reliable ignition and consistent burner lighting. What it does

• Creates the spark at the burner to ignite gas when the control is turned on.
• Commonly used when burners click but fail to light or when a specific burner never ignites.
• Works with the cooktop's ignition system to provide consistent, repeatable sparking.
• Fits into the burner assembly and connects to the appliance's existing wiring and mounting.

• One surface ignitor (quantity: 1)

• Disconnect power to the appliance and shut off the gas supply before starting any service.
• Handle the ignitor by the ceramic/insulated areas; avoid touching the tip with bare hands to prevent contamination or damage.
• Confirm correct fit and secure all wiring connections; test ignition on a safe flame setting after reinstalling.

This surface ignitor is the electrode that creates the spark to light gas cooktop burners, restoring reliable ignition and consistent burner lighting for your range. Designed as a direct-fit replacement when the original ignitor fails. What it does:

• Produces the spark that ignites gas at the burner for normal start-up
• Replaces a cracked, burnt, or non-sparking electrode
• Helps stop continuous clicking or a burner that won't light
• Restores safe, consistent ignition when the original part is worn

• Turn off gas supply and disconnect power before servicing
• Handle the ceramic tip and electrode carefully to avoid damage
• Verify the part number matches your appliance before installation

The Burner Valve is an OEM part for Whirlpool ranges. It is responsible for controlling the flow of gas to the surface burners for precise heat regulation during cooking.

A bad surface burner valve can occur due to wear and tear, clogs, or damage to the valve mechanism. If you notice symptoms such as difficulty in igniting the burner, uneven flames, or gas leaks, it may be time to replace the surface burner valve.

Symptoms of a bad surface burner valve include:

• Difficulty in igniting the burner
• Uneven flames or inconsistent heat
• Gas leaks around the valve area

Repair your range by replacing the faulty or worn-out surface burner valve with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The Burner Valve is an OEM component specifically designed for Whirlpool gas ranges. Located underneath each cooktop burner, the brass valve controls the flow of gas to its associated burner.

Causes of a bad burner valve include corrosion buildup within the valve restricting gas flow over time. Wear and tear to the shaft valve or spring components could render a burner inoperable.

Symptoms of a bad burner valve include:

• Inconsistent or unreliable burner ignition
• Reduced burner flame height and intensity
• Complete failure to ignite a single burner

Compatible with additional brands including Kenmore, Jenn-Air, and most KitchenAid models.

This Valve-Brnr is an OEM part for Whirlpool Ranges. It regulates the flow of gas to the burner for cooking. Wear, corrosion, or gas leaks can cause issues with this component.

What Causes a Bad Valve-Brnr:
Wear and tear, corrosion, or gas leaks within the valve can lead to gas flow issues or potential safety hazards.

Symptoms of a Bad Valve-Brnr:

• Inconsistent flame or no ignition on the burner
• Gas odors around the range
• Difficulty adjusting or controlling burner flame

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This gas pressure regulator controls fuel flow to the appliance's burner system to maintain steady, safe burner performance. Replacing a worn regulator restores consistent flame height and reliable ignition. What it does:

• Reduces and stabilizes incoming gas pressure so burners operate at the correct flame level
• Helps prevent weak or uneven flames and frequent flameouts caused by pressure fluctuations
• Ensures stable fuel delivery for reliable ignition and steady cooking heat
• Works as part of the fuel delivery path between the supply line and the valve assembly

• One regulator

• Turn off the gas supply and disconnect power to the appliance before servicing
• Use proper thread sealant for gas fittings and tighten fittings to OEM torque recommendations
• Do not attempt repairs if you are unfamiliar with gas appliance service

This spark module supplies the high-voltage pulses that ignite the surface burners on a gas cooktop or range. Replacing a failing module helps restore consistent clicking and spark so burners light promptly and reliably.

• Supplies high-voltage to up to five surface igniters (5+0 configuration)
• Sends spark when a burner control is turned to Lite
• Failure symptoms can include no spark on all or multiple burners
• May also cause intermittent/weak spark or continuous clicking

• Disconnect power and shut off gas before servicing
• Note wire locations; move one connector at a time to matching terminals
• Mount securely in the original position and ensure proper grounding
• After replacement, if only one burner won't ignite, inspect that burner's switch and igniter

This ignitor retaining clip secures the oven or range ignitor to the burner assembly so the ignitor stays properly positioned for reliable ignition. It's a small replacement part that restores proper ignitor mounting and alignment. What it does:

• Holds the oven/range ignitor in place on the burner assembly to maintain correct positioning
• Helps ensure consistent ignition by preventing the ignitor from shifting or coming loose
• Commonly replaced when the original clip is broken, bent, or missing
• Fits directly where the factory clip secures the ignitor to the burner housing

• Turn off power and gas supply to the appliance before starting any repair
• Access typically requires removing the oven burner or inner panel; follow the manufacturer service instructions
• Use appropriate tools to remove the old clip and secure the new clip without over-bending

This switch seal is a replacement gasket that helps keep moisture and debris away from the appliance's door/control switch, protecting the switch assembly and helping restore reliable door detection and operation. What it does:

• Seals the area around the door/control switch to block water, lint, and grime.
• Helps prevent intermittent trips or failures caused by moisture or foreign material contacting the switch.
• Promotes consistent switch actuation and can extend the service life of the switch assembly.
• Useful when the existing seal is cracked, torn, flattened, or missing.

• Disconnect power before servicing to avoid electrical shock.
• Access typically requires removing the door trim or control panel—follow your model's service instructions.
• Inspect the switch and surrounding area for damage or corrosion and clean before installing the new seal.
