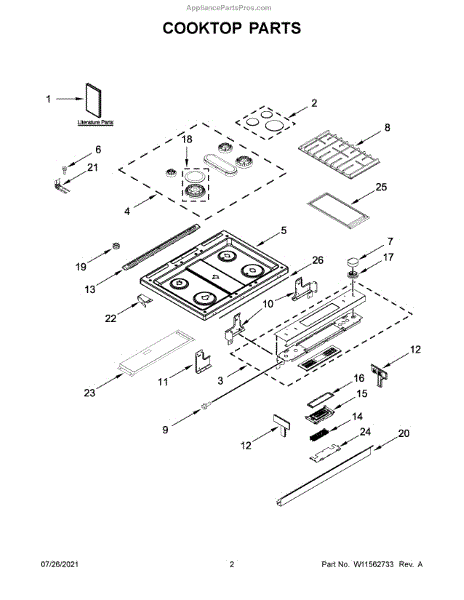

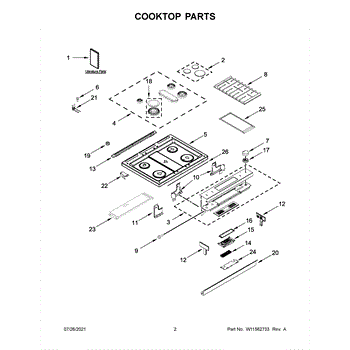

Parts for Kitchenaid KSDB900ESS5: Cooktop Parts

The Control Panel is an OEM part for Whirlpool ranges. It is responsible for providing a responsive and user-friendly interface for controlling and selecting various functions and settings of your range. It ensures accurate input recognition and smooth operation, allowing you to effortlessly navigate through cooking options and adjust settings.

A bad control panel touchpad assembly can occur due to wear and tear, physical damage, or electrical issues. If you notice symptoms such as unresponsive buttons, erratic behavior, or a non-functioning touchpad, it may be time to replace the control panel assembly.

Symptoms of a bad control panel touchpad assembly include:

• Unresponsive buttons or touchpad
• Erratic or inconsistent behavior
• Non-functioning control panel

Regain full control over your Whirlpool range by replacing the faulty or malfunctioning control panel touchpad assembly with this genuine OEM part.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This surface burner head replaces a damaged or worn gas range burner element to restore proper flame pattern and even cooking. It fits into the cooktop assembly and directs gas to the burner ports for consistent heat. What it does:

• Directs and shapes the burner flame for even heating across pots and pans
• Replaces warped, cracked, or clogged burner heads that cause uneven or weak flames
• Helps correct symptoms like sizzling, yellow-tipped flames, sputtering, or burners that light poorly
• Works with the burner cap and base to restore proper ignition and flame stability

• Turn off the appliance and allow all components to cool before servicing; shut off gas supply or disconnect gas/electric per your appliance manual
• Remove grates and burner caps, lift out the old burner head, and seat the new head flat on the burner base; avoid forcing or bending components
• Inspect surrounding parts (cap, igniter, burner base) for damage or buildup and clean as needed to ensure proper function

Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.

The Knob is an OEM part for Whirlpool ranges. It is responsible for controlling oven functions through its precise movements and settings.

Causes of a bad knob can include wear and tear over time resulting in loosening or difficult turning. Paint fading or peeling on the knob is also common.

Symptoms of a bad knob include:

• Functions not activating when turned
• Loose or wobbly movement when adjusting temperature or settings
• Faded, chipped, or peeling paint
• The knob coming off entirely

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The Range Knob is an OEM component for Whirlpool gas ranges. Located on the control panel, this plastic knob adjusts baking temperatures and oven functions like Bake, Broil and Warm.

Symptoms of a bad range knob include:

• Difficulty rotating knob to numbered settings
• Loose or wobbly feel during selection
• Faded or illegible printed mode labeling

Causes stem from normal wear over extended use, repeated contact with pot handles, or other impacts compromising sturdiness.

Replace now with this OEM Whirlpool knob to restore precise oven control. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This grate kit replaces damaged or worn cooktop grates to restore stable support for pots and pans and keep burners working as intended. It helps maintain safe, even cooking and improves stove appearance. What it does:

• Provides a stable surface for cookware so pots and pans sit level over burners
• Directs heat and maintains correct clearance between flame and cookware
• Replaces cracked, chipped, rusted, or warped grates that can cause wobble or instability
• Helps prevent cookware from sliding and reduces hot spots from uneven grates

• One grate kit as shown

• Turn off gas and power to the appliance and allow all surfaces to cool before servicing
• Lift old grates off the cooktop; no tools are typically required for removal or placement
• Inspect burners and caps for damage or alignment before installing new grates

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This end cap is the outer trim piece that finishes and protects the edge of a appliance panel, restoring a clean appearance and helping keep the panel properly aligned. Ideal for replacing a cracked, missing, or worn end cap. What it does:

• Covers and protects the outer edge of a control or access panel to prevent snagging and moisture intrusion
• Helps hold the panel edge flush for a finished look and proper fit
• Replaces cracked, broken, or otherwise damaged trim that affects appearance or panel alignment
• Matches the OEM shape and attachment points for a direct replacement when part numbers match

• Disconnect power to the appliance before starting any repair
• Usually installs with a few screws or snap clips; keep hardware from the original part when possible
• Handle edges carefully to avoid scratching adjacent surfaces during installation

This trim vent replaces a damaged or worn vent grille to restore proper airflow appearance and help direct air where the appliance needs it. It's a direct-replacement exterior trim piece that cleans up the unit's vent opening. What it does:

• Covers and protects the appliance vent opening while providing a finished appearance
• Directs airflow and helps prevent debris from entering the vent area
• Replaces cracked, broken, or faded vent trim that affects appearance or fit
• Helps reduce rattling or loose trim that can occur with damaged vent pieces

• One trim vent (single grille piece)

• Disconnect power to the appliance before beginning any work
• Typically installs with snap-in tabs or a few screws; avoid forcing to prevent breakage
• Inspect surrounding clips or screws and replace if worn for a secure fit

The Control-Electric is an OEM part for Whirlpool ranges. It houses the digital controls that allow users to set various cooking functions and temperatures with ease. As the central control center, this board plays an integral role.

Causes of a bad control board can include liquid damage, power surges, overheating from extended or high-heat cooking, or regular component failures over many usage cycles.

Symptoms of a faulty control board include:

• Erratic or incorrect temperature readings
• Blank or non-functioning display screens
• Inability to ignite heating elements
• Unresponsive or inaccurate buttons and dials

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Display Board is an OEM component specifically designed for Whirlpool ranges. It is the interface that provides users control over critical range functions like temperature, timers, and cooking modes through an integrated screen and buttons.

Symptoms of a bad display board include:

• Frozen or unresponsive touch controls
• Dimmed or flickering screen backlighting
• Inability to properly adjust temperature settings

Common causes are related to heat exposure fatiguing sensitive electronic components over time. Water intrusion from steam or spills can also damage circuitry.

This OEM replacement display board directly replaces the original, fully restoring the range's interactive programming features. Compatible models include those from brands such as Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge and Roper.

Note: This is a kit of 5 bezels.

This replacement bumper cushions and protects the appliance door or panel, helping stop metal-on-metal contact, reduce noise, and prevent chipping or wear. Simple, low-profile part that restores smooth, quiet door operation. What it does:

• Cushions door or panel to prevent hard impacts and protect finishes
• Reduces rattling and vibration-related noise during operation
• Helps the door close more softly and sit flush with the cabinet
• Prevents premature wear where edges contact the cabinet

• Disconnect power to the appliance before starting any repair.
• Inspect the damaged bumper and surrounding area, then remove the old bumper by hand or with a non-marring tool.
• Press the new bumper into the original mounting location until fully seated; no special tools normally required.
• If the bumper mounts to a clip or bracket that's damaged, replace the bracket.

This anchor tip secures the washer agitator to the transmission shaft so the agitator turns with the washer drive. Replaces a worn or damaged anchor tip to restore proper agitator engagement and reduce slipping. What it does:

• Secures the agitator to the drive shaft so the agitator rotates with the motor
• Helps prevent the agitator from slipping or spinning independently
• Commonly used when the agitator feels loose, makes grinding or clicking noises, or stops agitating
• Simple, low-profile part that works behind the agitator cap

• One anchor tip

• Disconnect power and water before starting any repair
• Remove agitator/agitator cap to access and replace the anchor tip per OEM instructions
• Inspect mating surfaces and replace any additional worn components if engagement remains poor

This mounting bracket secures appliance components to the cabinet or chassis, restoring proper alignment and support. Designed to replace damaged or missing brackets, it helps reduce vibration and prevent parts from shifting during use. What it does

• Provides a stable anchor point for internal components or panels
• Restores proper alignment and fit between the appliance cabinet and mounted parts
• Helps reduce vibration and rattling caused by loose or broken supports
• Commonly replaced when bracket is bent, cracked, or missing

• Inspect adjacent fasteners and mounting holes; replace any stripped screws or damaged hardware
• Use appropriate tools and mounting hardware for secure installation; torque to OEM recommendation if available
• Disconnect power before working on electrical appliances and follow all safety guidelines

This replacement griddle sits over your range or cooktop burners to provide a flat, removable cooking surface. Use it to restore a level cooking area when the original is worn, damaged, or missing.

• Creates a flat cooking surface above the burner(s) for items like pancakes and sandwiches
• Helps distribute heat from the burner across the plate for more even contact
• Replace if cracked, warped, chipped, or heavily worn
• Common signs include rocking or poor fit, visible damage, or a degraded cooking surface

• Turn off all burners and allow the cooktop and griddle to cool completely before handling
• Position on the designated grate or locator tabs per your model's orientation
• Follow care and cleaning guidance in your owner's manual

Replacement gasket that restores a tight seal to the appliance door and helps prevent water or air leaks. Replaces worn, cracked, or compressed seals so the door closes properly and reduces moisture or heat loss. What it does:

• Seals the door opening to stop leaks of water, steam, or heated air.
• Helps maintain proper temperature and efficiency by preventing air exchange.
• Reduces condensation, odors, and cycling caused by a poor seal.
• Common signs you need this part: visible gaps or damage, leaks around the door, excess moisture, or poor heating/cooling performance.

• Disconnect power and water (if applicable) and allow the appliance to cool before starting.
• Clean and dry the mating surface to ensure a proper fit; remove old adhesive or debris.
• Align the gasket into the door channel or groove and press evenly; avoid stretching the material.
• If the door or mounting hardware is bent or damaged, repair those parts before installing the gasket.

The Display Wire Harness is an OEM part for Whirlpool ranges. It connects the control panel display to the range’s main control board, allowing for communication between the user interface and the appliance’s electronic system. This harness ensures that the display panel accurately shows information such as temperature settings, timer functions, and error codes.

Causes of a bad display wire harness can include regular wear and tear, electrical issues, or damage from heat exposure or physical impact. When the wire harness fails, it can disrupt the flow of information between the control panel and the main control board, affecting the operation and display functions of the range.

Symptoms of a bad Display Wire Harness include:

• The display panel not lighting up
• Inaccurate or flickering display readings
• Buttons on the control panel not responding
• Error codes appearing on the display

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Noise Filter is an OEM part for Whirlpool built-in wall ovens. It is installed inside the oven cavity near components that produce vibrations, such as the convection fan motor.

Causes of a faulty noise filter include the degradation of noise-dampening materials over many heating and cooling cycles. Physical damage from accidental impact during cleaning could also compromise its sound-blocking ability.

Symptoms of a bad noise filter include:

• Excessive buzzing or humming noises emitted from the oven cavity
• Louder than normal fan or component sounds carrying into the kitchen
• Vibrations felt externally on the oven chassis during operation

This OEM replacement fits several Whirlpool, KitchenAid, and Jenn-Air wall oven models.

The Keypad Wire Harness is an OEM part for Whirlpool ranges. This component is essential for connecting the keypad to the control board, enabling communication between user inputs and the range's operational functions.

Causes of a bad keypad wire harness can include wear and tear from regular use, exposure to heat and moisture, or physical damage due to mishandling or accidental impact. Electrical issues such as short circuits or frayed wires can also lead to malfunctioning.

Symptoms of a bad keypad wire harness include:

• Unresponsive keypad buttons
• Intermittent or inconsistent range operation
• Error codes related to keypad communication
• The range not powering on or off correctly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
