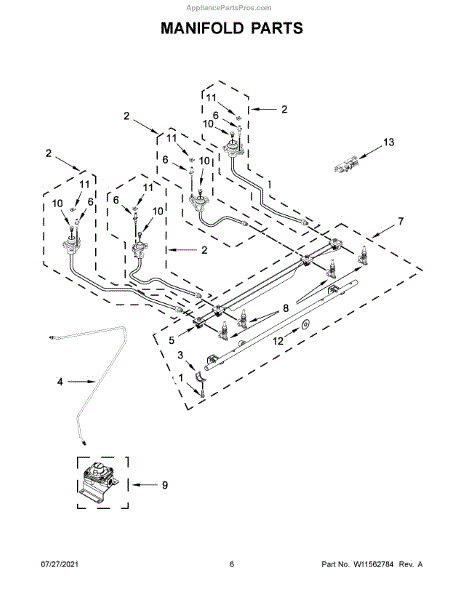

Parts for Kitchenaid KSDG950ESS3: Manifold Parts

This is a direct-replacement screw used to secure appliance panels, brackets and other small components. It restores proper fastening where the original screw is missing, stripped, or corroded to help reduce rattles and looseness. What it does

• Fastens panels, trim, brackets and similar small appliance parts
• Restores a secure connection when the original fastener is missing or damaged
• Helps stop vibration-related rattling and movement of mounted components
• Matches the original mounting point to maintain proper alignment

• Disconnect power and water before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Thread carefully and do not overtighten to prevent damage to the mating part
• Replace only with the same part number or equivalent for proper fit

This wire harness routes power and signals between an appliance's control components to restore reliable electrical connections and correct intermittent or failed circuits. It replaces a damaged or burnt wiring assembly to help reestablish normal operation. What it does:

• Provides the main electrical connections between control boards, switches, and motors
• Replaces frayed, burnt, or broken wires that cause intermittent power or control failures
• Helps resolve symptoms like unresponsive controls, no power to components, or intermittent operation
• Restores factory routing and connector fit for secure electrical contact

• Disconnect power (unplug appliance or turn off breaker) before starting any work
• Inspect connectors and mating terminals for damage; do not force connectors that do not fit
• Route and secure the harness following the appliance's wiring diagram to avoid heat or pinch points

This surface ignitor lights the burner on compatible gas cooktops and ranges, restoring reliable spark ignition for normal burner operation. Replace a broken or weak ignitor to help restore consistent ignition and safer cooking. What it does:

• Generates the spark that lights the burner when the control is turned on
• Helps ensure quick, consistent ignition and reduces repeated clicking or delayed lighting
• Commonly replaces cracked, burned, or non-sparking ignitors
• Works with the cooktop's existing valve and electronic control to initiate flame

• Always disconnect power and shut off the gas supply before removing or installing the ignitor
• Handle the ceramic and electrode tip carefully—these components are fragile and can crack if dropped
• Reuse existing mounting hardware unless replacement is specified

This surface ignitor is the electrode that creates the spark to light a gas range burner, restoring reliable ignition for surface burners. It replaces a damaged or non-sparking ignitor to help the cooktop light quickly and safely. What it does:

• Produces the spark that ignites gas at a surface burner
• Replaces cracked, broken, or non-sparking electrodes
• Helps stop continuous clicking or no-ignition symptoms at the burner
• Works with the range's ignition system to restore normal burner operation

• Disconnect power and shut off the gas supply before starting any repairs
• Handle the ceramic electrode carefully to avoid cracking
• Verify the ignitor matches the original for fit and electrode orientation

A surface ignitor that produces the spark needed to light gas burners on compatible ranges and cooktops. Replaces a worn or failed ignitor to restore reliable ignition and consistent burner lighting. What it does

• Creates the spark at the burner to ignite gas when the control is turned on.
• Commonly used when burners click but fail to light or when a specific burner never ignites.
• Works with the cooktop's ignition system to provide consistent, repeatable sparking.
• Fits into the burner assembly and connects to the appliance's existing wiring and mounting.

• One surface ignitor (quantity: 1)

• Disconnect power to the appliance and shut off the gas supply before starting any service.
• Handle the ignitor by the ceramic/insulated areas; avoid touching the tip with bare hands to prevent contamination or damage.
• Confirm correct fit and secure all wiring connections; test ignition on a safe flame setting after reinstalling.

This manifold routes water between the supply lines and the refrigerator's dispenser and ice system so each component gets steady water flow. Replaces a worn or leaking manifold to restore proper water routing. What it does

• Directs incoming water to the ice maker and door dispenser or other water outlets
• Helps maintain correct flow paths so ice production and dispensing work as intended
• Commonly replaced when you see leaks at the manifold, poor or no water flow, or intermittent dispenser operation
• Works with the refrigerator's internal water valve and tubing to manage distribution

• One manifold assembly

• Turn off water supply and unplug the appliance before starting work
• Tighten fittings to manufacturer torque recommendations; inspect for leaks after restoring water

The Burner Valve is an OEM part for Whirlpool ranges. It is responsible for controlling the flow of gas to the surface burners for precise heat regulation during cooking.

A bad surface burner valve can occur due to wear and tear, clogs, or damage to the valve mechanism. If you notice symptoms such as difficulty in igniting the burner, uneven flames, or gas leaks, it may be time to replace the surface burner valve.

Symptoms of a bad surface burner valve include:

• Difficulty in igniting the burner
• Uneven flames or inconsistent heat
• Gas leaks around the valve area

Repair your range by replacing the faulty or worn-out surface burner valve with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The Burner Valve is an OEM component specifically designed for Whirlpool gas ranges. Located underneath each cooktop burner, the brass valve controls the flow of gas to its associated burner.

Causes of a bad burner valve include corrosion buildup within the valve restricting gas flow over time. Wear and tear to the shaft valve or spring components could render a burner inoperable.

Symptoms of a bad burner valve include:

• Inconsistent or unreliable burner ignition
• Reduced burner flame height and intensity
• Complete failure to ignite a single burner

Compatible with additional brands including Kenmore, Jenn-Air, and most KitchenAid models.

This gas pressure regulator controls fuel flow to the appliance's burner system to maintain steady, safe burner performance. Replacing a worn regulator restores consistent flame height and reliable ignition. What it does:

• Reduces and stabilizes incoming gas pressure so burners operate at the correct flame level
• Helps prevent weak or uneven flames and frequent flameouts caused by pressure fluctuations
• Ensures stable fuel delivery for reliable ignition and steady cooking heat
• Works as part of the fuel delivery path between the supply line and the valve assembly

• One regulator

• Turn off the gas supply and disconnect power to the appliance before servicing
• Use proper thread sealant for gas fittings and tighten fittings to OEM torque recommendations
• Do not attempt repairs if you are unfamiliar with gas appliance service

This orifice spud is a small gas flow insert that helps regulate burner fuel delivery for safe, consistent flame performance. Replaces a worn or damaged spud to restore steady ignition and proper burner operation. What it does:

• Controls the gas flow into a burner to help maintain a stable, even flame
• Commonly used when a burner has low, weak, or uneven flames or trouble staying lit
• Fits into the burner assembly to meter fuel to the burner ports
• Works with compatible gas range/oven burner components for correct flame shaping

• One orifice spud

• Turn off the gas supply and power to the appliance before servicing
• Remove burner cap and head to access the spud; use appropriate hand tools
• Thread or press the spud into place as required for your model; do not overtighten
• After installation, check burner ignition and flame; if you smell gas or see leaks, stop.

This orifice spud is the small gas fitting that directs fuel from the range/oven valve to the burner, helping maintain the correct gas flow for stable ignition and consistent flame control. What it does

• Seats in the gas valve or burner assembly to channel gas through the proper orifice
• Restores correct fuel flow when a damaged or clogged spud causes weak or no flame
• Helps correct symptoms like burners that won't light, low or uneven flame, or inconsistent cooking heat
• Works with the existing valve and burner components to re-establish reliable ignition

• One orifice spud

• Turn off the appliance gas supply and disconnect power before starting any work
• Remove grates and burner parts to access the valve/burner area; keep parts organized for reassembly
• Tighten to OEM torque; do not force fittings or overtighten threads

This orifice spud is the small metal fitting that meters gas to a cooktop or range burner, restoring proper flame size and heat control. It fits into the burner manifold to direct fuel flow for safe operation. What it does:

• Regulates gas flow to a specific burner for correct flame height and heat output
• Helps restore even or full-strength flames when a burner is weak or uneven
• Can resolve ignition difficulty or burners that won't stay lit when caused by a worn or damaged spud
• Works as a direct replacement for the corresponding burner orifice in the manifold assembly

• One orifice spud

• Turn off the appliance's gas supply and electrical power before servicing
• Use appropriate wrenches and avoid overtightening to prevent damage to threads
• After installation, check all connections for gas leaks with a soap solution; do not use an open flame

This ignitor retaining clip secures the oven or range ignitor to the burner assembly so the ignitor stays properly positioned for reliable ignition. It's a small replacement part that restores proper ignitor mounting and alignment. What it does:

• Holds the oven/range ignitor in place on the burner assembly to maintain correct positioning
• Helps ensure consistent ignition by preventing the ignitor from shifting or coming loose
• Commonly replaced when the original clip is broken, bent, or missing
• Fits directly where the factory clip secures the ignitor to the burner housing

• Turn off power and gas supply to the appliance before starting any repair
• Access typically requires removing the oven burner or inner panel; follow the manufacturer service instructions
• Use appropriate tools to remove the old clip and secure the new clip without over-bending

This switch seal is a replacement gasket that helps keep moisture and debris away from the appliance's door/control switch, protecting the switch assembly and helping restore reliable door detection and operation. What it does:

• Seals the area around the door/control switch to block water, lint, and grime.
• Helps prevent intermittent trips or failures caused by moisture or foreign material contacting the switch.
• Promotes consistent switch actuation and can extend the service life of the switch assembly.
• Useful when the existing seal is cracked, torn, flattened, or missing.

• Disconnect power before servicing to avoid electrical shock.
• Access typically requires removing the door trim or control panel—follow your model's service instructions.
• Inspect the switch and surrounding area for damage or corrosion and clean before installing the new seal.

This speaker module produces the audible alerts and tones used by the appliance to signal cycle completion, errors, and user input feedback. Replacing a failed module restores clear beeps and chimes for reliable notifications. What it does:

• Outputs audible tones for cycle end, alerts, and button presses
• Restores sound when the appliance is silent or tones are distorted
• Helps confirm user inputs and warns of errors or malfunctions
• Works with the control board to play predefined alert patterns

• Disconnect power before removing the control panel or module to avoid shock.
• Handle the module and connector gently to avoid damage to wiring or pins.
• Reinstall using existing mounting points and secure connectors fully.
• Inspect the control board and wiring for faults.
