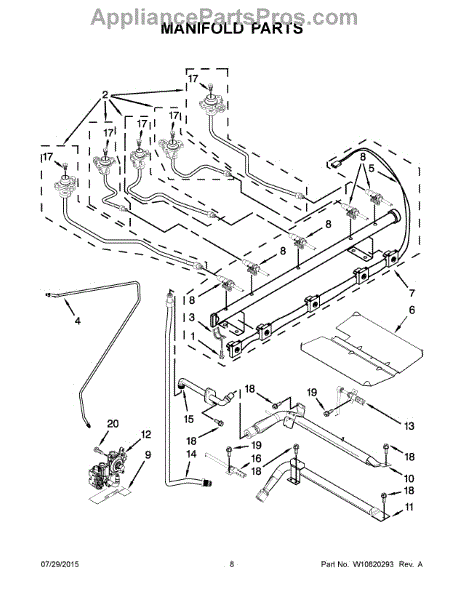

Parts for Maytag MGR8800DE2: 05 - Manifold Parts

This is a direct-replacement screw used to secure appliance panels, brackets and other small components. It restores proper fastening where the original screw is missing, stripped, or corroded to help reduce rattles and looseness. What it does

• Fastens panels, trim, brackets and similar small appliance parts
• Restores a secure connection when the original fastener is missing or damaged
• Helps stop vibration-related rattling and movement of mounted components
• Matches the original mounting point to maintain proper alignment

• Disconnect power and water before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Thread carefully and do not overtighten to prevent damage to the mating part
• Replace only with the same part number or equivalent for proper fit

This replacement Holder ORF is the OEM retainer used to secure a small appliance component in place, restoring proper fit and preventing loose or misaligned parts. It's a direct-fit replacement designed for easy swap-out. What it does:

• Secures and holds a related appliance component in its mounting position
• Prevents rattling, shifting, or detachment caused by a broken or missing holder
• Helps restore proper alignment and reliable operation of the secured part
• Small, often plastic/metal retainer used in trim, dispenser, or door assemblies

• One Holder ORF

• Disconnect power or unplug the appliance before starting any repair
• Inspect surrounding clips, screws, and mounting points for damage before installation
• Use basic hand tools; avoid forcing parts—ensure the holder seats fully in its mounting slot

This replacement Holder ORF retainer secures internal components so moving parts stay in place and the appliance operates reliably. It's a simple, direct swap when the original holder is worn or broken. What it does:

• Secures an internal component or assembly to prevent shifting and rattling during operation
• Restores proper alignment of the part group it supports
• Stops noises or intermittent contact caused by a loose or broken holder
• Helps prevent further wear or damage to adjacent parts by maintaining correct positioning

• Disconnect power or unplug the appliance before beginning any repair
• Inspect surrounding parts for damage and replace any worn fasteners
• Basic hand tools are typically required; avoid forcing clips or tabs

Orifice holder assembly that secures the gas orifice and directs fuel to the left-front burner for proper flame performance. Replaces worn or damaged holders to help restore consistent ignition and stable flame control. What it does:

• Secures and positions the gas orifice at the left-front burner, aligning the jet for correct fuel flow.
• Helps maintain a steady, even flame — common replacement for burners that light poorly, have weak flames, or burn unevenly.
• Designed for the 15.5K left-front orifice variant listed in the OEM part name.
• Fits the burner valve mounting interface to ensure proper seating and operation.

• Always shut off the gas supply and electrical power before beginning service.
• Install by hand-threading to engage threads, then snug; avoid overtightening or damaging the orifice.
• After installation, check for gas leaks with a safe leak-detection method.

This orifice holder mounts beneath the surface burner and secures the orifice spud, channeling gas from the valve to the burner head for proper ignition and flame. Replace a damaged holder to restore consistent burner lighting and performance.

• Positions the orifice and directs gas flow to the burner head
• Supports/aligns the burner assembly for reliable ignition
• Helps maintain steady, even flame output
• Common failure symptoms: burner won't light or takes too long to ignite, weak or uneven flame, repeated clicking without ignition

• Disconnect power and shut off the gas supply before servicing
• Remove grates, burner caps, and burner heads to access the holder
• If present, label and disconnect the igniter lead; transfer the existing orifice spud and any seals from the old holder
• Reassemble, restore gas, and leak-test connections with a soapy water solution; verify burner operation

Note: Includes Ignitor Switches

The Burner Valve (RR) is an OEM part for Whirlpool ranges. It controls the flow of gas to the rear-right burner, allowing for precise regulation of the flame during cooking. The valve ensures safe and efficient operation by opening and closing as needed to adjust the burner’s heat output.

Over time, burner valves can become faulty due to wear and tear, grease buildup, or internal damage. Exposure to high heat and repeated use may cause the valve to stick, leak, or fail to regulate gas properly. If the valve becomes obstructed or worn out, it can compromise cooking performance and safety.

Symptoms of a bad burner valve include:

• Inconsistent or weak flame
• Gas smell near the burner when turned off
• Difficulty igniting the burner
• The burner not shutting off completely

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This surface burner valve controls gas flow to an individual cooktop or range burner, enabling safe, precise flame adjustment. Replacing a worn valve restores reliable ignition, smooth flame control, and proper shutoff at the knob.

• Regulates gas supply to one surface burner as you turn the control knob
• Helps address a burner that won't ignite, erratic or unresponsive flame adjustment, or a stiff/stripped valve stem
• Provides positive shutoff when the knob is in the Off position
• Saddle-style mounting on the gas manifold

• Shut off gas supply and disconnect power; allow the appliance to cool
• Access the manifold and note knob orientation and tubing/orifice connections for reassembly
• Use an approved thread sealant only where specified by the manufacturer; do not overtighten fittings
• After installation, leak-check all joints with a soap-and-water solution and verify ignition and low-flame adjustment

This broil burner assembly supplies the focused heat for the oven's broiling function so you can brown and crisp foods quickly. It replaces a worn or damaged broil burner to restore proper broil performance. What it does:

• Directs and emits the high, concentrated flame used during oven broiling.
• Restores even browning and searing when the broil function produces weak or spotty heat.
• Addresses issues such as little/no broil flame or uneven broiling when burner damage or clogging is present.
• Works with the oven's gas supply and ignition system to produce consistent broil heat.

• One broil burner assembly

• Turn off and disconnect gas supply and electrical power before attempting service.
• Follow OEM service manual or parts diagram for correct alignment and secure mounting.
• Use proper tools; verify gas connections are leak-free and ignition lights properly before use.

The Regulator is an OEM replacement part for Whirlpool ranges. It is responsible for controlling the flow of gas to the burners and ensuring the proper gas pressure for efficient and safe cooking.

A bad pressure regulator can occur due to wear and tear, clogs, or damage to the internal components. If you notice symptoms such as weak or inconsistent flame, gas leaks, or difficulty in igniting the burners, it may indicate a faulty valve and pressure regulator.

Symptoms of a bad regulator include:

• Weak or inconsistent flame
• Gas leaks
• Difficulty in igniting the burners

Restore your range by replacing the faulty or damaged valve and pressure regulator with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The Oven Igniter is an OEM part for Whirlpool ovens. It is responsible for igniting the gas in the oven burner to produce the heat needed for cooking and baking. The igniter ensures a consistent and reliable flame each time the oven is used.

Causes of a bad igniter can include normal wear and tear, electrical faults, or exposure to high temperatures over extended periods. A worn or damaged igniter may fail to produce the necessary spark or heat to ignite the gas.

Symptoms of a bad igniter include:

• The oven not heating up
• Uneven cooking or baking
• A delay in the oven igniting
• The smell of gas without ignition

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This gas tubing is the replacement flexible line that routes fuel from the gas valve to the burner assembly, restoring a secure gas connection for safe ignition and operation. Designed to match OEM fit and function. What it does

• Carries natural or LP gas from the control valve to the burner or main manifold.
• Restores a sealed gas path when original tubing is cracked, pinched, or disconnected.
• Helps eliminate symptoms such as gas smell near the appliance, burner failing to light, or intermittent pilot/burner operation.
• Works with appliance gas systems that use a flexible tubing connection.

• One gas tubing as shown.

• Turn off the gas supply and unplug the appliance before starting any work.
• Use correct fittings and thread sealant approved for gas.
• After installation, test all connections for leaks using a soapy water solution or a gas leak detector; never use an open flame.

This replacement fitting secures and directs the appliance water line to the internal plumbing, restoring a proper water connection and preventing leaks. Use it when the original connector is cracked, loose, or leaking. What it does:

• Connects the external water supply tubing to the appliance's internal water system
• Provides a sealed transition point to prevent drips or steady leaks
• Replaces damaged, corroded, or worn fittings that cause low/no water flow or leaks
• Helps restore reliable water delivery for ice makers, dispensers, or inlet assemblies

• Turn off the water supply and unplug the appliance before starting work
• Depressurize the line by running the dispenser briefly after shutting off water
• Use proper tubing size and seat fittings fully; inspect O-rings or ferrules and replace if needed

This broil burner spark electrode generates the ignition spark at the oven's broil burner so the flame lights reliably when you select Broil. Replacing a worn or cracked electrode restores consistent broil ignition and reduces repeated clicking.

• Provides a high-voltage spark at the broil burner to ignite gas
• Works with the range's spark/ignition module to light the broiler
• Common symptoms: broiler won't light, intermittent or delayed ignition, continuous clicking with no flame, cracked ceramic insulator
• Spark-style component (not a glow-bar igniter)

• Disconnect electrical power and shut off gas; allow the oven to cool completely.
• Remove oven racks and any flame spreader/guard to access the broil burner area.
• Note electrode position and gap to the burner port; transfer mounting hardware and avoid stressing the ceramic insulator.
• Route and reconnect the ignition wire/harness away from heat and sharp edges; restore gas and power and test ignition.

This orifice controls the flow of gas to a cooktop/oven burner so the appliance lights and maintains the correct flame size. Replacing a worn or clogged orifice restores consistent burner performance. What it does:

• Regulates gas flow from the valve to the burner for proper flame height
• Helps ensure even heating across cooktop burners or oven burners
• Commonly replaced when burners fail to light, have low or uneven flames, or sputter
• Works with the burner assembly and valve to maintain safe combustion

• Turn off the appliance and shut off the gas supply before removing or installing the orifice
• Remove burner cap and orifice holder per your appliance instructions; handle small parts carefully
• Use proper fittings and thread sealant only where manufacturer specifies; do not overtighten
• If you smell gas, are unsure of the repair, or lack the proper tools.

This natural-gas orifice controls burner fuel flow so the cooktop or range produces a steady, correct flame for cooking. It replaces a worn or damaged orifice to restore normal burner performance. What it does:

• Regulates natural gas flow to the burner for consistent flame size
• Helps fix low, uneven, or no-flame symptoms at a single burner
• Used when the original orifice is corroded, clogged, or physically damaged
• Works as the metering outlet between the gas valve and burner ports

• Turn off the gas supply and power to the appliance before servicing
• Remove burner cap and grate as needed to access the orifice; handle small parts carefully
• Use appropriate fittings and a leak test after installation; do not overtighten or damage threads

This orifice is a small gas flow fitting for a range or cooktop burner that helps regulate fuel delivery for proper flame performance. It restores correct burner operation when the existing orifice is clogged or damaged. What it does:

• Controls the amount of gas delivered to a specific burner for correct combustion
• Helps restore even, steady flame or consistent heat output
• Commonly replaced when burners sputter, produce weak flames, or will not light reliably
• Works as a direct-fit replacement for the matching OEM orifice on compatible gas ranges/cooktops

• One orifice

• Turn off the gas supply and unplug the appliance before beginning service
• Use correct-sized wrenches and avoid overtightening; follow OEM torque if available
• After installation, check all connections for leaks with a soap solution or approved gas leak detector

Precision-machined orifice spud that meters natural gas to a range or cooktop burner. The #9 size restores correct fuel flow and flame characteristics when replacing a clogged or damaged orifice or when installing the model's specified natural-gas orifice.

• Regulates gas flow to the burner for proper flame size with natural gas
• Replaces a worn, blocked, or stripped orifice to improve flame quality
• Used during fuel conversion when the model calls for a #9 NG orifice
• Helps with symptoms: small/weak flame, uneven flame pattern, or a burner that won't stay lit

• Disconnect power and shut off the gas supply; allow the appliance to cool
• Hand-start threads, then snug gently—do not overtighten; keep the orifice and holder free of debris
• Restore gas, check all connections for leaks with a soapy-water solution, and verify proper flame

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This is a genuine replacement screw used to secure appliance components. It provides a simple, reliable fastener for reattaching panels, brackets, or assemblies so parts stay properly mounted and stable during operation. What it does

• Secures panels, trim, brackets or small assemblies in place
• Restores proper fastening where a missing or damaged screw causes loose parts or rattling
• Prevents movement that can lead to noise or misalignment of adjacent components
• Used wherever the original screw was removed or lost during repairs

• One replacement screw

• Use the matching screw head and thread engagement; do not force if it does not seat smoothly
• Tighten until snug—avoid overtightening to prevent stripping or cracking plastic parts
• Disconnect power before working on electrical appliances and follow basic safety precautions
• If original screw was rusted, check mating threads for damage before installing new fastener

A self-tapping screw used to secure appliance panels and components, providing reliable fastening to sheet metal and plastic parts. Replaces worn or missing fasteners to restore proper fit and reduce rattling. What it does:

• Fastens panels, brackets, or trim to appliance frames and housings
• Creates its own threads in sheet metal or plastic for a secure hold
• Helps stop loose panels, vibration noise, and misaligned parts
• Commonly used where a short, durable fastener is needed

• Disconnect power and water before starting any repair
• Use the correct screwdriver or driver bit to avoid stripped heads
• Start threads carefully and avoid over-torquing to prevent damage
• Wear eye protection and gloves when working with sheet metal

Note: Oven orifice kit with Bake orifice and "Female" Broil orifice. For an oven orifice kit with a "Male" Broil orifice, order part# W11087486. The Bake orifice is #56, Broil orifice is #100.

The LP Orifice Kit is an OEM part for Whirlpool gas ranges. It contains a set of five orifices designed specifically for use with liquid propane (LP) gas. Note: For the oven orifices, on some models they are adjustable and some they are not. Refer to parts list for your model when oven orifices are needed. LP orifice kit includes 5 orifices.

Causes of a bad LP Orifice Kit may stem from incorrect orifice size for the specific LP gas supply, wear or damage to the orifices over time, or improper installation.

Symptoms of needing to replace the LP Orifice Kit can include:

• Uneven heating or incomplete combustion of the burners
• Yellow or flickering flames instead of a steady blue flame
• Reduced cooking performance or inefficient heating

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
