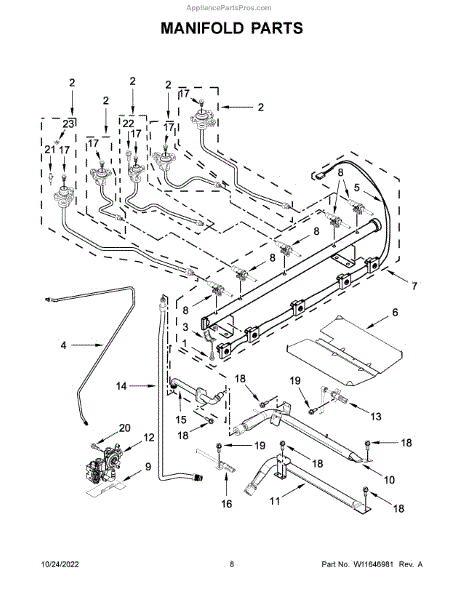

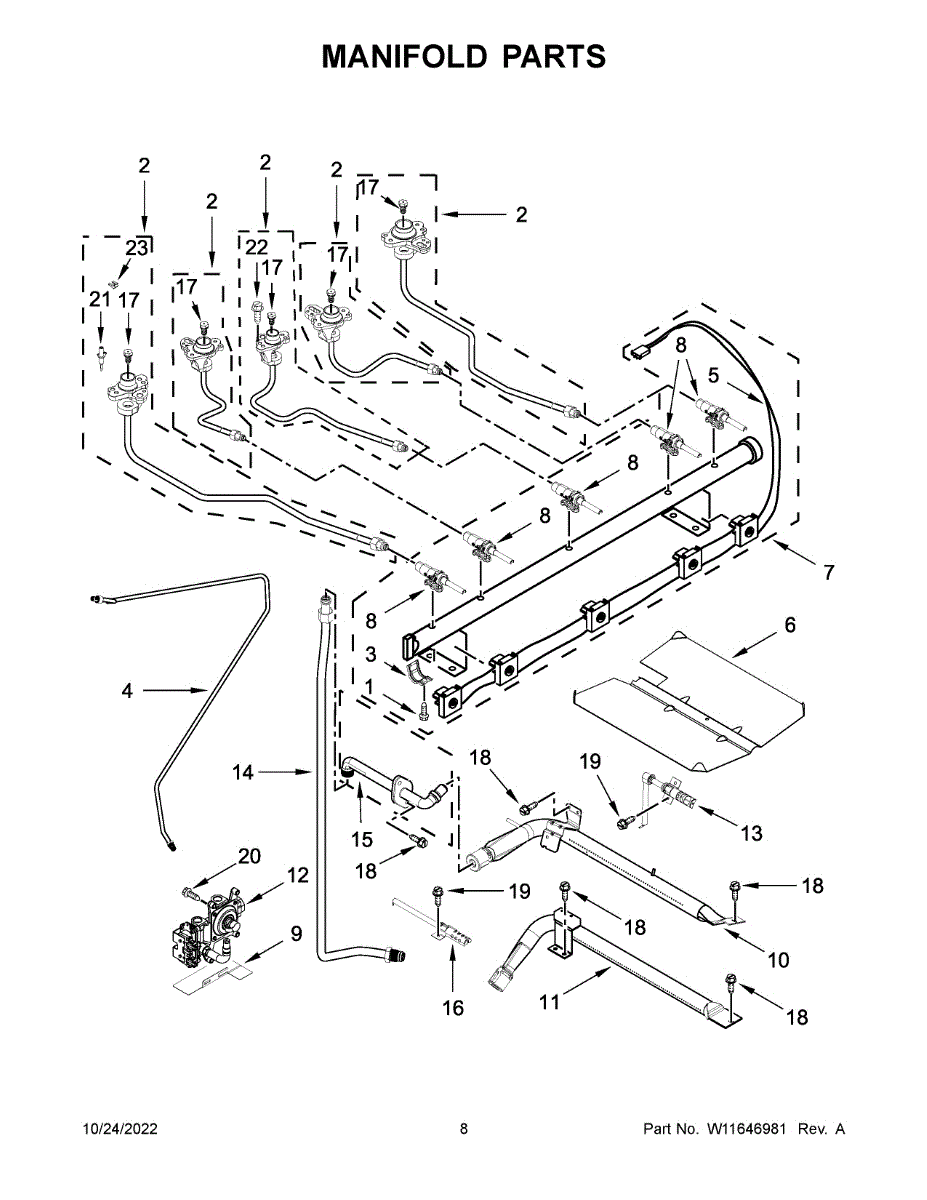

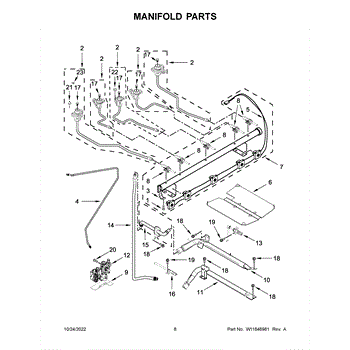

Parts for Maytag MGR8800FZ5: Manifold Parts

This is a direct-replacement screw used to secure appliance panels, brackets and other small components. It restores proper fastening where the original screw is missing, stripped, or corroded to help reduce rattles and looseness. What it does

• Fastens panels, trim, brackets and similar small appliance parts
• Restores a secure connection when the original fastener is missing or damaged
• Helps stop vibration-related rattling and movement of mounted components
• Matches the original mounting point to maintain proper alignment

• Disconnect power and water before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Thread carefully and do not overtighten to prevent damage to the mating part
• Replace only with the same part number or equivalent for proper fit

This manifold assembly routes and supports the appliance's internal fluid/air flow so the unit operates reliably. It replaces a worn or damaged manifold to restore proper routing and help prevent leaks or performance issues. What it does

• Channels internal fluid or airflow to the correct components so systems receive supply as designed.
• Seals connections between inlet and distribution components to prevent leaks.
• Restores proper operation when a cracked, warped, or damaged manifold causes loss of pressure or flow.
• Helps stop intermittent performance problems and related error codes caused by routing failures.

• Disconnect the appliance from power and shut off water or gas supply (as applicable) before beginning work.
• Replace any associated gaskets, O-rings or clamps that show wear to ensure a proper seal.
• Inspect mounting points and mating surfaces for damage; tighten fasteners to OEM torque if specified.

This burner valve controls gas flow to a single cooktop burner so the burner lights and adjusts smoothly. It replaces a worn or faulty valve to restore proper flame control and consistent cooking heat. What it does:

• Regulates gas flow to a cooktop burner for ignition and flame adjustment
• Helps correct symptoms like a burner that won't light, has weak or uneven flame, or will not maintain ignition
• Works as the valve component in the range's gas delivery system for one burner

• Turn off gas supply and electrical power before starting work
• Follow appliance wiring and gas connections exactly; use a fuel-rated thread sealant where required
• Verify correct fit and orientation against the existing valve before final assembly
• After installation, check all gas connections for leaks and test burner operation

This burner valve controls gas flow to a surface burner on compatible gas ranges, restoring proper ignition and flame control for safe cooking. It replaces a worn or leaking valve to help re-establish normal burner operation. What it does

• Regulates gas supply to a single surface burner so the burner lights and maintains a steady flame
• Commonly replaced when a burner won't light, has weak or no flame, or the knob does not control flame level
• Stops or reduces unintended gas flow when valve seals fail, helping prevent leaks
• Interfaces with the range's control knob and internal gas line to modulate heat output

• One burner valve

• Turn off the gas supply and unplug the appliance before starting work
• Follow OEM disassembly steps for safe access; handle gas fittings carefully to avoid damage
• After installation, check all connections for leaks with a soap solution or approved leak detector

This gas saddle valve controls and directs propane/natural gas flow to the appliance burner assembly, restoring reliable fuel delivery when a worn or leaking valve impairs operation. Fits applications specifying an 18k saddle-style gas valve. What it does:

• Regulates gas flow from the supply line to the appliance burner assembly.
• Replaces valves that leak, fail to open, or cause weak/no heating and ignition problems.
• Helps stop intermittent gas flow that can cause inconsistent burner performance.
• Designed as a direct-replacement saddle-style valve where specified.

• Turn off the gas supply and electrical power before starting work.
• Use approved gas fittings and a proper thread sealant rated for gas connections; torque and connection methods vary by installation.
• After installation, test all fittings with an approved leak-detection solution; never use an open flame to check for leaks.

This broil burner assembly supplies the focused heat for the oven's broiling function so you can brown and crisp foods quickly. It replaces a worn or damaged broil burner to restore proper broil performance. What it does:

• Directs and emits the high, concentrated flame used during oven broiling.
• Restores even browning and searing when the broil function produces weak or spotty heat.
• Addresses issues such as little/no broil flame or uneven broiling when burner damage or clogging is present.
• Works with the oven's gas supply and ignition system to produce consistent broil heat.

• One broil burner assembly

• Turn off and disconnect gas supply and electrical power before attempting service.
• Follow OEM service manual or parts diagram for correct alignment and secure mounting.
• Use proper tools; verify gas connections are leak-free and ignition lights properly before use.

This oven bake burner feeds gas evenly along the flame ports to deliver a consistent bake flame. Replacing a warped, corroded, or clogged burner helps restore reliable preheat and even baking.

• Distributes gas along the burner rail during the bake cycle to produce an even flame
• Helps maintain stable oven temperatures and consistent cooking results
• Common symptoms: no heat in bake, very long preheat, or uneven baking
• Visible damage, rust, or blocked ports on the burner indicate replacement

• Disconnect power and shut off gas before servicing; allow the oven to cool
• Remove the oven bottom panel and flame spreader/shield to access the burner
• Note orientation; transfer any mounting hardware from the original and seat the burner over the orifice before securing
• Restore gas, check all connections for leaks with an approved solution, and verify proper ignition and flame

The Regulator is an OEM replacement part for Whirlpool ranges. It is responsible for controlling the flow of gas to the burners and ensuring the proper gas pressure for efficient and safe cooking.

A bad pressure regulator can occur due to wear and tear, clogs, or damage to the internal components. If you notice symptoms such as weak or inconsistent flame, gas leaks, or difficulty in igniting the burners, it may indicate a faulty valve and pressure regulator.

Symptoms of a bad regulator include:

• Weak or inconsistent flame
• Gas leaks
• Difficulty in igniting the burners

Restore your range by replacing the faulty or damaged valve and pressure regulator with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The Oven Igniter is an OEM part for Whirlpool ovens. It is responsible for igniting the gas in the oven burner to produce the heat needed for cooking and baking. The igniter ensures a consistent and reliable flame each time the oven is used.

Causes of a bad igniter can include normal wear and tear, electrical faults, or exposure to high temperatures over extended periods. A worn or damaged igniter may fail to produce the necessary spark or heat to ignite the gas.

Symptoms of a bad igniter include:

• The oven not heating up
• Uneven cooking or baking
• A delay in the oven igniting
• The smell of gas without ignition

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This gas tubing is the replacement flexible line that routes fuel from the gas valve to the burner assembly, restoring a secure gas connection for safe ignition and operation. Designed to match OEM fit and function. What it does

• Carries natural or LP gas from the control valve to the burner or main manifold.
• Restores a sealed gas path when original tubing is cracked, pinched, or disconnected.
• Helps eliminate symptoms such as gas smell near the appliance, burner failing to light, or intermittent pilot/burner operation.
• Works with appliance gas systems that use a flexible tubing connection.

• One gas tubing as shown.

• Turn off the gas supply and unplug the appliance before starting any work.
• Use correct fittings and thread sealant approved for gas.
• After installation, test all connections for leaks using a soapy water solution or a gas leak detector; never use an open flame.

This replacement fitting secures and directs the appliance water line to the internal plumbing, restoring a proper water connection and preventing leaks. Use it when the original connector is cracked, loose, or leaking. What it does:

• Connects the external water supply tubing to the appliance's internal water system
• Provides a sealed transition point to prevent drips or steady leaks
• Replaces damaged, corroded, or worn fittings that cause low/no water flow or leaks
• Helps restore reliable water delivery for ice makers, dispensers, or inlet assemblies

• Turn off the water supply and unplug the appliance before starting work
• Depressurize the line by running the dispenser briefly after shutting off water
• Use proper tubing size and seat fittings fully; inspect O-rings or ferrules and replace if needed

This broil burner spark electrode generates the ignition spark at the oven's broil burner so the flame lights reliably when you select Broil. Replacing a worn or cracked electrode restores consistent broil ignition and reduces repeated clicking.

• Provides a high-voltage spark at the broil burner to ignite gas
• Works with the range's spark/ignition module to light the broiler
• Common symptoms: broiler won't light, intermittent or delayed ignition, continuous clicking with no flame, cracked ceramic insulator
• Spark-style component (not a glow-bar igniter)

• Disconnect electrical power and shut off gas; allow the oven to cool completely.
• Remove oven racks and any flame spreader/guard to access the broil burner area.
• Note electrode position and gap to the burner port; transfer mounting hardware and avoid stressing the ceramic insulator.
• Route and reconnect the ignition wire/harness away from heat and sharp edges; restore gas and power and test ignition.

This orifice is the small metal fitting that meters gas flow to a range or cooktop burner for consistent flame control and reliable cooking performance. It restores proper fuel delivery when the original is damaged or clogged. What it does:

• Regulates gas flow into the burner for a steady, controllable flame
• Helps maintain even heat for burners and consistent cooking results
• Common fix for burners that produce a weak, irregular, or yellowish flame
• Used when the orifice is clogged, corroded, or physically damaged

• One burner orifice

• Turn off the appliance and shut off the gas supply before starting work
• Use the correct wrench and take care not to round the fitting during removal/installation
• Check connections and test for leaks after installation; do not use flame to test for leaks

This orifice is the small precision jet that meters gas flow to a range burner for consistent flame performance and reliable cooking. Replaces a worn or damaged orifice to help restore proper burner ignition and even heating. What it does:

• Controls the amount of gas delivered to a specific burner for correct combustion
• Helps maintain a steady, even flame for consistent cooking results
• Can resolve symptoms like weak or uneven flames, burner that won't reach proper heat, or inconsistent ignition
• Works as a direct-fit replacement where the OEM orifice is specified

• Turn off the gas supply and unplug the appliance before servicing
• Use appropriate tools; handle small parts carefully to avoid damage
• Verify correct orifice orientation and secure fittings; check for leaks after installation

This orifice directs a controlled flow of gas to the appliance burner, helping restore the correct flame size for reliable heating and ignition. Use when burner performance is weak or inconsistent to help return proper operation. What it does

• Restricts and meters gas flow to the burner for consistent flame characteristics
• Helps the burner ignite and maintain a steady flame when sized correctly
• Commonly replaces worn, clogged, or damaged orifices that cause low or irregular flames
• Resolves symptoms like weak heat, slow ignition, or uneven burner performance

• Turn off gas supply and electrical power before servicing; follow all safety precautions
• Inspect surrounding burner and sealing surfaces for debris or damage before installation
• Tighten securely but avoid overtightening; use proper fittings and thread sealant rated for gas if required

This replacement burner orifice controls gas flow to a cooktop/range burner to help restore a proper, steady flame and consistent cooking heat. Fits applications that use a 1.00 Type 2 orifice. What it does

• Regulates gas delivered to the burner for a stable flame and even heating.
• Helps resolve weak or inconsistent flames, slow heat-up, or uneven burner performance.
• Used when a clogged, damaged, or incorrect orifice prevents proper ignition or flame shape.
• Matches OEM fit and function for affected manifold/burner assemblies.

• Turn off the gas supply and unplug the appliance before starting any service.
• Access the burner orifice through the burner base or manifold as specified in your model's service instructions.
• Use the correct wrench and avoid overtightening; inspect fittings and recheck for gas leaks after installation.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This is a genuine replacement screw used to secure appliance components. It provides a simple, reliable fastener for reattaching panels, brackets, or assemblies so parts stay properly mounted and stable during operation. What it does

• Secures panels, trim, brackets or small assemblies in place
• Restores proper fastening where a missing or damaged screw causes loose parts or rattling
• Prevents movement that can lead to noise or misalignment of adjacent components
• Used wherever the original screw was removed or lost during repairs

• One replacement screw

• Use the matching screw head and thread engagement; do not force if it does not seat smoothly
• Tighten until snug—avoid overtightening to prevent stripping or cracking plastic parts
• Disconnect power before working on electrical appliances and follow basic safety precautions
• If original screw was rusted, check mating threads for damage before installing new fastener

A self-tapping screw used to secure appliance panels and components, providing reliable fastening to sheet metal and plastic parts. Replaces worn or missing fasteners to restore proper fit and reduce rattling. What it does:

• Fastens panels, brackets, or trim to appliance frames and housings
• Creates its own threads in sheet metal or plastic for a secure hold
• Helps stop loose panels, vibration noise, and misaligned parts
• Commonly used where a short, durable fastener is needed

• Disconnect power and water before starting any repair
• Use the correct screwdriver or driver bit to avoid stripped heads
• Start threads carefully and avoid over-torquing to prevent damage
• Wear eye protection and gloves when working with sheet metal

This replacement mounting screw secures panels and small components on compatible Whirlpool appliances, restoring proper fit and reducing rattles or loose parts for a solid, finished appearance. What it does

• Fastens control panels, trim pieces, or internal brackets to the appliance chassis
• Helps stop panel vibration, rattling, or misalignment caused by missing or worn fasteners
• Restores secure attachment after disassembly for service or part replacement
• Simple hardware replacement that maintains original fit and function

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver or bit to avoid stripping the head
• Thread gently and stop when snug — do not overtighten to prevent damage to mating parts
• Keep removed hardware organized to ensure correct reassembly

This ignitor retaining clip secures the oven or range ignitor to the burner assembly so the ignitor stays properly positioned for reliable ignition. It's a small replacement part that restores proper ignitor mounting and alignment. What it does:

• Holds the oven/range ignitor in place on the burner assembly to maintain correct positioning
• Helps ensure consistent ignition by preventing the ignitor from shifting or coming loose
• Commonly replaced when the original clip is broken, bent, or missing
• Fits directly where the factory clip secures the ignitor to the burner housing

• Turn off power and gas supply to the appliance before starting any repair
• Access typically requires removing the oven burner or inner panel; follow the manufacturer service instructions
• Use appropriate tools to remove the old clip and secure the new clip without over-bending

The LP Bake and Broil Orifice Kit is an OEM replacement part for Whirlpool gas ranges and ovens. It is a kit containing specially-sized orifices that control gas flow to the bake and broil burners. This allows for optimal gas-air mixture and fuel efficiency specific to liquefied petroleum (LP) gas systems.

Causes of needing a replacement kit include worn or damaged orifices that alter proper gas flow and burner performance over time.

Symptoms include:

• Slow or uneven heating from one or multiple burners
• Burners that create hot or cool spots on cookware
• Ineffective or soft flames that impact cooking results
• Higher appliance operation costs due to inefficient fuel usage

This OEM kit is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: Oven orifice kit with Bake orifice and "Male" Broil orifice. For an oven orifice kit with a "Female" Broil orifice, order part# W10859321. The Bake orifice is #56, Broil orifice is #100.
