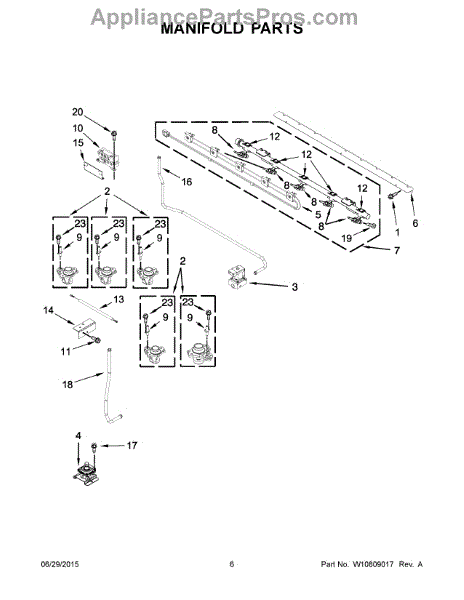

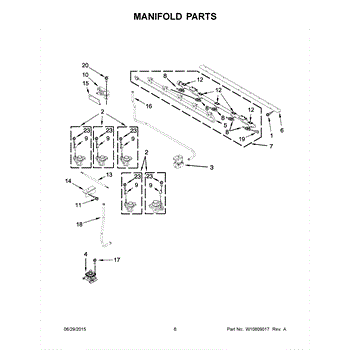

Parts for Whirlpool KFDD500ESS01: 04 - Manifold Parts

The Screw is an OEM part for Whirlpool appliances. This specific screw is used in various locations within Whirlpool appliances, securing components and ensuring the stability and proper alignment of parts. It is designed to fit precisely and maintain a firm hold, contributing to the overall functionality and safety of the appliance.

Over time, screws can become worn or stripped due to regular use, corrosion, or over-tightening.

Causes of a bad screw include wear and tear, exposure to moisture leading to rust, and over-tightening which can strip the threads.

Symptoms of a bad screw include:

• Loose or wobbly components
• Misalignment of parts
• Noise due to vibrating or loose parts
• Difficulty in securing or removing the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This is a genuine replacement Holder ORF that secures a small component on compatible Whirlpool appliances, restoring proper alignment and reliable function. Use it to replace damaged or worn retainers that allow parts to move or rattle. What it does

• Holds/retains a mating component in its proper position to prevent unwanted movement
• Stops loose parts from shifting, which can cause noise or misalignment
• Helps restore correct fit and contact where a worn holder has failed
• Fits into the OEM mounting location and works with the original hardware

• One Holder ORF as shown

• Disconnect power (and gas if applicable) before starting any repair
• Remove only the fasteners or panels necessary to access the old holder; keep track of small hardware
• Compare the new part to the original to confirm orientation before installing

This Holder (ORF) is a small mounting clip that secures the ORF assembly or adjacent trim on compatible Whirlpool appliances, restoring proper fit and preventing loose or rattling panels. It provides a simple replacement to refasten worn or broken holders. What it does:

• Secures ORF assembly or trim to the appliance frame to maintain correct alignment
• Stops rattling, vibration noise, and loose-fitting panels caused by a broken holder
• Helps keep doors and trim seated properly for a tighter appearance and operation
• Replaces cracked, worn, or missing holders that no longer hold components firmly

• One Holder (ORF)

• Disconnect power to the appliance before starting any repair to avoid injury
• Inspect surrounding clips and trim for additional damage and replace as needed
• Typically installed by hand or with common hand tools; avoid excessive force to prevent breakage

This is a replacement Holder ORF retainer that secures internal components so the appliance operates reliably and parts stay aligned. Designed to restore proper fit where the original holder is cracked, broken or missing. What it does

• Secures and positions an internal component or assembly to prevent shifting or rattling
• Restores proper alignment after damage or wear to the original holder
• Helps reduce noise caused by loose parts
• Used when the original retainer is broken, cracked, or no longer holds parts firmly

• One Holder ORF retainer

• Inspect surrounding parts and mounting points; replace any damaged fasteners before reinstalling
• Use basic hand tools; avoid over-tightening to prevent cracking the plastic retainer
• Disconnect power or follow appliance safety procedures before accessing internal components

The Orifice Holder is an OEM part for Whirlpool ranges. Located inside the range cavity, it securely grips the critical gas orifice valve that regulates fuel input into the burners. This small plastic part precisely meters the gas flow, impacting heating performance.

Causes of a bad orifice holder can include cracking from high-temperature fluctuations over extended use. Mineral deposits accumulating inside may also deteriorate components.

Symptoms of a bad orifice holder include:

• Uneven or inconsistent burner flame levels
• Reduced or erratic heating ability of the range
• Gas leaks at the burner valve fittings

This Whirlpool replacement ensures accurate gas metering needed for reliable cooking results. Compatible with KitchenAid, Jenn-Air, and other associated brands.

This solenoid valve controls water flow into the appliance so the unit fills reliably when needed. Replacing a faulty valve restores proper fill operation and helps prevent overfilling or no-fill conditions. What it does:

• Opens and closes to admit water into the appliance during fill cycles
• Stops water flow when the cycle or safety sensor signals the valve to close
• Commonly linked to symptoms like no water fill, slow fill, continuous filling, or leaking at the valve
• Works with the appliance's control system and inlet plumbing to regulate water delivery

• Disconnect power and shut off the water supply before starting work
• Handle electrical connectors and wiring with care; note connector positions for reassembly
• Inspect and replace any worn inlet hoses or seals to ensure a watertight connection
• After installation, restore power and water then run a short cycle to check for correct operation and leaks

This gas valve controls the flow of natural or LP gas to the oven/range burner, restoring proper ignition and flame control for safe cooking. Replace a faulty valve to address burners that fail to light or have inconsistent flames. What it does:

• Regulates gas flow to the burner for steady ignition and flame level control
• Works with the range/oven ignition system to allow burners to light reliably
• Can help resolve symptoms like burners that won't light or flames that are uneven/weak
• Stops gas flow when valve is closed to support safe operation

• Turn off the gas supply and electrical power before beginning service.
• Use proper fittings and tighten to OEM torque; check all connections for leaks with a safe leak-detection method (soapy water).
• Do not use the appliance if you smell gas; ventilate area.

This wire harness assembly routes power and signals between components to restore electrical connections and normal operation. Replacing a damaged harness helps stop intermittent power loss, shorts, or failed component communication. What it does:

• Transfers power and low-voltage signals between appliance modules and controls
• Replaces frayed, burned, or broken wiring that can cause intermittent operation
• Helps eliminate shorts and blown fuses caused by damaged insulation or connectors
• Restores reliable connections to sensors, motors, or switches

• Disconnect power before starting work to avoid shock or injury
• Verify connector orientations and secure clips; do not force connectors into place
• Inspect mating connectors and terminals for corrosion before installing

A replacement gas burner valve that controls fuel flow to a single surface burner, restoring proper flame control and consistent cooking heat. Fits compatible Whirlpool gas ranges and cooktops. What it does:

• Regulates gas flow to a surface burner for adjustable flame height and even cooking
• Replaces a worn or leaking valve that can cause a burner to fail to light or to burn weakly
• Helps eliminate inconsistent or uneven heat across cookware
• Works as the control point between the household gas supply and the burner assembly

• Turn off the gas supply and disconnect power before attempting replacement
• Inspect and replace any damaged gaskets, seals, or mounting hardware as needed
• After installation, check for gas leaks and proper burner operation per local codes

The Valve-Brnr is an OEM part for Whirlpool gas ranges. It acts as the valve regulating gas flow to each burner, supplying consistent flame levels carefully chosen by the user.

Causes of a bad Valve-Brnr can include wear and mineral buildup over years that inhibit proper motion. Debris or damage could also disrupt gas control.

Symptoms of a bad valve-brnr include:

• Unstable or irregular burner flames during cooking
• Inability to achieve desired flame heights as selected
• Potential safety issues if gas flow cannot be adjusted

This genuine Whirlpool replacement is compatible with brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore as well.

This surface ignitor lights a gas burner by creating the spark needed to ignite the gas, restoring reliable ignition and consistent burner operation. Designed as a direct replacement part for compatible gas ranges. What it does:

• Generates the spark to ignite a surface gas burner so cooktop burners light reliably
• Replaces a cracked, damaged, or non-sparking electrode that prevents ignition
• Helps eliminate clicking without flame when the ignitor is functioning correctly
• Works with the range's control and valve assembly to start the burner safely

• One surface ignitor (single)

• Turn off power and gas supply to the appliance before servicing to avoid shock or gas leaks
• Handle the ceramic tip and electrode carefully; damage can prevent proper sparking
• Use factory diagrams or service manual for correct location and wiring; do not force parts

This surface burner spark electrode creates the spark that lights the gas on your cooktop or range. Replacing a worn or cracked electrode helps restore quick, reliable ignition and can reduce excessive clicking at the affected burner. What it does:

• Generates a high-voltage spark at the burner head to ignite gas
• Helps ensure fast, consistent ignition for the specific burner
• Common symptoms can include no spark/no light at one burner, weak or intermittent sparking, or continuous clicking from a damaged/contaminated insulator
• For the surface burner ignition circuit

• 1 spark electrode

• Disconnect power and shut off gas before servicing; allow the cooktop to cool completely
• Remove burner cap and head to access the electrode; note wire routing and connection
• Transfer/reuse any mounting hardware; avoid stressing or cracking the ceramic insulator
• Align the tip to the burner per service information and ensure all connections are secure before restoring power and gas

Spark module that controls the ignition sequence for gas range surface burners, producing the spark needed to light burners. Replacing a faulty module restores proper sparking and helps eliminate persistent clicking or no-ignite conditions. What it does:

• Generates high-voltage sparks to the burner igniters so gas burners light reliably; failure can cause burners not to ignite.
• Directs spark timing for individual surface burners; symptoms of failure include continuous clicking, intermittent sparks, or one or more burners failing to light.
• Works with the range's ignition system to coordinate spark and valve operation; does not include igniters or valves.

• Disconnect electrical power (and gas supply where applicable) before beginning any repairs.
• Photograph wiring connections before removal to ensure correct reconnection; reconnect wires to matching terminals.
• Use the exact OEM part number and replace with the same module to ensure proper fit and operation.

This is a gas tubing used to route fuel inside the appliance, restoring a secure path for gas flow and helping the appliance operate safely when original tubing is damaged or leaking. What it does

• Carries natural gas/LP from the valve/manifold to the burner assembly or other gas connection points.
• Restores a sealed gas path when existing tubing is cracked, corroded, or pinched.
• Matches OEM routing and connection points for a proper fit when replacing the original tubing.

• One gas tubing

• Turn off gas supply and disconnect power before starting work.
• Use approved fittings and follow local codes; apply a soap-and-water leak test after installation.
• Do not modify tubing; replace with the proper OEM part to maintain safe operation.

A genuine replacement mounting screw that secures appliance panels and components to restore proper fit and reduce vibration. Use this screw to replace missing or damaged fasteners for a secure, rattle-free repair. What it does:

• Fastens panels, brackets, or components to the appliance frame
• Restores proper alignment and reduces rattling or vibration
• Prevents parts from coming loose during operation
• Works wherever the OEM screw W10828565 is specified

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or bit to avoid stripping the head
• Install only where the OEM screw is specified; do not overtighten
• Replace any stripped or damaged screws with this exact part

This gas tubing replaces a damaged or corroded supply line to restore safe fuel flow to the appliance. It provides a direct, OEM-matching tubing solution for appliances that use a routed gas line. What it does:

• Carries natural gas or LP from the appliance inlet to the burner/regulator assembly
• Restores proper gas flow when original tubing is kinked, leaking, or corroded
• Helps eliminate gas odors or poor burner performance caused by a compromised line
• Matches OEM routing and connection points for a direct fit when listed for your model

• Only install with the appliance disconnected from gas and electrical supply
• Use proper flare or compression fittings and approved gas-rated sealants per local codes
• Check all connections with a soapy water solution or approved leak detection fluid after installation

This is a direct-replacement screw used to secure appliance panels, brackets and other small components. It restores proper fastening where the original screw is missing, stripped, or corroded to help reduce rattles and looseness. What it does

• Fastens panels, trim, brackets and similar small appliance parts
• Restores a secure connection when the original fastener is missing or damaged
• Helps stop vibration-related rattling and movement of mounted components
• Matches the original mounting point to maintain proper alignment

• Disconnect power and water before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Thread carefully and do not overtighten to prevent damage to the mating part
• Replace only with the same part number or equivalent for proper fit

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal
