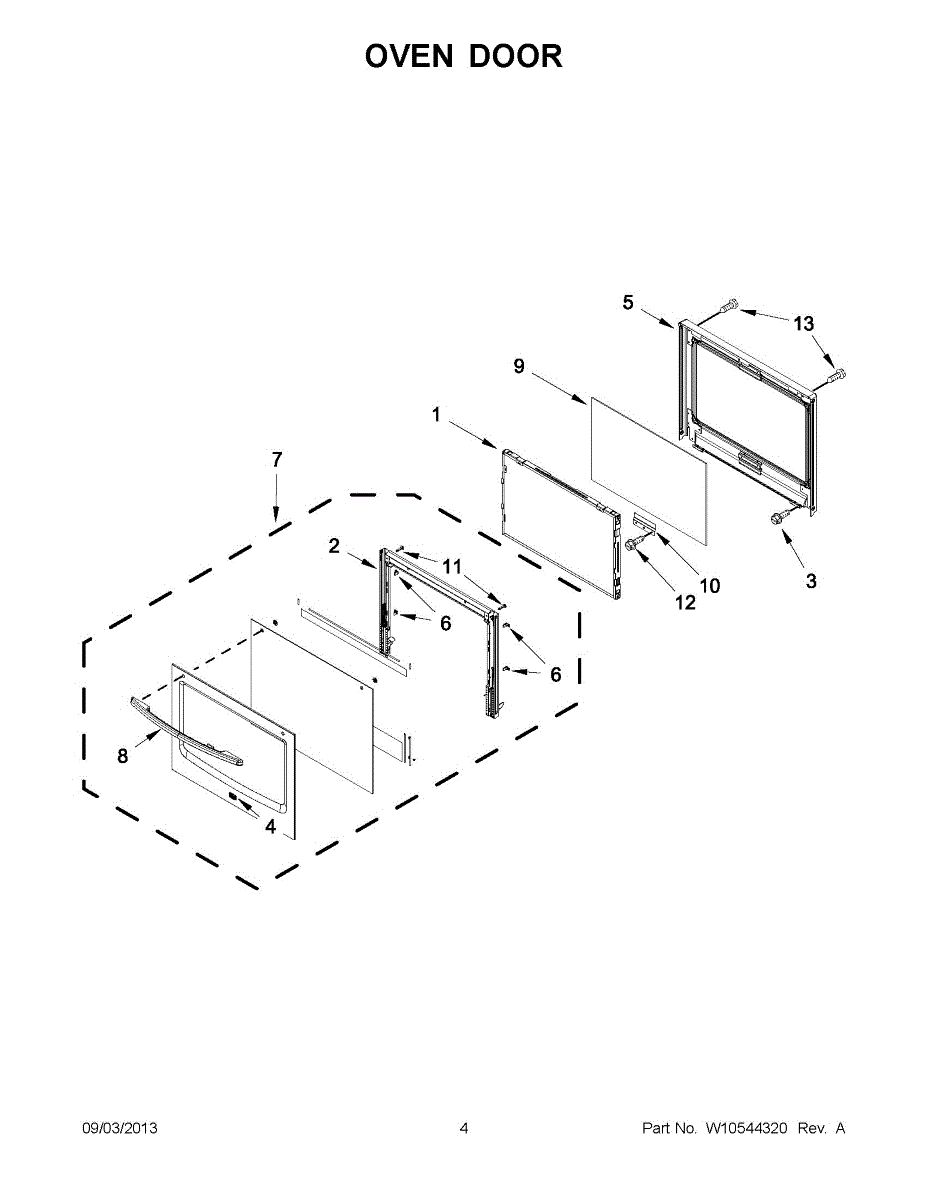

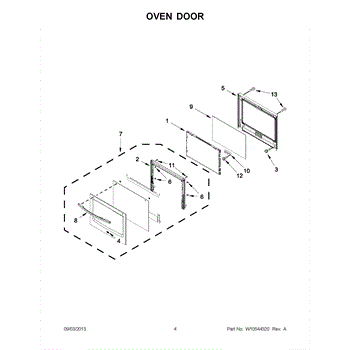

Parts for Maytag MEW9527AW01: 03 - Oven Door Parts

This factory window pack assembly creates the sealed, insulated glass window in your oven door. It restores a clear view into the cavity and helps the appliance hold temperature when the original window is broken, cloudy, or damaged.

• Forms the sealed, multi-pane window within the oven door
• Helps contain heat and maintain consistent baking temperatures
• Restores visibility into the oven cavity
• Common symptoms: cracked/shattered glass, fogging or streaks between panes, rattling glass, heat escaping near the window area

• Disconnect power and allow the oven to cool completely before servicing
• Wear cut-resistant gloves and eye protection; handle glass vertically and support the edges
• Door removal and partial disassembly are typically required; keep screws and trim organized
• Transfer any reusable brackets/insulation per your model's service information

This glass support bracket secures a stove/oven or appliance glass panel in place to prevent movement and ensure proper alignment. It replaces worn or broken brackets to help stabilize the glass and reduce noise or rattling. What it does:

• Holds a glass panel or trim securely to the appliance frame
• Restores proper glass alignment and prevents uneven gaps
• Stops rattling or vibration caused by a loose or broken bracket
• Helps maintain safe, stable placement of the glass during use

• One glass support bracket

• Disconnect power and let surfaces cool before beginning work
• Handle glass carefully; support the panel to avoid dropping or cracking
• Use correct fasteners and avoid over-tightening to prevent glass stress
• Replace the glass along with damaged hardware if the glass is cracked or chips are present.

This welded liner assembly replaces a damaged or corroded oven cavity liner to restore the oven's interior structure and heat containment. It provides a factory-fit replacement for ovens that require a single-piece welded liner. What it does:

• Replaces a warped, cracked, or rusted oven cavity liner to improve structural integrity
• Helps maintain even heat distribution by restoring the oven's original interior surface
• Reduces heat loss from the cavity and helps protect insulation and exterior panels
• Matches OEM fit and mounting points for straightforward refit

• 1 welded oven liner assembly

• Installation requires removing the oven from its enclosure; disconnect power before service
• Handle carefully to avoid scratching the finished surfaces; wear gloves to protect from sharp edges
• Verify all mounting hardware and seals are present and in good condition before final reassembly

This bumper rail cushions and supports the appliance door or drawer edge to reduce vibration, protect the finish, and help the door close smoothly. It replaces a worn or damaged rail that causes rubbing or noise. What it does:

• Provides a soft contact point to prevent metal-on-metal contact and chipping
• Reduces door rattling and vibration during operation
• Helps maintain proper door alignment for a consistent seal
• Common symptom: noisy, scraping, or misaligned door/drawer edge

• Follow for panel removal and reassembly
• Disconnect power (unplug or shut off breaker) before servicing
• Handle panels and trim carefully to avoid scratching; ensure bumper seats fully in its track
• If clips or adhesive are present on the old part, remove residue before installing the new rail

This inner oven door glass is a direct-fit replacement that restores clear viewing and the oven's sealed barrier after the original glass is cracked, broken, or badly fogged. It helps return safe, visible operation without replacing the whole door. What it does:

• Replaces damaged or cracked inner door glass that impairs visibility or safety
• Restores the oven's sealed viewing window to help maintain proper heat containment
• Reduces rattling or vibration caused by loose or broken glass panels
• Helps prevent further damage to the door assembly when the broken glass is removed

• One inner oven door glass panel

• Disconnect power to the appliance and allow the oven to cool completely before starting
• Handle glass with care and use gloves to avoid cuts; support the door during removal
• Follow the OEM disassembly steps for removing the door and inner glass; some screws/clips must be removed in sequence

Restore a safe, efficient oven door with this inner glass panel. It replaces the heat-resistant liner on the inside of the door, helping retain heat and keep the viewing window clear during cooking. What it does:

• Forms the inner layer of the oven door window and helps insulate the oven cavity
• Maintains a clear interior-facing surface for viewing food
• A damaged panel can cause heat loss, temperature fluctuations, or poor visibility through the door window
• Replace if the glass is cracked, shattered, chipped, or permanently hazy/etched

• 1 inner oven door glass panel

• Disconnect power at the breaker and allow the oven to cool completely before service
• Wear cut-resistant gloves and eye protection; glass edges can be sharp
• Remove the door and place it face down on a protected surface; follow model-specific steps to access the inner pane
• Transfer any retainers/brackets as needed and tighten hardware evenly without overtightening

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Screw is an OEM part for Whirlpool appliances. This specific screw is used in various locations within Whirlpool appliances, securing components and ensuring the stability and proper alignment of parts. It is designed to fit precisely and maintain a firm hold, contributing to the overall functionality and safety of the appliance.

Over time, screws can become worn or stripped due to regular use, corrosion, or over-tightening.

Causes of a bad screw include wear and tear, exposure to moisture leading to rust, and over-tightening which can strip the threads.

Symptoms of a bad screw include:

• Loose or wobbly components
• Misalignment of parts
• Noise due to vibrating or loose parts
• Difficulty in securing or removing the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
