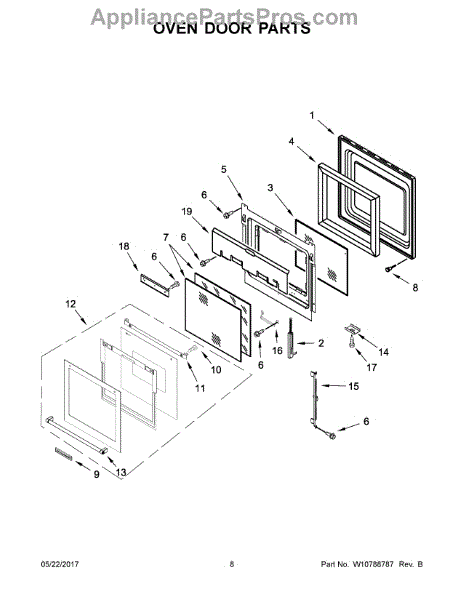

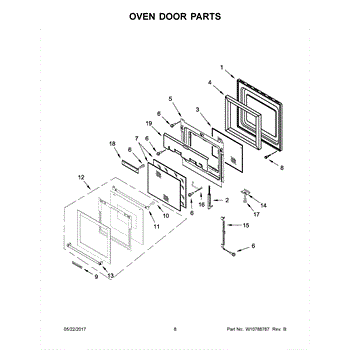

Parts for Kitchenaid KODC304ESS00: 05 - Oven Door Parts

This 24-inch door liner panel restores the interior surface of a single oven door, protecting internal insulation and providing a finished look. It replaces a cracked, dented or heat-damaged liner so the door seals and operates correctly. What it does

• Replaces the oven's interior door surface to protect insulation and inner components.
• Restores a smooth, secure surface that helps the door close evenly and maintain heat containment.
• Helps eliminate rattles, light leaks, or visible damage from a compromised liner.
• Matches factory fit and attachment points for a straightforward replacement.

• One 24-inch oven door liner panel

• Turn off power to the appliance before beginning any repair and allow the oven to cool fully.
• Remove the oven door per the manufacturer's instructions to access and replace the liner; retain all screws and mounting hardware.
• Handle edges carefully and support the liner to avoid bending or damage during installation.

This left-hand oven door hinge assembly restores smooth, spring-assisted door movement and a tight seal. Replacing a worn or bent hinge helps the door close properly, reducing heat loss and improving cooking performance and safety.

• Supports and pivots the door; spring mechanism controls opening/closing tension
• Helps the door close fully and compress the gasket for a proper seal
• Corrects sagging, misalignment, or popping doors caused by hinge wear
• Common symptoms: door won't close or stay shut, drops open, uneven gaps, heat escaping, oven light stays on

• Disconnect power and allow the oven to cool completely before servicing
• Remove the door per your model's instructions; support the door and release hinge locks before lifting off
• Left-hand specific: install on the left side when facing the appliance
• Hinge springs are under tension—use caution, and wear gloves and eye protection

This right-hand oven door hinge assembly supports and counterbalances the door so it opens smoothly and closes firmly against the gasket. Replacing a worn hinge restores proper alignment and heat retention for consistent cooking performance.

• Provides the pivot point and spring tension for the oven door
• Helps the door open smoothly and close completely for a tight seal
• Wear or damage can cause sagging, misalignment, or slamming/falling open
• Heat loss from a poor seal may lead to long preheat or temperature fluctuations

• Disconnect power and allow the oven to cool completely before servicing
• The hinge is spring-loaded—support the door and use care to avoid injury
• Remove the door per your model's instructions, then replace the right-side hinge
• After installation, adjust per service guidance if needed

The Inner Glass is an OEM replacement part for Whirlpool built-in and slide-in electric ranges. As an interior part, this tempered glass serves as the viewing window for the oven cavity below. It is precision cut by Whirlpool to fit seamlessly within the oven door frame assembly.

Causes of broken inner glass can include impact from heavy pots or pans dropped inside during loading/unloading. Thermal stresses from repeated heating cycles may develop fine hairline cracks as well.

Symptoms of a cracked inner glass involve:

• Visible lines or damaged areas that obstruct full viewing
• Potential safety hazards if glass fully separates from the doorframe
• Inability to efficiently view food inside without opening the door

Compatible with some KitchenAid and Jenn-Air built-in electric ranges too, replacing now prevents further door damage from glass shifting out of position over time.

This replacement oven insulation helps contain heat inside the oven cavity for more consistent cooking and protects surrounding panels from excessive heat. It restores the original thermal barrier when damaged or deteriorated. What it does:

• Replaces worn or torn oven cavity insulation that can allow heat to escape
• Helps maintain stable oven temperatures during baking and broiling
• Reduces heat transfer to exterior panels and nearby components
• Can address symptoms such as long preheat times, hot cabinet surfaces, or a noticeable draft of heat from the oven

• Disconnect power to the appliance and ensure the oven is completely cool before beginning.
• Wear gloves and eye protection; insulation fibers can irritate skin and lungs.
• Remove any retaining clips or fasteners and carefully position the new insulation without compressing it; reattach hardware as originally installed.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is the inner oven door glass—the heat-resistant window pane on the inside of the door. Replacing a cracked or cloudy pane restores safe heat retention and a clear view of your food while it cooks.

• Forms the inner thermal barrier of the oven door to contain heat
• Provides the viewing window so you can monitor cooking
• Damage can lead to heat loss, longer preheat times, or a hotter-than-normal door exterior
• Visible cracks, shattering, or fogging/stains between panes are common signs this part may be needed

• Disconnect power and, if applicable, shut off gas; let the oven cool completely
• Removing the door from the hinges simplifies service; support it on a padded surface
• Wear cut-resistant gloves; handle glass by the edges and clean the frame before install
• Reassemble in original order and avoid overtightening retainers to prevent stress cracks

This rubber door bumper cushions and aligns the appliance door to prevent slamming and reduce vibration, helping doors close smoothly and protecting cabinet and door finishes from wear. What it does:

• Acts as a cushion between the door and cabinet, absorbing impact during closing
• Helps keep the door aligned and reduces rattling or vibration during use
• Prevents metal-to-metal contact that can cause chipping, scratching, or noise
• Commonly replaced when worn, flattened, cracked, or missing

• One rubber door bumper

• Remove power to the appliance before accessing the door area or hinges
• Usually presses into a hole or snaps into a mount on the door or cabinet; no special tools required for many models
• Inspect surrounding mounting boss for damage; replace if cracked or deformed

The Nameplate is an OEM part for Whirlpool appliances. It serves as an identification label, typically displaying the brand name and model number, providing a clean and professional appearance for the appliance.

You should replace this nameplate if it becomes damaged or worn out. Common causes of a bad nameplate include wear and tear from regular cleaning, exposure to moisture or heat that can cause peeling or fading, and accidental impact that can lead to cracks or detachment.

Symptoms of a bad nameplate include:

• Fading or illegible text
• Peeling or detaching from the appliance surface
• Visible cracks or damage
• The nameplatae being completely missing

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures appliance components and panels. Replacing worn or missing hardware restores a tight, rattle-free fit and helps keep assemblies properly aligned for reliable performance.

• Fastens panels, brackets, or covers to the appliance frame or mating parts
• Helps maintain proper alignment and reduces vibration and noise
• Replaces missing, stripped, or corroded screws
• Common signs to replace: loose or rattling panels, misaligned parts, damaged screw head or threads

• Disconnect power; also shut off water or gas to the appliance if applicable
• Compare to the original to ensure thread and length match before installing
• Start threads by hand to avoid cross-threading; tighten only until snug
• If the mating clip/insert is stripped, replace that hardware as well

This is a genuine-style door handle designed to restore a secure, easy-to-grip opening for your appliance door. It replaces a broken, cracked, or worn handle so the door operates safely and reliably. What it does:

• Provides a solid grip to open and close the appliance door
• Replaces handles that are cracked, loose, or missing
• Helps prevent door damage from improper pulling or leverage
• Restores original appearance and ergonomics of the door

• One door handle

• Turn off/unplug the appliance before beginning any repairs
• Keep fasteners and small parts organized during disassembly to ensure correct reassembly
• Do not overtighten screws; align the handle to avoid stressing mounting points

This clip is a small retainer used to secure trim, wiring, or small components on compatible Whirlpool appliances, helping keep parts properly aligned and reducing rattles or loose connections. What it does

• Holds and secures panels, harnesses, or small components in place
• Prevents movement that can cause noise, wear, or intermittent connections
• Restores proper fit and alignment for affected trim or assemblies
• Works as a direct replacement for failed or broken retainers

• One clip

• Basic hand tools may be required; remove power and disconnect the appliance before servicing
• Inspect surrounding clips and fasteners; replace any that are cracked or worn
• If clip is part of a sealed or sealed wiring assembly, follow OEM service instructions

This replacement clip secures small appliance components to restore proper alignment and stop rattling or shifting. It's a direct-fit service part sold individually for simple repairs. What it does

• Retains or secures panels, trim, or small assemblies to prevent movement and noise
• Helps maintain correct alignment of adjacent parts for reliable operation
• Commonly used where a molded or metal tab needs a captive fastener
• Can reduce vibration-related wear when a broken clip allowed parts to rub

• One replacement clip

• Disconnect power to the appliance before inspecting or replacing the clip
• Access may require removing a panel or trim; keep screws and hardware organized
• Install by aligning the clip over the mating tab or edge and pressing until it snaps into place
• If other fasteners or plastic tabs are damaged, replace them as well for a secure fit

This small retainer clip secures appliance components to keep assemblies aligned and stable, preventing parts from shifting during use. It's a simple replacement that restores proper fit and reduces rattles or movement. What it does:

• Holds trim, panels, or small assemblies in place to maintain alignment
• Prevents rattling or vibration caused by loose parts
• Helps keep connected components properly seated for reliable operation
• Works as a direct-fit replacement when the original clip is worn or broken

• One replacement clip

• Disconnect power to the appliance before starting any repair
• Access and removal may require basic hand tools; handle panels gently to avoid damage
• Replace only the damaged clip; confirm orientation before fastening

Screw for side trim.
