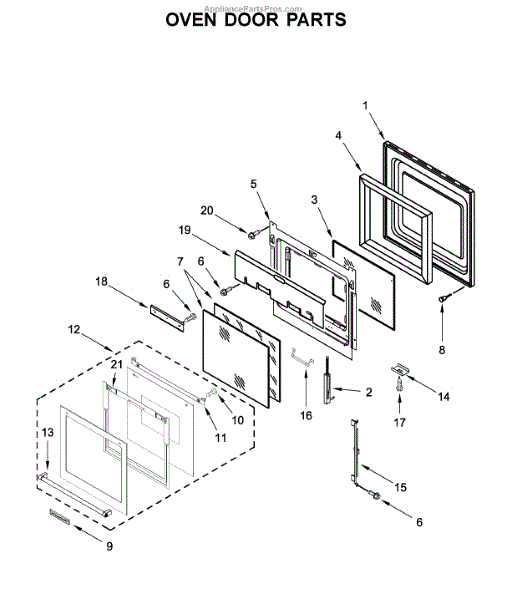

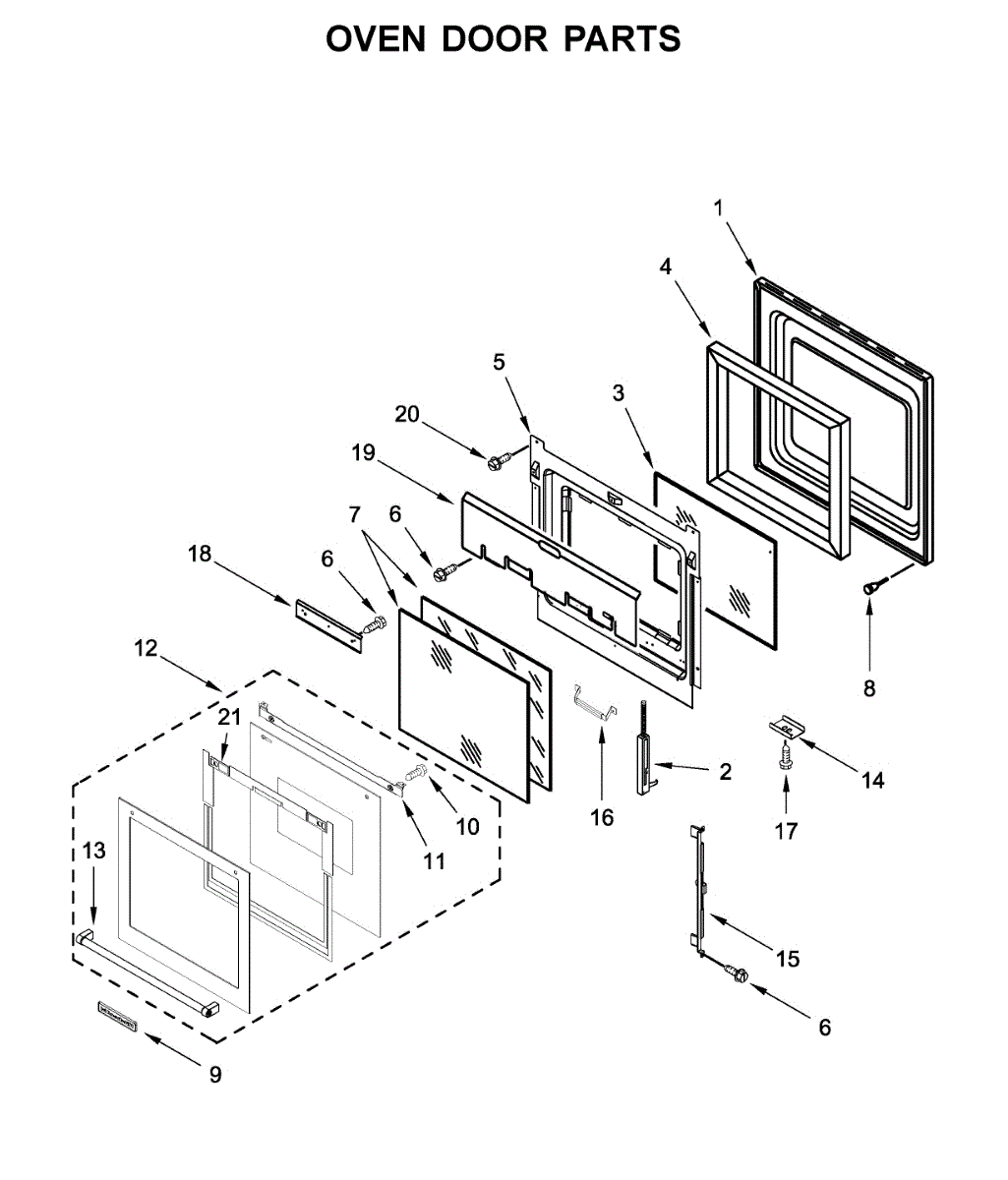

Parts for Kitchenaid KODC304ESS01: Oven Door Parts

This 24-inch door liner panel restores the interior surface of a single oven door, protecting internal insulation and providing a finished look. It replaces a cracked, dented or heat-damaged liner so the door seals and operates correctly. What it does

• Replaces the oven's interior door surface to protect insulation and inner components.
• Restores a smooth, secure surface that helps the door close evenly and maintain heat containment.
• Helps eliminate rattles, light leaks, or visible damage from a compromised liner.
• Matches factory fit and attachment points for a straightforward replacement.

• One 24-inch oven door liner panel

• Turn off power to the appliance before beginning any repair and allow the oven to cool fully.
• Remove the oven door per the manufacturer's instructions to access and replace the liner; retain all screws and mounting hardware.
• Handle edges carefully and support the liner to avoid bending or damage during installation.

This left-hand oven door hinge assembly restores smooth, spring-assisted door movement and a tight seal. Replacing a worn or bent hinge helps the door close properly, reducing heat loss and improving cooking performance and safety.

• Supports and pivots the door; spring mechanism controls opening/closing tension
• Helps the door close fully and compress the gasket for a proper seal
• Corrects sagging, misalignment, or popping doors caused by hinge wear
• Common symptoms: door won't close or stay shut, drops open, uneven gaps, heat escaping, oven light stays on

• Disconnect power and allow the oven to cool completely before servicing
• Remove the door per your model's instructions; support the door and release hinge locks before lifting off
• Left-hand specific: install on the left side when facing the appliance
• Hinge springs are under tension—use caution, and wear gloves and eye protection

This right-hand oven door hinge assembly supports and counterbalances the door so it opens smoothly and closes firmly against the gasket. Replacing a worn hinge restores proper alignment and heat retention for consistent cooking performance.

• Provides the pivot point and spring tension for the oven door
• Helps the door open smoothly and close completely for a tight seal
• Wear or damage can cause sagging, misalignment, or slamming/falling open
• Heat loss from a poor seal may lead to long preheat or temperature fluctuations

• Disconnect power and allow the oven to cool completely before servicing
• The hinge is spring-loaded—support the door and use care to avoid injury
• Remove the door per your model's instructions, then replace the right-side hinge
• After installation, adjust per service guidance if needed

The Inner Glass is an OEM replacement part for Whirlpool built-in and slide-in electric ranges. As an interior part, this tempered glass serves as the viewing window for the oven cavity below. It is precision cut by Whirlpool to fit seamlessly within the oven door frame assembly.

Causes of broken inner glass can include impact from heavy pots or pans dropped inside during loading/unloading. Thermal stresses from repeated heating cycles may develop fine hairline cracks as well.

Symptoms of a cracked inner glass involve:

• Visible lines or damaged areas that obstruct full viewing
• Potential safety hazards if glass fully separates from the doorframe
• Inability to efficiently view food inside without opening the door

Compatible with some KitchenAid and Jenn-Air built-in electric ranges too, replacing now prevents further door damage from glass shifting out of position over time.

This replacement oven insulation helps contain heat inside the oven cavity for more consistent cooking and protects surrounding panels from excessive heat. It restores the original thermal barrier when damaged or deteriorated. What it does:

• Replaces worn or torn oven cavity insulation that can allow heat to escape
• Helps maintain stable oven temperatures during baking and broiling
• Reduces heat transfer to exterior panels and nearby components
• Can address symptoms such as long preheat times, hot cabinet surfaces, or a noticeable draft of heat from the oven

• Disconnect power to the appliance and ensure the oven is completely cool before beginning.
• Wear gloves and eye protection; insulation fibers can irritate skin and lungs.
• Remove any retaining clips or fasteners and carefully position the new insulation without compressing it; reattach hardware as originally installed.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is the inner oven door glass—the heat-resistant window pane on the inside of the door. Replacing a cracked or cloudy pane restores safe heat retention and a clear view of your food while it cooks.

• Forms the inner thermal barrier of the oven door to contain heat
• Provides the viewing window so you can monitor cooking
• Damage can lead to heat loss, longer preheat times, or a hotter-than-normal door exterior
• Visible cracks, shattering, or fogging/stains between panes are common signs this part may be needed

• Disconnect power and, if applicable, shut off gas; let the oven cool completely
• Removing the door from the hinges simplifies service; support it on a padded surface
• Wear cut-resistant gloves; handle glass by the edges and clean the frame before install
• Reassemble in original order and avoid overtightening retainers to prevent stress cracks

This rubber door bumper cushions and aligns the appliance door to prevent slamming and reduce vibration, helping doors close smoothly and protecting cabinet and door finishes from wear. What it does:

• Acts as a cushion between the door and cabinet, absorbing impact during closing
• Helps keep the door aligned and reduces rattling or vibration during use
• Prevents metal-to-metal contact that can cause chipping, scratching, or noise
• Commonly replaced when worn, flattened, cracked, or missing

• One rubber door bumper

• Remove power to the appliance before accessing the door area or hinges
• Usually presses into a hole or snaps into a mount on the door or cabinet; no special tools required for many models
• Inspect surrounding mounting boss for damage; replace if cracked or deformed

This name plate is the appliance's model and serial identification label—an easy way to restore clear product ID for service, parts ordering, and warranty records. Keeps your appliance information visible and readable. What it does:

• Displays manufacturer model and serial numbers and other factory ID details
• Restores a missing or damaged ID label so technicians can identify the correct parts and specs
• Helps when registering the appliance or filing warranty and service requests
• Prevents delays caused by unreadable or absent identification information

• Clean and dry the mounting surface before applying; remove old adhesive residue
• Align carefully and press firmly; some name plates use adhesive backing or mounting tabs
• Do not cover vents, controls, or safety labels when installing

This factory fastener secures appliance components so panels, brackets, and handles stay tight and aligned. Replace a missing or stripped screw to stop rattles and keep assemblies firmly in place.

• Fastens appliance parts such as panels, brackets, trim, or hardware
• Replaces a missing, loose, or stripped fastener
• Helps eliminate vibration noise and wobbly components
• Restores proper alignment and secure mounting

• Disconnect power; for water- or gas-connected appliances, shut off supply lines before service
• Match length/thread to the original location; start threads by hand to avoid cross-threading
• Use the correct driver bit to prevent stripping the head
• Tighten snugly; do not overtighten into plastic or thin sheet metal

This inner oven door glass replaces broken or damaged interior glass to restore safe viewing and proper heat retention in your oven. It fits inside the oven door assembly and helps maintain cooking performance and a clear view of food. What it does:

• Replaces cracked, shattered or scratched inner oven door glass to restore safe operation and visibility.
• Helps the door maintain proper insulation so the oven reaches and holds set temperatures.
• Prevents heat loss and reduces the risk of burns from exposed broken glass.
• Restores the sealed oven cavity that keeps cooking even and efficient.

• High-level replacement: remove oven door per manufacturer instructions before disassembly; handle glass with care.
• Wear cut-resistant gloves and eye protection when removing broken glass.
• Verify door is fully cool and disconnect power to the appliance before starting work.
• Follow OEM instructions for reassembly and torque of door fasteners.

This inner oven door glass replaces a cracked, scratched, or cloudy glass panel so you can safely view cooking progress and restore the door's seal and appearance. Fits in compatible Whirlpool-built single and double ovens. What it does

• Replaces damaged or shattered inner oven door glass to restore visibility and safety
• Helps maintain proper oven temperature by restoring the door's sealed barrier
• Reduces drafts, heat loss, and steam escape caused by broken or missing glass
• Improves oven appearance when the original glass is scratched, stained, or fogged

• One inner oven door glass panel

• Always disconnect power to the appliance and allow the oven to fully cool before starting
• Handle glass with heavy-duty gloves and eye protection to avoid cuts from sharp edges
• Door removal or partial disassembly is commonly required; keep track of screws and brackets

The Glass-Door is an OEM part for Whirlpool wall ovens. It is responsible for providing a transparent barrier that allows for viewing of food inside the oven cavity during the cooking process.

Causes of a bad Glass-door can include wear and tear over time, cracks or chips in the glass from repeated use and cleaning, or damage from accidental impact.

Symptoms of a bad Glass-door include:

• Cracks or chips in the glass that reduce visibility or present a safety hazard
• The door not sealing properly allowing heat to escape
• Difficulty opening and closing the door smoothly
• Condensation or moisture building up between the panes of glass

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a genuine-style door handle designed to restore a secure, easy-to-grip opening for your appliance door. It replaces a broken, cracked, or worn handle so the door operates safely and reliably. What it does:

• Provides a solid grip to open and close the appliance door
• Replaces handles that are cracked, loose, or missing
• Helps prevent door damage from improper pulling or leverage
• Restores original appearance and ergonomics of the door

• One door handle

• Turn off/unplug the appliance before beginning any repairs
• Keep fasteners and small parts organized during disassembly to ensure correct reassembly
• Do not overtighten screws; align the handle to avoid stressing mounting points

This clip is a small retainer used to secure trim, wiring, or small components on compatible Whirlpool appliances, helping keep parts properly aligned and reducing rattles or loose connections. What it does

• Holds and secures panels, harnesses, or small components in place
• Prevents movement that can cause noise, wear, or intermittent connections
• Restores proper fit and alignment for affected trim or assemblies
• Works as a direct replacement for failed or broken retainers

• One clip

• Basic hand tools may be required; remove power and disconnect the appliance before servicing
• Inspect surrounding clips and fasteners; replace any that are cracked or worn
• If clip is part of a sealed or sealed wiring assembly, follow OEM service instructions

This replacement clip secures small appliance components to restore proper alignment and stop rattling or shifting. It's a direct-fit service part sold individually for simple repairs. What it does

• Retains or secures panels, trim, or small assemblies to prevent movement and noise
• Helps maintain correct alignment of adjacent parts for reliable operation
• Commonly used where a molded or metal tab needs a captive fastener
• Can reduce vibration-related wear when a broken clip allowed parts to rub

• One replacement clip

• Disconnect power to the appliance before inspecting or replacing the clip
• Access may require removing a panel or trim; keep screws and hardware organized
• Install by aligning the clip over the mating tab or edge and pressing until it snaps into place
• If other fasteners or plastic tabs are damaged, replace them as well for a secure fit

This small retainer clip secures appliance components to keep assemblies aligned and stable, preventing parts from shifting during use. It's a simple replacement that restores proper fit and reduces rattles or movement. What it does:

• Holds trim, panels, or small assemblies in place to maintain alignment
• Prevents rattling or vibration caused by loose parts
• Helps keep connected components properly seated for reliable operation
• Works as a direct-fit replacement when the original clip is worn or broken

• One replacement clip

• Disconnect power to the appliance before starting any repair
• Access and removal may require basic hand tools; handle panels gently to avoid damage
• Replace only the damaged clip; confirm orientation before fastening

Screw for side trim.

This 8-32 x 3/8 screw secures panels, brackets, and internal components in your appliance so everything stays aligned and tight. Replace worn or missing hardware to restore a solid, rattle-free fit and safe operation.

• Fastens components to frames, brackets, or panels
• Helps reduce vibration, rattling, and misalignment
• Replaces missing, stripped, or corroded screws
• Correct 8-32 machine thread for tapped holes in compatible assemblies

• Disconnect power before servicing; shut off gas or water if applicable
• Start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping

A small mounting spacer that keeps appliance parts correctly spaced for proper alignment and smooth operation. Replaces a worn or missing spacer to help reduce rubbing and improve fit between components. What it does:

• Maintains correct distance between panels or assemblies for proper alignment
• Prevents parts from rubbing, chafing, or binding during operation
• Helps reduce vibration and noise caused by misaligned components
• Supports secure fastening of panels, brackets, or assemblies

• One spacer

• Disconnect power to the appliance before starting any repair
• Access may require removing a panel or trim—keep fasteners organized
• Install in the same orientation and location as the original; do not force or deform the spacer
• Tighten fasteners snugly but avoid over-tightening which can compress or damage the spacer
