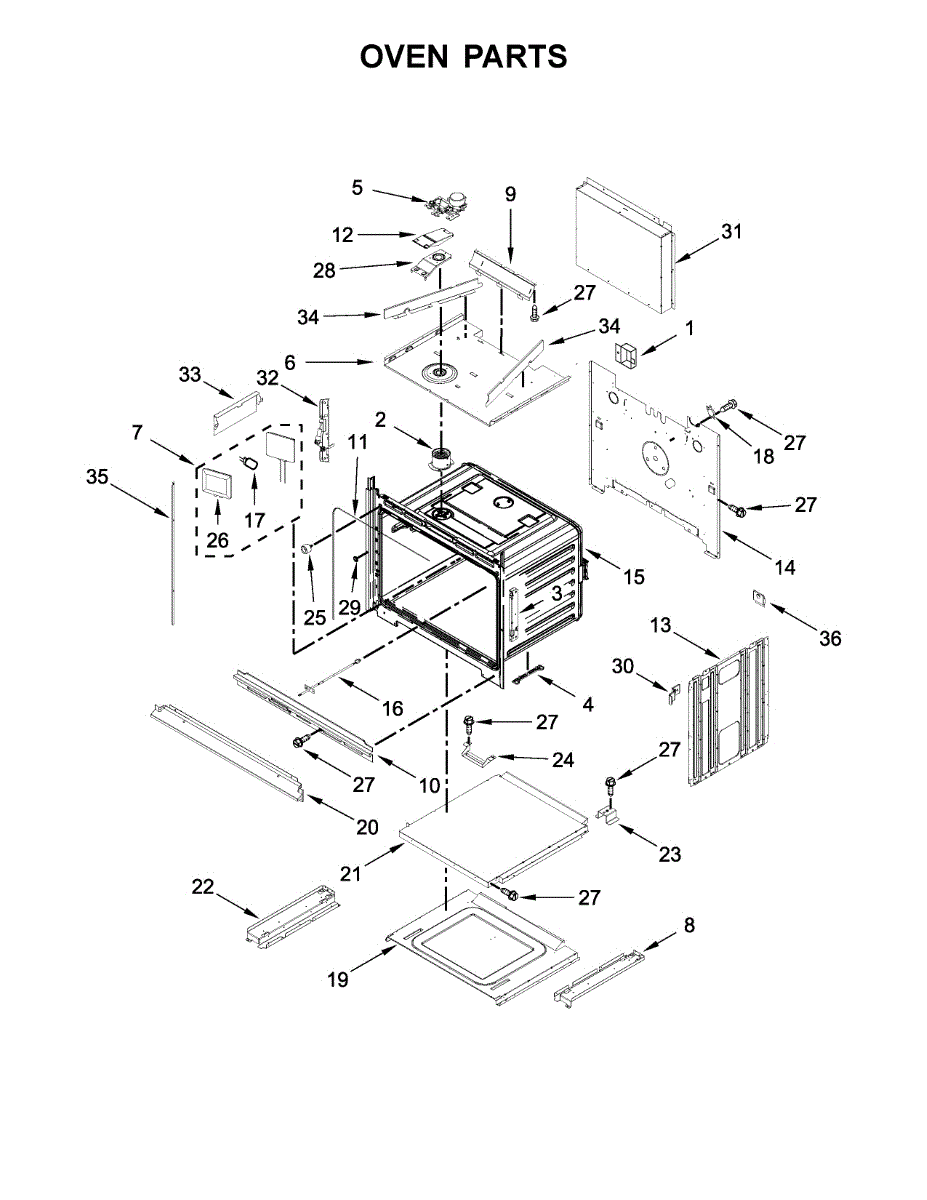

Parts for Whirlpool WOCA7EC0HZ00: Oven Parts

This wire cover is a protective sleeve that helps route and shield appliance wiring to reduce wear and prevent accidental contact. It restores a neater harness run and helps maintain safe electrical routing inside the appliance. What it does:

• Protects wires from abrasion and chafing against sharp edges or moving parts
• Helps prevent exposed conductors that can cause shorts, arcing, or burning smells
• Keeps wiring bundled and routed to reduce pinching and stress on connectors
• Reduces risk of intermittent electrical issues caused by damaged insulation

• Disconnect power before beginning any service to avoid shock or injury
• Inspect surrounding wiring and connectors for damage; replace any frayed or exposed wires
• Slide cover over the wiring harness or route harness through sleeve as needed; secure with existing clips or approved fasteners

This tube-vent is the replacement exhaust tube that channels hot, moist air from the dryer to the external vent, helping the dryer remove moisture efficiently and operate safely. What it does:

• Routes dryer exhaust from the drum area to the vent outlet for proper airflow
• Prevents exhaust air leakage that can reduce drying performance
• Helps avoid lint buildup in the cabinet area when intact
• Commonly replaced when cracked, crushed, or collapsed and causing poor drying or unusual odors

• One tube-vent

• Disconnect power (and gas, if applicable) before starting any repair
• Inspect and clear the external vent path; secure tube with appropriate clamps or fasteners
• Do not kink, stretch, or sharply bend the tube — ensure a smooth airflow path
• If you detect heavy lint buildup or damage to ducts, clean or replace the entire venting run and follow local building codes

The Door Hinge Receiver is an OEM part for Whirlpool ranges. It receives and pivotally mounts the range door hinges, facilitating smooth opening and closing of the door.

Causes of a bad range door hinge receiver include normal wear and tear over time, repeated opening and closing stress, and damage or warping from excessive heat exposure.

Symptoms of a bad door hinge receiver include:

• Cracks or wear on mounting surfaces that could compromise safety
• A loose, wobbly or misaligned range door that does not seal properly
• The door being difficult to open and close smoothly
• Potential for the door to fall off if mounting surfaces fail

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.


This spacer provides a small, rigid gap between appliance components to maintain proper alignment and prevent contact. It restores correct spacing so panels, doors, or assemblies fit and move as intended. What it does:

• Maintains proper clearance between parts to prevent rubbing, binding, or wear
• Helps align panels, trim, or assemblies for smooth operation
• Supports fasteners or clips to ensure a secure fit
• Can reduce vibration-related noise when spacing is correct

• One spacer

• Disconnect power or gas before servicing the appliance
• Inspect mounting area and fasteners; replace any worn clips or screws as needed
• Install in the original orientation; do not force into place or over-tighten fasteners

This door latch keeps the door securely closed and engages the door switch/interlock so the appliance operates as designed. Replacing a worn or broken latch helps resolve door-related errors and restores reliable, safe operation.

• Secures the door against the strike for proper closure and alignment
• Actuates the door switch/interlock so controls recognize a closed door
• Helps prevent operation when the door is open or not fully latched
• Common symptoms: door won't latch or stay closed; unit won't start or shows a "door/open-close" message; broken or loose latch hook

• Disconnect power before servicing; use proper PPE and beware of sharp edges
• Access the latch through the door panel/trim as applicable; use non-marring tools to avoid damage
• Transfer any reusable clips/springs from the old latch to the new part
• After installation, verify smooth door closure and that the control detects the door as closed

This oven vent assembly directs hot air and steam out of the oven cavity to help maintain proper temperature and prevent moisture buildup. It replaces a damaged or missing vent to restore normal oven exhaust. What it does:

• Channels heat and steam from the oven cavity to the exterior vent path
• Helps maintain consistent cooking temperatures and prevents excess moisture
• Stops drafts, rattles, or visible damage caused by a cracked or broken vent
• Useful when the original vent is warped, cracked, or missing

• One oven vent assembly

• Turn off power at the breaker or unplug the range before starting work
• Basic disassembly of the console or outer door trim may be required; keep fasteners organized
• Use appropriate hand tools and avoid forcing parts to prevent damage

The Cavity Gasket Pyro 30" is an OEM part for Whirlpool ovens. This gasket seals the oven door to the oven cavity, preventing heat from escaping and ensuring optimal cooking temperatures are maintained. It helps in improving energy efficiency and cooking performance by keeping the heat contained within the oven.

Over time, the cavity gasket can wear out, become brittle, or get damaged due to repeated exposure to high temperatures and regular use. Improper cleaning methods or accidental tearing can also cause the gasket to fail.

Symptoms of a bad Cavity Gasket include:

• Heat escaping from the oven door
• Longer preheating times
• Uneven cooking or baking results
• Visible cracks or gaps in the gasket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This sensor monitors moisture inside the microwave cavity during Sensor Cook/Reheat cycles so the control can automatically set time and power. Replace it if sensor-based functions stop working or the unit shows a sensor error during cooking.

• Detects steam/humidity during sensor cycles to help the control adjust cook time and power
• Helps improve cooking results on Sensor Cook/Reheat programs
• Common failure signs: sensor-cook options won't start or end early, or the display shows a sensor error
• Intermittent or inconsistent results on sensor-only programs can also indicate a failing sensor

• Disconnect power before service. Microwaves can retain dangerous high voltage even when unplugged—use extreme caution
• Access is typically behind the control panel or top grille; note wire routing and connector orientation before removal
• Handle the sensor by its body/connector—avoid touching the sensing element
• After installation, run a sensor-cook cycle to confirm proper operation

The Light Bulb is an OEM part for Whirlpool ranges and ovens. It provides illumination inside the oven cavity, allowing users to monitor the cooking process without opening the oven door.

Causes of a bad light bulb can include burnout from regular use, electrical issues, or damage due to high temperatures and vibrations within the oven.

Symptoms of a bad light bulb include:

• The light not turning on when the oven door is opened or the light switch is activated
• Flickering or dim light
• The bulb appears visibly damaged or burned out

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The High Limit Thermostat is an OEM replacement part for Whirlpool ovens. It acts as a safety mechanism that monitors the oven's temperature to prevent overheating. When the oven exceeds a specific temperature, the high-limit thermostat interrupts the electrical flow to the heating element, ensuring the appliance remains within safe operating conditions.

Causes of a bad High Limit Thermostat can include a malfunction due to electrical issues or component failure. It may become unresponsive over time, failing to cut off the power to the heating element when the oven overheats.

Symptoms of a bad High Limit Thermostat include:

• The oven not heating up adequately or overheating
• Inconsistent oven temperatures leading to undercooked or overcooked food
• The thermostat being unresponsive or failing to regulate the oven’s temperature

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This chassis bottom duct is the lower access cover that protects internal components and channels airflow under the appliance cabinet. It helps keep wiring and parts shielded while allowing proper ventilation. What it does:

• Covers and protects the appliance chassis bottom area from dust, debris and accidental contact
• Directs airflow under the cabinet to support cooling/ventilation paths
• Prevents loose items from entering the chassis and interfering with components
• Can be replaced when cracked, warped, missing, or causing gaps that expose internals

• Intended for use as a direct-replacement exterior cover; verify fit before installation
• Power off and unplug the appliance before removing or installing the duct
• Remove any obstructing panels or fasteners to access the mounting points; retain hardware if reusing
• If damage extends to adjacent components, inspect internal wiring and mounts for service

A 6-32 machine screw used to secure panels, brackets, and components in many Whirlpool appliances. Replaces worn or missing fasteners to restore proper fit and stop loose parts from rattling or shifting. What it does:

• Secures panels, trim, brackets, and small assemblies
• Helps stop vibration and rattling caused by loose fasteners
• Restores proper alignment for parts held by a 6-32 thread
• Prevents further wear from movement or improper fit

• Disconnect power to the appliance before beginning any repair
• Use the correct driver for the screw head to avoid stripping
• Thread gently and avoid overtightening to prevent damage to threads or components
• Keep removed fasteners organized to ensure correct reassembly

Halogen oven light that restores bright interior illumination so you can check food without opening the door. Direct-fit replacement that returns clear, focused lighting to compatible Whirlpool ovens. What it does:

• Replaces a burned-out or dim oven light so the interior is clearly visible
• Stops flickering or intermittent lighting caused by a failed halogen bulb
• Provides concentrated, high-intensity light for better visibility while cooking
• Helps identify when interior glass is cracked or bulb filament is damaged

• Always disconnect power to the appliance at the breaker before servicing the oven
• Allow the old bulb to cool completely; halogen bulbs run hot
• Avoid touching the new halogen bulb glass with bare hands — use gloves or a clean cloth to prevent oil deposits and premature failure

This replacement grommet restores a tight, cushioned pass-through where a hose, tube, or wire enters your appliance. It helps prevent leaks and rattles while protecting components from chafing so the unit operates smoothly.

• Creates a snug, leak-resistant seal at an opening
• Isolates vibration to reduce noise and wear
• Shields hoses/wires from abrasion on sharp edges
• Replaces a grommet that is cracked, flattened, brittle, or missing
• Common symptoms: dripping at a connection, vibration/rattling, or a loose fit

• Disconnect power and turn off water supply, if applicable, before servicing
• Access the location and note the grommet's orientation and depth
• Remove the old grommet and clean the opening or mating surfaces
• Press the new grommet fully into place; reassemble and test for leaks or noise

This cover is a replacement cabinet trim piece that protects internal components and helps maintain the appliance's appearance. It restores a finished look and shields wiring and parts from incidental contact. What it does

• Covers and protects internal components and wiring from debris and accidental contact
• Restores the appliance's finished exterior where the original cover is cracked, broken, or missing
• Stops rattling or loose-panel noise when a damaged cover is removed
• Helps prevent small items from entering internal compartments

• Disconnect power to the appliance before beginning any service.
• Installation typically requires removing adjacent trim or panels; keep fasteners for reuse.
• Handle carefully to avoid scratching the finish; wear gloves if needed.

This cover is a replacement cabinet trim piece that protects internal components and helps maintain the appliance's appearance. It restores a finished look and shields wiring and parts from incidental contact. What it does

• Covers and protects internal components and wiring from debris and accidental contact
• Restores the appliance's finished exterior where the original cover is cracked, broken, or missing
• Stops rattling or loose-panel noise when a damaged cover is removed
• Helps prevent small items from entering internal compartments

• Disconnect power to the appliance before beginning any service.
• Installation typically requires removing adjacent trim or panels; keep fasteners for reuse.
• Handle carefully to avoid scratching the finish; wear gloves if needed.
