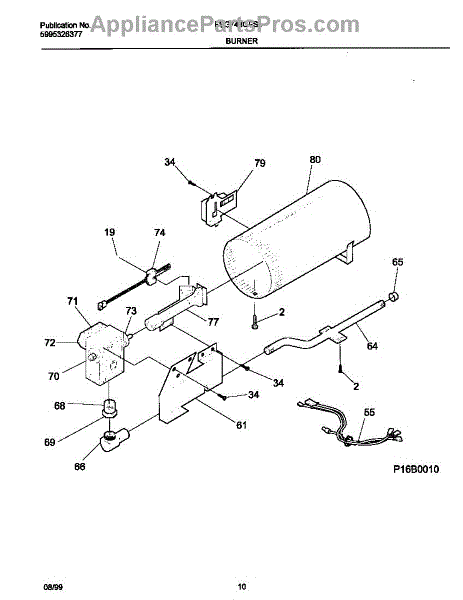

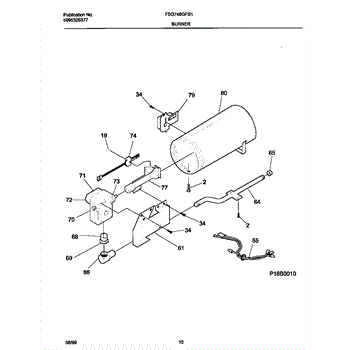

Parts for Frigidaire FSG748GFS1: 06 - P16b0010 Burner,Valve Parts

This factory 8-18 screw secures appliance panels, brackets, and components. Replace missing or stripped hardware to restore a tight, rattle-free assembly and dependable operation.

• Fastens components to frames, brackets, and covers
• Replaces missing, damaged, or rusted screws
• Helps reduce looseness, vibration, and rattling noises
• Restores proper alignment of panels and assemblies

• Disconnect power before servicing; shut off gas/water if applicable
• Start the screw by hand to avoid cross-threading; use the proper driver
• Tighten snugly—do not overtighten to prevent stripping metal or plastic

A replacement union hex nut that secures a refrigerator water line or tubing to a mating valve or fitting, restoring a tight, leak-free connection. Simple, serviceable fastener used on water and refrigeration line unions. What it does

• Secures tubing or line to a mating union fitting or valve to maintain a sealed connection
• Stops leaks at the union when worn or damaged nuts allow seepage
• Helps restore proper water flow to dispenser or ice maker when connection is the cause
• Works with compatible refrigerator water and refrigeration line unions

• One union hex nut

• Shut off the refrigerator water supply before starting work
• Tip: loosen slowly and re-tighten by hand then wrench to avoid overtightening and damaging tubing
• If replacing a corroded nut, inspect the ferrule/sleeve and mating fitting and replace if damaged

This genuine OEM replacement part is a gas valve assembly for dryers. The burner and gas valve assembly is a complete assembly that contains the burner that distributes the gas in a way that creates an even flame allowing for heat to be distributed properly to perform the dryer's essential functions. If the dryer is no longer drying clothes effectively, or heating properly, then it might be time for it to be replaced. Luckily repairing a gas valve assembly is an easy fix.To replace the burner and gas valve assembly, begin by shutting off power to the appliance. Next, pull the dryer away from the wall to gain access to the back panel. Remove the back panel and locate the gas valve assembly. Remove the mounting screws that hold it in place. After removing the screws use both hands to pull and release the old valve assembly. Set it off to the side and proceed to install the new one by refastening the screws that hold it in place.This replacement part is sold individually and is compatible with Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Sears/Kenmore brand washers.

The Dryer Gas Valve Coil Kit is an OEM part for Frigidaire dryers. This kit includes solenoid coils necessary for the opening and closing of the gas valve during the drying cycle. These coils are vital for controlling the flow of gas into the burner, enabling the ignition and maintaining the flame required to dry clothes effectively.

Symptoms of a bad Dryer Gas Valve Coil Kit include:

• No heat or insufficient heat in the dryer.
• The dryer stops heating partway through the cycle.
• A "clicking" noise when the dryer attempts to ignite the gas flame but fails.
• Gas smell from the dryer, indicating incomplete combustion.

Causes of a bad coil kit can include electrical failure within the coils, mechanical wear from repeated use, or overheating that damages the coil's integrity.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Dryer Gas Valve Coil Kit is an OEM part for Frigidaire dryers. This kit includes solenoid coils necessary for the opening and closing of the gas valve during the drying cycle. These coils are vital for controlling the flow of gas into the burner, enabling the ignition and maintaining the flame required to dry clothes effectively.

Symptoms of a bad Dryer Gas Valve Coil Kit include:

• No heat or insufficient heat in the dryer.
• The dryer stops heating partway through the cycle.
• A "clicking" noise when the dryer attempts to ignite the gas flame but fails.
• Gas smell from the dryer, indicating incomplete combustion.

Causes of a bad coil kit can include electrical failure within the coils, mechanical wear from repeated use, or overheating that damages the coil's integrity.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This burner orifice meters gas to a range/cooktop burner through a calibrated opening. Replacing a clogged, damaged, or incorrect-size orifice helps restore proper flame height and clean, consistent combustion for reliable cooking performance.

• Regulates fuel flow to the burner via the precisely sized orifice opening
• Helps address weak/uneven flame, yellow or sooty flame, or delayed ignition
• Replaces stripped, blocked, or wrong-size orifice spud
• Size- and position-specific—match the stamped size and location

• Disconnect electrical power and shut off the gas supply before servicing
• Allow the cooktop to cool; remove grates, caps, and burner head to access the orifice holder
• Use the proper orifice/nut driver; do not overtighten or alter/enlarge the opening
• After reassembly, restore gas and leak-test with an approved solution; verify a stable blue flame and adjust air shutters if applicable

The Ignitor Assembly is an OEM replacement part for Frigidaire dryers. It serves as the ignition source safely firing up burners to initiate drying cycles.

Causes usually relate to the continual thermal shock experienced from heating and then rapidly cooling over extended use. As a foundational safeguard, ignitors require OEM replacement when arcing declines.

Symptoms of a faulty ignitor can include:

• The dryer fails to start or stop heating intermittently
• Cycles taking overly long to complete or feel uneven
• Excessive service calls relating to "no heat" troubles
• Risk of uncombusted gas pooling in dryer if ignition falters

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

The Dryer Heat Sensor is an OEM part for Frigidaire dryers. This sensor monitors the temperature inside the dryer drum to ensure clothes are dried effectively and safely by regulating the heat levels during the drying cycle.

Causes of a bad heat sensor can include wear and tear from frequent use, buildup of lint or debris, or electrical issues. A malfunctioning sensor can result in incorrect temperature readings, leading to under-drying or overheating of clothes.

Symptoms of a bad Dryer Heat Sensor include:

• Clothes not drying properly or taking too long to dry
• Dryer overheating or shutting off unexpectedly
• Inconsistent drying cycles
• Error codes related to temperature control

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.
