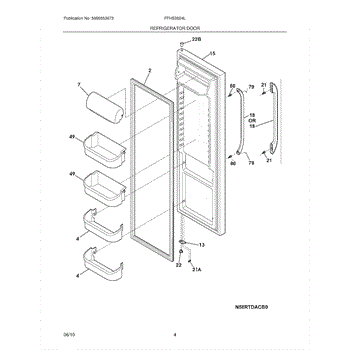

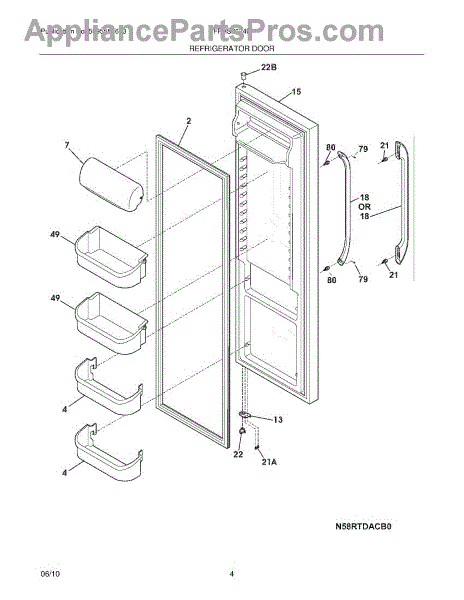

Parts for Frigidaire FFHS2624LP0: 05 - Refrigerator Door Parts

This single-pack Frigidaire PureSource 3 WF3CB Water Filter is an OEM replacement part for Frigidaire refrigerators. It improves the quality and taste of your drinking water. It removes impurities such as lead, cysts, and mercury, as well as reduces chlorine taste and odor. The filter is NSF and WQA certified and is designed to fit specific side-by-side models after 2009 where the filter is located in the back, right top.

Specs:

• Pressure range: 30 - 100 PSIG
• Color: White
• Dimensions: Approximately 2-1/2 inches in diameter by 9-1/2 inches deep.

To ensure optimal performance, filters should be changed every 6 months or 200 gallons, depending on usage.

The Refrigerator Door Gasket is an OEM replacement part for Frigidaire refrigerators. This gasket forms a tight seal around the refrigerator door, keeping cold air inside and preventing warm air from entering. By maintaining an airtight seal, it helps ensure consistent cooling and energy efficiency, preserving food quality.

Over time, gaskets can wear out due to frequent use, temperature changes, or exposure to cleaning chemicals. A damaged or degraded gasket can lose its flexibility or develop cracks, leading to an improper seal that affects the refrigerator's performance.

Symptoms of a bad refrigerator door gasket include:

• Warm spots or uneven cooling inside the refrigerator
• Excess condensation or moisture around the door
• Difficulty in securely closing the refrigerator door
• Increased energy consumption as the appliance works harder to maintain temperatures

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

NOTE: GRAY DOOR GASKET

The Bottom Door Bin is an OEM replacement part for Frigidaire refrigerators. Measuring approximately 16 inches in length, 4 inches in height, and 5 inches in depth. This bottom door bin offers ample storage space for all your refrigerated items.

Symptoms of a bad bottom door bin can include:

• Scratches, cracks or deformities to the plastic material
• Difficulty sliding the bin in and out smoothly
• Failing retention clips or loose mounting hardware

Causes are usually normal wear from regular use over time. Improper handling may also cause damage.

This OEM replacement part is also compatible with models by Electrolux, Gibson, Kelvinator, and Kenmore.

The Dairy Door is an OEM part for Frigidaire side-by-side refrigerators. It provides a convenient sealed storage compartment at the refrigerator door to keep dairy and other perishables fresher longer. The dairy door protects items from temperature fluctuations due to frequent door openings. It measures about 14 inches wide by 6 inches high.

Causes of a bad dairy door can include cracks, punctures or other damage reducing insulation effectiveness. Warping or improper sealing due to age can also affect performance.

Symptoms of a bad dairy door include:

• Condensation or frost buildup inside the door
• Items inside spoiling more quickly than in the main refrigerator
• Difficulty closing or sealing the dairy door properly

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This door stop is the replacement part that limits a refrigerator door's swing to prevent over-extension and protect the hinge and cabinet. It restores proper door alignment and helps the door close reliably. What it does:

• Stops the door at the correct open position to prevent damage to hinges and adjacent cabinetry
• Helps maintain door alignment so the seal engages fully for consistent cooling
• Reduces slamming and uneven wear that can cause noisy or misaligned doors
• Works at the hinge area to control movement rather than as a latch or gasket

• One door stop

• Designed for straightforward replacement at the hinge; remove power only if working near electrical components
• Keep hardware from the original part; replace only the components shown in the manufacturer diagram
• Inspect hinge and surrounding parts for wear while replacing the stop; tighten loose hinge screws as needed

This is a replacement refrigerator fresh-food compartment door that restores a secure seal and clean exterior appearance. It replaces a damaged or dented door to help your fridge keep food properly cooled and looking good. What it does:

• Replaces a damaged, dented, or warped fresh-food compartment door
• Restores proper door alignment for an effective gasket seal
• Helps eliminate cold-air loss that can cause inconsistent cooling
• Returns the appliance to like-new exterior appearance

• One refrigerator fresh-food compartment door

• Disconnect power and empty the door before removing; support the door to prevent drops or injury
• Follow manufacturer instructions for torque and alignment to ensure proper sealing

This replacement door handle restores a solid, comfortable grip for opening and closing your refrigerator door and refreshes the appliance's appearance when the original handle is cracked, loose, or missing.

• Provides the handhold to open and close the refrigerator door
• Mounts to the outer door using existing factory hardware
• Helps resolve a cracked, broken, loose, or missing handle
• Improves door control and overall appearance

• Disconnect power before servicing and protect the door surface from scratches
• Note handle orientation; transfer/reuse existing mounting hardware if applicable
• Align with mounting points; start fasteners by hand and tighten evenly without overtightening
• The handle is secure and the door opens and closes smoothly

This replacement screw secures appliance components to their mounting points so panels, brackets, and trim stay tight and aligned. Replace missing or stripped hardware to restore a solid, rattle-free fit and proper assembly integrity.

• Secures panels, brackets, and trim to prevent movement and maintain alignment
• Replaces missing, damaged, or stripped hardware that can compromise assembly
• Helps reduce rattling or vibration from loose components
• Restores proper fit after service or access panel removal

• Unplug the appliance before servicing; turn off water supply if working near dispenser/ice areas
• Compare the new screw to the original to ensure thread, head style, and length
• Start threading by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Retain and reuse any original washers, spacers, or clips as required

This #10-32 x 3/4-inch machine screw secures appliance components such as panels, brackets, and handles. Using the correct length and thread helps restore a snug, rattle-free hold wherever this screw is specified by the manufacturer.

• Fastens components with a #10-32 machine thread and 3/4-inch length
• Helps keep panels, trim, brackets, or handles secured and aligned
• Replaces missing, stripped, or corroded hardware
• Common signs include loose or wobbly parts, rattling, missing screws, or damaged screw heads/threads

• Disconnect power before servicing; if working near a water connection, shut off the water supply
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping plastic or threads
• Reuse any model-specific washers or spacers if present

This hinge bearing supports the refrigerator door pivot, reducing friction and helping the door open and close smoothly while maintaining proper alignment. Replacing a worn bearing restores smoother movement and helps reduce sagging or noise. What it does:

• Provides a low-friction pivot surface for the refrigerator door hinge.
• Helps maintain proper door alignment so the gasket seals correctly.
• Reduces hinge noise, squeaks and wobble caused by worn bearings.
• Common symptom fixes: door sagging, uneven closing, or noisy hinge movement.

• Disconnect power to the appliance before beginning any repair; turn off water if working near an ice/water dispenser.
• Remove or support the door and contents to prevent damage—doors can be heavy and require two people.
• Replace the bearing following the manufacturer's instructions; keep fasteners and hinge pins in their original order.
• After installation, check door alignment and gasket seal; tighten mounting screws as needed.

This upper door hinge bearing serves as the low-friction bushing on the top hinge pin so the refrigerator door pivots smoothly. Replacing a worn bearing can stop squeaks and help restore level, easy-opening door operation.

• Provides a low-friction sleeve for the upper hinge pin to reduce wear
• Helps maintain door alignment with the cabinet for a consistent seal
• Common symptoms include squeaking or grinding, door rubbing or sagging, or the door not closing smoothly
• Physical signs include cracks, flattening, or oval-shaped wear in the bushing

• Unplug the refrigerator and remove items from the door
• Support the door; remove the top hinge cover and screws, then lift the door slightly
• Replace the worn upper hinge bearing on the hinge pin or bracket (design varies)
• Reinstall the hinge, align the door, and ensure proper gasket contact

The Frigidaire Door Shelf Bin is an OEM replacement part for Frigidaire refrigerator. This bin provides storage space for drinks and snacks, keeping them organized and easy to access.

Causes of a bad door shelf bin can include frequent use, overloading with heavy items, or accidental impacts that can lead to cracks, breaks, or warping. A damaged shelf bin can result in items not being securely held in place and can decrease the overall storage efficiency of the refrigerator.

Symptoms of a bad part may include-

• Items falling out of the bin
• Difficulty closing the door
• Bin not staying on the door

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.
