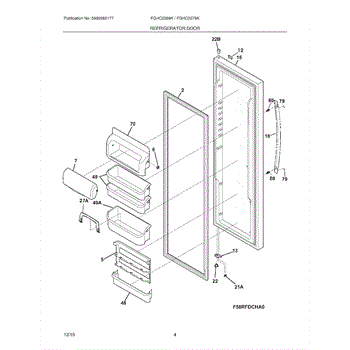

Parts for Frigidaire FGHC2369KE2: 05 - Refrigerator Door Parts

The Frigidaire PureAir Ultra Refrigerator Air Filter Cartridge PAULTRA is an OEM part for Frigidaire refrigerators. Positioned within the air filter housing, the cartridge utilizes advanced carbon filtration technology to remove household odors from circulating air passing through the recycling vent system. The filter measures approximate dimensions of 6-1/2" x Width: 4-7/8" and should be changed every 6 months.

Causes of reduced performance include gradual saturation of the filter material from trapped particles and molecules over time as specified by the replacement recommendation interval.

Symptoms requiring a new cartridge include:

• Return of odors to refrigerator shelves and compartments
• Development of musty smells emanating from the ventilation area
• Reduced airflow effectiveness as pores become blocked
• Filter material visible wear through handling

This OEM Frigidaire part is also compatible with some Kenmore and Maytag models using Frigidaire ventilation components.

The Water Filter is an OEM replacement part for Frigidaire refrigerators. This PureSource Ultra Ultrawf Refrigerator Water Filter is designed to provide superior filtration, ensuring that your water and ice are clean and refreshing.

With the Frigidaire Refrigerator Water Filter, you can enjoy up to six months of crystal-clear water and ice. For the filter bypass, order part number 242294402. Get the most out of your Frigidaire appliance with a new OEM water filter, and enjoy clean, refreshing water and ice every time!

Causes of a bad part:

• Overused or expired
• Clogged by excessive impurities

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


This gray magnetic refrigerator door gasket replaces the perimeter seal on the fresh food door. It creates an airtight closure that keeps cold air in, blocks humid air, and helps prevent temperature swings, frost, and condensation. What it does:

• Seals the door perimeter with a flexible magnetic edge to stop air leaks
• Helps maintain proper refrigerator temperature and reduce frost/condensation near the door
• Restores smooth closing when the old gasket is torn, shrunken, or warped
• Typical symptoms: visible gaps, moisture on the gasket, frequent cycling, or food warming near the door

• 1 gray magnetic refrigerator door gasket

• Disconnect power before servicing
• Warm the new gasket with a hair dryer or hot water to relax folds for easier seating
• Remove the old gasket; press/fasten the new gasket evenly into the door channel or retainer, ensuring corners are fully engaged
• Close the door and check for uniform contact; adjust hinges or gently reshape with warm air as needed and allow the gasket to set with the door closed

This dairy door is the flip-up cover for the refrigerator's dairy compartment on the fresh-food door. It keeps butter and cheese covered and contained, restoring a clean, finished look when the original cover is cracked or missing.

• Covers the dairy compartment and hinges open for easy access
• Helps keep small dairy items contained and organized on the door
• Replaces a cracked, warped, discolored, loose, or missing cover
• Closes properly when seated on the original hinge posts

• Disconnect power before servicing
• Remove the old cover by releasing its tabs from the hinge posts
• Align the new cover with the hinge posts and press to snap into place
• Avoid forcing brittle plastic; allow the part to reach room temperature before installation

This replacement nameplate label restores the appliance's identification and rating information so you can read model, serial, and electrical data clearly. Helps when the original label is faded, damaged, or missing. What it does

• Displays model and serial numbers, electrical ratings and safety markings for identification and service
• Replaces faded, torn, or illegible factory labels so appliance data is readable
• Helps technicians and owners confirm correct specifications during repairs or replacement parts ordering
• Does not affect appliance operation; used for identification and information only

• One replacement nameplate label

• Clean and dry the surface before applying so the label adheres and lays flat
• Align carefully; many labels are adhesive-backed and are intended for single use
• Avoid placing over gaskets, vents, or moving parts; install where original label was located

This black door stop replaces the small bumper that limits a refrigerator/freezer door's travel, protecting the cabinet and hinge from damage. It restores proper door alignment and quiets contact when the door closes. What it does:

• Acts as a physical stop to prevent the door from swinging too far and hitting the cabinet
• Cushions door closure to reduce noise and wear on the hinge
• Helps maintain correct door alignment for a tight seal
• Common symptom: door scraping, slamming, or rubbing against cabinet edge

• Basic hand tools may be required; keep fasteners and mounting surfaces clean
• Turn off or unplug the appliance before performing any repairs that require moving the door
• Handle hardware carefully to avoid damaging surrounding trim or seals

This #10-32 x 3/4-inch machine screw secures appliance components such as panels, brackets, and handles. Using the correct length and thread helps restore a snug, rattle-free hold wherever this screw is specified by the manufacturer.

• Fastens components with a #10-32 machine thread and 3/4-inch length
• Helps keep panels, trim, brackets, or handles secured and aligned
• Replaces missing, stripped, or corroded hardware
• Common signs include loose or wobbly parts, rattling, missing screws, or damaged screw heads/threads

• Disconnect power before servicing; if working near a water connection, shut off the water supply
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping plastic or threads
• Reuse any model-specific washers or spacers if present

This refrigerator dispenser bearing supports the auger shaft so it spins smoothly during ice dispensing. Replacing a worn bearing restores quieter, more reliable ice delivery and helps prevent binding or uneven crushing of cubes. What it does

• Supports and centers the ice auger/crusher shaft inside the ice bucket
• Reduces friction to allow smooth, consistent rotation
• Wear can cause grinding or squealing during dispensing
• Symptoms include slow/no ice dispensing, jamming, or intermittent operation

• 1 bearing

• Disconnect power and turn off the water supply before service
• Remove the ice bucket and disassemble the crusher housing to access the bearing
• Note the bearing's orientation; transfer any spacers or clips as found
• Reassemble carefully and ensure the auger turns freely by hand before restoring power

The Lower Door Closer is an OEM replacement part for Frigidaire refrigerators. It is a vital part that assists in securely shutting the refrigerator door. The door closer contains a calibrated spring mechanism designed to gently guide the door into the closed position without using forceful movements.

Symptoms of a bad door closer include:

• The door not latching fully or popping back open easily
• Difficulty closing the door all the way
• Excessive noise and banging when closing
• Gaps appearing around the door seal

Causes can be regular wear and tear on the spring after prolonged use. Not allowing the door to fully close before reopening may also damage the door closer mechanism over time.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Door Bin is an OEM part for Frigidaire refrigerators. This bin attaches to the inside of the refrigerator door, providing convenient storage for smaller items like condiments, beverages, and jars.

Common causes of a bad door bin include regular wear and tear from frequent use, cracking or breaking due to overloading, or impact damage from items being placed in or removed from the bin.

Symptoms of a bad door bin include:

• Cracks or breakage in the plastic
• The bin not staying securely in place
• Difficulty in holding items due to instability
• Discoloration or warping of the bin material

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Door Bin is an OEM part for Frigidaire refrigerators. This part attaches to the inside of the refrigerator door, offering additional storage space for condiments, bottles, and other small or medium-sized items.

Over time, door bins can become cracked, discolored, or broken due to overloading, accidental impacts, or the natural aging process. This can lead to a decreased ability to securely hold items, potentially causing spills or making efficient use of space more challenging.

Symptoms of a bad Door Bin include:

• Cracks or breaks in the plastic, compromising its structural integrity
• The bin sagging or not attaching securely to the refrigerator door, indicating wear or damage to the attachment points
• Difficulty in sliding the bin in or out, or it not fitting properly due to warping or damage
• Reduced effectiveness in holding items securely

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Door Bin is an OEM part for Frigidaire refrigerators. It is designed to provide additional storage space on the refrigerator door, allowing for easy organization and access to items such as bottles, jars, and condiments.

You should replace the door bin if it becomes damaged or worn out. Causes of a bad door bin can include regular wear and tear, overloading with heavy items, or accidental impacts that cause cracks or breaks. A compromised door bin can reduce storage capacity and may not securely hold items.

Symptoms of a bad door bin include:

• Cracks or breaks in the bin
• Difficulty fitting the bin into its designated slot
• The bin not staying in place or wobbling
• Items falling out of the bin or not being securely held

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This part number contains one (1) screw.

The Door Handle Screw is an OEM part for Frigidaire refrigerators. This screw secures the door handle to the refrigerator door, ensuring a firm and stable grip for opening and closing the door.

Causes of a bad door handle screw can include regular wear and tear from frequent use, corrosion due to exposure to moisture, or damage from over-tightening or stripping. A faulty screw can lead to a loose or wobbly door handle, making it difficult to operate the refrigerator.

Symptoms of a bad door handle screw include:

• The door handle feeling loose or coming off
• Difficulty in securely tightening the handle
• Visible rust or corrosion on the screw
• Stripped threads on the screw or handle

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.
