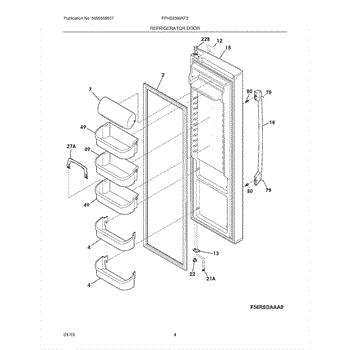

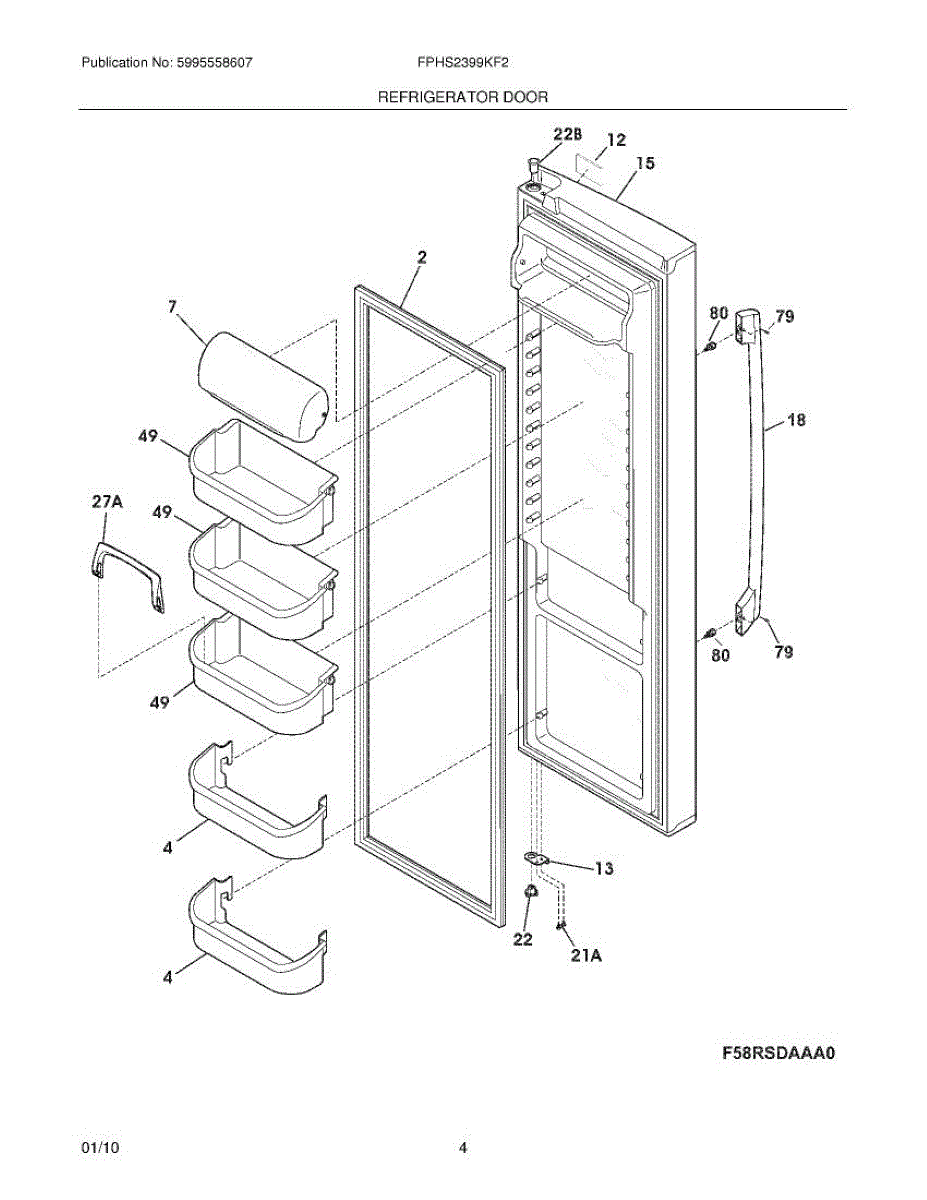

Parts for Frigidaire FPHS2399KF2: 05 - Refrigerator Door Parts

The Frigidaire PureAir Ultra Refrigerator Air Filter Cartridge PAULTRA is an OEM part for Frigidaire refrigerators. Positioned within the air filter housing, the cartridge utilizes advanced carbon filtration technology to remove household odors from circulating air passing through the recycling vent system. The filter measures approximate dimensions of 6-1/2" x Width: 4-7/8" and should be changed every 6 months.

Causes of reduced performance include gradual saturation of the filter material from trapped particles and molecules over time as specified by the replacement recommendation interval.

Symptoms requiring a new cartridge include:

• Return of odors to refrigerator shelves and compartments
• Development of musty smells emanating from the ventilation area
• Reduced airflow effectiveness as pores become blocked
• Filter material visible wear through handling

This OEM Frigidaire part is also compatible with some Kenmore and Maytag models using Frigidaire ventilation components.

The Water Filter is an OEM replacement part for Frigidaire refrigerators. This PureSource Ultra Ultrawf Refrigerator Water Filter is designed to provide superior filtration, ensuring that your water and ice are clean and refreshing.

With the Frigidaire Refrigerator Water Filter, you can enjoy up to six months of crystal-clear water and ice. For the filter bypass, order part number 242294402. Get the most out of your Frigidaire appliance with a new OEM water filter, and enjoy clean, refreshing water and ice every time!

Causes of a bad part:

• Overused or expired
• Clogged by excessive impurities

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


This door gasket seals the perimeter of the appliance door to keep cold air in and humid air out. Replace a torn, warped, or leaky gasket to restore stable temperatures, reduce frost/condensation, and help the unit run efficiently. What it does:

• Creates an airtight seal between the door and cabinet
• Helps maintain proper temperature and humidity inside the compartment
• Reduces frost buildup and condensation around the door opening
• Common failure signs: tears, gaps, warping, hard or cracked rubber, door not closing flush, warm spots

• 1 door gasket

• Unplug the appliance and clear items from the affected door.
• Condition the new gasket to remove shipping kinks by laying it flat and warming it (soak in warm water or use gentle, low heat).
• Remove the old gasket; on some models you may need to loosen liner-retainer screws to release it.
• Fit the new gasket into the channel, working from the corners; ensure it seats evenly all around and verify a uniform seal.

The Door Shelf Bin is an OEM part for Frigidaire refrigerators. It serves as a storage space attached to the inner door panel, providing convenient access to frequently used items such as drinks, condiments, and snacks.

A bad door shelf bin can result from several factors, including overloading, which can cause the bin to crack or break; the normal wear and tear of daily use, leading to deterioration of the plastic material; or accidents, such as the bin being dropped during cleaning, which can lead to cracks or breaks.

Symptoms of a bad Door Shelf Bin include:

• Difficulty fitting into its designated spot on the door
• Visible cracks or breaks in the plastic
• The bin sagging or detaching from the door when loaded with items
• Difficulty cleaning due to scratches or damage

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Dairy Door is an OEM replacement part for Frigidaire side-by-side refrigerators. As the access point to the dedicated dairy compartment, the door is designed with precision seals to maintain optimal humidity levels inside. This helps keep dairy and other perishable items fresh longer.

Causes of a bad dairy door can include worn or damaged seals, dents or impacts warping the door frame, or issues with the electronic components that control humidity levels.

Symptoms of a bad dairy door include:

• Excessive frost or ice buildup inside the dairy compartment
• Difficulty opening and closing the door smoothly
• Warm or dried-out dairy products despite a cold refrigerator interior
• Moisture leaks around the door seals

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore side-by-side models.

This black door stop replaces the small bumper that limits a refrigerator/freezer door's travel, protecting the cabinet and hinge from damage. It restores proper door alignment and quiets contact when the door closes. What it does:

• Acts as a physical stop to prevent the door from swinging too far and hitting the cabinet
• Cushions door closure to reduce noise and wear on the hinge
• Helps maintain correct door alignment for a tight seal
• Common symptom: door scraping, slamming, or rubbing against cabinet edge

• Basic hand tools may be required; keep fasteners and mounting surfaces clean
• Turn off or unplug the appliance before performing any repairs that require moving the door
• Handle hardware carefully to avoid damaging surrounding trim or seals

This #10-32 x 3/4-inch machine screw secures appliance components such as panels, brackets, and handles. Using the correct length and thread helps restore a snug, rattle-free hold wherever this screw is specified by the manufacturer.

• Fastens components with a #10-32 machine thread and 3/4-inch length
• Helps keep panels, trim, brackets, or handles secured and aligned
• Replaces missing, stripped, or corroded hardware
• Common signs include loose or wobbly parts, rattling, missing screws, or damaged screw heads/threads

• Disconnect power before servicing; if working near a water connection, shut off the water supply
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping plastic or threads
• Reuse any model-specific washers or spacers if present

The Lower Door Closer is an OEM replacement part for Frigidaire refrigerators. It is a vital part that assists in securely shutting the refrigerator door. The door closer contains a calibrated spring mechanism designed to gently guide the door into the closed position without using forceful movements.

Symptoms of a bad door closer include:

• The door not latching fully or popping back open easily
• Difficulty closing the door all the way
• Excessive noise and banging when closing
• Gaps appearing around the door seal

Causes can be regular wear and tear on the spring after prolonged use. Not allowing the door to fully close before reopening may also damage the door closer mechanism over time.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Refrigerator Door Shelf is an OEM part for Frigidaire refrigerators. This shelf attaches to the inside of the refrigerator door, offering additional storage space for frequently accessed items such as drinks, condiments, and snacks. It measures approximately 15 inches wide, 4 inches high, and 8 inches deep.

Symptoms of a bad refrigerator door shelf include:

• Cracks or breaks in the shelf that compromise its ability to hold items
• The shelf detaching from the door or sagging under weight
• Difficulty fitting the shelf securely into its designated slots

Causes of damage to refrigerator door shelves typically involve overloading beyond their weight capacity, impact from items being moved in and out, or degradation of the plastic clips that hold the shelf in place due to age and frequent temperature changes.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This replacement part is a set screw, and it is intended for use in different types of appliances. This is a genuine replacement part made by Frigidaire. This screw set is compatible in many different areas of the appliance. Screws are typically used for keeping parts of the machinery secure and in place. It is possible that screws can become loose over time and need to be replaced. A new screw set might be needed if the user notices parts of the appliances are becoming loose or are falling off. This can be due to screws becoming stripped over time or if the appliance is bumped during transport. It is typically easy to replace screws. Simply remove the old screw and replace it with a new part. The only tools needed for this repair are a screwdriver and possibly pliers if the damaged screw is stuck in place.Note that this is a genuine OEM replacement part and is sourced from the manufacturer. This set screw is sold individually.

The Door Handle Screw is an OEM part for Frigidaire refrigerators. This screw secures the door handle to the refrigerator door, ensuring a firm and stable grip for opening and closing the door.

Causes of a bad door handle screw can include regular wear and tear from frequent use, corrosion due to exposure to moisture, or damage from over-tightening or stripping. A faulty screw can lead to a loose or wobbly door handle, making it difficult to operate the refrigerator.

Symptoms of a bad door handle screw include:

• The door handle feeling loose or coming off
• Difficulty in securely tightening the handle
• Visible rust or corrosion on the screw
• Stripped threads on the screw or handle

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.
