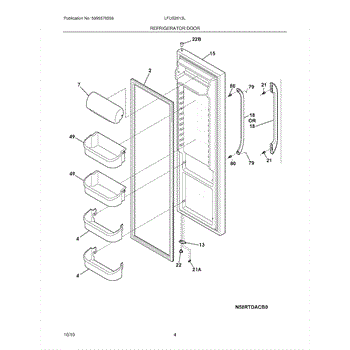

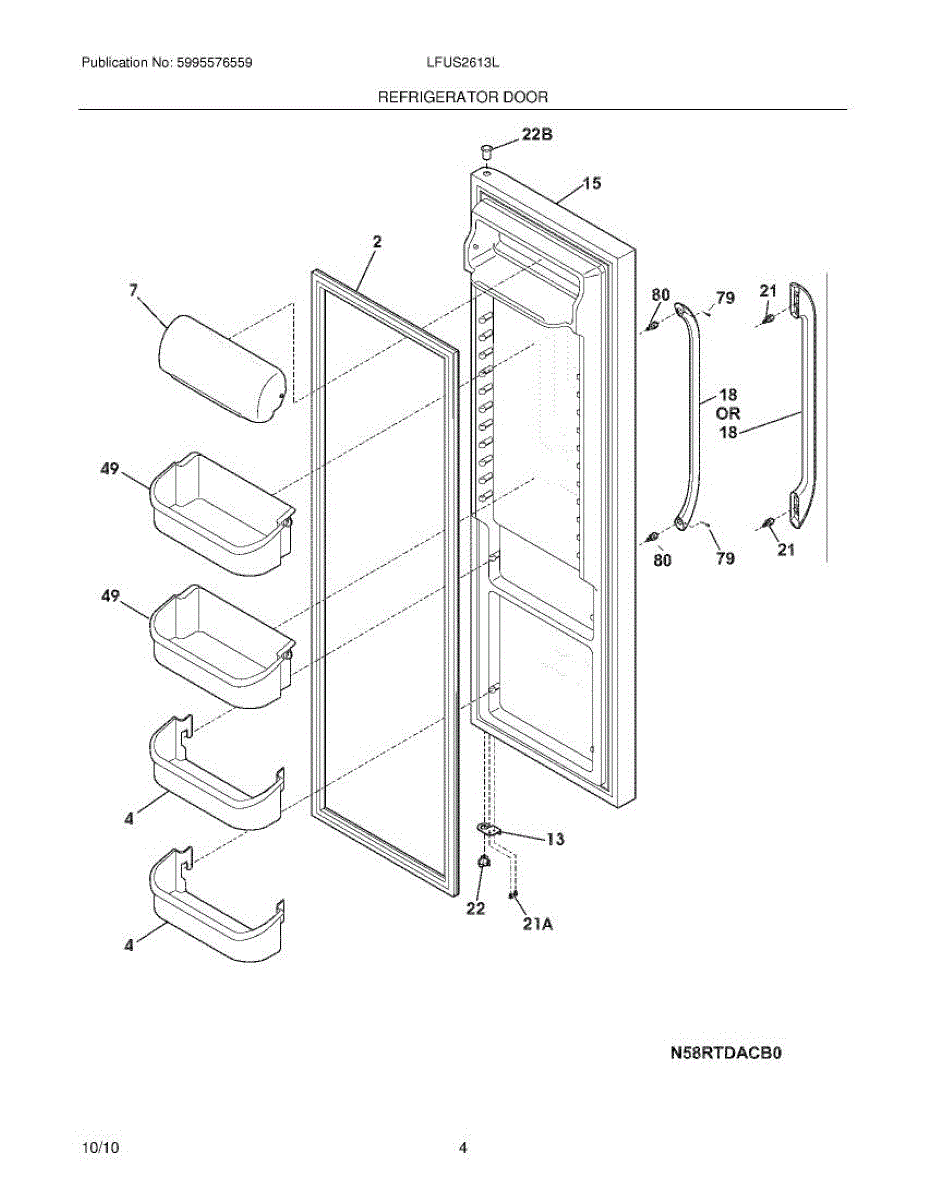

Parts for Frigidaire LFUS2613LP2: 05 - Refrigerator Door Parts

This single-pack Frigidaire PureSource 3 WF3CB Water Filter is an OEM replacement part for Frigidaire refrigerators. It improves the quality and taste of your drinking water. It removes impurities such as lead, cysts, and mercury, as well as reduces chlorine taste and odor. The filter is NSF and WQA certified and is designed to fit specific side-by-side models after 2009 where the filter is located in the back, right top.

Specs:

• Pressure range: 30 - 100 PSIG
• Color: White
• Dimensions: Approximately 2-1/2 inches in diameter by 9-1/2 inches deep.

To ensure optimal performance, filters should be changed every 6 months or 200 gallons, depending on usage.

The Freezer Door Gasket is an OEM replacement part for Frigidaire refrigerators. This gasket provides a secure seal around the freezer door, ensuring that cold air remains inside while keeping warm air out. It helps maintain consistent freezer temperatures for optimal food storage and prevents energy loss.

Causes of a bad freezer door gasket can include wear from regular use, exposure to temperature fluctuations, or damage from cleaning agents. Over time, the gasket may lose its flexibility, develop cracks, or become misaligned, compromising its ability to seal properly.

Symptoms of a bad gasket include:

• Frost buildup or ice accumulation inside the freezer
• Difficulty keeping the freezer door closed securely
• Warm air entering the freezer, leading to inconsistent temperatures
• Higher energy bills due to the freezer working harder to maintain cold temperatures

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Bottom Door Bin is an OEM replacement part for Frigidaire refrigerators. Measuring approximately 16 inches in length, 4 inches in height, and 5 inches in depth. This bottom door bin offers ample storage space for all your refrigerated items.

Symptoms of a bad bottom door bin can include:

• Scratches, cracks or deformities to the plastic material
• Difficulty sliding the bin in and out smoothly
• Failing retention clips or loose mounting hardware

Causes are usually normal wear from regular use over time. Improper handling may also cause damage.

This OEM replacement part is also compatible with models by Electrolux, Gibson, Kelvinator, and Kenmore.

The Dairy Door is an OEM part for Frigidaire side-by-side refrigerators. It provides a convenient sealed storage compartment at the refrigerator door to keep dairy and other perishables fresher longer. The dairy door protects items from temperature fluctuations due to frequent door openings. It measures about 14 inches wide by 6 inches high.

Causes of a bad dairy door can include cracks, punctures or other damage reducing insulation effectiveness. Warping or improper sealing due to age can also affect performance.

Symptoms of a bad dairy door include:

• Condensation or frost buildup inside the door
• Items inside spoiling more quickly than in the main refrigerator
• Difficulty closing or sealing the dairy door properly

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This black door stop replaces the small bumper that limits a refrigerator/freezer door's travel, protecting the cabinet and hinge from damage. It restores proper door alignment and quiets contact when the door closes. What it does:

• Acts as a physical stop to prevent the door from swinging too far and hitting the cabinet
• Cushions door closure to reduce noise and wear on the hinge
• Helps maintain correct door alignment for a tight seal
• Common symptom: door scraping, slamming, or rubbing against cabinet edge

• Basic hand tools may be required; keep fasteners and mounting surfaces clean
• Turn off or unplug the appliance before performing any repairs that require moving the door
• Handle hardware carefully to avoid damaging surrounding trim or seals

This replacement door handle restores a solid, comfortable grip for opening and closing your refrigerator door and refreshes the appliance's appearance when the original handle is cracked, loose, or missing.

• Provides the handhold to open and close the refrigerator door
• Mounts to the outer door using existing factory hardware
• Helps resolve a cracked, broken, loose, or missing handle
• Improves door control and overall appearance

• Disconnect power before servicing and protect the door surface from scratches
• Note handle orientation; transfer/reuse existing mounting hardware if applicable
• Align with mounting points; start fasteners by hand and tighten evenly without overtightening
• The handle is secure and the door opens and closes smoothly

This replacement screw secures appliance components to their mounting points so panels, brackets, and trim stay tight and aligned. Replace missing or stripped hardware to restore a solid, rattle-free fit and proper assembly integrity.

• Secures panels, brackets, and trim to prevent movement and maintain alignment
• Replaces missing, damaged, or stripped hardware that can compromise assembly
• Helps reduce rattling or vibration from loose components
• Restores proper fit after service or access panel removal

• Unplug the appliance before servicing; turn off water supply if working near dispenser/ice areas
• Compare the new screw to the original to ensure thread, head style, and length
• Start threading by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Retain and reuse any original washers, spacers, or clips as required

This #10-32 x 3/4-inch machine screw secures appliance components such as panels, brackets, and handles. Using the correct length and thread helps restore a snug, rattle-free hold wherever this screw is specified by the manufacturer.

• Fastens components with a #10-32 machine thread and 3/4-inch length
• Helps keep panels, trim, brackets, or handles secured and aligned
• Replaces missing, stripped, or corroded hardware
• Common signs include loose or wobbly parts, rattling, missing screws, or damaged screw heads/threads

• Disconnect power before servicing; if working near a water connection, shut off the water supply
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping plastic or threads
• Reuse any model-specific washers or spacers if present

The Lower Door Closer is an OEM replacement part for Frigidaire refrigerators. It is a vital part that assists in securely shutting the refrigerator door. The door closer contains a calibrated spring mechanism designed to gently guide the door into the closed position without using forceful movements.

Symptoms of a bad door closer include:

• The door not latching fully or popping back open easily
• Difficulty closing the door all the way
• Excessive noise and banging when closing
• Gaps appearing around the door seal

Causes can be regular wear and tear on the spring after prolonged use. Not allowing the door to fully close before reopening may also damage the door closer mechanism over time.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Frigidaire Door Shelf Bin is an OEM replacement part for Frigidaire refrigerator. This bin provides storage space for drinks and snacks, keeping them organized and easy to access.

Causes of a bad door shelf bin can include frequent use, overloading with heavy items, or accidental impacts that can lead to cracks, breaks, or warping. A damaged shelf bin can result in items not being securely held in place and can decrease the overall storage efficiency of the refrigerator.

Symptoms of a bad part may include-

• Items falling out of the bin
• Difficulty closing the door
• Bin not staying on the door

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.
