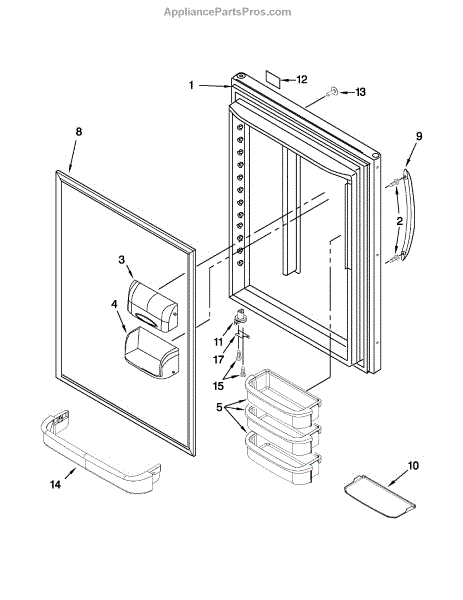

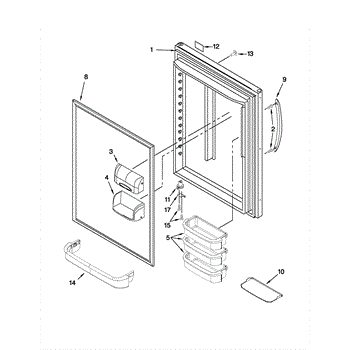

Parts for Kenmore 596.69383010 (59669383010, 596 69383010): Refrigerator Door Parts

This door foam assembly cushions and seals the refrigerator door cavity to help maintain proper insulation and reduce vibration. It restores the door's internal padding so the door closes evenly and helps preserve cooling performance. What it does:

• Replaces aged or damaged foam inside the refrigerator door to restore original cushioning and support.
• Helps maintain a consistent seal and internal insulation by filling the door cavity.
• Can reduce door rattle and improve alignment when original foam has compressed or deteriorated.
• Safe, widely-accepted symptom link: commonly used when doors feel soft, uneven, or exhibit interior panel gaps.

• One door foam assembly as pictured.

• High-level replacement: remove the inner door liner/panel to access and swap the foam per OEM instructions.
• Keep parts and fasteners organized during disassembly; handle inner liner carefully to avoid cracking.
• Wear gloves to protect hands from sharp sheet-metal edges and to keep foam clean.

The Door Handle Mounting Screw is an OEM part for Whirlpool refrigerators. It secures the door handle to the refrigerator door.

Causes of a bad door handle mounting screw can include wear and tear over time, improper installation, or excessive force applied to the handle. These factors can result in a loose or wobbly handle, compromising the functionality and aesthetics of your refrigerator.

Symptoms of a bad door handle mounting screw may include:

• A loose or unstable handle
• Difficulty in opening or closing the refrigerator door
• The handle becoming detached

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Color: clear. Measures about 11 inches wide by 7 inches high.

Replace a cracked or missing dairy tray on your refrigerator door. This door bin restores a dedicated spot for butter and small items so they stay organized and easy to reach while maintaining a secure fit on the door.

• Mounts on the refrigerator door as the dairy compartment tray
• Holds butter, cheese, and other small items securely
• Restores proper fit when the original tray is cracked, warped, or missing
• Common symptoms: broken tabs, tray falls off, loose/wobbly fit, items spilling when the door opens

• Open the door, lift the old tray straight up and out; align the new tray with the door slots and lower until fully seated
• Handle plastic parts gently and avoid forcing; allow parts to warm to room temperature to reduce risk of cracking
• Confirm both sides are fully engaged before loading items

The Door Shelf Bin is an OEM replacement part for Whirlpool refrigerators. It is a specialized storage compartment designed to fit the refrigerator door, providing convenient and organized storage space for smaller items such as condiments, jars, or bottles. The bin measures approximately 15 inches wide, 3 inches high, and 6 inches deep.

Causes of a damaged or unusable door shelf bin can include physical impact, cracks or breaks due to excessive weight or pressure, or general wear and tear over time.

Symptoms of a door shelf bin that needs replacement include:

• Cracked or broken shelves, making it difficult to store items securely
• Warping or misshaping, preventing a proper fit in the door compartment
• Missing or loose components, resulting in items falling out or shifting during use

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Gasket is an OEM part for Whirlpool refrigerators. It forms an insulating perimeter around the refrigerator door opening to maintain cool interior temperatures during use.

Causes relate to the breakdown of sealing materials from repeated compression cycles over many years. Cracks or loose areas compromise the barrier.

Symptoms of a defective door gasket can include:

• Warm air entering around the door edges
• Interior humidity increases causing frost or condensation
• Higher electric bills from lost cooling efficiency
• Inability to maintain set temperatures over long periods

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: Color - Grey

A replacement door handle that restores a secure grip and normal door operation. Fits like the original to help open and close the appliance door safely and comfortably. What it does:

• Replaces a cracked, broken, or worn handle to restore user grip and control
• Provides the same mounting points and function as the original handle design
• Helps prevent further damage to door trim and reduces the risk of sudden handle failure
• Works with factory latch and hinge alignment when installed correctly

• High-level install; basic hand tools usually required—support the door or panel before removing the old handle
• Keep all mounting screws and small parts organized; replace any stripped fasteners with OEM parts
• If the door contains electronic components (dispensers, lights, sensors), disconnect power before starting

A medium gripper bucket that holds and secures items inside the appliance, restoring proper storage and preventing items from shifting or falling. Designed to match OEM fit and keep interior components functioning as intended. What it does:

• Replaces a worn, cracked, or missing medium gripper bucket that no longer secures stored items
• Keeps items stable during door movement or normal use to reduce shifting and spills
• Restores proper alignment and retention for the associated shelf/drawer assembly
• Helps eliminate rattling or loose parts caused by a damaged bucket

• One medium gripper bucket

• Remove the old bucket by releasing any retaining clips or guides, then snap the replacement into place
• No special tools typically required; use basic hand tools if clips are tight
• Disconnect power only if working near electrical components; follow appliance safety guidelines

The Door Closure is an OEM part for Whirlpool refrigerators. It is a critical component responsible for ensuring the proper sealing and closure of the refrigerator door, maintaining the desired temperature and preventing air leaks.

A faulty or worn door closure can lead to issues such as inadequate cooling, increased energy consumption, and potential food spoilage. Causes of a bad door closure may include normal wear and tear over time, physical damage from impact or mishandling, or compatibility issues with the specific refrigerator model.

Symptoms of a faulty Door Closure include:

• Air leaks around the door seal, causing cooling inefficiency
• Difficulty in opening or closing the refrigerator door
• The door not sealing tightly or feeling loose when closed
• Visible cracks, breaks, or damage to the door closure mechanism

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

The Door Closer is an OEM part for Whirlpool refrigerators. This component ensures that the refrigerator door closes smoothly and securely, maintaining the seal that keeps cold air inside and warm air out. The door closer helps to prevent the door from remaining ajar, which can lead to increased energy consumption and reduced cooling efficiency.

Causes of a bad door closer can include regular wear and tear, physical damage from repeated use, or misalignment. A malfunctioning door closer can result in the refrigerator door not closing properly, leading to cooling issues and higher energy bills.

Symptoms of a bad door closer include:

• The refrigerator door not closing or sealing properly
• The door not staying closed
• Warm air entering the refrigerator, causing the interior temperature to rise
• Increased energy consumption due to the door not sealing

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

A white plastic button plug that replaces a missing or damaged control-panel button cover. Restores the panel's appearance and helps keep the control area cleaner for reliable button use. What it does:

• Replaces a cracked, broken, or missing control-panel button plug
• Covers unused or damaged button openings to improve appearance
• Helps reduce dirt and moisture entry around the button area
• Snap-in design restores a flush, finished look to the control panel

• Typically snaps into the control panel—press evenly until fully seated
• No specialized tools required in most installations
• Disconnect power to the appliance before servicing

This handle plug snaps into the handle opening to cover the exposed mounting hole and restore a clean, finished look. Replacing a missing or damaged plug also helps keep debris out of the handle cavity.

• Covers the handle's exposed screw/mounting hole for a finished appearance
• Snaps in for a secure, flush fit
• Helps keep dust and moisture out of the handle opening
• Common symptoms: missing plug, cracked or loose cap, visible hole in the handle

• Disconnect power if working near electrical components and allow any hot surfaces to cool
• Protect the finish; use a plastic pry tool to remove the old plug
• Align the new plug with the opening and press firmly until it seats flush
• Replace additional plugs as needed for a uniform look

The Door Shelf Retainer Bar is an OEM replacement part for Whirlpool French door refrigerators. Positioned inside the door panels, this plastic retainer bar securely holds shelves in place allowing for flexible storage options.

Causes of a bad retainer bar include normal wear and tear over extended use, excessive weight loads weakening the plastic material, or damage from impact.

Symptoms of a bad retainer bar include:

• Shelves that no longer stay firmly in position and slide around inside the door
• Gaps between shelves causing an unorganized or crammed interior space
• Annoying rattling or clicking noises coming from the door storage area

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This stop-door is a small replacement door stop that helps control how the appliance door closes and rests, restoring proper door movement and preventing over-travel or binding. What it does:

• Cushions and limits the door's travel to prevent slamming or over-rotation.
• Helps the door align and latch correctly when closing.
• Can reduce door sag or rubbing caused by a worn/missing stop.
• Addresses symptoms such as a door that closes too far, hangs unevenly, or doesn't sit flush.

• High-level, two-person recommended for larger doors; support the door before removing fasteners.
• Disconnect power (and water if applicable) and follow manufacturer safety guidance before servicing.
• Use appropriate hand tools; inspect adjacent hinges and fasteners and replace if damaged.

This white door stop limits how far the door swings open, helping protect hinges and nearby surfaces. Replace a worn or missing stop to restore the intended opening range and smooth, controlled door movement.

• Limits door swing to prevent overextension and impact
• Helps protect door hinges and surrounding cabinetry
• Restores proper opening range when the original stop is cracked or missing
• Common signs: door opens too wide, door hits adjacent surfaces, visible broken/missing stop

• Disconnect power and clear items from the door before service
• Support the door to prevent strain on the hinges
• Remove hinge cover and fasteners as needed, swap the stop, and reassemble
• Open and close the door to verify proper swing and gasket seal
