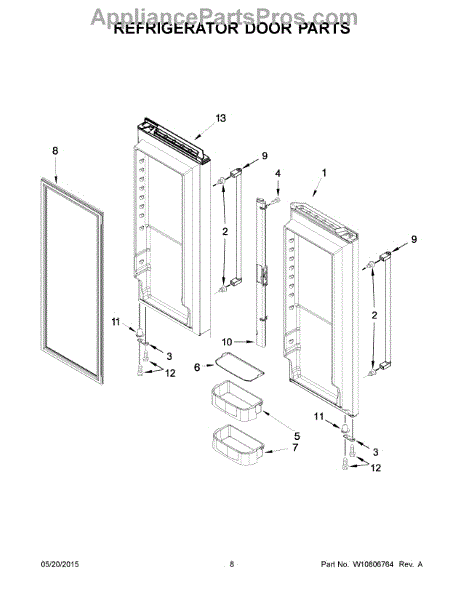

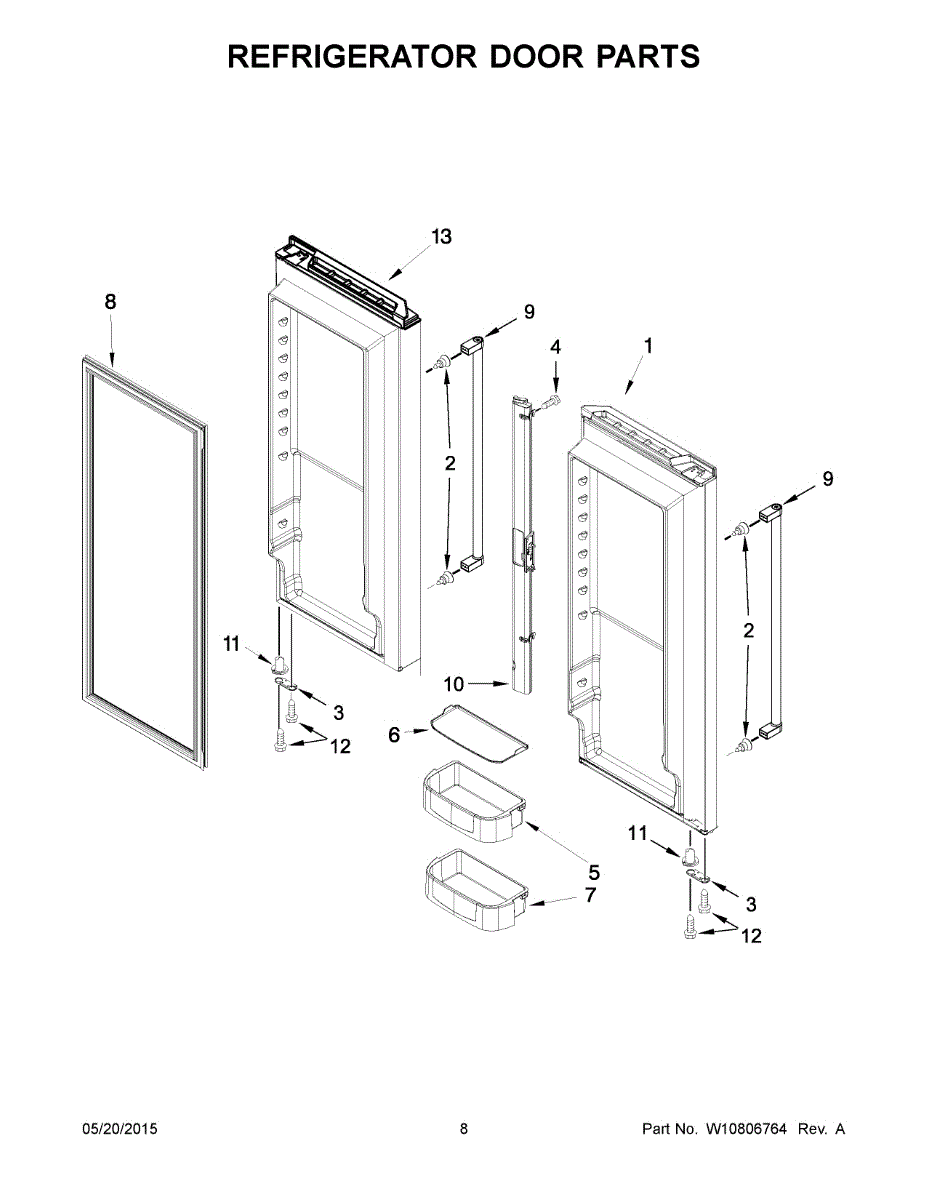

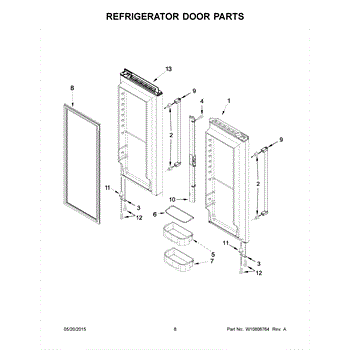

Parts for Kitchenaid KRFC302EBS00: 05 - Refrigerator Door Parts

The Door Handle Mounting Screw is an OEM part for Whirlpool refrigerators. It secures the door handle to the refrigerator door.

Causes of a bad door handle mounting screw can include wear and tear over time, improper installation, or excessive force applied to the handle. These factors can result in a loose or wobbly handle, compromising the functionality and aesthetics of your refrigerator.

Symptoms of a bad door handle mounting screw may include:

• A loose or unstable handle
• Difficulty in opening or closing the refrigerator door
• The handle becoming detached

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This stop-door replacement secures and limits the movement of the appliance door to help ensure smooth opening and closing and prevent over-travel that can damage the hinge or cabinet. It restores proper door alignment and operation. What it does:

• Cushions and limits door travel to prevent slamming or over-extension
• Helps the door latch/close smoothly and stay aligned
• Prevents excess wear on hinges and surrounding cabinet areas
• Commonly replaced when the door sticks, drops, or makes unusual noises during operation

• One stop-door

• Disconnect power (and gas if applicable) and remove any water supply before starting repairs
• Basic hand tools are typically required; access may require removing the front or trim panel
• Inspect surrounding hinge and mounting hardware; replace damaged fasteners as needed

A replacement door stop that cushions and limits an appliance door's movement to prevent over-travel and reduce slamming. Restores smoother door operation and helps protect the hinge and cabinet from damage. What it does

• Acts as a bumper and travel limit for the appliance door to prevent it from opening too far.
• Reduces loud bangs and impact wear when opening or closing the door.
• Helps the door stay aligned and lessens strain on the hinge assembly.
• Common symptom linkage: door slams, door over-rotates, door binding or noisy hinge movement.

• One door stop.

• Disconnect power (or unplug) and ensure the appliance is stable before servicing.
• Basic hand tools may be required; remove any trim or screws securing the old stop before replacing.
• Align and seat the new stop so the door contacts it evenly; test operation slowly after installation.

This replacement screw fastens appliance components securely in place. Use it to replace missing, stripped, or corroded hardware so panels, brackets, and covers stay aligned and rattle-free.

• Secures parts such as panels, brackets, covers, or internal assemblies
• Restores alignment and helps eliminate vibration or rattling from loose hardware
• Replaces lost, rusted, or damaged screws during service
• Maintains safe, stable operation by keeping components tight

• Disconnect power before service; if applicable, also shut off water and/or gas
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Use the correct driver bit to prevent stripping the head

The Bin-Cntlvr (Cantilever Bin) is an OEM part for Whirlpool refrigerators. This bin attaches to the refrigerator door and provides additional storage space for items like bottles, condiments, and other small containers. The cantilever design allows for easy adjustment and customization of shelf space within the refrigerator door.

Causes of a bad cantilever bin can include overloading the bin with heavy items, accidental impacts, or wear and tear from regular use.

Symptoms of a bad cantilever bin include:

• The bin not staying in place on the door
• Cracks or visible damage to the bin
• Difficulty adjusting or removing the bin
• Items falling out of the bin due to instability

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This mat cushions and protects the appliance base to reduce vibration and help contain small drips or leaks during operation. It's a simple, durable replacement that restores the original fit and helps keep the floor and appliance stable. What it does:

• Dampens movement and vibration to reduce noise and shifting during cycles
• Helps catch minor drips or condensed water beneath the unit
• Restores original cushioning where a worn or missing mat allowed extra movement
• Simple passive part—no electrical or mechanical connections

• One replacement mat as shown

• Place mat under appliance base on a clean, level surface; verify orientation per base shape
• For safety, disconnect power (and water if applicable) before moving the appliance
• Use caution when sliding the appliance to avoid floor damage; get a second person for heavy units
• If ongoing vibration or leaks persist, inspect mounts, leveling legs, and seals for additional repair

This replacement mat is a simple protective liner that helps keep the appliance base area clean and cushions the surface beneath the unit. It preserves finishes and helps contain minor spills and debris for easier cleanup. What it does:

• Provides a washable surface that catches drips, crumbs, and loose debris
• Helps protect cabinet or floor finishes from spills and scuffs
• Reduces direct contact between appliance base and underlying surface
• Can make cleanup faster by containing messes in one removable piece

• Remove old mat and clean the area before installing the new mat
• Position the mat flat and centered under the appliance or in the designated compartment
• Do not place the mat over vents, heating elements, or controls
• Lift or slide gently to avoid shifting the mat; follow all appliance safety and disconnect procedures before servicing

The Door Bin is an OEM replacement part for Whirlpool refrigerators. Mounted on the refrigerator doors, bins conveniently organize stored items.

Causes of replacement consist of excess weight occasionally placed in bins can bow or warp tray structures over extended use as well.

Symptoms involve:

• Bins that no longer securely anchor or drift loose within doors
• Warped configurations insufficiently containing particular items
• Scratches or defects that harbor bacteria on surrounding surfaces

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

Color: White

The Door Gasket is an OEM part for Whirlpool refrigerators. It creates an efficient seal between the refrigerator door and cabinet to maintain optimal interior cooling temperatures and humidity levels. Made of durable yet flexible material, the door gasket surrounds the perimeter of the door opening and prevents warm air and moisture from seeping inside.

Causes of a bad door gasket include normal wear over time exposing the gasket to constant opening and closing of the door.

Symptoms of a failing gasket are:

• Difficulty keeping the door properly closed
• Higher electric bills from the refrigerator running more often
• Items inside cooling improperly or becoming frozen on the edges
• Buildup of frost or condensation occurring inside

Color: White

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, and Kenmore models. Replace yours to restore effective insulation and energy efficiency.


Color: Black

Color: Grey

The Door Gasket is an OEM part for Whirlpool refrigerators. It is designed to form an airtight seal around the refrigerator or freezer door, preventing cold air from escaping and warm air from entering. This seal is crucial for maintaining the appliance's internal temperature, ensuring food is stored under optimal conditions to remain fresh and safe to consume.

Causes of a bad Door Gasket include normal wear and tear, accidental damage, and exposure to extreme temperatures or cleaning chemicals that can degrade the material.

Symptoms of a bad Door Gasket include:

• Noticeable gaps between the gasket and the refrigerator frame.
• Condensation or frost buildup inside the refrigerator or freezer
• An increase in the refrigerator's energy consumption as it works harder to maintain the set temperature.
• The door not closing as tightly as before or feeling easier to open.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Handle is an OEM part for Whirlpool refrigerators. Located on the outside front center of the refrigerator cabinet, this handle provides an ergonomic grip point for easily opening and closing the refrigerator door. This handle measures 30 3/4 inches.

Causes of a bad handle can include wear and tear over time allowing door seals to leak, or damage such as cracks, breaks, or loose mounting from falls or repeated forceful closing of the door.

Symptoms of a bad handle include:

• Difficulty opening/closing the refrigerator door
• Leaks developing around the door seals
• Cracked, loose, or broken handle mounting

This replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, and some Kenmore refrigerator models.

Color: White

Color: Black

Color: Grey


The Mullion Rail is an OEM part for Whirlpool refrigerators. This rail is a vertical divider located between the refrigerator doors, ensuring a tight seal when the doors are closed. It helps to maintain the internal temperature of the refrigerator by preventing warm air from entering and cold air from escaping.

Causes of a bad mullion rail can include regular wear and tear, accidental impact, or damage to the hinges and seals over time. A faulty mullion rail can compromise the efficiency of the refrigerator, leading to increased energy consumption and reduced cooling performance.

Symptoms of a bad mullion rail include:

• Visible cracks or damage to the rail
• The refrigerator doors not sealing properly
• Increased frost or condensation inside the refrigerator
• Higher than normal energy bills due to inefficient cooling

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

Color: Black

The Door Closure is an OEM replacement part for Whirlpool refrigerators. It is a small component that the door rides on that allows it to open and close properly.

Causes of impaired operation involve age-related spring coil fatigue, dislodged or cracked plastic housing pieces, or confined door alignment stripping closure grooves.

Symptoms of a faulty closure include:

• Cool air escaping around door edges driving up energy costs
• The fridge unable to maintain set interior temperatures
• Inability to securely latch doors closed

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Door Closure is an OEM part for Whirlpool refrigerators. It is a critical component responsible for ensuring the proper sealing and closure of the refrigerator door, maintaining the desired temperature and preventing air leaks.

A faulty or worn door closure can lead to issues such as inadequate cooling, increased energy consumption, and potential food spoilage. Causes of a bad door closure may include normal wear and tear over time, physical damage from impact or mishandling, or compatibility issues with the specific refrigerator model.

Symptoms of a faulty Door Closure include:

• Air leaks around the door seal, causing cooling inefficiency
• Difficulty in opening or closing the refrigerator door
• The door not sealing tightly or feeling loose when closed
• Visible cracks, breaks, or damage to the door closure mechanism

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

The Door Closer is an OEM part for Whirlpool refrigerators. This component ensures that the refrigerator door closes smoothly and securely, maintaining the seal that keeps cold air inside and warm air out. The door closer helps to prevent the door from remaining ajar, which can lead to increased energy consumption and reduced cooling efficiency.

Causes of a bad door closer can include regular wear and tear, physical damage from repeated use, or misalignment. A malfunctioning door closer can result in the refrigerator door not closing properly, leading to cooling issues and higher energy bills.

Symptoms of a bad door closer include:

• The refrigerator door not closing or sealing properly
• The door not staying closed
• Warm air entering the refrigerator, causing the interior temperature to rise
• Increased energy consumption due to the door not sealing

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing
