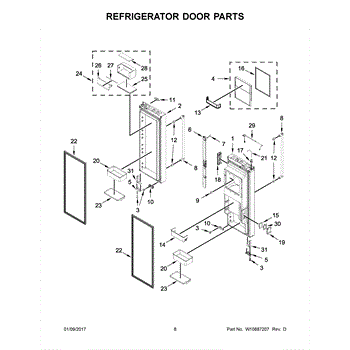

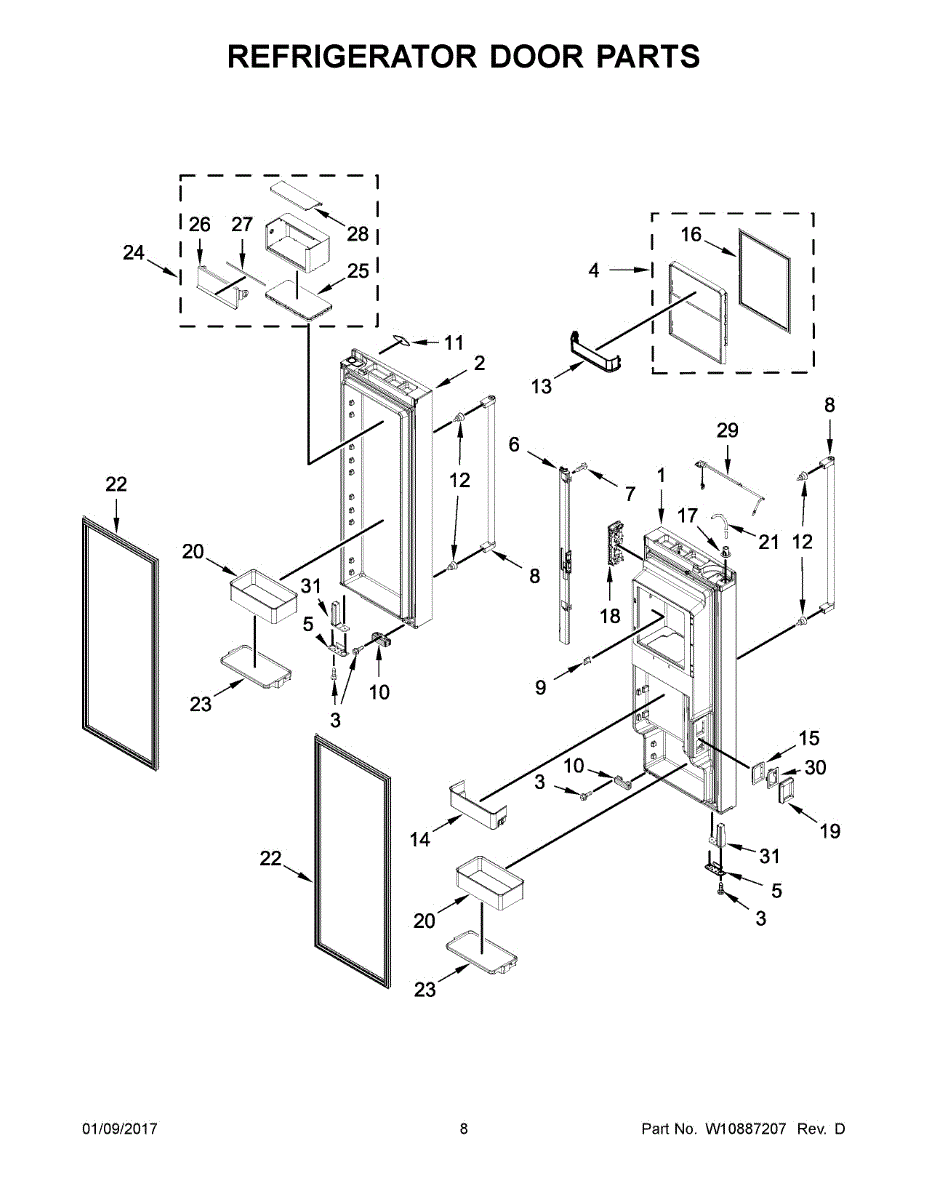

Parts for Kitchenaid KRFC604FSS00: 05 - Refrigerator Door Parts

This factory screw fastens appliance components securely. Replacing a missing, stripped, or rusty screw helps stop rattles, keep panels and brackets aligned, and restore a solid, as-designed fit.

• Secures panels, brackets, and trim to the appliance cabinet or frame
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces damaged, corroded, or missing hardware
• Can resolve loose or shifting components

• Disconnect power and shut off gas/water to the appliance before service.
• Use the correct driver; start threads by hand to avoid cross-threading and do not overtighten.
• Install in the original location and match the OEM fastener type specified in your model's parts diagram.

This stop door is a replacement door stop that helps the appliance door close securely and stay in position. Restores proper door movement and reduces rubbing or misalignment that can cause noise or poor sealing. What it does:

• Replaces a worn or broken door stop to restore normal door closing and positioning
• Helps prevent the door from bouncing, rubbing, or hanging open
• Can reduce door-related noise and improper sealing during use
• Supports reliable door alignment for safer operation

• Disconnect power to the appliance before starting any repair
• Remove the door or access panel as needed to reach the mounting area
• Typical installation uses basic hand tools (screwdriver, nut driver); retain existing fasteners unless replacement hardware is provided
• Inspect surrounding hinges and catches and replace if damaged

This rail-mulln (mullion rail) replaces the vertical trim piece that runs between appliance door sections to restore proper fit and appearance. It helps keep the door edges aligned and maintains a finished look. What it does:

• Provides the vertical trim between door panels or appliance sections for a finished appearance
• Helps maintain door alignment and consistent spacing between panels
• Covers and protects the seam where two door sections meet
• Reduces light and air leakage at the door seam

• Disconnect power to the appliance before starting any repair
• Remove adjacent trim or door panels to access the mullion rail
• Handle trim pieces carefully to avoid scratching or bending; use proper fasteners

This replacement screw fastens appliance components securely in place. Use it to replace missing, stripped, or corroded hardware so panels, brackets, and covers stay aligned and rattle-free.

• Secures parts such as panels, brackets, covers, or internal assemblies
• Restores alignment and helps eliminate vibration or rattling from loose hardware
• Replaces lost, rusted, or damaged screws during service
• Maintains safe, stable operation by keeping components tight

• Disconnect power before service; if applicable, also shut off water and/or gas
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Use the correct driver bit to prevent stripping the head

The Handle is an OEM part for Whirlpool refrigerators. Located on the outside front center of the refrigerator cabinet, this handle provides an ergonomic grip point for easily opening and closing the refrigerator door. This handle measures 30 3/4 inches.

Causes of a bad handle can include wear and tear over time allowing door seals to leak, or damage such as cracks, breaks, or loose mounting from falls or repeated forceful closing of the door.

Symptoms of a bad handle include:

• Difficulty opening/closing the refrigerator door
• Leaks developing around the door seals
• Cracked, loose, or broken handle mounting

This replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, and some Kenmore refrigerator models.

The Ice Bin Safety Switch is an OEM replacement part for Whirlpool refrigerators, ensuring safe and efficient operation of the ice maker. Positioned to detect the ice bin, it activates the ice maker when the bin is in place and deactivates it when removed for cleaning or emptying.

Common causes for Ice Bin Safety Switch issues may include physical damage occurring during cleaning or routine use, electrical problems like short circuits, wear on the switch's contacts affecting functionality, and misalignment or incorrect installation of the ice bin causing inaccurate bin detection.

Symptoms of a malfunctioning Ice Bin Safety Switch include:

• The ice maker not producing ice
• The ice maker continuing to operate even without the ice bin in place
• Unusual behavior from the ice maker, such as starting and stopping erratically

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Nameplate is an OEM part for Whirlpool appliances. It serves as an identification label, typically displaying the brand name and model number, providing a clean and professional appearance for the appliance.

You should replace this nameplate if it becomes damaged or worn out. Common causes of a bad nameplate include wear and tear from regular cleaning, exposure to moisture or heat that can cause peeling or fading, and accidental impact that can lead to cracks or detachment.

Symptoms of a bad nameplate include:

• Fading or illegible text
• Peeling or detaching from the appliance surface
• Visible cracks or damage
• The nameplatae being completely missing

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Handle Mounting Screw is an OEM part for Whirlpool refrigerators. It secures the door handle to the refrigerator door.

Causes of a bad door handle mounting screw can include wear and tear over time, improper installation, or excessive force applied to the handle. These factors can result in a loose or wobbly handle, compromising the functionality and aesthetics of your refrigerator.

Symptoms of a bad door handle mounting screw may include:

• A loose or unstable handle
• Difficulty in opening or closing the refrigerator door
• The handle becoming detached

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Refrigerator Door Shelf Bin is an OEM part for Whirlpool refrigerators. It provides storage for eggs, condiments, and other small items directly in the refrigerator door.

Causes of a bad shelf bin can include cracked or broken plastic.

Symptoms of a bad shelf bin include:

• Items falling out of alignment or between cracks
• Difficulty deploying or stowing the shelf tray
• Leaks or odors from cracked surfaces

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is the cantilever-style door shelf bin that locks into the refrigerator door rails to hold bottles, jars, and condiments. Replacing a cracked or missing bin restores secure storage and full door capacity. What it does:

• Provides adjustable storage on the inner door using cantilever slots
• Helps keep items stable when opening and closing the door
• Common replacement signs: cracks, broken locking tabs, won't stay seated, falls off the rail
• Restores usable space and keeps contents organized

• 1 door shelf bin

• Remove the old bin by lifting up to release it from the cantilever slots, then pull out
• Align the new bin's hooks with the desired slots and press down until it clicks securely
• Verify the door closes freely and avoid overloading the bin
• Wear gloves to protect hands from sharp edges on broken plastic

This gasket seals the ice compartment to keep cold air in and moisture out. Replacing a worn seal helps prevent frost and condensation, reduces ice clumping, and maintains consistent temperature for better ice quality.

• Creates a tight seal around the ice compartment door/cover
• Helps maintain proper temperature and humidity in the ice area
• Reduces warm-air infiltration that causes frost, sweating, and clumped ice
• Restores proper fit when the original gasket is cracked, flattened, or torn
• Common signs: frost around the ice compartment, condensation, clumping ice, or a door/cover that won't seal flush

• Disconnect power and turn off water supply before servicing
• Access the ice compartment; remove any cover/door hardware as required
• Remove the old gasket and clean the sealing surfaces
• Press the new gasket evenly into place; ensure full contact around the perimeter. Gently warm to relax and seat the gasket if needed.

This cantilever door bin mounts on the inner door to provide secure, convenient storage. Replacing a cracked or missing bin restores organized space for bottles and condiments and helps prevent items from tipping or falling when the door opens.

• Mounts to the door liner rails as a cantilever shelf to hold containers
• Keeps frequently used items organized and within easy reach
• Replace if the bin is cracked, broken, or warped
• Replace if tabs are worn, the bin falls off, won't stay seated, or is missing

• Disconnect power to the refrigerator before servicing
• Remove contents; lift the old bin up and out of the door ladder/slots
• Align the new bin with the slots and press down until fully seated and secure
• Verify the door closes freely and avoid overloading the bin

This water tube routes potable water between the water valve and the refrigerator's dispenser or ice maker. Replace a damaged or kinked tube to restore proper water delivery and prevent leaks at the junction points. What it does

• Carries water from the inlet valve to the ice maker or dispenser assemblies
• Prevents kinks and directs flow along the refrigerator cabinet path
• Stops leaks and drips when the original tube is cracked, split, or pinched
• Helps restore normal water dispense and ice production when the tube is the source of the fault

• Disconnect power and shut off the water supply before starting work.
• Inspect and reuse or replace any clamps, ferrules, or fittings only if they show wear.
• Route the tube following the original path to avoid pinches and contact with sharp edges or moving parts.
• After installation, turn on water and power, then check all connections carefully for leaks.

The door gasket is an OEM part for Whirlpool refrigerators. It forms a seal between the refrigerator door and body, working to ensure peak cooling and energy efficiency. This rubber gasket acts as insulation, preventing warm air from entering the refrigerator compartment each time the door is opened.

Causes of a bad door gasket can include cracks, tears, or compression from repeatedly opening and closing the refrigerator door over an extended period of time.

Symptoms of a bad door gasket include:

• Inefficient cooling and higher energy costs
• Warm air leaking into the refrigerator
• Moisture buildup or frost inside the body
• Difficulty properly sealing the door shut

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This cover is an access panel that protects internal components and keeps the appliance enclosure finished and secure. It restores a clean exterior and helps prevent dirt, lint, and accidental contact with parts behind the panel. What it does:

• Shields internal wiring and components from debris and accidental contact
• Maintains the appliance's finished appearance by replacing a damaged or missing panel
• Helps reduce airflow of lint and dust into service areas
• Useful when troubleshooting or servicing — provides a removable access point

• Disconnect power (and gas/water if applicable) before starting any service
• Basic hand tools (screwdriver, nut driver) are typically required for removal/installation
• Handle part carefully to avoid scratching the finished surface

The Tube-Water is an OEM component specifically designed for Whirlpool refrigerators. It serves as the conduit that distributes water from the water filter to the dispenser spigot and ice maker. The tube transports purified water where needed.

Symptoms of a compromised water tube include:

• Low water pressure or weak flow from the dispenser
• Dispenser not functioning or ice maker not producing ice
• Leaks near the filter, dispenser, or ice maker connections
• Kinks, cracks or mineral buildup obstructing proper flow

Causes can be normal wear over time, buildup inside the line restricting flow, or accidental damage.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

A genuine replacement door closer that helps the appliance door open and close smoothly while holding proper alignment. Restores intended door motion to reduce slamming and misalignment for safer, more reliable operation. What it does

• Controls the door's opening and closing movement to prevent sudden drops or slams
• Helps the door stay properly aligned and seated when closing
• Reduces stress on hinges and latches caused by uncontrolled door movement
• Commonly used when door feels loose, won't stay open, or closes unevenly

• One door closer assembly

• Disconnect power and water (if applicable) before starting any repair
• Basic hand tools are typically required;
• Handle springs and tension components carefully; wear eye protection when working with tensioned parts

This closer is the door hinge/closing component that controls how the appliance door moves and latches. It cushions and steadies the door for smoother closing and helps prevent slamming or doors that won't stay shut. What it does:

• Controls and cushions door travel so the door closes smoothly and reduces slamming.
• Helps the door engage the latch and stay closed; can address doors that drop or don't shut fully.
• Replaces worn or broken closers that cause uneven or noisy door movement.
• Works as a mechanical hinge/closing aid—not an electronic part.

• Disconnect power to the appliance (unplug or turn off breaker) before starting any work.
• Basic hand tools typically required (screwdriver, nut driver); remove any trim or panels per your service manual.
• Handle springs and hinge hardware carefully to avoid pinching; wear gloves and eye protection.
