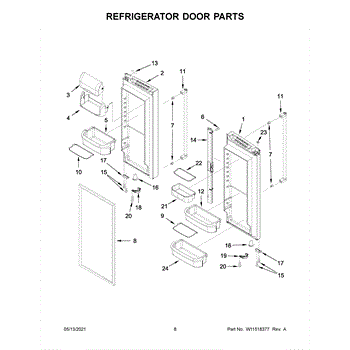

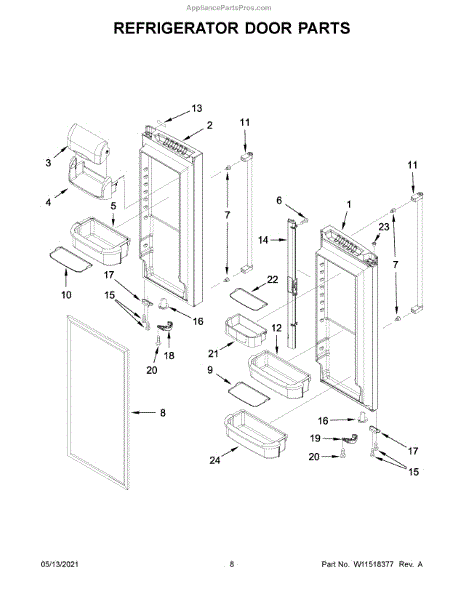

Parts for Kitchenaid KRFF302ESS04: Refrigerator Door Parts

This contoured door foam assembly cushions and seals the appliance door, reducing vibration and helping maintain a tight closure for efficient operation. It replaces worn or damaged foam to restore proper door fit and reduce noise. What it does:

• Provides a soft seal along the door edge to help prevent rattling and improve closure.
• Helps reduce vibration and absorbs shock during operation.
• Restores compromised sealing that can lead to drafts, excess noise, or misaligned door feel.
• Matches OEM shape for correct fit where a contoured foam is required.

• Disconnect power to the appliance before starting any repair.
• Remove the door or access panel per the manufacturer's instructions to reach the foam location.
• Replace only the specified foam section; ensure proper seating and alignment before reassembly.

The Door Shelf Bin is an OEM replacement part for Whirlpool refrigerators. It is a specialized storage compartment designed to fit the refrigerator door, providing convenient and organized storage space for smaller items such as condiments, jars, or bottles. The bin measures approximately 15 inches wide, 3 inches high, and 6 inches deep.

Causes of a damaged or unusable door shelf bin can include physical impact, cracks or breaks due to excessive weight or pressure, or general wear and tear over time.

Symptoms of a door shelf bin that needs replacement include:

• Cracked or broken shelves, making it difficult to store items securely
• Warping or misshaping, preventing a proper fit in the door compartment
• Missing or loose components, resulting in items falling out or shifting during use

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw fastens appliance panels and components securely. Replace a missing, stripped, or corroded original to restore a tight fit and help prevent rattling, vibration, and gradual loosening of assemblies.

• Secures panels, brackets, and internal assemblies to the frame
• Replaces damaged or missing hardware to maintain proper fit
• Helps reduce vibration, noise, and movement caused by loose parts
• Supports correct alignment at the original mounting points

• Disconnect power and shut off water or gas before service.
• Match the original screw's location and length; replace one at a time if needed.
• Use the correct driver/bit and avoid overtightening to prevent stripping plastic or metal.
• Reuse any washers or clips only if in good condition.

White for Left Hand Door

The Door Gasket is an OEM replacement part for Whirlpool refrigerators. It forms a seal around the refrigerator door to maintain proper interior temperatures and energy efficiency.

Causes of failure are usually due to compression fatigue through years of repeated door openings and closings. Exposure to excess moisture can degrade the material over time.

Symptoms of a bad door gasket include:

• Inability to properly chill or cool foods inside the fridge
• Higher than normal energy consumption
• Visible cold air leaks around the door frame
• Door not sitting flush causing difficulty closing fully

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

Note: This is for the LH door

Grey for Left Hand Door

The Gasket-FIP (GRY) is an OEM part for  Whirlpool refrigerators. It is a crucial component that provides an airtight seal between the refrigerator door and the cabinet, ensuring proper insulation and temperature control.

Symptoms of a bad gasket can include:

• Difficulty in closing the door properly
• Warmer temperatures inside the refrigerator compartment
• Increased energy consumption due to air leaks
• Condensation or frost buildup around the door area

Causes of a bad gasket include wear and tear over time, exposure to extreme temperatures, or damage from mishandling or improper closing of the door. A worn or damaged gasket can compromise the refrigerator's insulation, leading to inefficient cooling and higher energy costs.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: For LH Door

Color: White
Note: For RH Door. For BLACK gasket, order W11368721.

The Refrigerator Door Gasket is an OEM part for Whirlpool refrigerators. This part forms a seal around the refrigerator or freezer door, ensuring that cold air stays inside and warm air stays out. By maintaining a tight seal, the gasket plays a critical role in the appliance's energy efficiency, helping to keep food fresh and safe while minimizing energy consumption.

Over time, door gaskets can lose their elasticity, get torn, or wear out, leading to gaps between the gasket and the refrigerator frame.

Symptoms of a bad Refrigerator Door Gasket include:

• Visible cracks, tears, or wear in the gasket
• Condensation or frost buildup near the door edges
• The refrigerator or freezer door does not close as tightly as it should
• Increased energy consumption as the refrigerator works harder to maintain temperature

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Grey for Right Hand Door

The Refrigerator Door Gasket is an OEM replacement part for Whirlpool refrigerators. It creates an seal between the refrigerator doors and the body, helping to maintain proper temperatures inside. The gasket is a soft, pliable material designed to tightlen without allowing air or warm moisture to infiltrate the refrigerator. Measures approximately 39 by 16 inches

Causes of a bad door gasket include cracking, splitting, or compression from repeated opening and closing of the door over time. Deterioration leads to diminished sealing and temperature control performance.

Symptoms of a bad door gasket are:

• Difficulty keeping items cool or frozen
• Frost or moisture buildup between the door and refrigerator body
• Higher energy costs from the refrigerator working overtime
• Food odors transferring between compartments

This OEM Whirlpool gasket is also compatible with Maytag, Jenn-Air, Amana, Norge, Gibson, Kelvinator, and some Kenmore models.

A medium gripper bucket that holds and secures items inside the appliance, restoring proper storage and preventing items from shifting or falling. Designed to match OEM fit and keep interior components functioning as intended. What it does:

• Replaces a worn, cracked, or missing medium gripper bucket that no longer secures stored items
• Keeps items stable during door movement or normal use to reduce shifting and spills
• Restores proper alignment and retention for the associated shelf/drawer assembly
• Helps eliminate rattling or loose parts caused by a damaged bucket

• One medium gripper bucket

• Remove the old bucket by releasing any retaining clips or guides, then snap the replacement into place
• No special tools typically required; use basic hand tools if clips are tight
• Disconnect power only if working near electrical components; follow appliance safety guidelines

The Door Shelf Bin is an OEM part for Whirlpool refrigerators. This bin is designed to fit into the door of the refrigerator, providing additional storage space for items such as bottles, condiments, and small containers. This door bin measures about 15 inches wide by 3 inches high by 8 inches deep.

Symptoms of a failing Door Shelf Bin include:

• Cracks or breaks in the plastic, which can cause items to fall out
• The bin not fitting securely into the door slots
• Sagging or bending of the bin, especially when loaded with heavier items
• Difficulty in removing or replacing the bin due to damage or warping

Causes of a bad door shelf bin can include regular wear and tear from frequent use, overloading with heavy items that exceed the bin’s weight capacity, or exposure to temperature fluctuations that can cause the plastic to become brittle and break.

This OEM part is also compatible with some Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement name plate restores the appliance identification label that shows model, serial and regulatory information. It makes it easy to identify the unit for service, warranty and parts ordering. What it does

• Replaces a torn, faded or missing identification label so model and serial info are readable
• Provides the appliance's regulatory and manufacturing details used for service and registration
• Helps technicians during repairs
• Prevents confusion when buying replacement parts or scheduling service

• Disconnect power to the appliance and move any panels aside only as needed to access the original name plate.
• Clean and dry the mounting area before applying; align carefully to ensure full adhesion and legibility.
• If the original was fastened with screws, rivets or brackets, retain and reuse the proper hardware.
• Avoid touching printed surfaces to prevent smudging; handle with care.

Color: Grey (Right Hand)

This door closer is the hinge-mounted part that helps a dishwasher door move smoothly and stay aligned for reliable closing. Restores controlled door motion to reduce slamming and improve latch engagement. What it does:

• Guides and cushions the dishwasher door during opening and closing
• Helps the door stay properly aligned so the latch can engage
• Reduces sudden slamming or dropping of the door
• Commonly replaced when the door sags, drops, or closes unevenly

• One door closer assembly as shown

• Disconnect power to the appliance before beginning any repair
• Remove outer door panels or kick plate as needed to access the hinge/closer
• Handle springs and hinge components carefully; parts may be under tension

Color: Grey (Left Hand)

This clear refrigerator door bin snaps into the inner door liner to hold bottles, jars, and condiments. Replace a cracked or missing bin to restore secure door storage and keep frequently used items organized and within reach.

• Provides removable shelf storage on the refrigerator door
• Replace if the bin is cracked, warped, or has broken locking tabs
• Common symptoms: bin falls off, won't stay seated, or won't install securely
• Restores proper door capacity and helps prevent spills

• Remove the old bin by lifting up and out of the door slots
• Align the new bin's hooks with the door slots and press down firmly until fully seated
• Ensure both ends are fully engaged; test with a light load before filling
• Distribute weight evenly and avoid overloading

This Door Shelf Bin replaces a broken or worn refrigerator door bucket to restore secure storage on the door and keep bottles and small items organized. Designed to mount into the door retainer for stable, everyday use. What it does:

• Provides a dedicated shelf on the refrigerator door to hold bottles, condiments and small containers.
• Replaces cracked, warped or loose bins that allow items to shift or fall when the door opens and closes.
• Restores proper spacing and containment to prevent spills and improve interior organization.
• Matches factory mounting points so the bin seats into the door retainer for a secure fit.

• One door shelf bin

• Disconnect power or unplug the refrigerator before starting any repair to avoid injury.
• Remove all items from the door shelf, then lift and pull the old bin out of the door retainer; retain any clips or screws for re-use if present.
• Align the new bin with the door rails/retainer and slide it into place until it seats; some models may use clips or screws.
• Inspect door retainer clips and mounting points for damage during installation; replace damaged hardware to ensure a secure fit.
