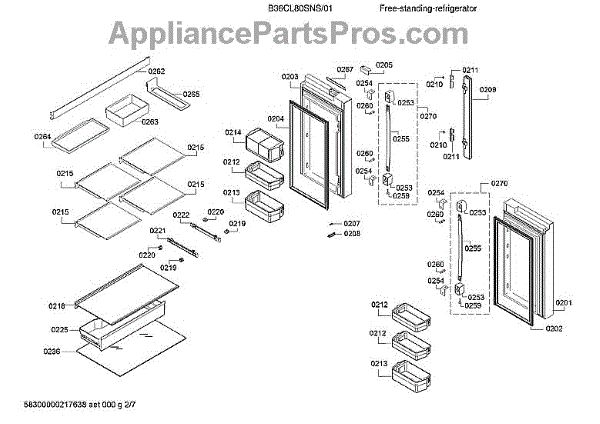

Parts for Bosch B36CL80SNS/01: Refrigerator Doors & Shelves Parts

A replacement outer door panel that restores the appliance's front appearance and supports the door latch and controls. Fits as a direct chassis-level replacement to maintain proper closure and functionality. What it does:

• Replaces a damaged, dented or warped outer door panel to restore appearance
• Supports the door latch and control mounting points so the door closes correctly
• Helps maintain proper alignment and operation of the door assembly
• Reduces drafts and gaps caused by bent or broken door surfaces

• One outer door panel

• Disconnect power and turn off the water supply before starting any repair
• Removal typically requires loosening hinge screws and removing trim/handle hardware; retain fasteners
• Handle and control modules may need transfer from the old door if not preinstalled
• Use caution handling the panel edges;

This door seal fits into the channel around the dishwasher tub opening to form a watertight barrier when the door closes, helping prevent leaks and maintain wash performance and efficiency. What it does

• Compresses between the door and tub to keep wash water and steam contained
• Helps prevent leaks from the sides or top of the door
• Maintains proper pressure and noise control inside the wash cavity
• Common failure signs: water leaking at the front edges, visible cracks/tears, hardening or flattening of the gasket, or the seal falling out of its groove

• 1 door seal

• Disconnect power and turn off the water supply before servicing
• Open the door, pull the old seal from the channel, and thoroughly clean the groove
• Starting at the top center, press the new seal evenly into the channel; ensure corners are fully seated
• Close the door to help the seal set, then run a short test cycle and check for leaks

This outer dishwasher door panel restores the appliance's front surface and helps protect internal components from moisture and debris. It provides a finished appearance and allows the latch, handle and controls to mount securely. What it does:

• Covers and protects the dishwasher door cavity and internal components
• Provides a mounting surface for the door handle, latch and control trim
• Helps maintain proper door alignment and sealing for reliable operation
• Commonly replaced when the exterior is dented, cracked or cosmetically damaged

• Disconnect power and water to the appliance before starting any repair
• Handle carefully to avoid sharp edges or scratching the finish
• Installation may require removal of interior liners, screws and door hinge fasteners

This interior appliance lamp provides bright illumination so you can see inside the appliance clearly. It replaces a burnt-out or dim light to restore safe, easy viewing of the cavity. What it does:

• Replaces a failed interior lamp so the appliance light turns on when the door is opened or the light circuit is activated
• Restores visibility for loading, unloading, and checking food without opening the door longer than necessary
• Common symptom: no interior light or noticeably dim light when the appliance door is opened
• Works as the direct replacement lamp for the specified appliance light housing and socket

• One replacement lamp

• Disconnect power or unplug the appliance before replacing the lamp to avoid shock
• Allow the lamp and surrounding area to cool before handling to avoid burns
• Remove the lamp cover or housing, replace the lamp, and reinstall the cover securely
• Handle bulbs with a clean cloth or gloves; avoid touching the glass with bare hands if the lamp type requires it

This light bar provides the illuminated strip for the appliance control panel so button labels and status indicators are visible. Replaces a cracked, dim, or non-illuminating panel light to restore clear control visibility. What it does:

• Houses the light elements that illuminate the control area for easier reading and use
• Restores visible status indicators when original light strip is dim or unlit
• Replaces cracked or discolored lens that diffuses or blocks light
• Helps resolve intermittent or no-backlight symptoms when the light bar itself is the faulty component

• Disconnect power to the appliance before beginning any work
• Access typically requires removing the control panel or console; keep fasteners and clips organized
• Handle the lens and light elements carefully to avoid scratching or damaging the optics

This outer cover protects and finishes the appliance's exterior, keeping internal components safe from dust and moisture while restoring the unit's appearance. Designed as a direct-fit replacement for the original factory cover. What it does:

• Protects internal parts and wiring from debris, spills, and accidental contact
• Restores a clean, finished look to the appliance exterior
• Prevents rattling or vibration caused by damaged or missing trim
• Helps maintain safe operation by keeping access panels closed

• One outer cover

• Disconnect power to the appliance before starting any repair
• Remove any screws or clips holding the damaged cover and save fasteners for reuse if appropriate
• Align the replacement cover, secure with original fasteners, and verify fit and function

The Door Shelf Bin is an OEM part for Bosch refrigerators. It is a plastic storage shelf that mounts inside the refrigerator door, providing convenient access to condiments, drinks, and other small items.

Symptoms of a bad door shelf bin include:

• Sagging or unstable shelving that does not properly hold storage items
• Items falling out of the shelf during opening/closing of the door
• Missing brackets or screws that result in an unsecured or unmounted shelf

Causes of a bad door shelf bin can include wear and tear from repeated opening and closing of the refrigerator door over time, cracks or damage from heavy loading, or loose/faulty mounting brackets that no longer secure the shelf firmly in place.

This shelf is also compatible with some Thermador, Gaggenau, and Kenmore models using a similar door shelf design.


This factory replacement tray restores a clean, secure surface inside your appliance. It's built to the original dimensions for proper support and fit, helping items sit or slide correctly and keeping the interior organized. What it does:

• Provides a stable, correctly sized platform/receptacle in the appliance
• Helps contain minor drips or crumbs as designed by the unit
• Restores proper fit when the original tray is cracked, warped, or missing
• Reduces wobble, rattling, or poor seating caused by damage or wear

• 1 tray

• Disconnect power and allow any hot surfaces to cool before service
• Remove the old tray carefully and clean the mounting area or tracks
• Seat the new tray in the correct orientation; do not force into place
• Verify smooth movement/secure seating and avoid overloading the tray

The Door Shelf Bin is an OEM replacement part for Bosch refrigerators. Located internally on refrigerator doors, it provides adjustable storage for salad dressings, condiments, and other small items. The durable plastic bin suspends neatly via integrated mounting rods.

Symptoms of a bad door shelf bin include:

• Gaps allowing cold air leakage when closed
• Detached mounting rods prevent installation
• Broken pieces pose a sanitation risk
• Reduced storage capacity compromising organization

Replacing your damaged shelf bin with this OEM part restores maximum storage versatility. This genuine Bosch replacement ensures continued reliable operation while enhancing your refrigerator interior. It is also compatible with Thermador, Gaggenau, and select Kenmore models.

This replacement glass panel restores a clean, intact glass surface and factory appearance when the original panel is cracked, shattered, or damaged, helping maintain safe use and a like-new look. What it does:

• Forms the appliance's visible glass surface
• Protects underlying components and provides a finished appearance
• Replace if glass is cracked, chipped, shattered, or has sharp edges
• Also indicated by staining, crazing, or a loose/rattling panel that won't secure

• 1 glass panel

• Disconnect power and allow the appliance to cool before service
• Wear cut-resistant gloves and eye protection; handle tempered glass carefully
• Support the panel while removing/attaching fasteners; transfer any reusable trim or brackets from the old panel
• Do not overtighten fasteners; avoid striking or setting glass on hard edges

This glass panel replaces a damaged or broken outer door surface to restore the appliance's appearance and protective barrier. It provides a durable, easy-to-clean finish that helps protect internal components from moisture and impacts. What it does:

• Replaces cracked, chipped, scratched or shattered outer door glass to improve appearance and safety
• Restores the sealed barrier that helps keep controls and inner components protected from moisture
• Helps stop rattling or air leaks caused by damaged or loose exterior glass
• Returns a smooth, wipe-clean surface for normal cleaning and use

• Handle carefully; glass can break—wear safety gloves and eye protection
• Disconnect power (and water if applicable) before beginning repair
• Installation typically requires removing the door trim or inner door panel and transferring any clips or brackets

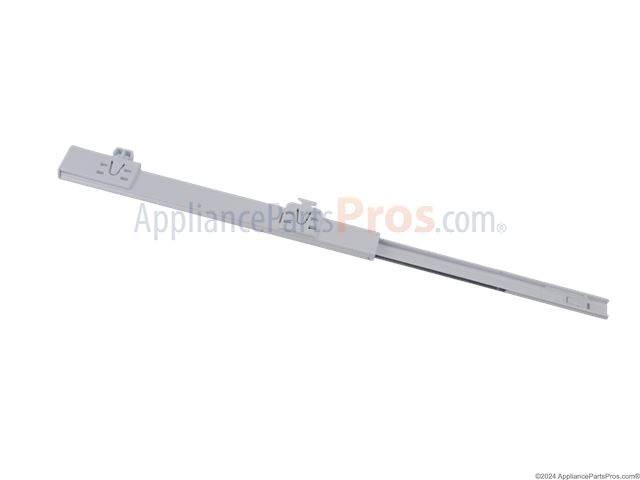

The Rail is an OEM replacement part for Bosch refrigerators. It is a horizontal track that sliding shelves, drawers, and bins glide smoothly along. Constructed of durable materials to withstand heavy-weight loads, the rail provides the structured organization of the refrigerator storage interior.

Causes of a bad rail are typically normal wear and tear over extended use. Heavy impacts or overloading beyond weight specifications can also abruptly damage railroad rails.

Symptoms of a bad rail include:

• Shelves, drawers, and bins getting stuck while sliding
• Gaps allowing cold air leakage around sliding components
• Structural weakness no longer supports heavy loads
• Reduced storage capacity due to malfunctioning rails

Replacing your damaged rail with this OEM part restores reliable operation. This Bosch refrigerator component is also compatible with Thermador, Gaggenau and select Kenmore models.

This replacement rail restores smooth, stable movement to a dishwasher rack so dishes load and unload evenly. Designed to match the OEM form and function for proper rack alignment and sliding action. What it does:

• Guides and supports the dishwasher rack for smooth extension and retraction
• Stops rack from binding, falling off track, or shifting during cycles
• Helps maintain proper rack alignment so dishes sit securely while washing
• Replaces worn, bent, or broken rails that cause noisy or uneven rack motion

• One replacement rail

• Disconnect power to the appliance before starting any repair; follow all safety precautions
• Remove the rack and follow OEM instructions for rail removal and replacement
• Inspect adjacent rollers and clips; replace if damaged to ensure correct operation

This replacement dishwasher drawer holds and organizes cutlery or small utensils in the upper/third-rack area, helping items stay separated for improved wash coverage and easier loading and unloading. Designed to restore proper fit and function when the original drawer is damaged. What it does:

• Provides a dedicated space to lay forks, knives and small utensils flat and separated for better cleaning
• Keeps items secure during the wash cycle to prevent nesting and blockage of spray arms
• Restores smooth sliding and proper alignment on the rack when cracked, warped or broken
• Helps prevent items from falling into the lower tub and interfering with dishes or spray performance

• Disconnect or power off the dishwasher before beginning any service
• Remove the upper rack per your model instructions to access the drawer area
• Slide the new drawer into the same track, align hooks/slots and push until it seats or clicks into place
• Do not force damaged rails; inspect track components for wear and replace if necessary
• Wear gloves to avoid cuts on sharp edges and follow manufacturer instructions for reassembly

This glass panel replaces a cracked or scratched outer door surface to restore the appliance's appearance and protect internal components from damage. It provides a smooth, clean finish for the appliance front. What it does:

• Forms the outer visible surface of the appliance door and protects inner layers from impacts and debris
• Restores a clean, undamaged appearance when the original glass is cracked, chipped, or scratched
• Helps maintain a sealed door profile so controls and inner panels stay protected
• Common symptom: visible cracks, chips, shattered glass, or cosmetic damage

• Disconnect power to the appliance before starting any repair to avoid electrical hazards
• Handle the glass carefully and wear cut-resistant gloves and eye protection to avoid injury
• Removing the old panel may require detaching door trim or fasteners; keep all fasteners organized for reassembly

A clamping piece used to secure small components or assemblies in place, keeping parts aligned and reducing vibration or movement for reliable appliance operation. What it does:

• Secures and holds a component or assembly in position
• Helps prevent rattling, misalignment, or loose connections
• Supports proper operation of adjacent moving parts
• Wear or breakage can cause noise or intermittent function

• Disconnect power and water before starting any repair
• Remove access panels or adjacent parts as needed to reach the clip
• Inspect mating surfaces and replace any damaged fasteners or retainers

Replacement fixture mounting bracket that secures internal components inside compatible appliances, restoring proper fit and alignment. Helps reduce movement and noise from loose parts and keeps components positioned for reliable operation. What it does:

• Provides a secure mounting point for internal components and assemblies
• Keeps parts aligned to prevent rattling, vibration, and premature wear
• Replaces cracked, broken, or worn fixtures that cause loose fit or interior movement
• Useful when visible damage or a loose/shifted part is present

• Disconnect power (and water, if applicable) before beginning any repair
• Use basic hand tools; avoid excessive force to prevent damage
• Inspect adjacent clips, screws, and gaskets and replace if worn

This fixture is a replacement dishwasher door bracket that secures the inner door assembly and helps keep the door aligned for smooth opening and closing. Restores proper door support and reduces sag or misalignment. What it does:

• Secures the inner door or related components to maintain proper door alignment
• Prevents door sag, binding, or uneven closing when functioning correctly
• Restores stable mounting for attached assemblies that rely on the bracket
• Helps reduce noise caused by loose or misaligned door parts

• Disconnect power (and water if applicable) before beginning any repair
• Use basic hand tools; support the door while removing/installing the bracket to prevent dropping
• Verify correct part orientation with the service manual or exploded parts diagram before final assembly

This genuine screw secures appliance panels and components to keep them tight, aligned, and rattle-free. Replace missing, stripped, or corroded hardware to restore a solid fit and reliable operation.

• Fastens panels, brackets, and internal assemblies to the chassis
• Helps maintain alignment and reduces vibration during use
• Replace if the original screw is missing, stripped, rusted, or damaged
• Common signs include loose or rattling panels and hardware that will not tighten

• Disconnect power and shut off water/gas before servicing
• Match thread and length to the original screw; replace like-for-like
• Hand-start to avoid cross-threading; tighten firmly without overtightening
• Replace screws in sets when needed to ensure even clamping and fit

The Screw Fridge is an OEM part for Bosch refrigeration units. It plays an important mounting and joining role throughout the fridge construction.

Causes of a bad screw fridge could include corrosion from repeated exposure to moist environments inside the unit. Improper torque levels during prior installations may also cause screws to loosen or strip over time.

Symptoms of issues include:

• Vibrations or rattling noises from unsecured components
• Doors or shelves that are loose or misaligned
• Leaking due to compromised seals around mounted surfaces

Replacing subpar screws prevents further degradation and restores proper holding strength. Bosch quality fasteners ensure durable, rattle-free operation for the life of the appliance.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some KitchenAid refrigerator models. Reliable repairs start with genuine replacement parts.


The Suspension is an OEM part specifically designed for Bosch refrigerators. It anchors the refrigerator cabinet to reduce vibrations and ensure stable positioning during compressor operation.

Symptoms of a bad suspension include:

• Excessive shaking or rattling noises from within the cabinet
• Physical movement of the refrigerator away from the wall
• Loose fixture mounting points developing cracks or breaks

Causes of a bad suspension can be degradation over extended usage periods, damage from service repairs disrupting mount alignment, or failure after impact loads to cabinet corners.

Replacing with this OEM suspension restores proper shock absorption to maintain consistent temperatures. Its robust design supports appliance longevity in any kitchen environment.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models. Replace to avoid future service hazards from unsecured cabinets.


This tray is a dishwasher rack insert that holds and organizes cutlery and small items for more efficient cleaning and to prevent movement during cycles. It restores proper placement for utensils and helps reduce nesting and spotty cleaning. What it does:

• Provides a dedicated area to separate and secure forks, knives and spoons during wash cycles
• Prevents utensils from nesting so water and detergent reach all surfaces
• Helps keep small items from falling to the bottom of the dishwasher
• Fits into the upper rack to maintain organized loading and better cleaning results

• Turn off power to the appliance before attempting any adjustments
• Slide the tray into the designated slots on the upper rack until it seats securely
• Do not force into place; inspect rack rails for obstructions or damage if it doesn't fit
• Clean with mild detergent and a soft cloth; avoid abrasive cleaners or scouring pads

This firm plate is a small metal mounting plate that secures and supports nearby components so assemblies stay aligned and stable. It restores proper fit and reduces movement in the area where it's installed. What it does:

• Provides a stable mounting surface to keep panels or components aligned
• Prevents shifting or vibration that can cause noise or wear
• Helps maintain correct positioning for adjacent parts and fasteners
• Can correct symptoms such as loose panels, rattling, or misaligned assemblies

• One firm plate

• Disconnect power and water before starting any repair
• Remove access panels and fasteners as needed to reach the mounting location
• Use appropriate tools and hardware; replace any damaged screws or clips
• Handle edges carefully and avoid overtightening fasteners to prevent distortion
