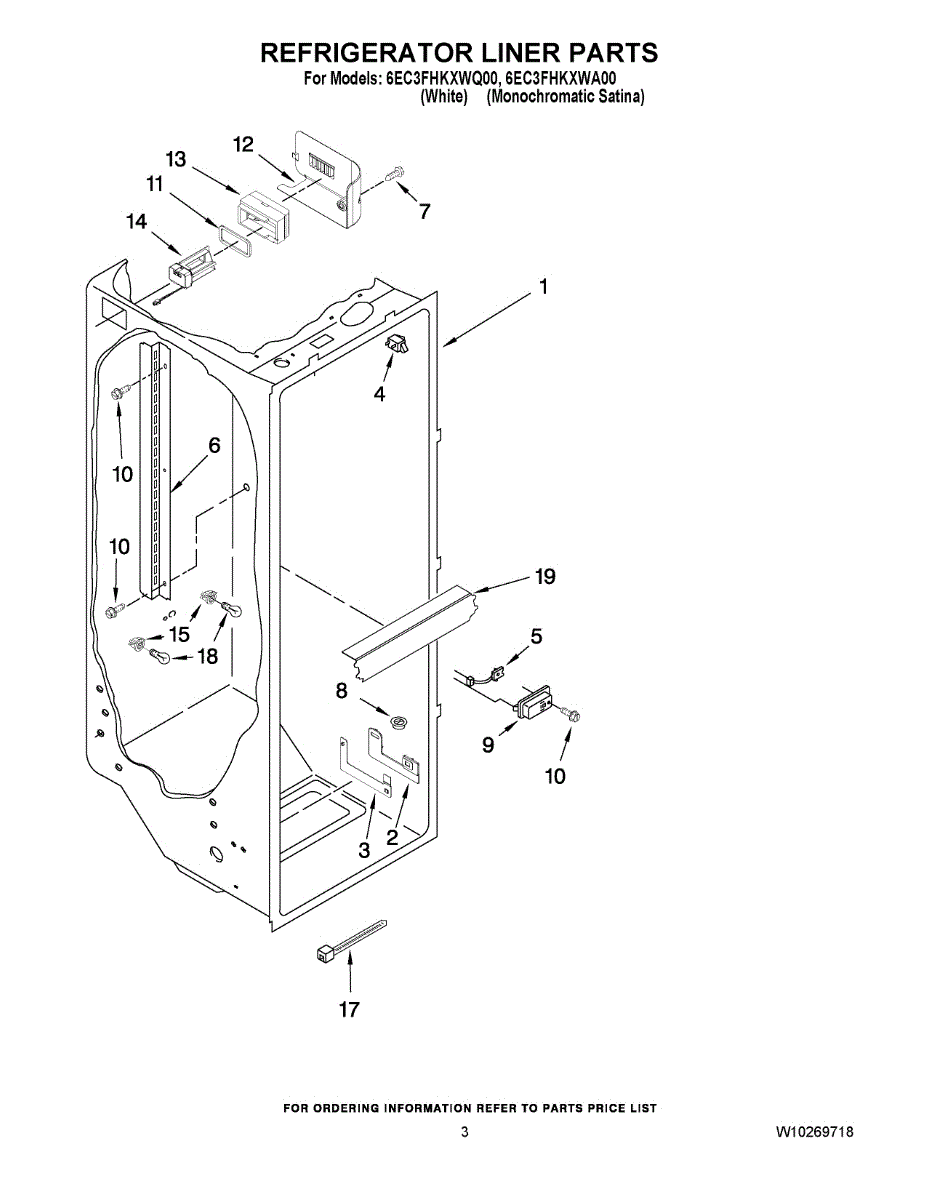

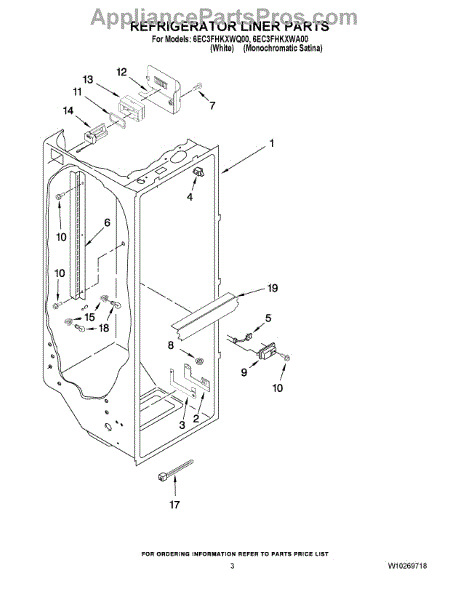

Parts for Whirlpool 6EC3FHKXWA00: 02 - Refrigerator Liner Parts

The Door Switch is an OEM part for Whirlpool refrigerators. It is designed to detect when the refrigerator or freezer door is open or closed. This switch controls the interior light and ensures that the cooling system operates efficiently.

Causes of a bad Door Switch can include mechanical wear from frequent use, electrical faults such as short circuits or burnt contacts, and physical damage from impact or mishandling of the refrigerator door.

Symptoms of a bad Door Switch include:

• The interior light not turning on when the door is opened or not turning off when the door is closed
• The refrigerator or freezer not cooling properly
• The light staying on continuously
• The cooling system running continuously or not running at all due to incorrect signals from the switch

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Thermistor is an OEM replacement part for Whirlpool refrigerators. This temperature-sensitive sensor monitors conditions inside refrigerator and freezer compartments. It provides critical feedback to the electronic control module, regulating cool air temperature in both sections.

Symptoms of a faulty thermistor include:

• Fluctuating temperatures where sections become too warm or cold
• Frequent cycling of evaporator fans and cooling components
• Defrost issues or Er/Ed error codes shown on displays

Causes can involve regular exposure to changing interior environments over many years. Mineral deposits accumulating may lead to sensor surfaces becoming insulated. Physical stress from overloading could potentially crack the thermistor over time as well.

This OEM replacement part is compatible with some Kenmore Elite models too.

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

A thermistor assembly that measures refrigerator temperature and sends that data to the control board so the appliance can regulate cooling. Replaces a failed sensor to help restore accurate temperature control. What it does:

• Senses internal temperature and converts it to a signal the control board uses to adjust cooling.
• Helps regulate compressor, evaporator, and defrost cycles when operating correctly.
• Common symptom: erratic or incorrect refrigerator/freezer temperatures.
• Common symptom: cooling failure, long run times, or temperature-related error codes.

• Disconnect power before accessing or replacing the thermistor to avoid shock.
• Handle the sensor element and wiring gently; avoid pinching or crimping the leads.
• Install in the same location and orientation shown in the OEM diagram for reliable readings.

Size: 8 x 1/2 ab.

This refrigerator air baffle is the internal vane that directs cold airflow from the freezer into the fresh food compartment. Replacing a broken or missing baffle helps restore even cooling and reduce random warm spots or items freezing near the vent.

• Directs and regulates airflow between freezer and refrigerator sections
• Helps maintain stable, even temperatures across shelves
• Diffuses direct cold air to minimize food freezing near the outlet
• Failure symptoms can include uneven cooling, weak airflow, cold spots, or rattling at the vent

• Disconnect power before service and wear cut-resistant gloves
• Access the interior vent/diffuser area; remove the cover or grille as needed
• Note the original baffle's orientation; seat the new baffle securely without obstructing the damper
• Reinstall covers, restore power, and allow temperatures to stabilize

The Light Bulb Socket is an OEM part for Whirlpool refrigerators. It is responsible for housing the bulb that illuminates the interior fridge light. The socket provides a protective casing and stable electrical connection for the light bulb. Its interior components are precisely arranged to safely conduct current to the bulb.

Causes of a bad light bulb socket can include cracks, loose connections, or damaged internal wiring due to regular use over time.

Symptoms of a bad light bulb socket include:

• The fridge interior light failing to turn on
• The bulb burning out quickly
• Flickering or intermittent lighting

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
