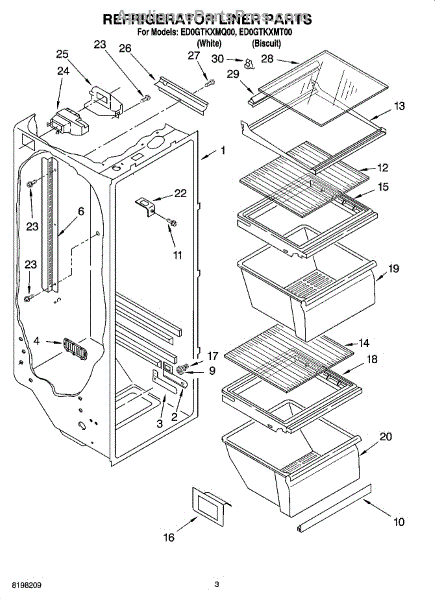

Parts for Whirlpool ED0GTKXMT00: 02 - Refrigerator Liner Parts

This shelf support stud anchors a refrigerator shelf to the cabinet liner so it stays level and secure. Replace a cracked or missing stud to restore proper support and prevent shelves from tilting, slipping, or dropping.

• Locks into the liner wall to provide a mounting point for the shelf frame or bracket
• Keeps the shelf aligned and at the correct height
• Common symptoms: broken/missing stud, shelf won't sit flat, shelf sags or falls on one side
• Helps prevent items from sliding due to an unstable shelf

• Disconnect power; remove the shelf and any items resting on it. Handle glass shelves carefully and consider wearing cut-resistant gloves.
• Remove the damaged stud (release the locking tab or twist out, depending on design).
• Insert the new stud into the existing hole until fully seated and locked.
• Reinstall the shelf and verify it sits level before reloading.

The Glass Shelf is an OEM part for Whirlpool refrigerators. It provides a sturdy and transparent surface within the refrigerator for storing food items, allowing for easy organization and visibility. The glass measures about 16.5 by 13 inches.

Common causes of a bad glass shelf include cracks or breaks due to heavy loads or accidental impacts, as well as edge chipping from repeated use.

Symptoms of a bad glass shelf include:

• Cracks or shattered glass
• Chipped or broken edges
• Unstable or wobbly placement within the refrigerator

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Glass Shelf is an OEM part for Whirlpool refrigerators. It provides a sturdy and transparent surface within the refrigerator for storing food items, allowing for easy organization and visibility. The glass measures about 16.5 by 13 inches.

Common causes of a bad glass shelf include cracks or breaks due to heavy loads or accidental impacts, as well as edge chipping from repeated use.

Symptoms of a bad glass shelf include:

• Cracks or shattered glass
• Chipped or broken edges
• Unstable or wobbly placement within the refrigerator

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Glass Crisper Cover is an OEM part for Whirlpool refrigerators. It serves as the cover for the crisper drawers, providing a sturdy surface for storing items while helping to maintain the humidity levels inside the drawers to keep fruits and vegetables fresh. Measuring approximately 15 1/4" by 18", it ensures the drawer slides in and out smoothly.

Causes of a bad glass crisper cover can include accidental impacts that cause cracks or shattering, stress from heavy loads placed on top of the cover, or general wear and tear over time. Exposure to extreme temperatures or mishandling during cleaning can also lead to damage.

Symptoms of a bad glass crisper cover include:

• Cracks or breaks in the frame
• The cover not fitting securely over the crisper drawers
• Difficulty sliding the crisper drawers in and out
• Food items falling through due to gaps or damage

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This air deflector directs chilled air inside the refrigerator's fresh-food compartment to maintain even cooling and proper circulation. It replaces a damaged or missing deflector so cold air reaches interior shelves and drawers. What it does:

• Guides refrigerated air from the evaporator outlet into the fresh-food section for more even temperatures
• Helps prevent warm spots and uneven cooling on shelves and in drawers
• Restores correct airflow after cracking, warping, or breakage
• Can reduce frost buildup caused by improper air direction

• One air deflector

• Disconnect power to the appliance before beginning any work
• Remove interior shelves or drawers as needed for access
• This part typically snaps into place; align tabs and press until secured
• Handle gently to avoid cracking; verify fit and airflow after installation

Pan-head screw used to secure panels, brackets and trim on Whirlpool appliances. Replacing a damaged or missing screw restores proper fastening to reduce vibration and keep assemblies aligned during operation. What it does:

• Secures panels, brackets and trim pieces to the appliance chassis.
• Stops loose panels from rattling, vibrating or shifting during use.
• Used when the original screw is stripped, corroded or missing.
• OEM replacement that restores the original fastening point.

• Unplug the appliance or shut off power before working on it.
• Use the correct screwdriver or bit to avoid stripping the head.
• Tighten until snug—do not overtighten or force in plastic parts.
• If the original hole or threads are damaged, inspect the surrounding area before reuse.

The Glass Crisper Cover is an OEM part for Whirlpool refrigerators. It serves as the cover for the crisper drawers, providing a sturdy surface for storing items while helping to maintain the humidity levels inside the drawers to keep fruits and vegetables fresh. Measuring approximately 15 1/4" by 18", it ensures the drawer slides in and out smoothly.

Causes of a bad glass crisper cover can include accidental impacts that cause cracks or shattering, stress from heavy loads placed on top of the cover, or general wear and tear over time. Exposure to extreme temperatures or mishandling during cleaning can also lead to damage.

Symptoms of a bad glass crisper cover include:

• Cracks or breaks in the frame
• The cover not fitting securely over the crisper drawers
• Difficulty sliding the crisper drawers in and out
• Food items falling through due to gaps or damage

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Crisper Pan is an OEM part for Whirlpool refrigerators. This component is designed to provide a controlled environment for storing fruits and vegetables, helping to extend their freshness by maintaining optimal humidity levels.

Symptoms of a bad Crisper Pan include:

• Cracks or breaks in the plastic that can compromise the storage environment.
• The drawer becoming difficult to slide in and out due to warping or damage to the tracks.
• Accumulation of moisture or leakage indicating a seal failure.
• Noticeable odors emanating from the pan due to poor ventilation or containment.

Causes of a bad crisper pan can include physical impact from heavy items being placed inside, degradation over time from frequent exposure to moisture and varying temperatures, or improper use such as overloading the drawer.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Meat Pan is an OEM part for Whirlpool refrigerators. This component provides a dedicated storage area within the refrigerator, designed to keep meats at an optimal temperature for freshness. The meat pan slides in and out for easy access and helps to organize and separate meat products from other items in the fridge. The pan measures approximately 14.96" long x 16.456" wide by 7.598" high

Common causes of a bad meat pan include damage from impact, wear and tear from frequent use, or warping due to temperature changes.

Symptoms of a bad meat pan include:

• Cracks or breaks in the pan
• Difficulty sliding the pan in and out
• The pan not fitting securely in its designated space
• Food not being kept at the correct temperature

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 8 x 1/2 ab.

The Air Diffuser Assembly is an OEM part for Whirlpool refrigerators. It regulates the airflow between the refrigerator and freezer compartments, ensuring the proper distribution of cold air to maintain the desired temperatures in both sections.

Common causes of a faulty air diffuser assembly include wear and tear from regular use, damage from ice buildup, or mechanical failure of the moving parts within the diffuser.

Symptoms of a bad air diffuser assembly include:

• Uneven temperatures between the refrigerator and freezer compartments
• Frost buildup in the freezer or refrigerator
• The refrigerator compartment being too warm or too cold
• Unusual noises coming from the air diffuser area

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This air diffuser cover directs and protects airflow within the appliance, restoring proper air distribution and sealing the diffuser opening. It replaces a cracked, missing, or worn cover to help maintain consistent performance. What it does:

• Covers and protects the air diffuser/vent opening from debris and damage
• Directs airflow for consistent circulation where required by the appliance
• Helps reduce air leaks that can cause uneven temperature or performance
• Replaces damaged or missing covers that may rattle or allow debris entry

• One air diffuser cover

• Disconnect power to the appliance before beginning service
• Remove any retaining screws or clips and carefully snap or slide the old cover out
• Install the replacement by aligning tabs or screw holes and securing per the OEM fit

This air duct clip secures an appliance's air duct or vent to the housing, keeping airflow channels properly aligned and reducing air leaks. A simple replacement that restores correct duct positioning and minimizes airflow issues. What it does:

• Holds the air duct or vent in place to maintain proper airflow alignment
• Prevents the duct from slipping or separating from the housing
• Helps reduce air leaks that can affect performance or cause noise
• Fits where a small plastic/metal retainer is required to secure ducting

• One air duct clip/retainer

• Disconnect power before servicing the appliance to avoid shock or injury
• Use basic hand tools to remove the old clip and snap or screw the new clip into place
• Handle carefully to avoid breaking plastic tabs; the clip fully engages the duct and housing
• If the clip doesn't fit securely, re-check the duct orientation and mounting position
