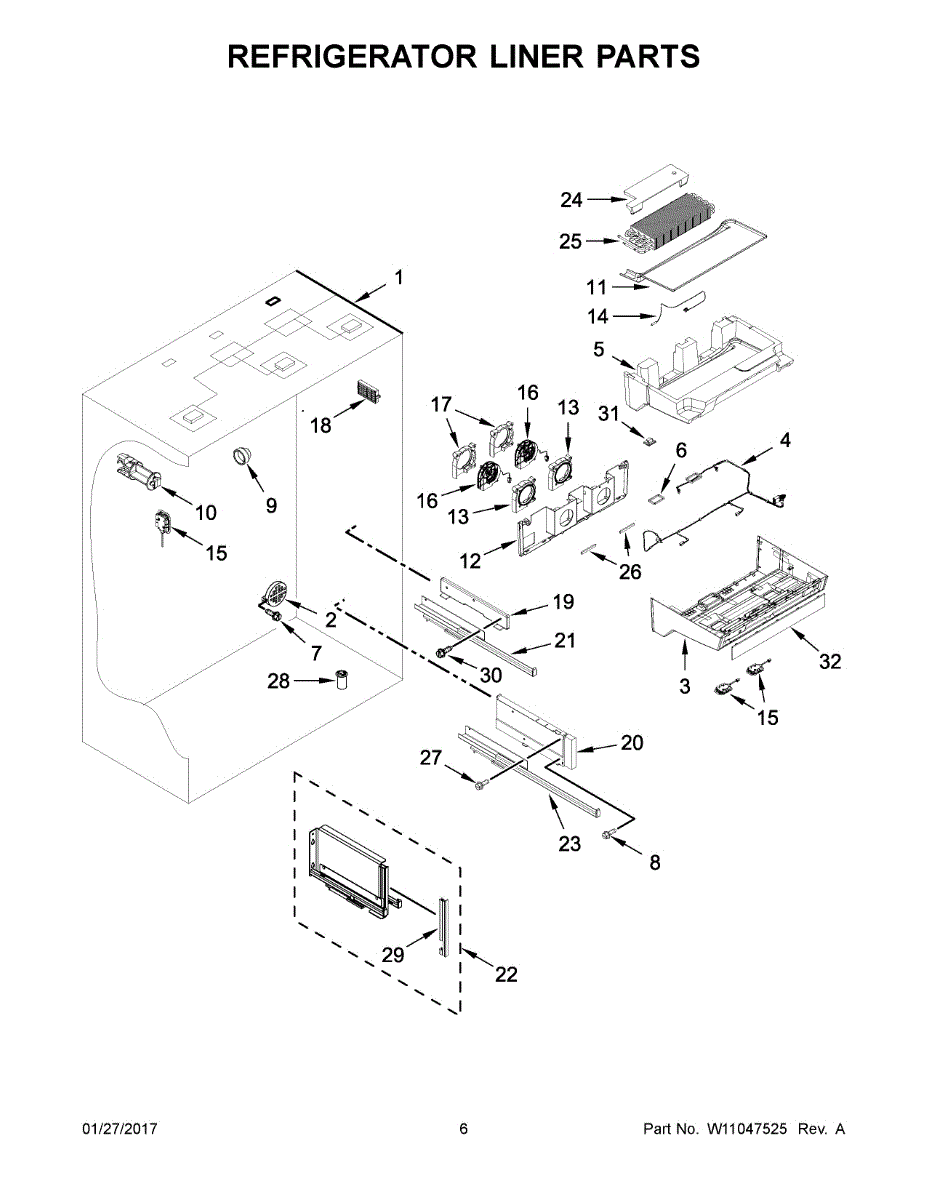

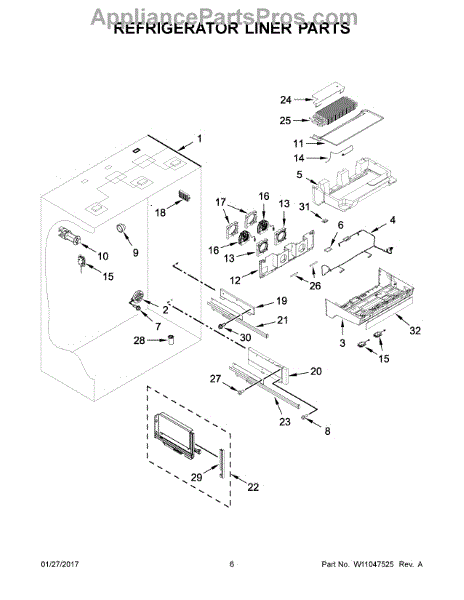

Parts for Kitchenaid KBBL306EPA01: 04 - Refrigerator Liner Parts

This evaporator cover protects the refrigerator's evaporator coil and helps direct airflow for efficient cooling. It replaces a damaged or missing cover to reduce frost buildup and maintain consistent temperatures inside the compartment. What it does:

• Shields the evaporator coil from contact and debris to prevent damage.
• Directs airflow over the coil for more even cooling and reduced ice buildup.
• Helps limit frost accumulation that can cause reduced cooling performance.
• Prevents loose items from contacting the coil and creating noise or obstructions.

• Disconnect power before servicing the appliance to avoid electrical shock.
• Remove shelves and access panels as needed; handle the evaporator area gently to avoid puncturing the coil.
• Allow the evaporator to fully defrost if ice is present before installing the new cover.
• Reinstall all fasteners and panels securely; test operation and monitor for proper cooling after reassembly.

This wire harness assembly routes power and signals between appliance components so controls and motors operate reliably. Replace a damaged harness to restore electrical connections and correct intermittent or failed functions. What it does:

• Connects control boards, switches and motors with factory-style wiring and terminals
• Restores lost or intermittent electrical continuity that can cause erratic operation
• Prevents shorted or exposed wires from causing component failures
• Ensures correct signal routing for timed cycles and safety circuits

• Disconnect power to the appliance before starting any work to avoid electrical shock
• Inspect connectors and wire routing; replace any harness with exposed insulation or damaged terminals
• Reconnect all plugs fully and secure the harness along original clips or guides to prevent chafing

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This thermistor is the refrigerator temperature sensor that monitors cabinet temperature and sends readings to the control board so the appliance maintains consistent cooling. Replaces a failed sensor to restore proper temperature sensing and cycling. What it does:

• Senses internal refrigerator/freezer temperature and reports readings to the control board.
• Helps the control board regulate compressor and fan cycles for consistent cooling.
• Commonly fails when readings are erratic or the refrigerator runs too cold or too warm.
• Safe, widely reported symptom: temperature not stable or incorrect defrost behavior.

• One thermistor temperature sensor.

• High-level replacement: access may require removing interior liners or control covers.
• Disconnect power before testing or replacing to avoid shock or damage.
• Handle the sensor and wiring gently to avoid damage; secure connectors fully.

Size: 8-18 x 1 1/4 inch.

This machine screw secures components in place to maintain proper alignment and stability during appliance operation. Replacing a worn or missing screw restores a tight fit and helps prevent vibration, noise, or loosening parts.

• Provides a secure mechanical fasten for panels, brackets, or internal assemblies
• Helps correct rattling, vibration, or loose-fitting parts
• Useful when an original screw is stripped, corroded, or lost
• Sized to match 8-18 thread applications in compatible units

• Disconnect power and shut off water or gas before servicing
• Note original screw location and orientation for correct reassembly
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace any damaged clips or mounts the screw engages
