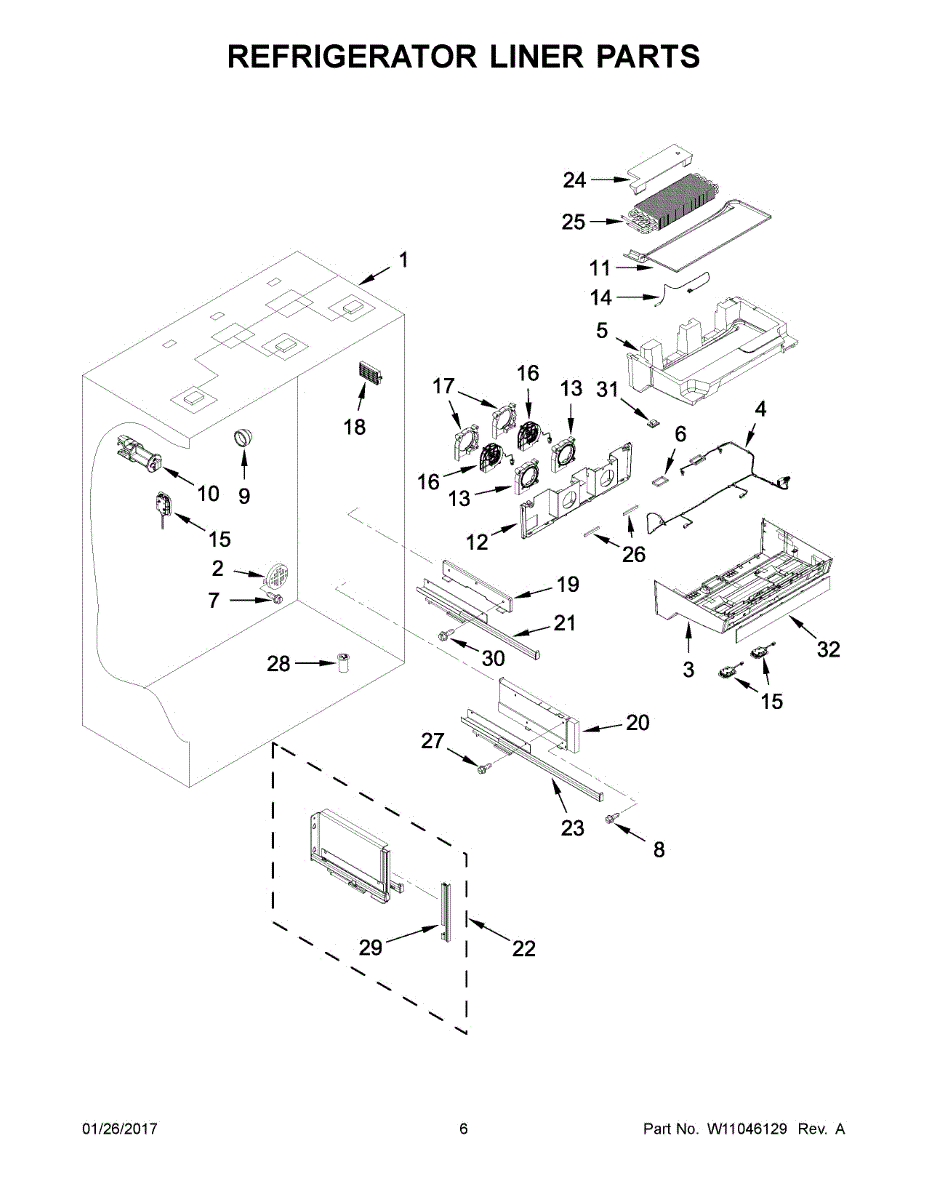

Parts for Kitchenaid KBFN406ESS01: 04 - Refrigerator Liner Parts

This wire harness assembly routes power and signals between appliance components so controls and motors operate reliably. Replace a damaged harness to restore electrical connections and correct intermittent or failed functions. What it does:

• Connects control boards, switches and motors with factory-style wiring and terminals
• Restores lost or intermittent electrical continuity that can cause erratic operation
• Prevents shorted or exposed wires from causing component failures
• Ensures correct signal routing for timed cycles and safety circuits

• Disconnect power to the appliance before starting any work to avoid electrical shock
• Inspect connectors and wire routing; replace any harness with exposed insulation or damaged terminals
• Reconnect all plugs fully and secure the harness along original clips or guides to prevent chafing

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This thermistor is the refrigerator temperature sensor that monitors cabinet temperature and sends readings to the control board so the appliance maintains consistent cooling. Replaces a failed sensor to restore proper temperature sensing and cycling. What it does:

• Senses internal refrigerator/freezer temperature and reports readings to the control board.
• Helps the control board regulate compressor and fan cycles for consistent cooling.
• Commonly fails when readings are erratic or the refrigerator runs too cold or too warm.
• Safe, widely reported symptom: temperature not stable or incorrect defrost behavior.

• One thermistor temperature sensor.

• High-level replacement: access may require removing interior liners or control covers.
• Disconnect power before testing or replacing to avoid shock or damage.
• Handle the sensor and wiring gently to avoid damage; secure connectors fully.

Size: 8-18 x 1 1/4 inch.

This replacement valve tube-body helps route water within the appliance's valve assembly so the dispenser and ice maker get water when called. Restores proper water flow paths and replaces a worn or damaged tube-body. What it does:

• Directs water from the main valve to the dispenser and/or ice maker in the valve assembly
• Replaces cracked, corroded, or blocked tube passages that can cause reduced flow
• Commonly used when water leaks or irregular dispensing occur near the valve area
• Works as part of the valve manifold to maintain correct internal water routing

• One valve tube-body component

• Disconnect power and shut off the water supply before servicing
• Handle small fittings and seals carefully; inspect and replace O-rings or gaskets if damaged
• Some disassembly of panels or the valve assembly is required; wiring/piping diagrams
• After installation, restore water and power and check thoroughly for leaks and proper function

This machine screw secures components in place to maintain proper alignment and stability during appliance operation. Replacing a worn or missing screw restores a tight fit and helps prevent vibration, noise, or loosening parts.

• Provides a secure mechanical fasten for panels, brackets, or internal assemblies
• Helps correct rattling, vibration, or loose-fitting parts
• Useful when an original screw is stripped, corroded, or lost
• Sized to match 8-18 thread applications in compatible units

• Disconnect power and shut off water or gas before servicing
• Note original screw location and orientation for correct reassembly
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace any damaged clips or mounts the screw engages
