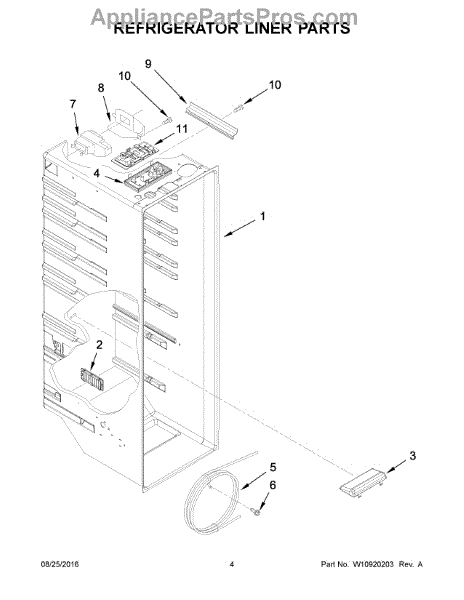

Parts for Whirlpool WRS331FDDB01: 03 - Refrigerator Liner Parts

The LED Light Assembly is an OEM replacement part for Whirlpool refrigerators. This component provides energy-efficient and long-lasting illumination within the refrigerator compartment, ensuring visibility and easy access to stored items. Bracket part number- W10445802

Symptoms that may indicate the need to replace the LED light assembly include:

• Dim or flickering lights
• Lights failing to turn on or off consistently
• Visible damage or discoloration to the light assembly

Causes of a faulty LED light assembly can include normal wear and tear over time, electrical issues or malfunctions, or physical damage due to impact or moisture exposure.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

The Refrigerator LED Light Assembly is an OEM part for Whirlpool refrigerators. This assembly provides the necessary illumination inside the refrigerator, allowing you to clearly see and access the contents. It features energy-efficient LED technology, which offers bright, long-lasting light while consuming less power compared to traditional bulbs.

Over time, the LED light assembly can become faulty due to electrical issues, component failure, or damage from moisture.

Symptoms of a bad Refrigerator LED Light Assembly include:

• Dim or flickering light inside the refrigerator
• The light not turning on when the door is opened
• Intermittent lighting issues
• Complete failure of the light assembly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Water Reservoir Tubing is an OEM replacement part for Whirlpool refrigerators. It is a flexible plastic tubing that replaces the water reservoir and holds the water for the ice maker and dispenser.

Causes can include cracks from heat or cold exposure over time, punctures from sharp edges during installation, or deterioration of plastic tubing that impacts integrity.

Symptoms of bad water reservoir tubing include:

• Inaccurate or inconsistent ice production
• Leaks or water spills near the reservoir or ice maker
• Kinks or ruptures in the tubing that obstruct water flow
• Mineral buildup that clogs or restricts the line

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

Note: As per manufacture this is no longer a tank. The tank style has been updated with coiled tubing.

The Air Diffuser Assembly is an OEM part for Whirlpool refrigerators. It regulates the airflow between the refrigerator and freezer compartments, ensuring the proper distribution of cold air to maintain the desired temperatures in both sections.

Common causes of a faulty air diffuser assembly include wear and tear from regular use, damage from ice buildup, or mechanical failure of the moving parts within the diffuser.

Symptoms of a bad air diffuser assembly include:

• Uneven temperatures between the refrigerator and freezer compartments
• Frost buildup in the freezer or refrigerator
• The refrigerator compartment being too warm or too cold
• Unusual noises coming from the air diffuser area

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This air diffuser cover directs and protects airflow within the appliance, restoring proper air distribution and sealing the diffuser opening. It replaces a cracked, missing, or worn cover to help maintain consistent performance. What it does:

• Covers and protects the air diffuser/vent opening from debris and damage
• Directs airflow for consistent circulation where required by the appliance
• Helps reduce air leaks that can cause uneven temperature or performance
• Replaces damaged or missing covers that may rattle or allow debris entry

• One air diffuser cover

• Disconnect power to the appliance before beginning service
• Remove any retaining screws or clips and carefully snap or slide the old cover out
• Install the replacement by aligning tabs or screw holes and securing per the OEM fit

This outer cabinet housing provides structural support and protection for internal components, helping maintain panel alignment and prevent damage from dust, moisture, or impact — replace a damaged housing to restore fit and protection. What it does:

• Supports and secures internal parts and exterior panels to keep components properly aligned.
• Protects wiring, controls and mechanical parts from dust, moisture and accidental contact.
• Helps reduce vibration and rattling by maintaining proper cabinet fit.
• Commonly replaced when the housing is cracked, warped, rusted or no longer secures internal components.

• Disconnect the appliance from power (and water supply if applicable) before beginning any work.
• Remove access panels and fasteners; support the assembly during removal to avoid damage to attached parts.
• Inspect and replace any worn gaskets, clips or fasteners; reuse parts only if undamaged.
