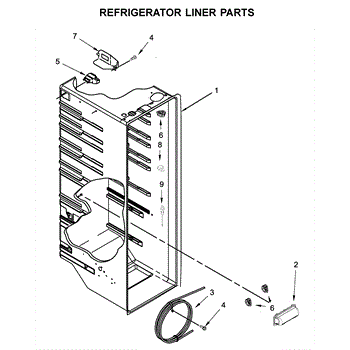

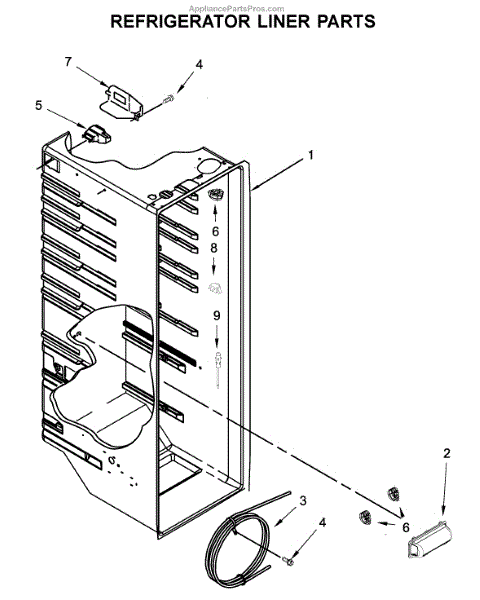

Parts for Whirlpool WRS331SDHM02: Refrigerator Liner Parts

This is the light lens that covers and protects the appliance's light source. Replacing a cracked, yellowed, or missing lens restores clear, even illumination while shielding the bulb/LED from grease, moisture, and impact.

• Diffuses light for more even, glare-free illumination
• Protects the bulb or LED module from debris, grease, and moisture
• Replace if the lens is cracked, warped, melted, discolored, or missing
• Also replace if the lens no longer stays seated or falls out

• Disconnect power to the appliance before servicing and allow the area to cool
• Remove any retaining screws or release tabs to take off the old lens
• Seat the new lens fully; reuse existing fasteners if applicable
• Do not overtighten fasteners; handle carefully to avoid damage

This replacement tubing connects the refrigerator's water reservoir to the water system, restoring proper water flow and preventing leaks. It's a direct-fit hose that helps maintain reliable water delivery to the reservoir assembly. What it does:

• Carries water between the reservoir and the refrigerator water system
• Restores proper water flow when original tubing is cracked, pinched, or deteriorated
• Helps stop visible leaks near the reservoir or tubing connections
• Supports consistent ice maker and dispenser performance by ensuring uninterrupted water supply

• Disconnect power and shut off the water supply before beginning work
• Inspect routing and connection fittings; replace clamps or seals if damaged
• Handle tubing carefully to avoid kinks; secure with original clips or clamps
• Test for leaks after reconnecting water and restoring power

A genuine replacement screw used to secure appliance panels, brackets, and components so assemblies stay aligned and stable. Installs quickly with a screwdriver or driver bit to restore proper fit and reduce rattling. What it does:

• Secures panels, trim, brackets or internal components to keep parts properly aligned
• Prevents loose or vibrating panels that can cause noise or wear
• Holds mounting points that keep doors, seals, and assemblies operating correctly
• Replaces stripped, missing, or corroded fasteners that compromise fit

• Turn off and unplug the appliance before starting any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten until snug; avoid overtightening which can strip threads or deform parts
• Keep removed hardware organized and replace like-for-like for best fit

The Refrigerator Air Diverter is an OEM part compatible with Whirlpool brand refrigerators. Located inside the back wall of the refrigerator, this component evenly distributes cool air throughout the fresh food and freezer compartments.

Causes of a bad air diverter can include cracks in the plastic vanes from regular use over time, blockages restricting airflow, or failures of the mounting bracket or fan component.

Symptoms of a bad air diverter include:

• Unbalanced or inconsistent temperatures between compartments
• Frost or ice buildup in undesired areas
• Excessive noise or vibration coming from the back wall or fan area
• Inability to maintain set temperatures properly

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore models.

The LED Light Module is an OEM replacement part for Whirlpool refrigerators. This lighting module is responsible for providing illumination inside the refrigerator and freezer compartments. It contains energy-efficient LEDs that produce a bright, consistent light.

Causes of a bad LED Light Module can include failing or damaged LEDs due to age or accidental impact. Sensor or electrical issues within the module itself could also cause lighting problems.

Symptoms of a bad LED Light Module include:

• Dim, flickering, or non-functioning lights
• Parts of the lighting not working properly
• Premature burning out of LEDs
• Electrical humming or buzzing from the lighting area

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
