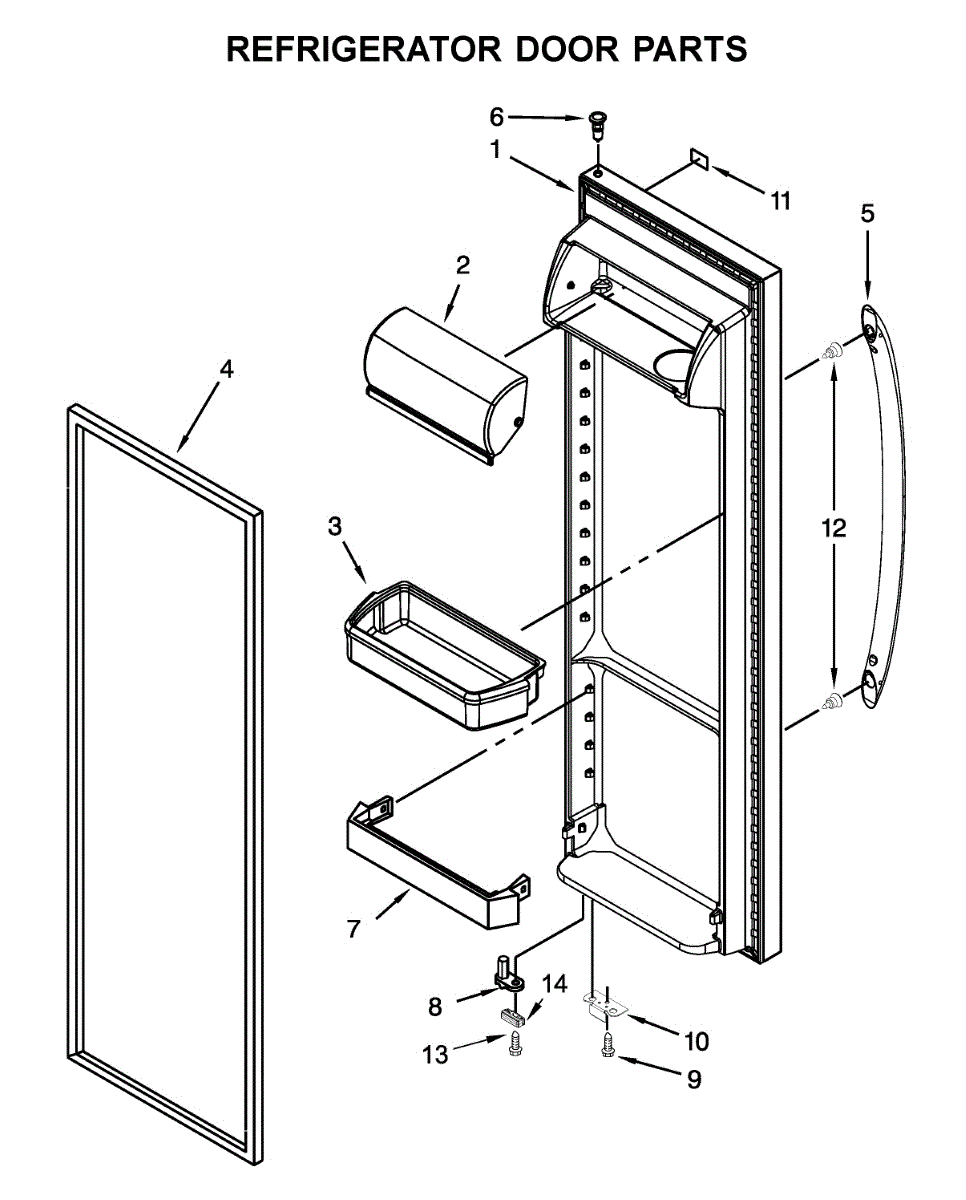

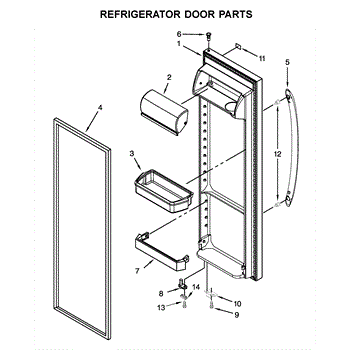

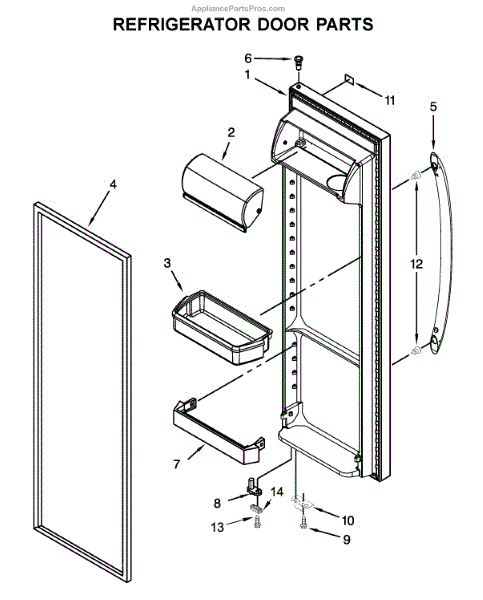

Parts for Whirlpool WRS331SDHM02: Refrigerator Door Parts

The Compartment Door is an OEM component for Whirlpool and Kenmore built-in refrigerator models. It provides access to organized storage in the fridge's fresh food compartment. The compartment door measures approximately 15” long by 6” wide.

As a high-use access point, the door endures constant opening/closing stresses. Over extended periods, normal wear gradually reduces the quality and integrity of its cushioned sealed closure.

Symptoms include:

• Difficulty fully closing/latching the compartment door
• Loud squeaking or sticking during operation

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Door Shelf Bin is an OEM part for Whirlpool refrigerators. It provides storage space on the refrigerator door, allowing for easy organization and access to frequently used items like condiments, beverages, and smaller containers. The bin measures approximately 17" wide x 7" deep x 4" high.

You should replace this door shelf bin if it becomes cracked, broken, or loses its ability to securely hold items. Over time, regular use and the weight of stored items can cause the plastic to weaken or break.

Symptoms of a bad door shelf bin include:

• Cracks or visible damage
• Difficulty in securing items within the bin
• The bin detaching or falling off the door

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Grey

The Refrigerator Door Gasket is an OEM part for Whirlpool refrigerators. This gasket forms a seal around the perimeter of the refrigerator door, ensuring that cold air stays inside and warm air stays out. It helps maintain the refrigerator's efficiency by preventing air leaks, which can lead to temperature fluctuations and increased energy consumption.

Causes of a bad gasket can include regular wear and tear, frequent opening and closing of the door, or exposure to extreme temperatures.

Symptoms of a bad refrigerator door gasket include:

• Warm spots inside the refrigerator
• Excessive frost buildup
• Increased energy consumption
• The door not sealing properly or appearing misaligned

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Refrigerator Door Gasket is an OEM replacement part for Whirlpool refrigerators. This black gasket ccreates a seal around the door perimeter, helping maintain proper cooling and humidity levels inside the fridge.

Causes of a bad door gasket can include cracks, compression set, or decomposition of the sealing material over repeated use and exposure. Age and general wear also contribute to deterioration.

Symptoms of a bad door gasket include:

• Cool air leaking noticeably around the door seal
• The door not closing flush or tightly against the cabinet
• Fogging or frost developing inside near the door
• Warm spots felt along the gasket perimeter

This OEM Whirlpool part is compatible with other brands including Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, and some Kenmore refrigerators.

Color: Stainless

The Door Handle is an OEM part for Whirlpool refrigerators. It provides an ergonomic grip that allows for easy opening and closing of the refrigerator door. The handle bears the inward force across the door to deliver smooth operation with each use.

Causes of a bad door handle can include cracks, breaks or wear to the plastic over time due to repeated opening/closing motions. Physical damage from impact is also a possible cause of handle failure.

Symptoms of a bad door handle include:

• The handle no longer securely holds the door closed
• Difficulty opening the door without the handle assistance
• Cracks or breaks visible in the plastic
• Loose, sagging or misaligned handle placement

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Thimble, Top is an OEM part for Whirlpool refrigerators. This component is used to support and secure the door hinge, ensuring smooth and stable opening and closing of the refrigerator door.

You should replace the door thimble if it becomes damaged or worn out. Causes of a bad door thimble include wear and tear from frequent use, stress from heavy door loads, or damage from accidental impacts. A faulty thimble can lead to misalignment of the door, causing it to sag or not seal properly.

Symptoms of a bad Door Thimble, Top include:

• Difficulty in opening or closing the door
• The door not aligning correctly with the refrigerator frame
• Noticeable sagging or wobbling of the door
• Unusual noises when the door is moved

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Shelf Bar is an OEM part for Whirlpool refrigerators. It is designed to secure items on the door shelves, providing a barrier that prevents stored items from falling out when the door is opened or closed. This bar ensures that jars, bottles, and other items remain in place, maximizing storage efficiency. It measures about 17 inches wide by 2-1/2 inches high by 5 inches deep.

Causes of a bad door shelf bar can include wear and tear from regular use, damage due to overloading the shelf, or accidental impact that leads to cracks or breaks. Ensuring the door shelf bar is in good condition helps maintain the organization and functionality of the refrigerator door storage.

Symptoms of a bad door shelf bar include:

• Cracks or visible damage to the bar
• The bar not staying securely in place
• Items falling from the door shelves
• Difficulty in fitting the bar properly onto the door

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Closing Cam is an OEM part for Whirlpool refrigerators. The closing cam works with the door hinge and latch mechanism to make sure the refrigerator door closes securely.

Causes of a bad closing cam can be normal wear and tear over time, excessive strain placed on the hinge areas, or damage from accidental impacts.

Symptoms of a bad closing cam include:

• Doors that do not fully close or latch properly
• Difficulty closing or opening the doors
• Increased energy costs from poor insulation
• Fruits and vegetables spoiling more quickly

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This factory fastener secures appliance components and panels. Replacing worn, stripped, or missing screws restores a tight, rattle-free fit and keeps parts properly aligned for dependable performance.

• Fastens brackets, panels, and internal parts in the specified location
• Helps maintain alignment and reduces vibration or rattling
• Direct replacement for a missing, damaged, or stripped screw
• Symptoms include loose or shifting parts, gaps, or buzzing/rattle noises

• Disconnect power; turn off water or gas supply if applicable
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten until snug—do not overtighten
• Inspect/repair stripped threads or damaged mating hardware before installation

This door stop bracket limits how far the appliance door opens. Replacing a worn or bent stop restores proper door swing and helps protect hinges and nearby surfaces from damage. What it does:

• Controls the door's opening range to prevent overextension
• Helps protect hinges and cabinet/adjacent surfaces from impact
• Supports consistent door alignment and smoother operation
• Common symptoms: door swings too far, hits a wall/cabinet, visible wear or broken stop, loud clunk at full open

• 1 door stop bracket

• Disconnect power to the appliance before servicing
• Support the door to avoid hinge strain when removing fasteners
• Note the bracket's orientation; transfer/reuse existing hardware as directed by your IPL
• After installation, verify door alignment and sealing, and test full open/close travel

This name plate is the appliance identification label that displays model, serial and rating information and restores the unit's factory appearance. It helps ensure readable identification for service or resale. What it does

• Replaces a missing, faded or damaged identification label so model and serial info are visible.
• Provides required equipment ratings and manufacturer markings used during diagnostics and parts replacement.
• Restores exterior appearance where the original name plate is worn or peeling.
• Helps technicians and homeowners quickly confirm appliance identity during repairs.

• Name plate (single label)

• Disconnect power to the appliance before attempting installation or working near electrical connections.
• Clean and dry the mounting area; some name plates attach with adhesive while others fasten with screws—use the original hardware if present.
• Avoid bending or creasing the label when aligning it; press firmly to ensure full contact for adhesive-mounted plates.

The Door Handle Mounting Screw is an OEM part for Whirlpool refrigerators. It secures the door handle to the refrigerator door.

Causes of a bad door handle mounting screw can include wear and tear over time, improper installation, or excessive force applied to the handle. These factors can result in a loose or wobbly handle, compromising the functionality and aesthetics of your refrigerator.

Symptoms of a bad door handle mounting screw may include:

• A loose or unstable handle
• Difficulty in opening or closing the refrigerator door
• The handle becoming detached

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is a replacement 8-18 threaded screw used to secure panels and components on compatible Whirlpool appliances. It restores proper fastening where a missing or damaged screw causes loose parts or vibration. What it does

• Fastens panels, brackets, and small assemblies to the appliance frame
• Replaces stripped, corroded, or missing screws that cause rattling or loose components
• Helps maintain proper alignment of panels and controls for safer operation
• Suitable where an 8-18 threaded machine screw is specified by the manufacturer

• One replacement screw

• Disconnect power to the appliance before service to prevent shock or injury
• Use the correct driver to avoid stripping the screw head; do not force mismatched tools
• Tighten until snug — avoid over-tightening which can strip threads or crack plastic
• If replacing multiple fasteners, check mating threads and replace any damaged clips or anchors as needed

This replacement screw fastens panels, brackets, and internal components so they stay secure during operation. Replace worn, rusted, or missing screws to restore a solid fit and help reduce vibration, rattles, and misalignment.

• Secures appliance parts to maintain proper fit and alignment
• Helps reduce noise and vibration from loose panels or trim
• Replaces stripped, corroded, or missing fasteners
• Can resolve issues like rattling, gaps, or shifting components

• Disconnect power; turn off gas/water if applicable before servicing
• Match to the original screw and start threads by hand to avoid cross-threading
• Use the correct driver and tighten snugly; do not overtighten into plastic or thin sheet metal
• Replace additional worn fasteners in the same location if needed for even clamping

Color: Black. For biscuit order 98008169. For white order WP98008544.

This door bumper cushions and stabilizes the appliance door to reduce noise and wear from slamming. It helps the door close smoothly and maintain proper alignment for reliable operation. What it does:

• Absorbs impact to prevent metal-on-metal contact and reduce slamming noise
• Helps the door sit evenly to improve latch engagement and sealing
• Reduces vibration and rattling during operation
• Simple replacement that restores proper door feel and alignment

• Disconnect power to the appliance before starting any repair
• Access the bumper by opening the door; some models may require removing the door or inner panel
• Press or snap the bumper into the locating hole or slot until secure; replace any retaining clips if present

This door bumper cushions the door against the frame to prevent metal-to-metal contact. Replacing a worn or missing bumper restores smooth, quieter closing and helps protect surfaces from chips, scuffs, and vibration.

• Absorbs impact where the door meets the cabinet/frame
• Reduces slamming noise and vibration during closing
• Helps protect paint, glass, and trim from wear
• Typical symptoms: missing/cracked bumper, loud clunk when closing, marks on frame, rattling

• Disconnect power and, if applicable, shut off gas/water; allow hot surfaces to cool
• Open the door to access the bumper location
• Remove the worn bumper and clean the contact area for proper seating
• Install the new bumper fully seated and aligned; test door operation

This replacement door bumper cushions the appliance door to reduce noise, prevent metal-on-metal contact, and protect the door finish. It restores smooth closing when the original bumper is worn, cracked, or missing. What it does:

• Cushions the door edge to prevent hard impacts and reduce slamming
• Dampens vibration and rattling that can occur when bumpers are worn
• Prevents metal-on-metal contact that can scratch or damage the door
• Helps keep the door aligned and closing smoothly

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Typically presses or snaps into a bumper mounting hole; remove the old bumper and press the new one into place.
• Inspect adjacent mounting holes and surrounding trim for damage while installing.
