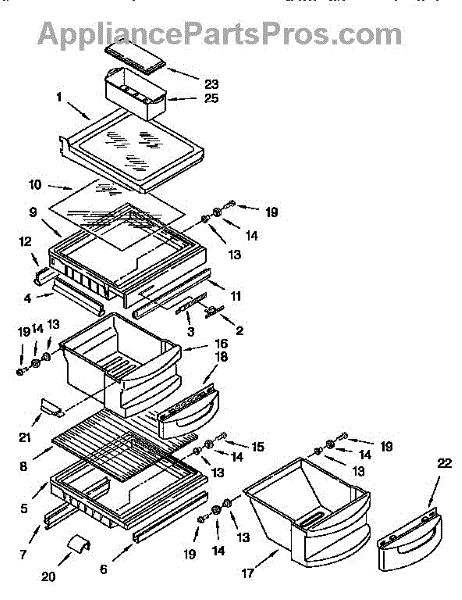

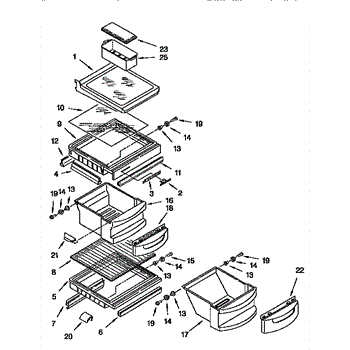

Parts for Kitchenaid KSRP27QBL00: Refrigerator Shelf Parts

Color: White. Size: 17 inches X 15 inches. For frame approx 17 inches X 17 inches order 2161760. Includes the two front roller eyelets, rollers and screws. Does not include glass. For glass order WP2203038.

Color: clear. Measures about 16 inches wide by 14 inches deep.

This 10-16 screw secures panels, brackets, and internal components in your appliance. Replacing a missing or stripped fastener restores a snug fit, reduces vibration and rattling, and keeps parts properly anchored for reliable operation.

• Provides 10-16-thread fastening for sheet metal, plastic, and bracket assemblies
• Direct replacement for a missing, worn, or stripped factory screw
• Helps address loose or rattling panels or covers that won't stay secured
• Supports proper alignment and retention of internal components

• Disconnect power; shut off water and/or gas before servicing
• Match the new screw to the original location and length; replace like-for-like
• Start threads by hand to avoid cross-threading; use the correct driver for the head style
• Tighten snugly; do not overtighten into plastic or thin sheet metal

This refrigerator crisper drawer replaces a damaged or missing produce bin. It restores smooth-sliding, dedicated storage for fruits and vegetables to keep the crisper area organized and easy to use.

• Holds and organizes produce in the refrigerator's crisper compartment; slides on the side rails beneath the crisper cover
• Replace when cracked, warped, or missing
• Common symptoms: broken corners, drawer binds or falls off tracks, or produce can't be stored properly
• Restores proper fit and smooth operation of the crisper section

• Remove food, pull the old drawer out to the stop, lift slightly to clear the rails, and remove
• Align the new drawer on the rails and slide straight in until fully seated
• Let cold plastic warm to room temperature before installation; do not force into place
• If removing shelves or covers for access, handle glass carefully; unplug the appliance if you'll be working near electrical components

This is a replacement 10-16-1 screw used to fasten appliance panels and components. It restores a secure fit for loose or rattling parts so panels and assemblies stay properly aligned during use. What it does:

• Secures panels, brackets, or small appliance components in place
• Helps stop rattling, vibration noise, or loose-fitting parts
• Restores proper alignment for doors, access panels, or internal assemblies
• Matches OEM thread and length for correct fit when replacing worn or missing screws

• Use the correct screwdriver or driver bit to avoid stripping the head
• Hand-start the screw to ensure proper thread engagement before tightening
• Do not overtighten; snug the screw until the part is secure to avoid damage
• Disconnect power to the appliance before accessing internal components

This deflector directs airflow and protects nearby components from heat and debris, helping the appliance maintain consistent performance. It's a small but important trim/air-guide part that keeps internal airflow routed correctly. What it does:

• Guides and redirects airflow inside the appliance to improve circulation
• Shields adjacent components from heat, lint, or debris
• Helps maintain even temperatures and consistent operation
• A worn or damaged deflector can contribute to uneven heating, reduced efficiency, or abnormal airflow noises

• One deflector part

• Disconnect power (and gas if applicable) before servicing
• Use basic hand tools; handle edges carefully—parts may have sharp edges
• Verify correct placement against the service diagram; fasten securely but avoid overtightening

This is the oven meat pan window — a replacement inner glass that restores visibility into the oven cavity so you can check food without opening the door. It fits the meat pan/oven door assembly and helps maintain proper oven operation. What it does:

• Replaces cracked, broken or fogged inner oven door window to restore a clear view of cooking contents
• Helps contain heat and allow safe monitoring of roast or meat pans without opening the door
• Prevents loose glass fragments from falling into the oven cavity when damaged
• Matches OEM form and mounting points for correct fit with the meat pan/door assembly

• One oven door meat pan inner window

• Installation typically requires removing the oven door and/or inner door panel; follow the oven's service manual for the correct disassembly order
• Wear cut-resistant gloves and eye protection when handling glass to avoid injury
• Inspect door seals and mounting hardware during replacement; replace any damaged fasteners or gaskets as needed

Color: clear. It measures about 6 inches wide by 3-1/2 inches high by 15 inches deep.
