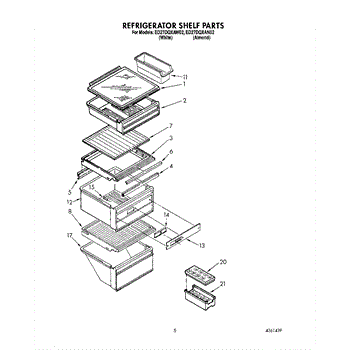

Parts for Whirlpool ED27DQXAN02: 03 - Refrigerator Shelf Parts

The Shelf Frame is an OEM replacement part for Whirlpool refrigerators. It is an internal frame component that provides structure and support for refrigerator shelves. Measures about 17 inches wide by 17 inches deep.

Causes of a bad shelf frame can include damage like dents, bends or cracks that compromise strength. Repeated impact over the lifespan may weaken metal mounting rails.

Symptoms of a bad shelf frame include:

• Shelves that sag, bow or dislodge from their tracks
• Inability to optimally organize refrigerator interiors
• Potential spills if shelves are overloaded
• Restricted access until replacement restores functionality

This OEM Whirlpool part is also compatible with KitchenAid, Jenn-Air, Amana, Magic Chef, and some Kenmore models.

Please note: Does not include glass. For the glass order WP1114687.

Color: clear. Measures about 16-3/4 X 14-1/2 inches.

This is the cover above the refrigerator's meat/deli pan. It supports items placed on the shelf while providing a lid for the drawer below, helping organize contents and maintain proper drawer temperature and humidity.

• Forms the shelf surface over the meat/deli drawer
• Helps the drawer below retain cooler, stable conditions
• Replaces a cracked, bowed, or missing cover that causes poor drawer function
• Common symptoms: shelf sagging, broken frame, drawer won't slide or close smoothly

• Unplug the refrigerator and remove food from the affected area
• Slide out the meat/deli drawer before lifting the old cover straight up and out
• Transfer any removable inserts or trim from the old cover if applicable
• Seat the new cover on the supports and reinstall the drawer

Ice cube/utility container.

This part has been discontinued and is no longer available.

This gray foam filter cushions and protects the appliance display/control board from moisture, dust and debris, helping maintain reliable panel operation and prolong electronic component life. What it does:

• Shields the display/control board from common household moisture, splashes and dust
• Helps prevent debris build-up that can interfere with button/soft-touch operation
• Reduces the risk of shorting or corrosion on exposed board areas caused by contaminants
• Restores intended fit and protection when original panel foam is missing, torn or compressed

• Disconnect power before servicing to avoid shock or damage to electronics
• Replace through the control-panel or inner-door access per your model's service instructions
• Handle foam gently and seat fully around the board; do not use solvents or adhesives unless specified by the OEM

This part has been discontinued and is no longer available.
