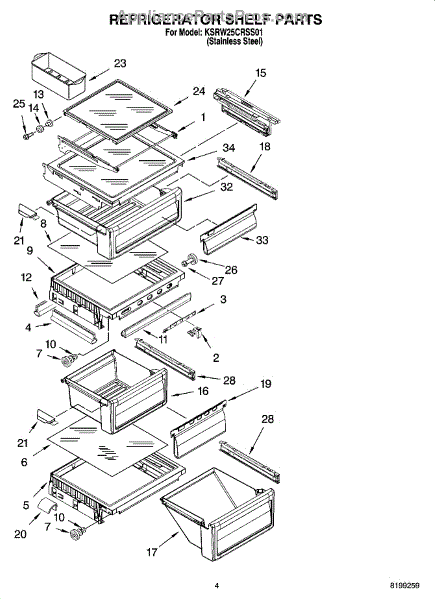

Parts for Kitchenaid KSRW25CRSS01: 03 - Refrigerator Shelf Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

This part may look different than pictured, but it will still fit in your refrigerator and work the same.

This shelf support stud anchors a refrigerator shelf to the cabinet liner so it stays level and secure. Replace a cracked or missing stud to restore proper support and prevent shelves from tilting, slipping, or dropping.

• Locks into the liner wall to provide a mounting point for the shelf frame or bracket
• Keeps the shelf aligned and at the correct height
• Common symptoms: broken/missing stud, shelf won't sit flat, shelf sags or falls on one side
• Helps prevent items from sliding due to an unstable shelf

• Disconnect power; remove the shelf and any items resting on it. Handle glass shelves carefully and consider wearing cut-resistant gloves.
• Remove the damaged stud (release the locking tab or twist out, depending on design).
• Insert the new stud into the existing hole until fully seated and locked.
• Reinstall the shelf and verify it sits level before reloading.

This part may look different than pictured, but it will still fit in your refrigerator and work the same.

Pan-head screw used to secure panels, brackets and trim on Whirlpool appliances. Replacing a damaged or missing screw restores proper fastening to reduce vibration and keep assemblies aligned during operation. What it does:

• Secures panels, brackets and trim pieces to the appliance chassis.
• Stops loose panels from rattling, vibrating or shifting during use.
• Used when the original screw is stripped, corroded or missing.
• OEM replacement that restores the original fastening point.

• Unplug the appliance or shut off power before working on it.
• Use the correct screwdriver or bit to avoid stripping the head.
• Tighten until snug—do not overtighten or force in plastic parts.
• If the original hole or threads are damaged, inspect the surrounding area before reuse.

Comes with two rollers and two eyelets

This crisper pan is the refrigerator's produce drawer. It replaces a cracked or missing bin to restore a clean, dedicated space for fruits and vegetables and smooth slide-in/slide-out access in the fresh food section. What it does:

• Provides a dedicated compartment to organize produce in the fresh food compartment
• Helps contain spills to protect shelves and liners below
• Slides on the factory rails for easy access and removal
• Common failure signs: cracks, chips, warping, staining, or a drawer that won't slide or stay on its tracks

• 1 crisper pan

• Disconnect power to the refrigerator before servicing
• Empty the old bin and slide it straight out of the tracks
• Clean and inspect tracks/rollers for debris or damage before installing
• Align the new pan with the tracks and slide it fully in; do not force

Color: clear. It measures about 6 inches wide by 3-1/2 inches high by 15 inches deep.

The Shelf Stud is an OEM part for Whirlpool refrigerators. It serves as a support peg that holds the refrigerator shelves in place, ensuring they remain stable and properly positioned.

Causes of a bad shelf stud can include wear and tear from regular use, accidental impact that causes the stud to break, or repeated removal and reinstallation of shelves leading to loosening or damage.

Symptoms of a bad shelf stud include:

• Shelves not staying securely in place
• Shelves tilting or collapsing
• Visible cracks or damage to the stud
• Difficulty in inserting or removing shelves

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a rear stud with a screw. For the front stud with screw use part number W11223328. For studs with no screw use kit part number 4388538.

This is a replacement #8-18 screw used to fasten components in compatible Whirlpool appliances. It restores worn or missing fasteners so panels and parts stay securely mounted and function safely. What it does

• Secures panels, brackets, and small appliance components to the frame or mounting points
• Restores proper fit where a stripped, missing, or corroded screw causes rattling or loose parts
• Provides the correct thread engagement to prevent backing out under normal use
• Small fastener intended for interior and light-duty exterior appliance applications

• One #8-18 screw

• Use the matching screwdriver or bit to avoid damaging the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic parts
• Replace any damaged mating clips or inserts for a secure repair
• Disconnect power and follow appliance safety instructions before accessing internal components
