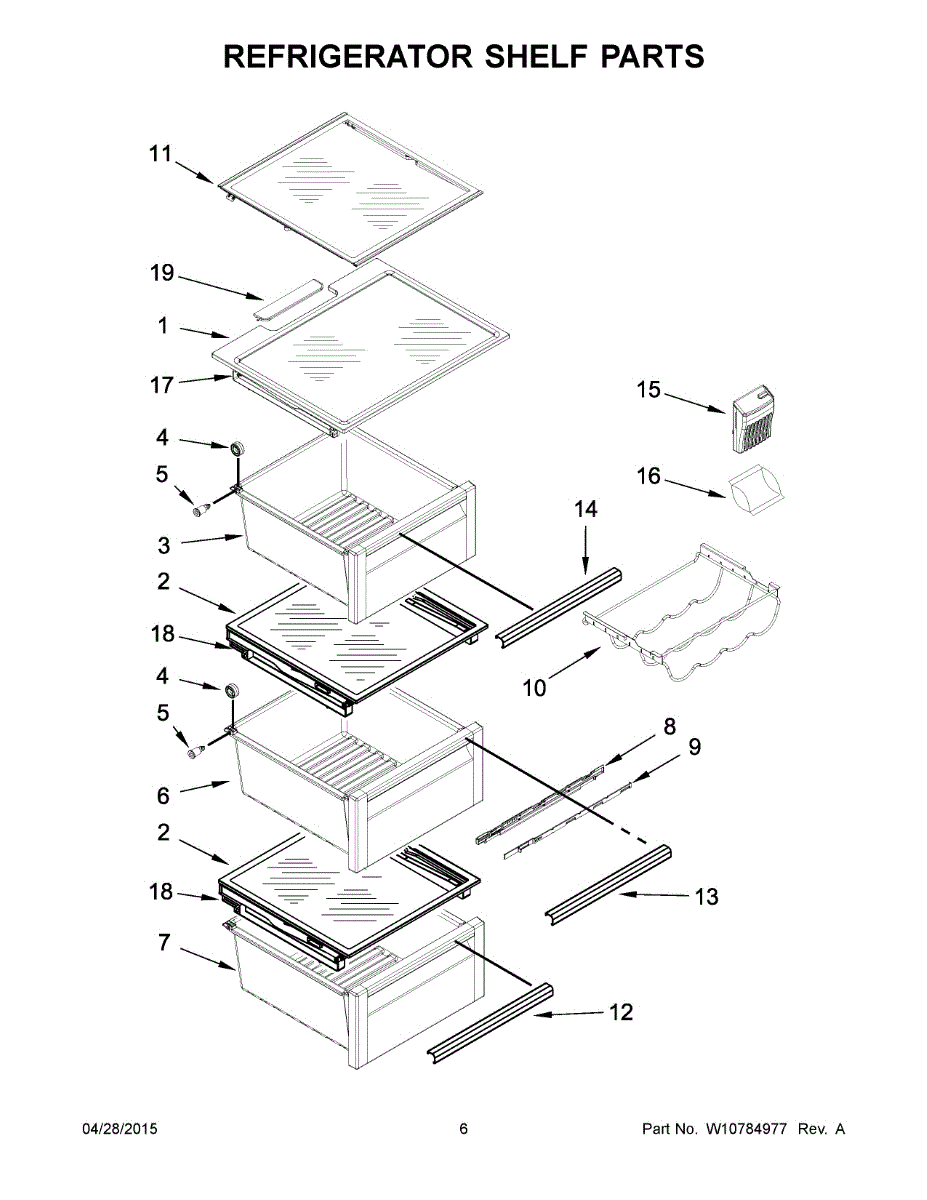

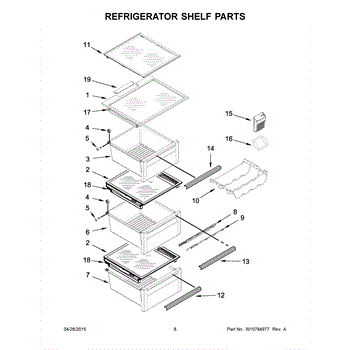

Parts for Kitchenaid KRSF505ESS00: 04 - Refrigerator Shelf Parts

This cover assembly fits over the refrigerator evaporator/drip pan area to protect internal components and help channel defrost water into the drain. It restores proper water flow and prevents pooling under the unit. What it does:

• Protects the evaporator/drip pan and nearby components from debris and accidental contact
• Helps direct defrost and condensation water into the drain to prevent leaks and floor pooling
• Can reduce moisture-related issues that lead to ice buildup or water collecting under the cabinet
• Replaces a damaged, cracked, or missing pan cover to restore normal water management

• One cover assembly (pan) — sold as a single replacement part

• Disconnect power to the appliance before beginning any service
• Remove access panels or shelving as needed to reach the evaporator/drip pan area
• Handle plastic parts carefully to avoid cracks; use proper fasteners and alignment when reinstalling

This refrigerator snack pan is the small-item drawer in the fresh food compartment. Replacing a cracked or missing bin restores smooth sliding access and helps keep deli meats, cheeses, and snacks organized and contained. What it does:

• Provides a dedicated drawer for snacks and small items in the fresh food section
• Slides on the factory rails for easy access and organization
• Helps contain minor spills and prevents items from falling into lower areas
• Common signs it's time to replace: cracked or broken bin, damaged front lip, falls off track, or won't slide smoothly

• 1 refrigerator snack pan

• Remove food; lift the front slightly to disengage the old pan from the rails, then pull straight out
• If needed, remove the glass shelf above for clearance
• Inspect and clean the rails/supports before installing the new pan
• Align the new pan on the rails and slide in until fully seated—do not force

The Drawer Roller is an OEM part for Whirlpool refrigerators, specifically designed to facilitate the smooth and effortless sliding of drawers within the appliance. This small but crucial component ensures that the refrigerator's drawers open and close with ease, allowing for convenient access to fruits, vegetables, meats, and other items stored inside.

Causes of a bad Drawer Roller can stem from wear and tear over time, accumulation of debris or food particles in the roller mechanism, or damage from overloading the drawer beyond its capacity.

Symptoms of a bad Drawer Roller include:

• Drawers sticking or jamming when you try to open or close them
• A grinding or squeaking noise during drawer movement
• The drawer sagging or not aligning properly within the refrigerator

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This pan roller axle fits refrigerator drawers. It's the small support pin that anchors the roller so the crisper or pantry pan glides smoothly. Replacing a damaged axle restores proper glide and keeps the drawer tracking correctly.

• Secures the drawer's roller to the bin or rail so the pan slides smoothly
• Helps keep the crisper/pantry drawer level and properly aligned
• Common symptoms: drawer hard to open/close, sags on one side, scraping/clicking sounds
• Visible damage or a missing axle/roller at the drawer corner

• Unplug the refrigerator, remove contents, and take out the affected drawer
• Locate the broken axle and gently pry/pull it out
• Seat the new axle fully in the mounting hole; ensure the roller spins freely
• Reinstall the drawer and check for smooth operation

Refrigerator crisper pan that replaces a cracked or missing drawer, restoring smooth sliding and organized produce storage in the fresh food compartment. Matches the original bin for a clean fit on the factory tracks.

• Holds fruits and vegetables in the fresh food section to keep items organized
• Designed to slide on the factory crisper rails under the shelf/cover
• Replace if the bin is cracked, chipped, warped, or won't stay on the tracks
• Typical symptoms include sticking, falling off the rails, or food/liquid leaking from damage

• Unplug or switch off power and clear the area for safe access
• Fully extend and lift the old drawer off the tracks to remove
• Clean and inspect the rails/cover; repair or replace damaged supports before installing
• Align and slide the new drawer into the tracks until fully seated

This is the refrigerator compartment deli/meat drawer pan. It replaces a cracked or missing bin so your items store neatly and the drawer slides and functions as intended.

• Provides a shallow storage bin for deli meats, cheeses, and small items in the fresh food section
• Slides on the existing shelf rails for easy access and organization
• Helps keep items contained to minimize spills and crushing
• Replace if the bin is cracked, has broken tabs, won't slide or align on the rails, or is missing

• Disconnect power before servicing; remove food from the area
• Align the drawer with both rails and slide it straight in until fully seated
• If needed, pull the supporting shelf forward slightly to engage the guides
• Handle room-temperature plastic gently; avoid forcing the bin to prevent cracking

This body control is the electronic control board that manages the appliance's main functions and user interface so cycles and features run as commanded. It replaces a failed control board to restore normal control operation. What it does

• Receives input from buttons/knobs and directs cycle start/stop, timers, and feature selection
• Controls power distribution to motors, valves, heaters, and other subsystems through relays and signals
• Helps prevent or indicate errors when the control senses faults or unsafe conditions
• Faulty boards may cause the unit to not respond, fail to start cycles, show unresponsive buttons, or display error codes

• One body control electronic board

• Disconnect all power before accessing or replacing the control to avoid shock or damage
• Handle the board by its edges and avoid static discharge; use an ESD strap if available
• Verify connector orientation and secure all wiring harnesses before restoring power

This replacement slide restores smooth movement and stable support for a drawer or rack guide. It replaces a worn or damaged slide so the rack or drawer tracks properly and reduces sticking or noise during use. What it does:

• Guides and supports a rack or drawer so it moves in and out smoothly
• Helps prevent the rack or drawer from binding, catching, or sagging
• Reduces grinding or scraping noises caused by damaged or worn slides
• Restores proper alignment for secure loading and unloading

• One replacement slide

• Disconnect power to the appliance before beginning work; shut off water supply if the repair affects water connections
• Remove the affected rack/drawer per your model instructions to access the slide
• Compare the old slide to the new part to ensure correct orientation before installing
• Use appropriate hand tools; avoid forcing parts and wear gloves and eye protection

This glass shelf provides a sturdy, easy-to-clean surface for organizing food and containers inside the refrigerator. Replaces broken, chipped, or scratched glass shelves to restore usable storage space and visibility. What it does:

• Supports food, beverages and containers on a flat, tempered glass surface
• Restores a secure shelf after cracks, chips or breakage
• Helps keep refrigerator interior organized and accessible
• Maintains proper airflow when installed in original shelf supports

• Handle with care; glass is heavy and can chip—wear gloves and safety glasses
• Slide shelf into place on existing supports; do not force or flex the glass
• Confirm correct shelf position and support rails before loading with items
• If mounting hardware or supports are damaged, replace them before use

This trim handle replaces a worn or damaged oven door handle trim to restore a clean, finished appearance and a secure grip when opening the oven. It matches OEM fit and finish for a factory look. What it does:

• Covers and finishes the outer edge of the oven door, protecting internal edges from debris and wear
• Provides a finished grip area for opening and closing the oven door
• Helps prevent rough edges or gaps that can collect food and grease
• Restores proper alignment and appearance after damage or corrosion

• One oven door trim handle

• Designed for direct replacement; verify part fits your model before installation
• Follow manufacturer's instructions and disconnect power to the appliance before starting work
• Use proper hand tools and avoid over-tightening fasteners to prevent cracking the trim

This trim pan is an exterior trim panel that restores the finished appearance and helps protect internal components from dust and debris. It provides a clean edge and secures adjacent panels for a finished look. What it does:

• Covers and protects internal openings behind the appliance's trim area
• Secures adjacent trim pieces and maintains a flush, finished appearance
• Helps reduce rattling or gaps caused by damaged or missing trim
• Visible damage, bent edges, or loose fit are common signs it needs replacement

• One trim pan

• Disconnect power (and gas if applicable) before servicing
• Remove surrounding trim or panels as needed to access mounting fasteners
• Handle edges carefully — trim pieces can be sharp
• Reuse original mounting hardware only if undamaged; check alignment before tightening

This trim handle replaces a worn or damaged door trim to restore a finished look and provide a comfortable grip when opening the appliance. It's a direct-fit exterior trim piece designed for cosmetic and functional repair. What it does:

• Covers the door edge and provides a finished appearance.
• Supplies a stable gripping surface to open and close the door.
• Replaces cracked, chipped, loose or missing trim that affects appearance or handling.
• Fits into the existing mounting points and secures to the door assembly.

• Disconnect power to the appliance before beginning work; for refrigerators, unplug the unit.
• Access the mounting area from the inner door panel or as directed by the OEM service manual.
• Use the OEM fasteners and align mounting tabs; do not overtighten screws to avoid cracking the trim.

This sachet holder housing assembly secures single-use detergent or cleaning sachets inside the dispenser so they stay in place and release correctly during cycles. Replacing a cracked or broken holder restores reliable sachet positioning and dispensing. What it does:

• Holds detergent/cleaning sachets in the dispenser so they don't shift or drop into the tub.
• Ensures sachets stay aligned for proper release during the wash or cleaning cycle.
• Helps prevent sachets from rupturing or blocking the dispenser area.
• Common symptoms of a bad holder: sachets falling out, sachets not dispensing properly, or poor wash/cleaning results.

• Disconnect power (and water, if required) before servicing the dispenser area.
• Access the dispenser per the owner's manual; the holder typically snaps into place or secures with a small fastener.
• Handle plastic clips and tabs gently to avoid breakage; use a non-marring pry tool if needed.

The Drawer Slide Rail is an OEM part compatible with Whirlpool refrigerators. This rail provides a smooth sliding mechanism that allows access to drawers such as the vegetable or freezer storage drawers.

Causes of a bad Drawer Slide Rail could include damage or wear over extended use. Drawer components depend on their slide rails functioning properly to open and close smoothly without jamming or catching.

Symptoms of a faulty Drawer Slide Rail include:

• Drawers that are difficult to open and close
• Drawers that do not fully open or extend out
• Excessive noise or vibration coming from drawers

This replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This rail is a direct-replacement support rail used in compatible Whirlpool appliances to restore proper component alignment and movement. It helps maintain smooth operation of the related assembly and prevents excessive wear on connected parts. What it does:

• Provides structural support and guidance for the moving assembly it mounts to
• Keeps panels, drawers or components aligned to prevent binding or uneven wear
• Restores smooth movement when a worn or damaged rail causes sticking or misalignment
• Helps prevent rattling or vibration from a loose or broken support rail

• One replacement rail

• Turn off power to the appliance and follow the manufacturer's safety instructions before starting work
• Use appropriate tools and retain all fasteners; inspect adjacent components while replacing the rail

This rail is a replacement slide that supports and guides a drawer or oven rack so it opens and closes smoothly. It restores proper alignment and stable movement when the original rail is bent, worn, or damaged. What it does:

• Guides a drawer or oven/rack assembly along its track for smooth operation
• Keeps the drawer or rack aligned to prevent sticking or binding
• Replaces bent, cracked, or worn rails that cause uneven movement
• Helps restore secure seating and proper travel of the drawer or rack

• One replacement rail

• High-level replacement: remove the drawer or rack to access mounting screws and swap the damaged rail for the new one
• Use basic hand tools; keep track of screws and mounting clips during disassembly
• Disconnect power and follow manufacturer safety procedures

This oven rail provides stable support and smooth sliding for your oven rack, helping cookware move in and out with less tipping and catching. Replace a bent or worn rail to restore proper rack alignment and function. What it does:

• Guides and supports the oven rack so pans slide evenly
• Prevents rack sagging, binding, or uneven cooking due to misalignment
• Helps reduce tipping when pulling heavy bakeware from the oven
• Works with the oven's existing rollers and rack assemblies

• One replacement oven rail

• High-level: basic hand tools may be required; follow the oven manufacturer's disassembly steps
• Disconnect power to the appliance before starting any repair
• Handle sharp sheet-metal edges and hot components with care
