Estate Washer TAWX700JQ1 Will not agitate or doesn't agitate

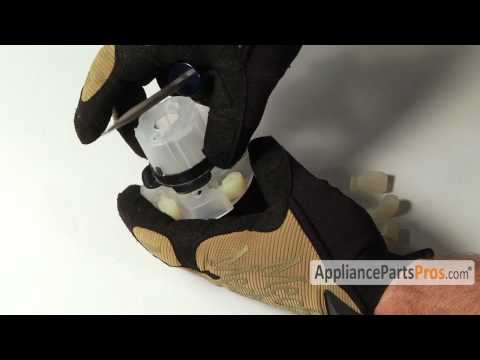

The medium cam agitator repair kit is an OEM part for Whirpool washers. It includes 4 agitator dogs, a medium length cam, a cap seal, a washer for the agitator bolt, and a thrust washer.

Symptoms of a bad part:

• The agitator not working or turning
• Loud grinding or clicking noises during the wash cycle
• Clothes not being thoroughly cleaned or rinsed

Causes of a faulty agitator system can include normal wear and tear over time, exposure to excessive loads or unbalanced loads, or physical damage due to impact or mishandling.

Whirlpool recommends using a small amount of grease with this kit (if no grease is present on the old thrust washer). For the Whirlpool agitator grease, order 350849. For the long cam, order 285748. For the short cam, order 285809.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

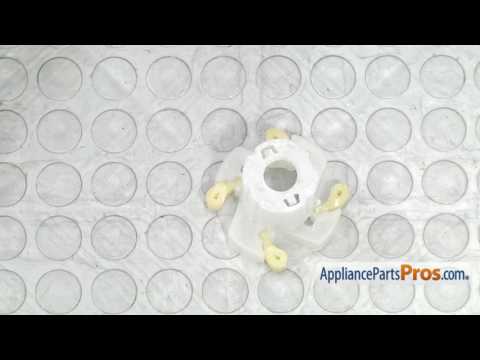

The Washer Agitator Dog set is a set of 4 OEM replacement parts for Whirlpool and Kenmore washing machines, designed to engage the agitator, allowing it to move in one direction and lock in the opposite direction. The agitator dogs also come available in the agitator repair kit WP8537433. Check your model number for compatibility.

Symptoms of failing Agitator Dogs include:

• The agitator not moving
• Only moving in one direction
• Clothes not getting cleaned due to lack of agitation
• Clothes becoming tangled

Causes of bad Agitator Dogs can range from normal wear and tear, which gradually erodes their teeth, making them too smooth to engage the agitator properly, to overloading the washing machine, which puts extra stress on the agitator and accelerates the wear of the dogs.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

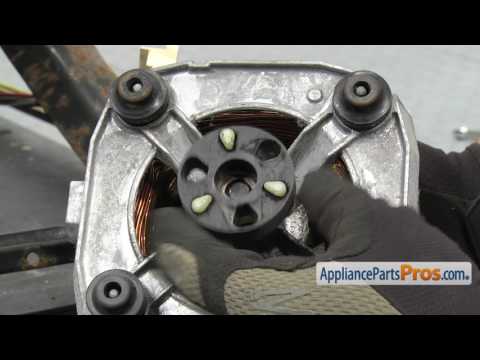

The Direct Drive Washer Motor Coupling is an OEM replacement part for Whirlpool washers. It is responsible for connecting the motor to the transmission, allowing the washer to agitate and spin the clothes during the wash and spin cycles.

A bad motor coupling can be caused by prolonged use, heavy loads, or overloading the washer. It can also wear out or break over time due to normal usage.

Symptoms of a bad motor coupling include:

• The washer not agitating or spinning.
• Unusual noises, such as grinding or rattling, during operation.
• The motor running but the drum not moving.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Thrust Washer is an OEM part for Whirlpool washing machines, specifically designed to reduce friction between the moving parts of the washer's transmission system. This small but crucial component is placed between the rotating and stationary parts, allowing for smooth movement and preventing wear and tear on the transmission.

Causes for a Thrust Washer to fail include regular wear and tear from the mechanical stress of washing cycles, improper alignment or installation that can lead to uneven wear, and the accumulation of debris or corrosion that can interfere with its function.

Symptoms of a bad Thrust Washer include:

• The washing machine makes unusual noises during operation
• The washer struggles to switch between cycles or fails to spin at the correct speed.
• Increased vibration or shaking of the washing machine

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Washer Lid Switch is an OEM replacement part for Whirlpool washers. It is an electronic component located inside the washer lid that detects when the lid is open or closed in order to activate the necessary functions during the wash cycle.

Symptoms of a bad Washer Lid Switch include:

• The wash cycle will not start even when the lid is closed
• Error codes displayed related to the lid being open
• Inability to advance through cycle selections
• Flashes or other improper lid switch behavior

Causes of a bad lid switch can be normal wear and tear over time. Moisture exposure may also contribute to internal component failure.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Clutch Assembly is an OEM replacement part for Whirlpool washing machines. It is a component that is responsible for transferring power from the motor to the transmission, allowing the washer tub to spin during the wash and spin cycles.

Symptoms of a bad Clutch Assembly include:

• The washer tub not spinning or agitating during the wash or spin cycles
• Loud grinding or screeching noises coming from the washer
• Excessive vibrations or shaking during the spin cycle
• The washer failing to start or complete the wash or spin cycles properly

Causes of needing to replace the clutch assembly can include normal wear and tear over time, bearing failure, or physical damage due to impact or overloading.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washer models.

The Transmission is an OEM part for Whirlpool washing machines. This integral component is at the heart of the washing machine's operation, translating the motor's power into action by driving the agitator and spinning the drum.

Regular inspection and maintenance can prolong the life of the transmission, but if these symptoms occur, it may be time to replace this critical component.

Symptoms of a bad Transmission include:

• The washing machine making unusual noises during the wash or spin cycles, such as grinding or whining sounds.
• The washer failing to agitate properly, affecting the cleanliness of the laundry.
• The drum not spinning during the spin cycle, leaving clothes wetter than usual.
• Leakage of transmission fluid beneath the washing machine.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

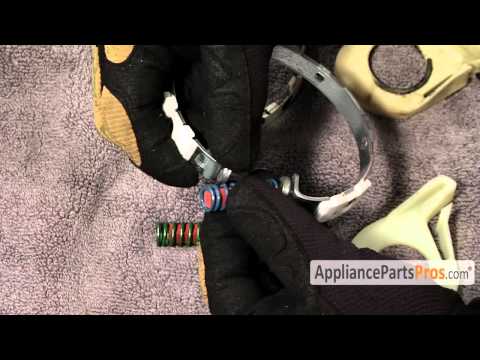

The Clutch Band and Lining Kit is an OEM part for Whirlpool washing machines. It contains the clutch band and clutch lining components essential for proper transmission of power from the washer motor to its drum during the spin cycle. The clutch band and lining allow for a controlled amount of slippage to safely extract water from clothes without damage.

Symptoms of a bad clutch band and lining include:

• Excessive noise or vibration during spin
• Slow or ineffective spinning
• The drum failing to spin or “locking up”
• Premature wear of other transmission parts

Over time and with heavy use, these components can wear down. If slipping or damage is detected, it’s important to replace the kit to avoid potential transmission repairs.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Lid Strike is an OEM part for Whirlpool washing machines. This small yet essential component ensures that the washer lid is securely latched, allowing the machine to operate safely and effectively. The lid strike interacts with the lid switch, enabling the washer to detect when the lid is closed and allowing the washing cycle to proceed.

Over time, the lid strike can become worn out or damaged due to regular use, accidental force, or misalignment. A faulty lid strike can prevent the washing machine from recognizing that the lid is closed, thereby hindering the operation of the machine.

Symptoms of a bad lid strike include:

• The washer not starting or stopping mid-cycle
• Error messages indicating the lid is open when it is closed
• Difficulty in latching the lid securely
• The lid strike appearing broken or misaligned

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

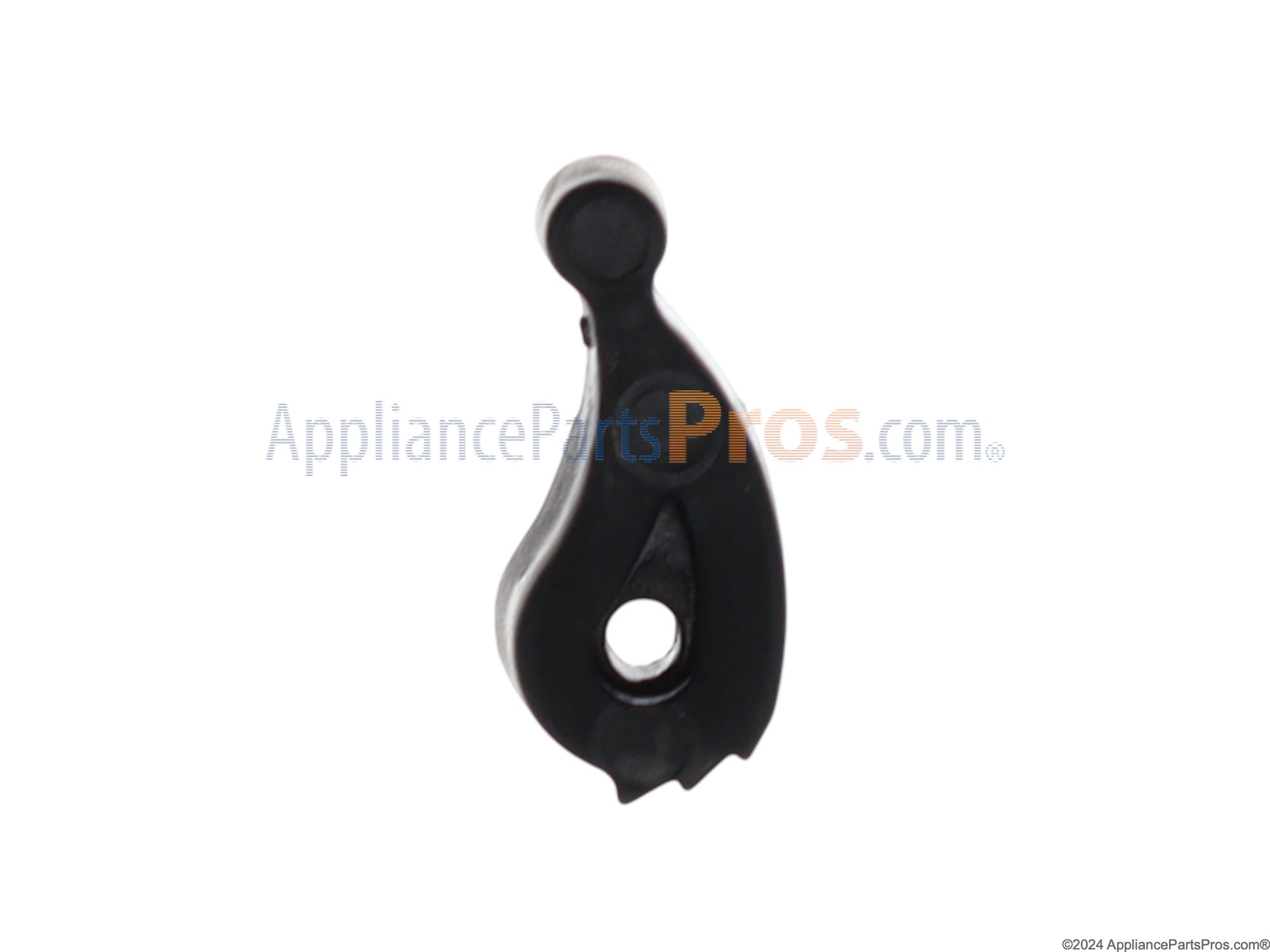

This small bearing supports the driven cam within the mechanism, ensuring smooth rotation and consistent actuation. Replace it if the original bearing wears, cracks, or binds to restore reliable, quieter operation.

• Provides a low-friction pivot point for the driven cam
• Keeps the cam aligned for accurate, repeatable actuation
• Reduces friction, wear, and squeaking/grinding noises from the cam assembly
• Common symptoms include sticking/binding motion, noisy operation, inconsistent actuation, or visible bearing damage

• Disconnect power to the appliance; turn off water supply if applicable
• Access the cam assembly and note the orientation of parts
• Seat the new bearing fully and reuse any original retainers/spacers as required
• Manually rotate the cam to verify smooth movement before reassembly and testing

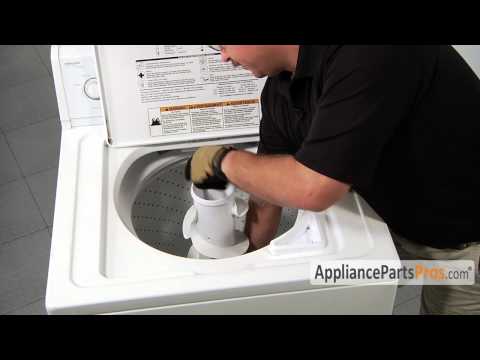

This clothes mover is the upper agitator section in many top-load washers. It ratchets to circulate laundry through the wash bath, restoring proper rollover and cleaning when the original auger becomes cracked, stripped, or slips under load.

• Sits on top of the lower agitator and indexes with each stroke to move clothes through water and detergent
• Helps maintain proper turnover for even cleaning and fabric care
• Typical failure signs: top agitator not advancing, clothes not circulating, or clicking/slipping during agitation
• Visible cracks or rounded internal drive surfaces indicate the part should be replaced

• Unplug the washer and turn off water; wear appropriate safety gloves
• Remove the fabric softener dispenser and inner cap to access the agitator bolt
• Use a suitable socket/extension to remove the bolt, lift off the old clothes mover, seat the new one, and reinstall the bolt/caps securely
• Run a brief cycle to verify proper agitation

Some assembly required.

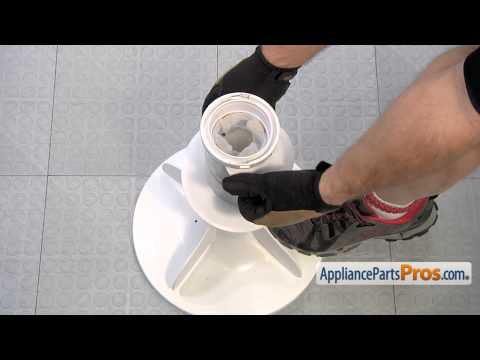

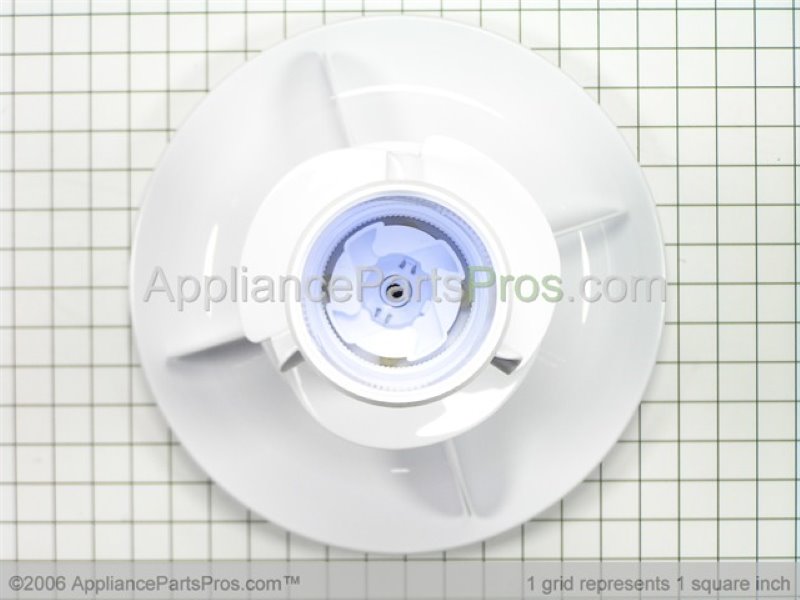

This is a lower part of the agitator. For a complete agitator assembly which includes lower part, agitator mover and agitator dogs, order 285574.

Rubber grommet for motor mount stud.
